Comprehensive Solutions for Versatile Indoor Installations

Primary choice that adequately suits various conditions providing sufficient lighting power

Samsung LEDs a brightly glowing LED light bulb among many turned off ones

Abundant Lighting with Reduced Cost

High lm/$ for proper indoor lighting with adequate brightness at optimal cost

Samsung LEDs a narrow and long fashion store where displays are shone by spot lights

Optional Voltage Selections

Commercial 2835 LEDs with broad voltage selection from 3V to 18V

pd-product-list

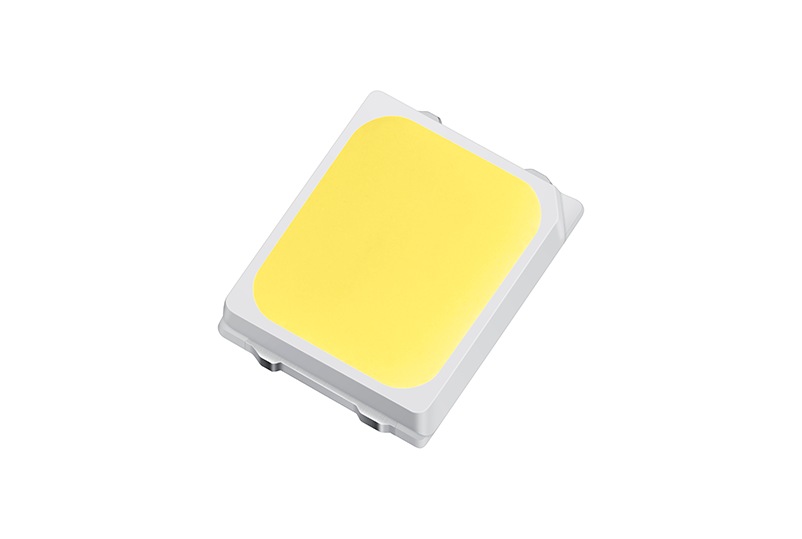

  • Samsung LEDs Mid Power LEDs LM281BA+ (vertical)
    LM281BA+
    • 0.2W, 3V mid power LED
    • Luminous Flux: 26.5 lm @ 60 mA
    • Luminous Efficacy: 150 lm/W
  • Samsung LEDs Mid Power LEDs LM281B+ (vertical)
    LM281B+
    • 0.5W, 3V mid power LED
    • Luminous Flux: 73 lm @ 150 mA
    • Luminous Efficacy: 165 lm/W
  • Samsung LEDs Mid Power LEDs LM282B+ (vertical)
    LM282B+
    • 0.9 W, 6 V mid power LED
    • Luminous Flux: 118 lm @ 150 mA
    • Luminous Efficacy: 128 lm/W
  • Samsung LEDs Mid Power LEDs LM283B+ (vertical)
    LM283B+
    • 0.9 W, 9 V mid power LED
    • Luminous Flux: 120 lm @ 100 mA
    • Luminous Efficacy: 133 lm/W
  • Samsung LEDs Mid Power LEDs LM283BS+ (vertical)
    LM283BS+
    • 0.5 W, 9 V mid power LED
    • Luminous Flux: 61.5 lm @ 60 mA
    • Luminous Efficacy: 113 lm/W
  • Samsung LEDs Mid Power LEDs LM286B+ (vertical)
    LM286B+
    • 0.9 W, 18 V mid power LED
    • Luminous Flux: 85 lm @ 50 mA
    • Luminous Efficacy: 94 lm/W
product list feature
Wattage FORWARD
VOLTAGE
LUMINOUS
FLUX
LUMINOUS
EFFICACY
CONDITION
LM281BA+ 0.2 W 3.0 V 26.5 lm 150 lm/W 5000K, 60 mA, 25°C
LM281B+ 0.5 W 3.0 V 73 lm 165 lm/W 5000K, 150 mA, 25°C
LM282B+ 0.9 W 6.0 V 118 lm 128 lm/W 2700K, 150 mA, 25°C
LM283B+ 0.9 W 9.0 V 120 lm 133 lm/W 2700K, 100 mA, 25°C
LM283BS+ 0.5 W 9.0 V 61.5 lm 113 lm/W 2700K, 60 mA, 25°C
LM286B+ 0.9 W 18.0 V 85 lm 94 lm/W 2700K, 50 mA, 25°C
