SMART CAMERA WB850F

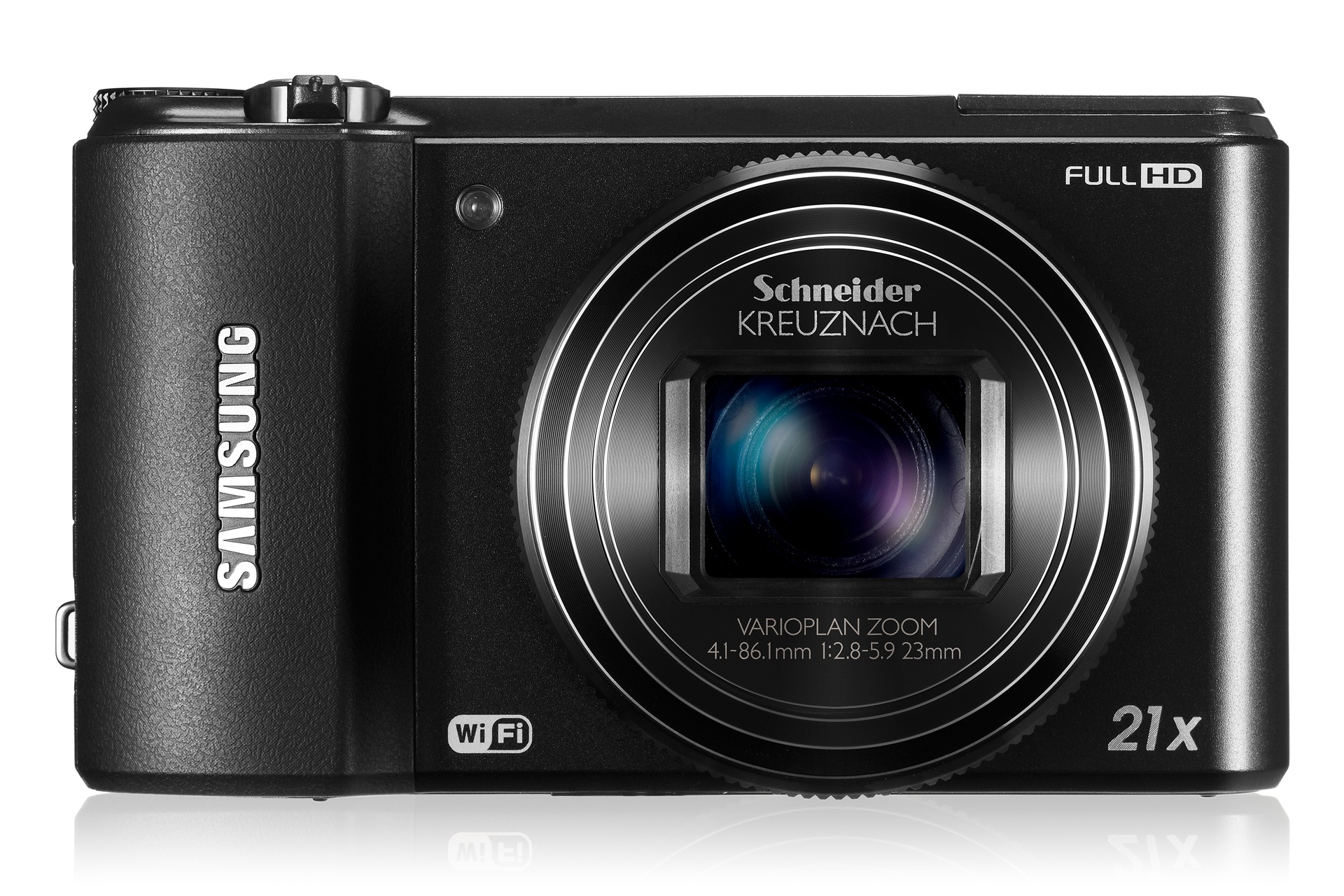

SAMSUNG WB850F

From historic city streets to lush rain forests, the compact Samsung WB850F makes the perfect traveling companion. Though it’s easy to carry, it’s equipped with 21x optical zoom and a 23mm wide-angle lens. Create memorable pictorial travelogues — filled with detailed close-ups and majestic landscapes — that you just can’t wait to share. And you won’t have to. Built-in Wi-Fi connectivity lets you upload images to your favourite social sharing sites from any hotspot around the world. Good thing the WB850F also features GPS functionality that lets you map your location and access real-time location-based information. Get ready to live a smarter life with the WB850F.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Execution Control
Layer Popup Close

SMART CAMERA WB850F

Features

  • Travel smarter with the perfect companion
  • The Samsung WB850F with 21x zoom, Wi-Fi Connectivity and GPS

Expand your range of photo opportunities

Expand your range of photo opportunities
21x Optical zoom , 23mm Wide-angle lens Explore — and capture — the whole wide world with the WB850F. A 21x optical zoom ensures that long-distance photos are sharply rendered. Whether you’re at a zoo or out on safari, take a detailed close-up of a roaring lion from a safe distance. The WB850F also features a 23mm wide-angle lens, which covers a field of view larger than the unaided human eye can see. Capture all the majestic peaks of a mountain range in one snap.

See the bright side of every picture you take

See the bright side of every picture you take
16.2 Megapixels BSI CMOS sensor A tropical sunset, a cityscape at night … perfectly capture dimly lit moments wherever you travel with the WB850F. It features a 16.2-megapixel BSI (Back Side Illuminated) CMOS sensor, which needs less light for proper exposure than conventional CMOS sensors and CCD sensors. So even if a moment is lit only by the moon’s soft white glow, with the WB850F, your photos will be sure to match your memories.

Set your sights on brilliance

Set your sights on brilliance
3.0" VGA AMOLED Display Whether you’re sunbathing on a beach or sightseeing in the middle of the day, bring along the WB850F. Its thin and light 3.0" VGA AMOLED display serves up darker blacks and more vibrant colours than conventional TFT-LCD screens. From any angle, images are sharper, more vivid, and easier to view, even under the glare of the midday sun.

Compact Size; Full HD Power

Compact Size‡ Full HD Power
Full HD Movie Recording Leave your camcorder behind and still create home movies worthy of your 1080p HDTV. In addition to taking professional-quality photographs, the WB850F shoots 1920 x 1080p Full HD video at 30 frames per second, with lifelike colour and extraordinarily sharp details. Plus, its H.264 format allows longer recording than a camera with MJPEG video does, so you can capture more of the action. Then hook up your WB850F to your HDTV, and watch your brilliant HD footage in the comfort of your living room.
Instant Sharing & Saving, simply

Instant Sharing & Saving, simply

Wi-Fi Connectivity With Built-in Wi-Fi capability, you can share any special moment and exciting moment on the move. Send photos by uploading to Facebook™, Picasa™, Photobucket™ or email directly from the camera. You can also upload videos to YouTube then sit back to wait for the raves. The WB850F lets you upload photos to cloud service so never worried about losing the pictures while on the go or losing chance with limited memory size. TV Link feature allows you to wirelessly display your pictures on a large TV screen. You can also save the images to your PC by just one click with Auto Backup feature. No more searching for the cable, it is that easy.

Get full control

Get full control
Full Manual Mode (A/S/M) Full Manual gives you the ability to take complete control and capture the photos exactly as you want them to be. Aperture Priority and Shutter Priority settings let you experiment with shutter speeds and depth of field, so you can shoot fast-moving images in low light. With Samsung cameras, your creativity counts most.
Map it and snap it with built-in GPS

Map it and snap it with built-in GPS

GPS (Live Landmark) Enhance your travels with GPS functionality. Live Landmark, a location-based augmented reality feature, lets you access information about points of interest right in front of you. Need to navigate around town? Download maps and find your way with MapView. Then use the Digital Compass to see which direction you’re facing and how far you are from your destination. To pinpoint the location of a photo you snapped a while back, switch to Photo View, which will mark the spot on the map.
Photo or Video? Dual Capture lets you have both

Photo or Video? Dual Capture lets you have both

Dual Capture The WB850F‘s Dual Capture feature lets you snap up to six 10-megapixel still pictures while recording full HD video. Now you can capture every second of a thrilling long-distance relay on video along with a beautiful still of the winner’s smile — both with incredible detail.

See what you are going to get

See what you are going to get

Live Panorama With Live Panorama, you can capture every peak of a sprawling mountain range or every skyscraper in a magnificent city skyline to create astounding 180º panoramic images. And you can preview the image on the LCD before you even snap it. Just hold the shutter button, sweep across the scene and see what you’re going to get before you get it.
Turn life into an art

Turn life into an art

Artistic Brush Artistic Brush is a fun, new feature that draws on your life. Literally. It can take any portrait, landscape or candid and turn it into a black and white sketch — then colours in the picture as an artist would! Show off The Artist at Work animation on the camera’s LCD to your friends and family.
Show both sides of the story

Show both sides of the story

PIP (Still / Movie) A Picture in Picture Shot lets you iinsert one image or movie within another to capture the full, glorious story you want to share. Snap a picture of a friend bowling a strike, and then combine it with an image of everyone cheering the score.

HDMI

HDMI

Just one HDMI code is all it takes to connect your Camera / Camcorder directly into your TV, computer or DVD player. With Camera / Camcorder, making professional quality videos is just as easy as sharing them.

tech specs

Dimension of EC-WB850FDDBIR

Image Sensor

  • Sensor Type

    CMOS

  • Effective Pixel

    Approx. 16.2 Mega pixels

  • Total Pixel

    Approx. 16.8 Mega pixels

Lens

  • Focal Length

    Schneider-KREUZNACH 21x Zoom Lens f = 4.1 ~ 86.1mm (35mm film equivalent: 23 ~ 483mm)

  • F No.

    2.8 (W) ~ 5.9 (T)

  • digital zoom

    Still Image mode: 1.0X ~ 4.0XPlay mode: 1.0X ~ 9.4X (depends on image size) Smart Zoom 1.33X

SHOW MORE SPECSExpand

Image Stabilization

  • Mode

    DAUL IS (Optical + Digital Image Stabilisation)

Display

  • Type

    AMOLED

  • Size

    3.0"(7.62cm)

  • Feature

    3.0"(7.62cm) VGA ( 640 x 480 ) 614k dots ( PenTile )

Focusing

  • Type

    TTL Auto Focus (Centre AF, Multi AF, Tracking AF, Face Detection AF, Face Recognition AF, Selection AF) * Manual Focus

  • Range

    Normal: 80 cm ~ Infinity (Wide), 350 cm ~ Infinity (Tele) Macro: 10 cm ~ 80 cm (Wide), 150 cm ~ 350 cm (Tele) Auto Macro: 10 cm ~ Infinity (Wide), 150 cm ~ Infinity (Tele) Manual: 10 cm ~ Infinity (Wide), 150 cm ~ Infinity (Tele)

Shutter Speed

  • Shutter Speed

    Smart Auto: 1/8 ~ 1/2,000 seconds, Program: 1 ~ 1/2,000 seconds, Night: 8 ~ 1/2,000 seconds, Manual: 16 ~ 1/2,000 seconds

Exposure

  • Control

    Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure

  • Metering System

    Multi, Spot, Centre-weighted, Face Detection AE

  • Compensation

    ±2EV (1/3EV steps)

  • ISO Equivalent

    Auto, 100, 200, 400, 800, 1600, 3200

Flash

  • Mode

    Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix

  • Range

    Wide: 0.3m ~ 4.96m (ISO auto), Tele: 0.5m ~ 2.35m (ISO auto)

  • Recharging Time

    Approx. 6 seconds

White Balance

  • Mode

    Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom, K

Still Image

  • Mode

    * Mode (Dial): 1) Smart Auto, 2).Program, 3) A / S / M, 4) Scene, 5) MAGIC Plus, 6) Wi-Fi, 7) GPS, 8) Movie* Smart Auto: Portrait, Night Portrait, Night, Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Macro Colour, Natural Green, Blue Sky, Sunset, Fireworks * Scene: Beauty Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach & Snow * MAGIC Plus: Panorama, 3D Photo, Magic Frame, Split Shot, Self Shot, Artistic Brush, HDR, CMM * Panorama: Live Panoram / 3D Panorama / Action Panorama* Wi-Fi: MobileLink, Remote Viewfinder, Social Sharing, email, SkyDrive, Auto Backup, TV Link* Drive: Single, Continuous (8fps, 5fps, 3fps), BKT(WB, AE), Precapture * Self timer: Off, 2 seconds, 10 seconds, Double(10 seconds, 2 seconds)

Image Play

  • Image Play

    Single image, Thumbnails, Advanced Slide Show, Movie Clip, Smart Album, Creative Movie Maker

Date Imprinting

  • Date Imprinting

    Date & Time, Date, Off (user selectable)

Movie Clip

  • Recording

    * Smart Movie: Landscape, Blue Sky, Natural Green, Sunset * Movie Size: 1920 x 1080 (30fps), 1280 x 720 (30fps), 640 x 480 (30fps), WEB (QVGA, 30fps, 30s) * High Speed: 480fps(176 x 128), 240fps (384 x 288)* 18x optical zoom (Max. recording time: 20 minutes)* Audio: Mute, Normal, Sound Alive, Audio Zoom* Dual Capture (Movie 1280p@30pfs & Still 10Mpixels)

  • Effect

    *Smart Filter: Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4, Miniature, Vignetting, Sketch, Fish Eye, Classic, Retro

  • Edit

    Pause during recording and playing, Still Image Capture, Time Trimming

Storage

  • Media

    External Memory: SDSC (up to 2GB guaranteed), SDHC (up to 32GB guaranteed), SDXC (up to 64GB guaranteed)

  • File format

    * Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 * Movie Clip: MP4 (Video: MPEG4, AVC / H.264, Audio: AAC)

  • Image Size

    16M: 4608 x 3456, 14MP: 4608 x 307212MW: 4608 x 2592, 10M: 3648 x 27368M (1:1): 2832 x 28325M: 2592 x 1944, 3M: 1984 x 14882MW: 1920 x 1080, 1M: 1024 x 768

Interface

  • Digital Output Connector

    USB 2.0

  • Audio

    Microphone: StereoInternal Speaker: Mono

  • Video Output

    AV: NTSC, PAL (User selectable)

  • DC power input

    4.2V

Power

  • Power Source
    Type

    Rechargeable battery: SLB-10AConnector Type: micro USB (5pin)

Physical Specification

  • Dimension
    Dimension (WxHxD)

    109.6 x 61.9 x 24.9 (35.1) mm

  • Weight

    226g (without battery and memory card media)

  • Operating Temperature

    0 ~ 40°C

  • Operating Humidity

    5 ~ 85%

S/W and PC OS

  • Bundle PC S/W

    Intelli-studio, Creative Movie Maker, Auto Backup, Map download manager (Download from On-line with iLinker)

  • Compatible OS

    Windows XP SP2 / Vista / 7

System Requirement in general

  • For Macintosh

    Intel Mac or later Mac OS 10.4 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive

  • For Windows

    PC with processor better than Intel Core 2 Duo 1.66GHz / AMD Athlon X2 Dual-Core 2.2GHz or higherMinimum 512MB RAM (Over 1GB recommended) Windows XP SP2 / Vista / 7250MB of available hard-disk space (Over 1GB recommend) USB 2.0 port CD-ROM drive nVIDIA Geforce 7600GT or later / Ati X1600 series or later1024 x 768 pixels, 16-bit colour display compatible monitor (1280 x 1024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later

Wireless

  • Wireless

    MobileLink, Remote Viewfinder, Social Sharing, email, SkyDrive, Auto Backup, TV Link

Support

User Manual

9.21 MB, pdf, ARABIC

2013.01.28

Other Manuals (3)

Software (23)

  • Device(Install)

    Win XP/Vista/Windows 7, 14.14 MB, zip, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, ITALIAN, JAPANESE, RUSSIAN, SPANISH

    Version : 3.1.26.1

    2012.06.18 tooltipbox

    Close tooltip pop-up
    Inteli-Studio version 3.1.26.1
  • Device(Install)

    Win XP/Vista/Windows 7, 1.41 MB, exe, MULTI LANGUAGE

    Version : 1.0.0.5

    2012.04.25 tooltipbox

    Close tooltip pop-up
    This is the Samsung Map Download Manager.
    It would not be necessary to setup after download if you used Samsung Map Download Manager.

    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.
  • Install Guide

    All OS, 0.24 MB, pdf, ENGLISH

    Version : 1.0

    2012.04.25 tooltipbox

    Close tooltip pop-up
    This is the guide to update the WB850F map data.
    To install manually map data, please refer to this guide.

    - It would not be necessary to setup after download if you used Samsung Map Download Manager.
    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.
  • Patch

    All OS, 133.78 MB, zip, ENGLISH

    Version : 120509

    2012.04.25 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the BASE MAP for WB850F. (9. May. 2012)

    [Country]
    All the countries required.

    [Improvement]
    Fixed Arabic error.

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    open market

    4. Description
    - Introducing WB850F map data file, please find the How To Update Guide.
    - It would not be necessary to setup after download if you used Samsung Map Download Manager.
    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.
  • Patch

    All OS, 127.78 MB, zip, ENGLISH

    Version : 1.0

    2012.04.25 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the MAP data for WB850F.

    [Country]
    - AUSTRALIA
    - NEW ZEALAND

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    open market

    4. Description
    - Introducing WB850F map data file, please find the How To Update Guide.
    - It would not be necessary to setup after download if you used Samsung Map Download Manager.
    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.
  • Patch

    All OS, 166.82 MB, zip, ENGLISH

    Version : 1.0

    2012.04.25 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the MAP data for WB850F.

    [Country]
    - VIETNAM
    - THAILAND
    - HONG KONG
    - TAIWAN
    - INDONESIA
    - PHILIPPINES
    - MALAYSIA
    - SINGAPORE

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    open market

    4. Description
    - Introducing WB850F map data file, please find the How To Update Guide.
    - It would not be necessary to setup after download if you used Samsung Map Download Manager.
    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.
  • Patch

    All OS, 94.27 MB, zip, ENGLISH

    Version : 1.0

    2012.04.25 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the MAP data for WB850F.

    [Country]
    - India

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    open market

    4. Description
    - Introducing WB850F map data file, please find the How To Update Guide.
    - It would not be necessary to setup after download if you used Samsung Map Download Manager.
    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.
  • Patch

    All OS, 160.56 MB, zip, ENGLISH

    Version : 1.0

    2012.04.25 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the MAP data for WB850F.

    [Country]
    LATIN AMERICA
    - ARGENTINA
    - BRAZIL
    - PERU
    - VENEZUELA
    - CHILE
    - COLOMBIA

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    open market

    4. Description
    - Introducing WB850F map data file, please find the How To Update Guide.
    - It would not be necessary to setup after download if you used Samsung Map Download Manager.
    - By national policy, Korean map data is possible only from Samsung Map Download Manager,
    and Chinese map is possible only from the bundle CD of the products.

Firmware (4)

  • Upgrade File

    All OS, 59.33 MB, zip, MULTI LANGUAGE

    Version : 210086

    2013.01.08 tooltipbox

    Close tooltip pop-up
    1. Title
    [WB850] The latest F/W (210086)

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    Open Market

    4. Description
    -Other bugs have been fixed.
  • Upgrade File

    All OS, 59.18 MB, zip, MULTI LANGUAGE

    Version : 206276

    2012.07.09 tooltipbox

    Close tooltip pop-up
    1. Title
    [WB850] The latest Firmware (ver.206276)

    2. Applicable Model
    WB850F

    3. Carrier or Corporate Customer
    Open Market

    4. Description

    GPS Firmware update is included in this version.
    After Firmware ver.206276 upgrade, GPS Firmware upgrade will automatically start when turning on the camera, so do not remove neither battery nor memory card during the upgrading process.

    To upgrade firmware by manual please refer to the Upgrade guide attached.

    [ In this Firmware upgrade ]
    - Date imprint setting problem is fixed.
    - WiFi Direct connecting problem with Galaxy S3 is fixed.
    - Connecting problem with WiFi Hidden AP is fixed.
    - WiFi Compatibility and other bugs are fixed.


    [ v205256 version Firmware upgrade ]
    - GPS performance & Battery consumption have been improved.
    - Wi-Fi compatibility has been improved.
    - Russia VK SNS has been add.
    - Other bugs have been fixed.
  • Upgrade guide

    All OS, 1.06 MB, pdf, ENGLISH

    Version : 1.0

    2012.06.13 tooltipbox

    Close tooltip pop-up
    This is a guide for how to upgrade firmware using intelistudio.

    WB850F GPS Firmware update is included in this version.
    After Firmware ver.205256 upgrade, GPS Firmware upgrade will automatically start when turning on the camera, so do not remove neither battery nor memory card during the upgrading process.
  • Upgrade guide

    All OS, 0.08 MB, pdf, ENGLISH

    Version : 1.0

    2012.06.08 tooltipbox

    Close tooltip pop-up
    This is a guide for how to upgrade firmware manually. Please refer to the guide manual attached before trying firmware upgrade through SD card.

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo

Have a question or need product support? Go to our support sectionGo

Similar Items
  • NEWEST
  • MOST HELPFUL
  • HIGHEST RATING
  • LOWEST RATING
