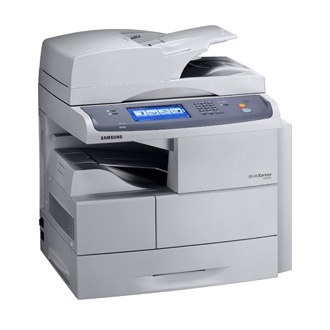

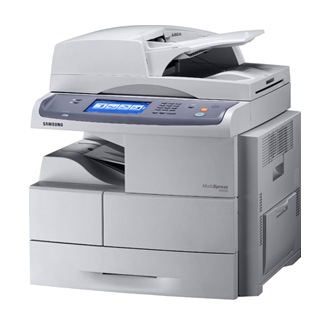

SCX-6555N

SCX-6555N

Imagine a high-speed, high-end A4 DMFP that could centralize your printing workflow. The MultiXpress 6555N delivers fast printouts, but with full multi- function features like duplex and copying. And it features Samsung’s document management solutions like SmarThru and SyncThru. With this digital solution at the centre of your business, you can eliminate your A3 DMFP and maximise your productivity. With Samsung MultiXpress 6555N, it’s not that hard to imagine.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Need more Info?

Request information about Samsung business products, solutions and services. We will contact you shortly.

Email Usb2b.service.my@samsung.comCall UsCustomer Service Enquiry - 1800 88 3399

MAKE A REQUEST

SCX-6555N

Features

  • Fast Copying
  • Wide Touch Screen / UI Design
  • Fast Printing
  • Convenient Design

Wide Touch Screen / UI Design

Wide Touch Screen / UI Design
Samsung’s exclusive 800 x 480 colour wide LCD touch screen and 3-dimensional UI design is very intuitive and easy to use? no manual ortraining required!

Fast Copying

Fast Copying
The MultiXpress 6555N produces 53ppm in black and white. Moreover, the MultiXpress 6555N performs nearly all the copy functions that are generally operated on A3 DMFP.

Fast Printing

Fast Printing
Printing black-and-white document at 53ppm (simplex) and 50ppm (duplex) your workloads can be completed efficiently. The numerous standard printing features help you to print document more easily and efficiently.

Convenient Design

Convenient Design

TCO (Total Cost of Ownership)

TCO (Total Cost of Ownership)
When compared to the TCO of general A3 office copiers the Samsung MultiXpress 6555N’s TCO can result in one of the lowest running costs in its class at an average of 10,000 prints per month [AMPV].

Toner and Energy

Toner and Energy
With the embedded “Toner Save Mode” in the Printer driver, users can save toner by up to 25%. This is ideal for printing draft documents and reports without seeing a dramatic reduction in print quality.

Paper Handling

Adding optional paper trays to store up to 3,240 sheets of paper at one time, reduce the frequency to refill paper.

Paper Jam

If and when a paper jam occurs the device indicates the problem area on the user display so you can simply, open the tray door to remove.

Modular system

The modular design make it easy to replace consumables, adding accessory and/or upgrade package. For example, finisher or memory can be easily slotted onto the main device.

Fast Fax (Option)

The optional fax kit offers speed dial up to 200 numbers, group dial up to 100 groups (up to 200 locations per group), duplex send and receive, fax-email and many other useful features. The duplex function enable the incoming fax be printed double-sided ? save your printing cost!

Space

MultiXpress 6555N’s economical design takes up to 75% less space in your office than general A3 DMFPs so you have more room around you.

Expanded Printing

Capabilities with Hard Disk Solution : The standard 80GB HDD ensures smooth print traffic in a busy office and print environment.

Scan to Anywhere

The MultiXpress 6555N helps to distribute document efficiently by scanning directly to email, FTP, SMB or client.

SyncThru™ Web Admin Service

SyncThru™ Web Admin service allows IT managers to easily manage and monitor all printers / MFPs on the network. The powerful feature permits job accounting, usage metering, authentication, storage management, remote driver installation and modification settings.

SyncThru™ Web Service

It provides administrators with the ability to change network and individual Printer settings, upgrade firmware and view network printer / MFP status.

SmarThru™ Office

In offices with complicated network with a variety of equipment, SmarThru’s document management and editing features provide convenience and ease for users. Network scan is also provided as default.

tech specs

Dimension of SCX-6555N/XSS

  • Function

    Copy, Print, N / W Copy, Print, N / W Print, Colour Scan, Fax (Optional) (Optional)

  • Speed (Mono)

    Simplex : Up to 53ppm in A4 (55ppm in Letter) Duplex : Up to 48ipm in A4 (50ipm in Letter)

  • First Print Out Time (Mono)

    Less than 8 seconds (from Ready mode)

  • Resolution

    Up to 1200 x 1200dpi Effective Output

  • Duplex

    Standard

  • Emulation

    PCL5e, PCL6, PostScript 3, TIFF, JPG, PDF v1.4

  • First Copy Out Time (Mono)

    Less than 5 seconds

  • Multi Copy

    1 ~ 999

  • Zoom Rate

    25 ~ 400% (platen), 25 ~ 200% (ADF)

  • Duplex Copy

    Built-in

  • Copy Features

    ID Copy, Clone Copy, N-up Copy, Poster Copy, Booklet

  • Resolution

    Up to 600 x 600dpi

  • Speed

    Up to 53cpm in A4 (55cpm in Letter)

  • Compatibility

    Twain standard, WIA standard

  • Method

    Colour Faltbed Scanner or DADF

  • Resolution (Optical)

    Up to 600 x 600dpi

  • Resolution (Enhanced)

    Up to 4800 x 4800dpi

  • Scan to

    HDD, USB, Email, Client, SMB, FTP

  • Compatibility

    ITU-T G3

  • Modem speed

    33.6Kbps

  • Resolution

    Mono : Up to 300 x 300dpi
    Colour : Up to 200 x 200dpi

  • Memory

    HDD Store

  • Auto Dial

    Speed dial : 200 Locations

  • Fax Feature

    On hook Dial, Auto Redial, Last Number Redial, Mail Box, Auto Reduction, Multi-send, Delayed Send, Fax forwarding (HDD / Email / Fax)

  • Input Capacity and Types

    520-sheet Cassette, 100-sheet Multi-Purpose Tray

  • Output Capacity and Types

    Up to 500-sheet Face Down

  • Media Size

    98 x 148mm (3.85" x 5.00") ~ 216 x 356mm (8.5" x 14.0")

  • Media Type

    Plain, Thin, Envelopes, Labels, Card Stock, Bond, Archive Punched, Pre-Printed, Recycled, Transparency, Letterhead, Thick, Coloured

  • Capacity

    100-sheet DADF

  • ADF Document Size

    Width :145 ~ 216mm (5.7" ~ 8.5") Length : 145 ~ 356mm (5.7" ~ 14.0") for Single page scan 145 ~ 400mm (5.7" ~ 15.7") for Multi pages scan

  • Display

    800 x 480 7" WVGA Colour Touch-Screen LCD

  • Memory / Storage

    256MB / 80GB HDD

  • OS Compatibility

    Windows 2000 / XP (32 / 64bit) / 2003 Server (32 / 64bit) / Vista / 2008 / 7 / 2008 R2 (64 only), Various Linux OS including Red Hat 8 ~ 9, Fedora Core 1 ~ 4, Mandrake 9.2 ~ 10.1 and SuSE 8.2 ~ 9.2 Mac OS 10.3 ~ 10.5, Citrix Presentation Server, Windows Terminal Services

  • Interface

    Hi-Speed USB 2.0, Ethernet 10 / 100 / 1,000 base TX, USB host 2.0 (Scan to USB, USB print)

  • Noise Level

    Less than 55dBA (Printing) Less than 57dBA (Copying) Less than 37dBA (Standby)

  • Duty Cycle, Monthly

    Up to 250,000 pages

  • Dimension (WxDxH)

    633 x 501 x 642mm

  • Weight

    44.85kg (98.88lb)

  • Yield

    Toner : Average Cartridge Yield 25,000 standard pages.

  • Type

    2-piece Cartridge

  • Model Code

    SCX-D6555A, SCX-R6555A

Resources

Eco-friendly Samsung printing supplies
Brochure

Eco-friendly Samsung printing supplies

Samsung printing supplies ensures optimal-quality of print of Samsung printers and cost-efficiency by reducing hidden expenses and extending the life of printers. Also, its eco-friendliness enables businesses to sustain the environment.

Download pdf
Centralised Printing Solution
Brochure

Centralised Printing Solution

These multi-functional devices introduce a range of high-performing capabilities and convenient functions that make them consistent performers in your workspace, letting you hit targets while saving on operational costs.

Download pdf
BLI Highly Recommended SCX-6555N
BLI Report

BLI Highly Recommended SCX-6555N

This printer was one of several Samsung devices that was "highly recommended" by the well-respected Buyers' Lab Inc (BLI). It has been recommended as the fastest MFP yet, with target users being mid-sized workgroups.

Download pdf
Samsung Universal Print Driver
White Paper

Samsung Universal Print Driver

The Samsung Universal Print Driver is a single driver solution that eliminates the need to install multiple drivers. When installed, it supports all printer brands, providing easy access to multiple printers from one location. Multiple printers are accessed using a search feature, and status information for each printer is also available.

Download pdf

Support

Quick Guide

2.75 MB, zip, ENGLISH

2009.03.30

Software (15)

  • Set IP

    Mac OS 10.4 ~ 10.9, 0.21 MB, zip, MULTI LANGUAGE

    Version : V1.00.05

    2013.10.31 tooltipbox

    Close tooltip pop-up
    SetIP is for the network IP setting using the MAC address which is the hardware serial number of the network printer card or interface. Especially, it is for the network administrator to set several network IPs at the same time.
  • Set IP

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 1.37 MB, exe, MULTI LANGUAGE

    Version : V1.05.06.3.12

    2013.10.31

  • Easy Document Creator

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 19.67 MB, exe, MULTI LANGUAGE

    Version : V1.05.86

    2013.10.31 tooltipbox

    Close tooltip pop-up
    Easy Document Creator is designed to easily scan JPG, PDF, eBook, and other formats to save or upload to an SNS.
  • PC fax Utility

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 10.18 MB, exe, MULTI LANGUAGE

    Version : V1.10.12

    2013.10.31

  • Scan OCR program

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 21.99 MB, exe, MULTI LANGUAGE

    Version : V1.00.14

    2013.10.31

  • SyncThru 6

    Win XP/2003/2008/Vista/Win 7(32/64bit), 208.73 MB, zip, MULTI LANGUAGE

    Version : V6.0.319

    2013.10.31

  • SyncThru 6,Job account plug-in

    Win XP/2003/2008/Vista/Win 7(32/64bit), 4.97 MB, par, MULTI LANGUAGE

    Version : V1.0.1.1.1305031623

    2013.10.31

  • SyncThru 6,SNMP Agent

    Win XP/2003/2008/Vista/Win 7(32/64bit), 27.07 MB, exe, MULTI LANGUAGE

    Version : V6.0.0.286

    2013.10.31

Driver (15)

  • Universal Print Driver

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 21.2 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.12

  • Universal Print Driver,PCL6

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 14.27 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.12

  • Universal Print Driver PS

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 13.63 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.12

  • Printing & Scan Driver

    Linux, 15.44 MB, gz, MULTI LANGUAGE

    Version : V1.00.27.04

    2014.07.10

  • Print Driver

    Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 11.98 MB, exe, MULTI LANGUAGE

    Version : V3.12.26.00:41

    2013.11.11

  • Print Driver,(Post Script)

    Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 10.23 MB, exe, MULTI LANGUAGE

    Version : V2.00.88:15

    2013.11.11

  • Print Driver,(Add Printer)

    Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 33.76 MB, zip, MULTI LANGUAGE

    Version : V3.12.26.00:41

    2013.11.11

  • Smart Panel

    Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 0.01MB, exe, MULTI LANGUAGE

    Version : V1.23.45:14

    2013.11.11
