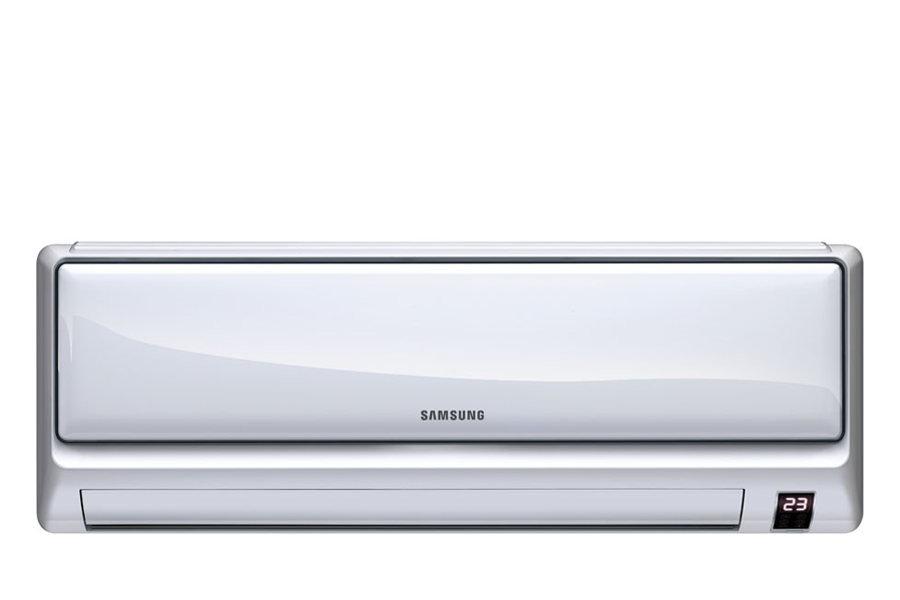

AS09VBNN Front

Sorry! This product is no longer available

Product Features

See All

Specifications

See All

Physical Specifications

  • 825 x 285 x 192mm Net Dimension
  • 117/251/272 Loading Quantity without Pipe (20/40/40Hft)
  • 8.5kg Indoor Gross Weight
  • 24.5kg Outdoor Net Weight
  • 10kg Indoor Gross Weight
  • 26.5kg Outdoor Gross Weight

Electrical Data

  • 840Watts Power Consumption (Cooling)
  • 4 Current Cooling Operating
  • 220 - 240/50/1 Power Source (V/ Hz/Φ)

Performance

  • 9000 BTU/Hours Cooling Capacity
  • 10.71 BTU/W Cooling EER
  • 3.14 W/W Cooling EER
  • 1 l/Hours Moisture Removal
  • 8 Air circulation (Max, ㎥/min)
  • 32/26 dB Noise Level (Indoor High / Low)
  • 46 dB Noise Level (Outdoor High)
Physical Specifications
Dimension
Net Dimension (WxHxD)
Loading Quantity
20/40/40Hft without Pipe
Weight (without battery)
Net Weight (Indoor)
Net Weight (Outdoor)
Gross Weight (Indoor)
Gross Weight (Outdoor)
Performance
Capacity (Cooling, Btu/hr)
Energy Efficiency
EER (Cooling, Btu/W)
EER (Cooling, W/W)
Moisture Removal (l/hr)
Air Circulation (Max, m3/min)
Noise Level
Indoor High/Low
Outdoor High
Electrical Data
Energy Efficiency
Power Consumption (Cooling)
Operating Current (Cooling)
Power Source
Φ/V/Hz
