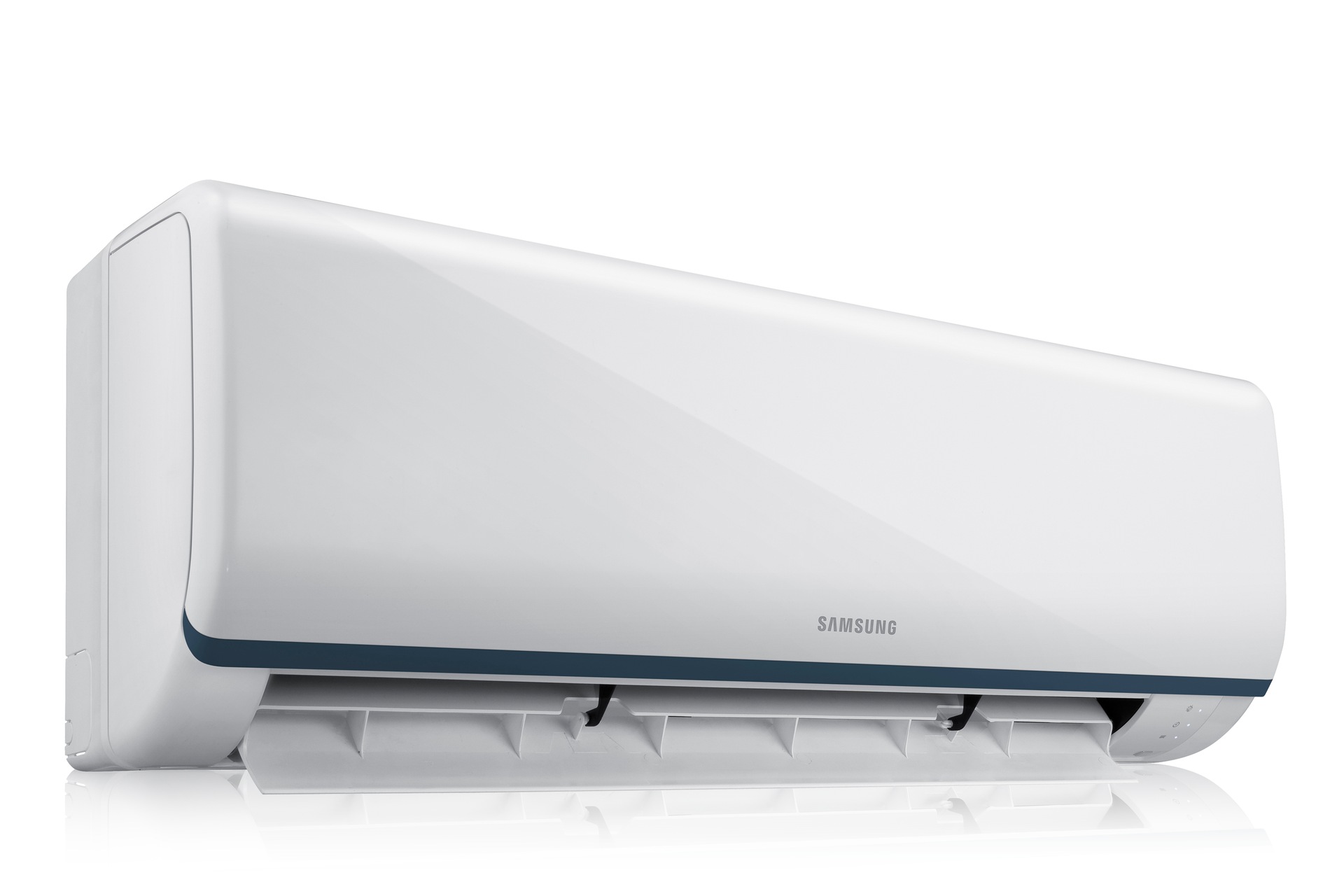

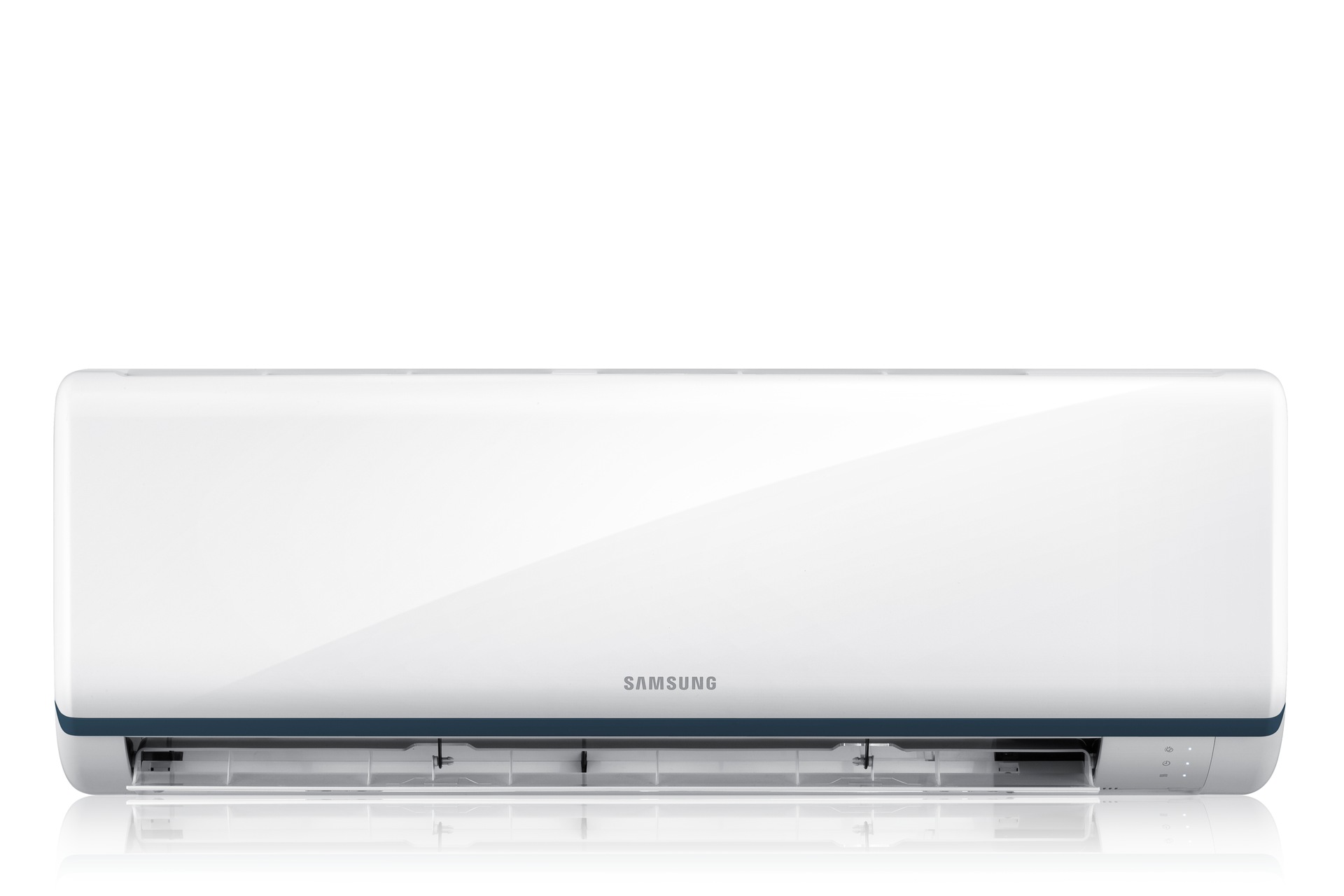

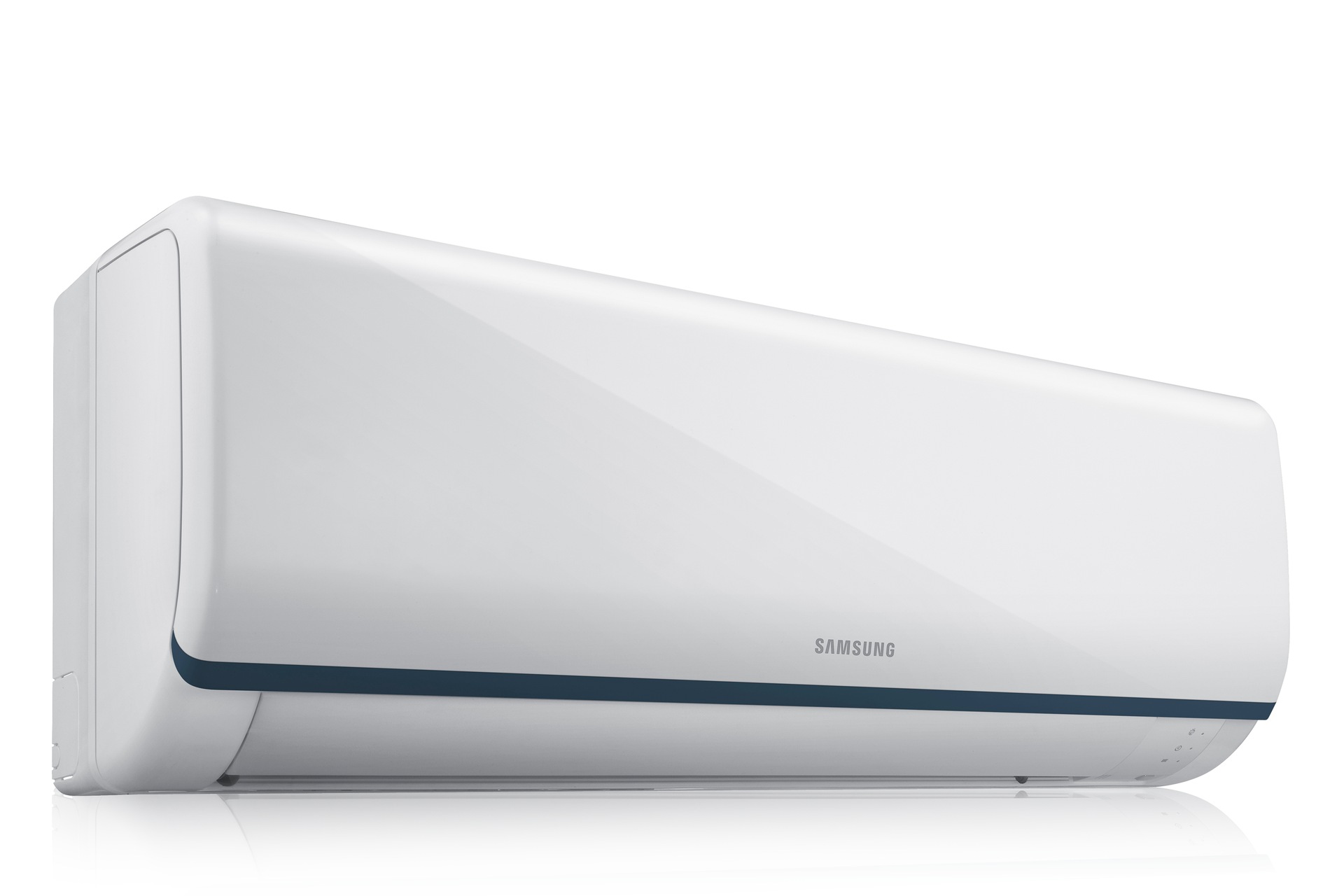

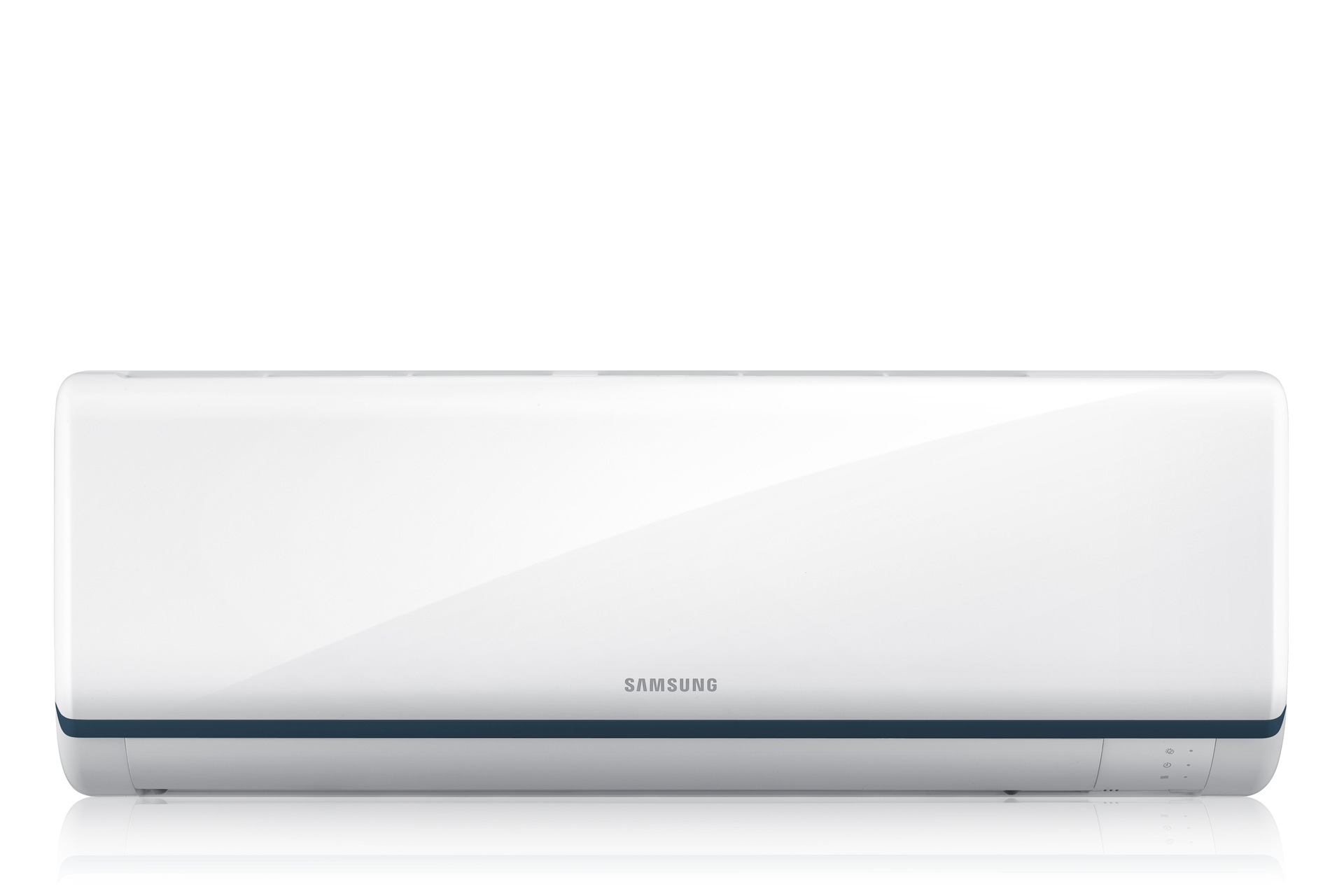

AS09TUQN

Features

  • Rapid Cool down to comfort you as quickly as possible

Inimitable Design in Colour and Style

Inimitable Design in Colour and Style
The elaborately designed Samsung's new air conditioner is a perfect solution for your stylish and modern living room. We guarantee to support your stylish life with peerless beauty of the new air conditioner. Even in severe weather, the air conditioner delivers pleasant cooling all day long in splendid white.

Full HD Filter

Full HD Filter
With Samsung's advanced Full High Density Filter, you can ensure your room is kept fresh and clean. The Full HD Filter offers improved filtration by removing even the smallest microscopic dust particles and transforming polluted air into clean energised air. Filter cleaning gets convenient, too. All you need to do is simply wash out the dirt with flowing water to clean the filter. Always keep your air clean and fresh with simple and easy care of the filter.

Auto Clean

Auto Clean
You might not know it, but an air conditioner can produce mold and spread germs. That’s because the difference between internal and external air temperatures causes moisture to form inside the unit?and moisture equals bacteria. Our solution? Samsung air conditioners feature auto cleaning, which automatically runs the fan even after you turn it off, keeping everything dry and odour-free while preventing germs from spreading.

Dehumidification

Dehumidification
amsung's new air conditioner would not allow your place stay damp and muggy. Samsung's new air conditioner is the most appropriate choice to remove excess moisture from your environment. No need to empty a water bucket for sure!

Turbo Cooling

Turbo Cooling
Samsung's new air conditioner operates in its maximum speed in Turbo mode to quickly reach the set temperature. Cool down your space instantly with Samsung's Turbo Cooling technology.

Low Watt

Low Watt
You no longer have to compromise your comfort to save more money. Samsung air conditioners deliver extreme cooling power ar a lower wattage, ensuring that you save money and energy - without losing any comfort whatsoever. With higher efficiency than conventional air conditioner, you'll see the difference when the bill comes. And you'll feel the difference every time you turn the air conditioner on.

Triple Protector

Triple Protector
Samsung's integrated protection technology offers better durability and reliability. Its powerful cooling system (Engine Protector, constant volt control (Controller Protector), and effective anti-corrosion coating (Fin Protector) allow you to have perfectly fresh cooling air for a longer period of time.

Anti-bacteria coating

Anti-bacteria coating
Due to the anti-bacteria coating's unique structure, this filter can collect tiny dust particles and viruses you cannot even see. Enjoy complete protection from unwanted bacteria so you breathe cleaner, fresher air.
Good Sleep

Good Sleep

Missing out on a good night’s sleep can mean bad news for your day. That’s why Samsung’s Good Sleep feature creates an ideally comfortable climate in your bedroom. With a precise temperature control system and automatic moisture adjustment, all three vital stages of your sleep is protected from humidity and heat so you wake up fully refreshed and ready to take on a new day. Good Sleep not only saves you precious minutes and hours of potentially lost sleep, it also saves up to 36% in energy consumption compared to the normal cooling mode.

tech specs

Dimension of AS09TUQNXEA

Performance

  • Energy Efficiency
    EER (Cooling, Btu/W)

    11.3Btu/W

    EER (Cooling, W/W)

    3.3W/W

  • Moisture Removal (l/hr)

    1.0l/hr

  • Noise Level
    Indoor High/Low

    36 / 26dBA

    Outdoor High

    48dBA

Electrical Data

  • Power Source
    Φ/V/Hz

    1 / 220 - 240V / 50Hz

  • Energy Efficiency
    Operating Current (Cooling)

    4A

    Power Consumption (Cooling)

    800 Watts

SHOW MORE SPECSExpand

Physical Specifications

  • Dimension
    Net Dimension (WxHxD, Indoor)

    820 x 285 x 210mm

    Net Dimension (WxHxD, Outdoor)

    660 x 470 x 240mm

  • Weight
    Net Weight (Outdoor)

    21.5kg

    Shipping Weight (Indoor)

    9.9kg

    Shipping Weight (Outdoor)

    23.6kg

    Net Weight (Indoor)

    7.8kg

Technical Information

  • SVC Valve
    Liquid (ODxL)

    Liquid 6.35mm x 5.00m

    Gas (ODxL)

    Gas 9.52mm x 5.00m

  • Refrigerant Type

    R22

  • Piping Length
    Piping Length (Max)

    15m

  • Piping Height
    Piping Height (Max)

    7m

General Features

  • Air Purification
    S-Plasma ion

    No

    Auto Roof Shutter

    No

    Full HD Filter

    80

    DNA Filter

    No

    Deodorizing Filter

    No

    Catechin Filter

    No

    Allergy Care

    No

    Anti-bacteria Coating

    Yes

    Auto Clean (Self Cleaning)

    Yes

  • Air Flow
    Wide Twin Blade

    No

    Optimal Single Blade

    Yes

    Air Flow Control Step (Cool/Fan)

    4 / 3

    Air Direction Control (Up/Down)

    Auto

    Air Direction Control (Left/Right)

    Manual

    Natural Breeze

    Yes

  • Operating Mode
    dlight Cool

    No

    good sleep

    Yes

    Smart Saver

    Yes

    Turbo Mode

    Yes

    Dehumidification

    Yes

    Auto Mode

    Yes

    Fan Mode

    Yes

    Quiet

    Yes

  • Convenience
    Filter Cleaning Indicator

    No

    Indoor Temp. Display

    No

    Remote controller

    Yes

    Display On/Off

    No

    Beep On/Off

    No

    Real-time Timer

    No

    24-Hour Timer

    Yes

    Auto Restart

    Yes

    Auto Changeover

    No

  • Outdoor Unit
    Compressor Type

    Rotary

    Anti-corrosion Fin

    Yes

    Multi-channel Condensor

    No

  • Low Ambient
    Cooling

    15 - 43°C
