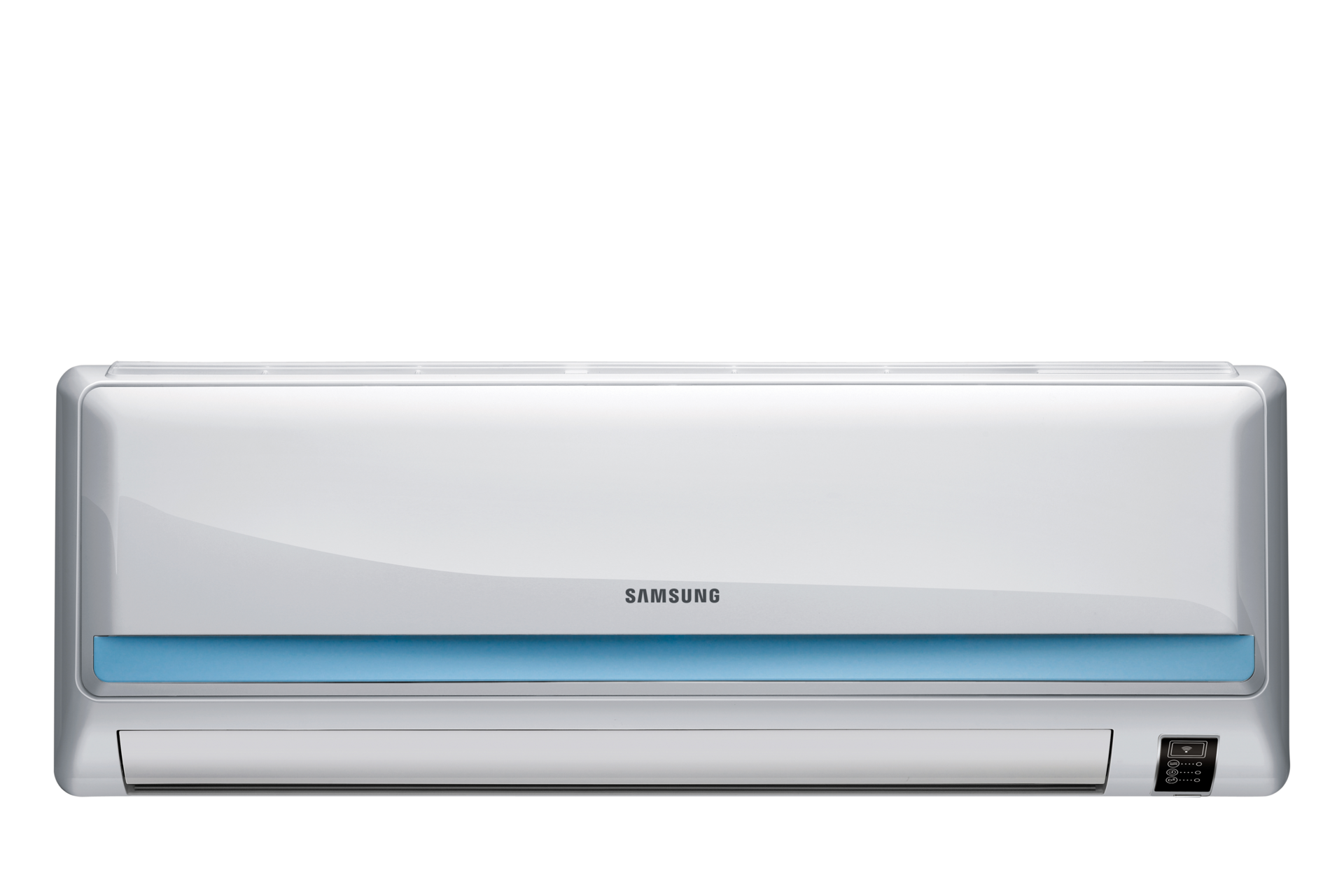

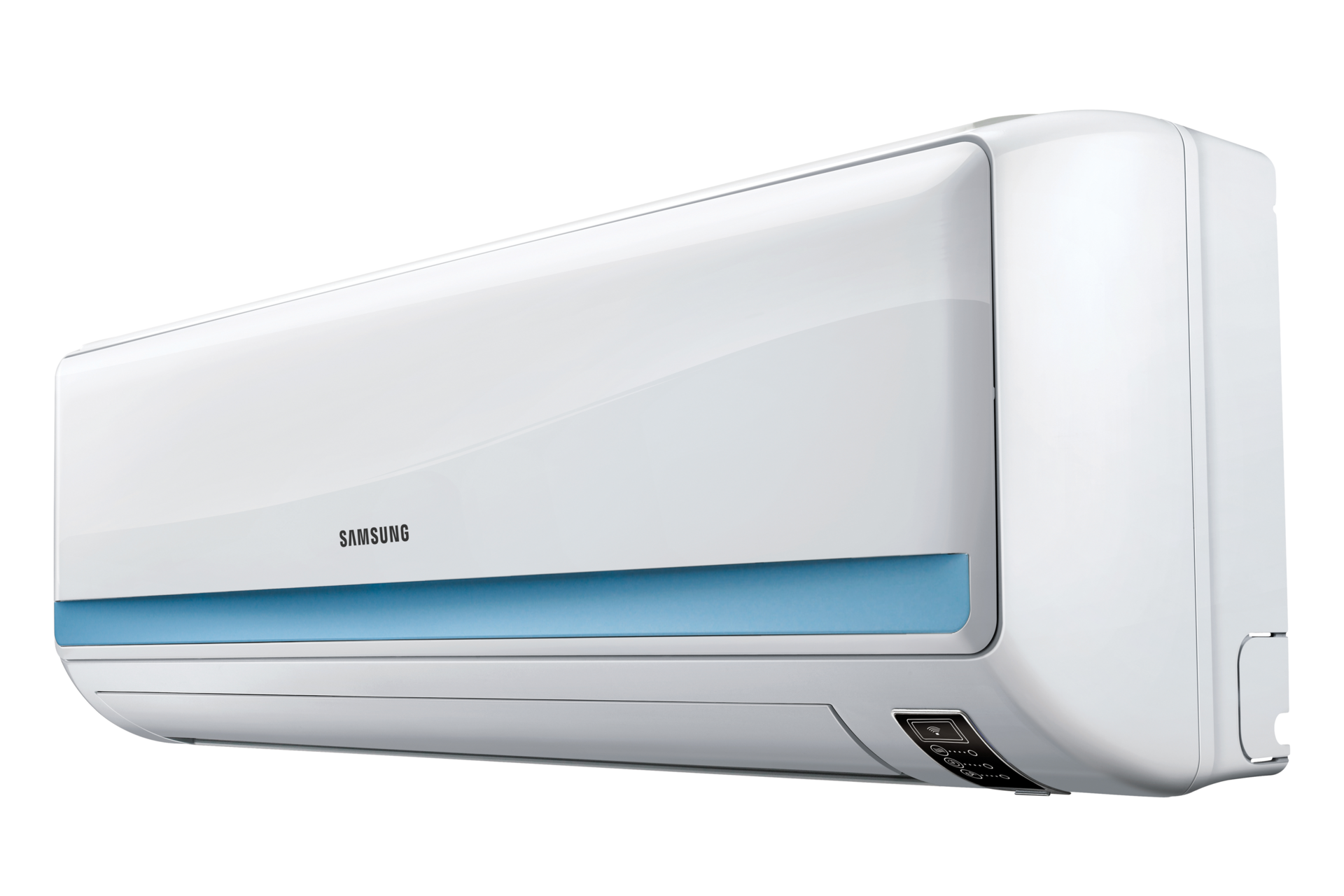

AS09UUQN

AS09UUQN

-Enjoy exceptional cooling power with Samsung air conditioner. Samsung air conditioner quickly cools the room with strong refreshing air. Also its unique technologies prevent waste of unnescessary energy consumprion and control the temperature automatically co you can sleep comfortably throuhout the night.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

AS09UUQN

Features

  • Smart Saver - Up to 31% energy saving
  • Zero Standby Power - Up to 90% energy saving
  • Full HD Filter - Filtrates more dust than conventional

Cooler with Stronger Air Conditioning!

Cooler with Stronger Air Conditioning!
Enjoy exceptional cooling power with the Samsung Max Air Conditioner. Max cools the room faster with strong refreshing air that fills the room quickly. With the touch of a button, experience cool comfort.

Enjoy Comfortable

Enjoy Comfortable
Enjoy Comfortable Air Conditioning with Less Energy. Samsung's high efficiency MAX air conditioner lets you enjoy coolness at minimal cost. Its unique Smart Saver function prevents unnecessary energy consumption and Good SleepnII controls the temperature so that you can sleep comfortably throughout the night. Now enjoy powerful cooling, stay comfortable, and spend less.

Smart Saver

Smart Saver
Smart Saver operates the air conditioner automatically in the least amount of time necessary to cool the room, which saves electricity. In studies, up to 31% of electricity was saved by setting the temperature to 26°C when the outdoor temperature was 30°C.

Upgrade Remote Control

Upgrade Remote Control
Light weight design that fits in the palm of your hand.

Silver Coated pre-filter

Silver Coated pre-filter
Samsung has coated its filter with silver to prevent the spread of bacteria and viruses that can reside in filters. The air is always clean with Samsung.

tech specs

Dimension of AS09UUQNXEA

Performance

  • Capacity (Cooling, Min-Max)
    (min~max)

    No

  • Capacity (Cooling, Btu/hr)
    Btu/hr

    9,000

  • Capacity (Cooling, Kcal/hr)
    Kcal/hr

    2,268

  • Capacity (Cooling, kW)
    Kw

    2.6

  • Capacity (Heating, Min-Max)
    (min~max)

    No

  • Capacity (Heating, Btu/hr)
    Btu/hr

    No

  • Capacity (Heating, Kcal/hr)
    Kcal/hr

    No

  • Capacity (Heating, kW)
    Kw

    No

  • Energy Efficiency
    COP (Heating, W/W)

    N/A

    EER (Cooling, Btu/W)

    11.3

    EER (Cooling, W/W)

    3.3

  • Moisture Removal (l/hr)

    1.0

  • Air Circulation (Max, m3/min)
    m3/min

    8.0

  • Noise Level
    Indoor High/Low

    36/26

    Outdoor High

    48

Electrical Data

  • Power Source
    Φ/V/Hz

    220 - 240/50/1

  • Energy Efficiency
    Operating Current (Cooling)

    4

    Operating Current (Heating)

    N/A

    Power Consumption (Cooling)

    800

    Power Consumption (Heating)

    N/A

SHOW MORE SPECSExpand

Physical Specifications

  • Dimension
    Net Dimension (WxHxD, Indoor)

    728x255x185

    Net Dimension (WxHxD, Outdoor)

    660x475x242

  • Weight
    Net Weight (Outdoor)

    21

    Shipping Weight (Indoor)

    8

    Shipping Weight (Outdoor)

    23

    Net Weight (Indoor)

    6

Technical Information

  • SVC Valve
    Liquid (ODxL)

    Φ6.35mm

    Gas (ODxL)

    Φ9.52mm

  • Refrigerant Type

    R22

  • Piping Length
    Piping Length (Max)

    15

  • Piping Height
    Piping Height (Max)

    7

General Features

  • Air Purification
    S-Plasma ion

    No

    Auto Roof Shutter

    No

    Full HD Filter

    60

    DNA Filter

    No

    Deodorizing Filter

    No

    Catechin Filter

    No

    Allergy Care

    No

    Anti-bacteria Coating

    Yes

    Auto Clean (Self Cleaning)

    Yes

  • Air Flow
    Wide Twin Blade

    No

    Optimal Single Blade

    Yes

    Air Flow Control Step (Cool/Fan)

    4

    Air Direction Control (Up/Down)

    Auto

    Air Direction Control (Left/Right)

    Manual

    Natural Breeze

    Yes

  • Operating Mode
    dlight Cool

    No

    good sleep

    Yes

    Smart Saver

    Yes

    Turbo Mode

    Yes

    Dehumidification

    Yes

    Auto Mode

    Yes

    Fan Mode

    Yes

    Quiet

    No

  • Convenience
    Filter Cleaning Indicator

    No

    Indoor Temp. Display

    No

    Remote controller

    Yes

    Display On/Off

    No

    Beep On/Off

    Yes

    Real-time Timer

    No

    24-Hour Timer

    Yes

    Auto Restart

    Yes

    Auto Changeover

    No

  • Outdoor Unit
    Compressor Type

    ROTARY

    Anti-corrosion Fin

    Yes

    Multi-channel Condensor

    No

  • Low Ambient
    Cooling

    15 - 43

    Heating

    N/A
