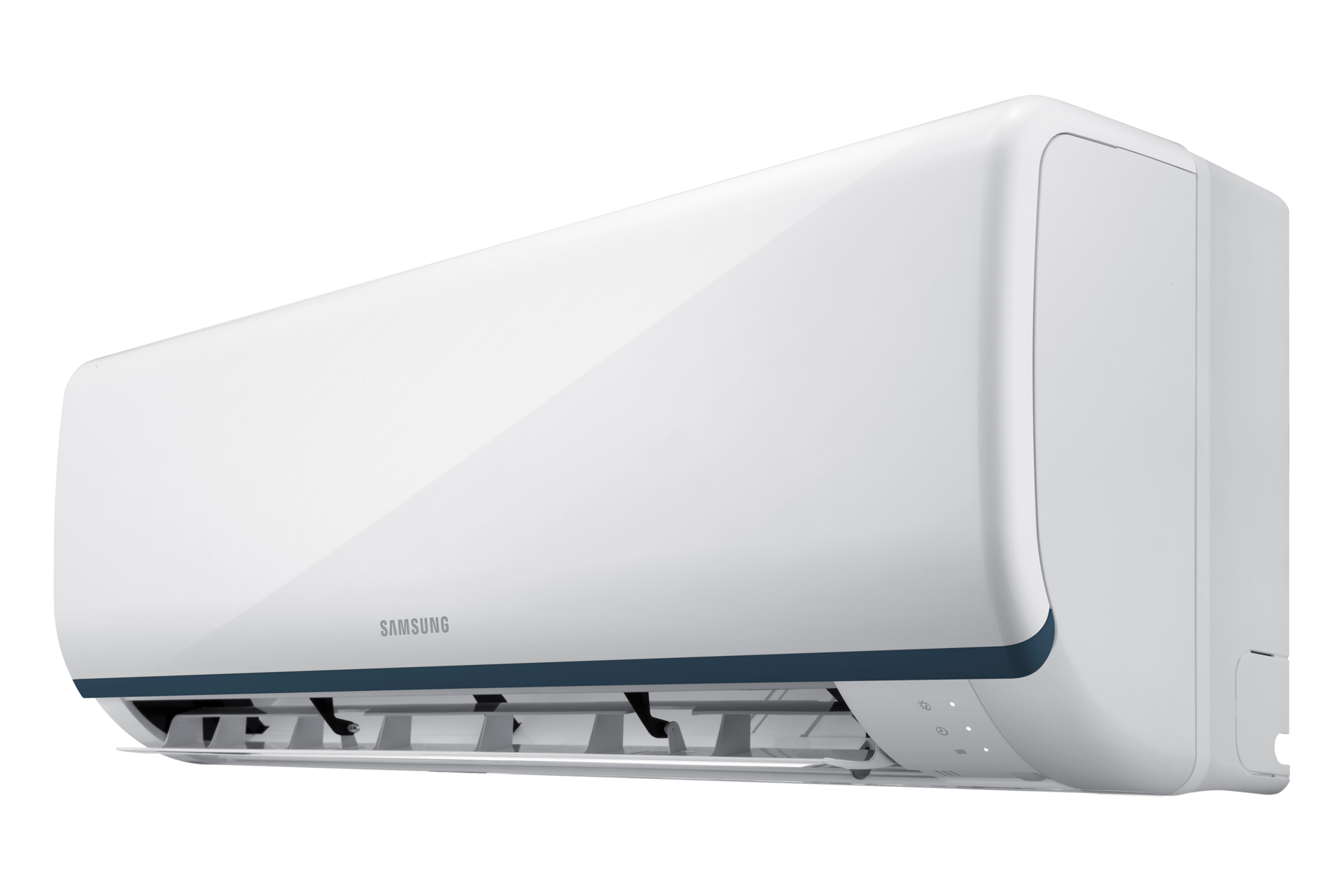

AS18TULN Front

Sorry! This product is no longer available

Product Features

See All

Specifications

See All

Performance

  • 18,000 BTU / Hours Cooling Capacity
  • 5.3kW Cooling Capacity
  • 2 l / Hours Moisture Removal
  • 14 Air circulation (Max, m³/min)
  • 40/32dB Noise Level (Indoor High)
  • 52dB Noise Level (Outdoor High)

Technical Information

  • SVC valve (liquid, OD x L) Φ6.35mm
  • SVC valve (gas, OD x L) Φ12.7mm
  • 15m Piping Length (Max)
  • 8m Piping Height (Max)

Electrical Data

  • 9 Current Cooling Operating
  • 1,850 Watts Power Consumption (Cooling)
Performance
Capacity (Cooling, Btu/hr)
Btu/hr
Capacity (Cooling, kW)
Kw
Moisture Removal (l/hr)
Air Circulation (Max, m3/min)
m3/min
Noise Level
Indoor High/Low
Outdoor High
Electrical Data
Energy Efficiency
Operating Current (Cooling)
Power Consumption (Cooling)
Technical Information
SVC Valve
Liquid (ODxL)
Gas (ODxL)
Piping Length
Piping Length (Max)
Piping Height
Piping Height (Max)
