943NW

943NW

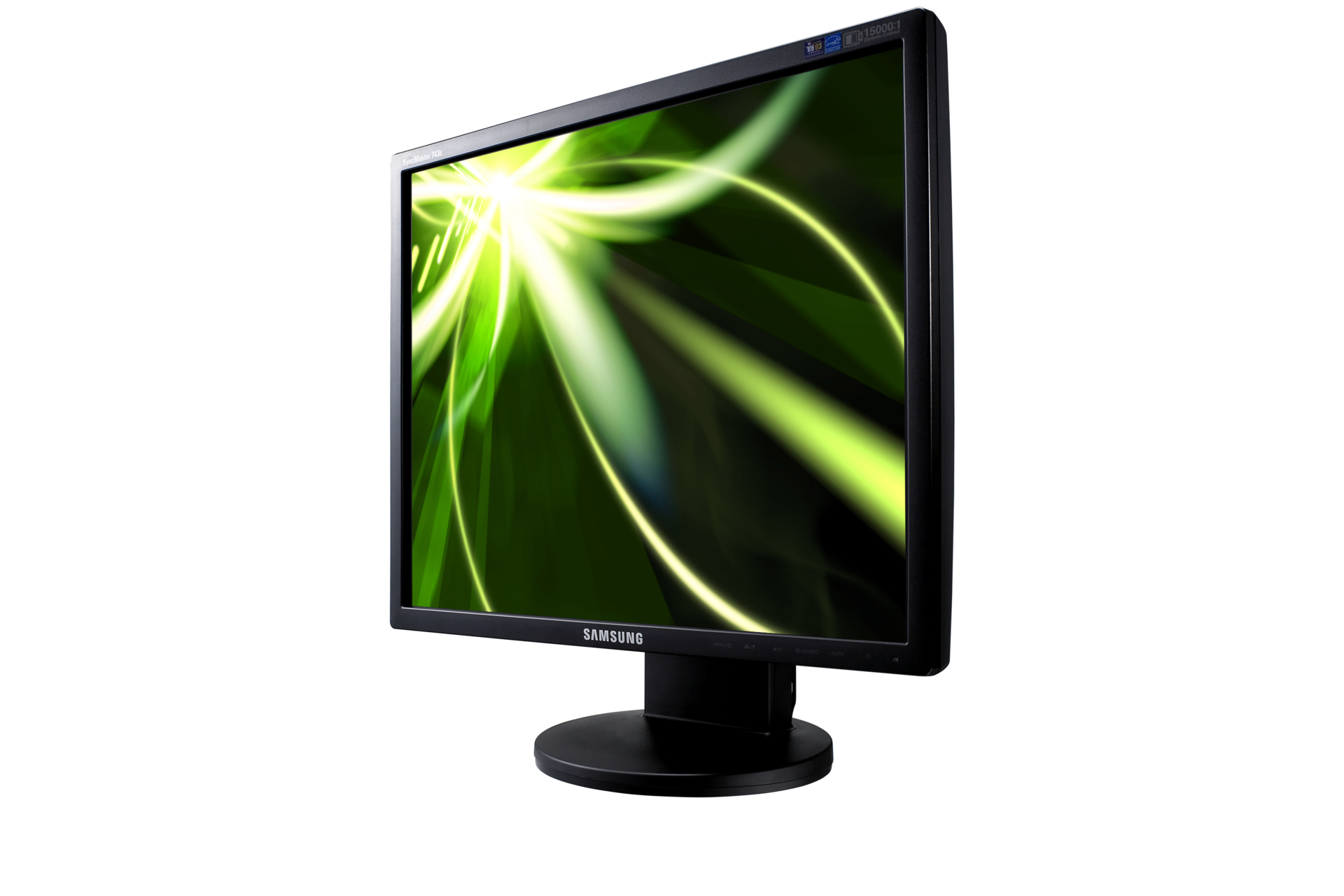

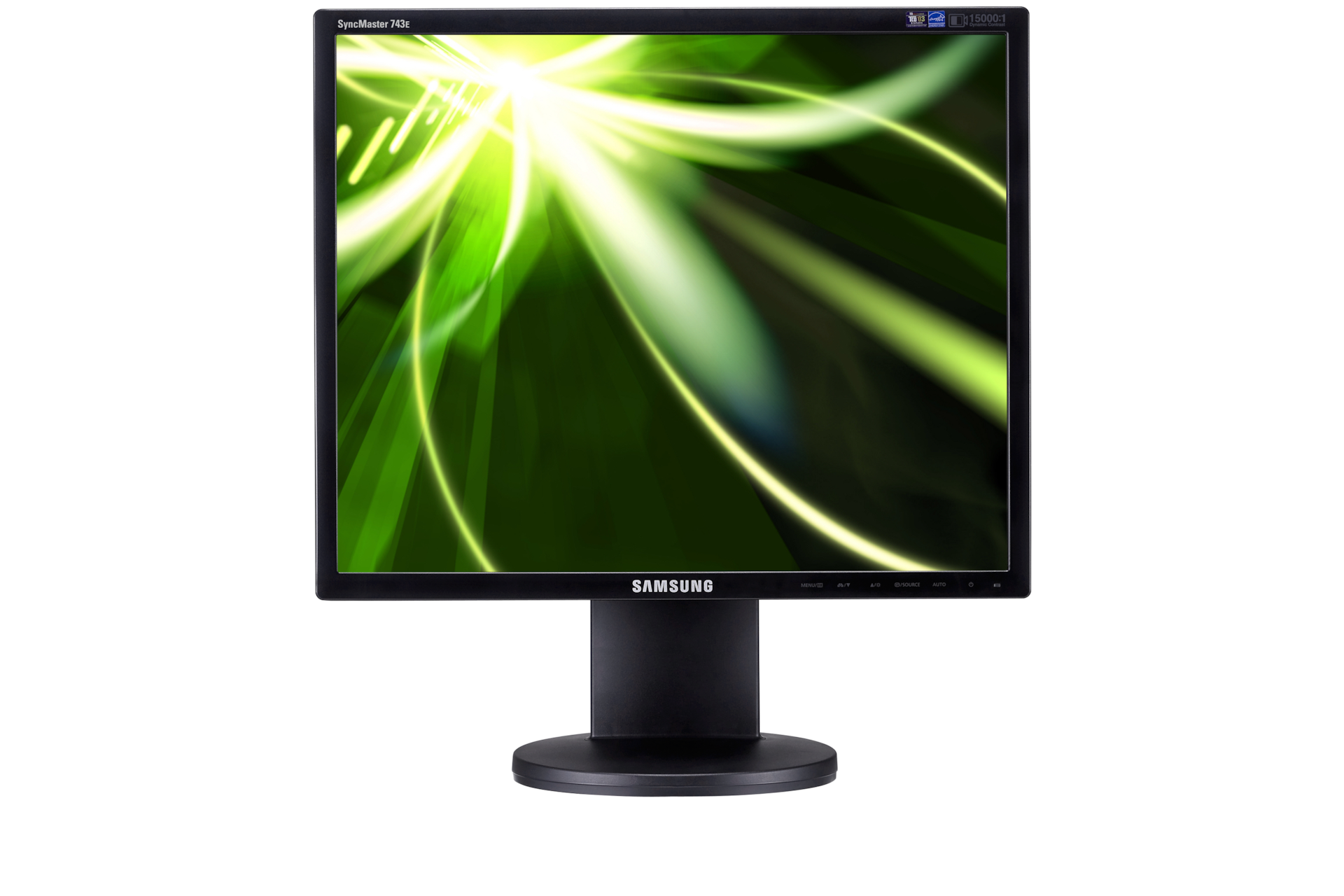

943NW To promote workplace efficiency, SAMSUNG has created a range of monitors which allow users greater freedom and flexibility to create their optimum working environment. Elegant and slim, with superior technical specifications and outstanding features, the monitors promote productivity and provide empowerment.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

943NW

Features

  • imagine an optimised office environment

ergonomics HAS stand

ergonomics HAS stand
943NW provides with many adjustable movements for better ergonomics. It's the best solution of the official user to fit the position of the working environment. It supports not only 80mm as the height adjustment range and Pivot but also the implementation of Lowest HAS.

Magic Rotation

Magic Rotation
The MagicRotation Software from SAMSUNG's own technology provides the user with a rotation feature (90 orientation) that facilitates the optimum utilisation of computer display screen. It Rotate the Monitor and then manually rotate the contents with control of MagicRotation.
fast response time 5ms

fast response time 5ms

It supports fast response time reducing the blurring effect - the best solution for entertainment.

Colour effect

Colour effect
- Enjoy the picture as customer's favour: photographic effect. - Supports 4 colour effect: Grayscale, Green, Aqua, Sepia.

vivid & clear image

- Vivid image quality with high brightness (300cd/m²). - High Dynamic contrast ratio (8,000:1). - With high Dynamic Contrast, you can enjoy more vivid and clear quality of multimedia contents.
HDCP

HDCP

- DVI interface delivers video images with high resolution and essentially perfect quality. - You can enjoy digital contents with DVI interface (HDCP supported).

Energy Saving Function

- Save Energy consumption and Prolong monitor life-time. - Monitor can be turned off automatically at the specified time (1~23h).

Customised Key Function

- Selectable Button by User's preferences. - 3 options to select ( MagicBright, MagicColor, Colour Effect).

adjustable image size

- No more image distortion and Enjoy original 4:3(5:4) images with Wide Monitor. - With this function, you see the clear and right images.

tech specs

Dimension of LS19MYNKBB/XME

Display

  • Screen Size

    19" Wide

  • Resolution

    1440 x 900

  • Viewing Angle (Horizontal/Vertical)

    170˚/160˚ (CR>10)

  • Color Supported

    16.7 M

Panel

  • Brightness

    300 cd/㎡

  • Contrast Ratio

    DC 8000:1(1000:1)(Typ.)

  • Response Time (G-to-G)

    5ms

SHOW MORE SPECSExpand

Signal Input

  • Video Signal

    Analog RGB

  • Sync. Signal

    Separate H/V, Composite, SOG

  • Connector

    15pin D-SUB

Power

  • Power consumption

    34Watts

  • Type

    Built-in

Features

  • Plug & Play

    DDC 2B

  • Multimedia Speakers

    No

  • Special Features

    MagicBright3, Off timer, Image Size Colour Effect,Customised key, MagicWizard & MagicTune with AssetManagement,Windows Vista Basic, Safe Mode(DownScaling in UXGA)

  • USB powered hub option

    No

  • Mac compatibility

    Yes

  • Wall Mount

    VESA 75mm

  • TCO

    TCO'03

  • Cabinet Color

    Black

Dimension

  • Set Dimension with Stand (WxHxD)

    439.0 x 368.0 x 185.0mm

  • Set Dimension without Stand (WxHxD)

    439.0 x 290.0 x 68.4mm

  • Shipment Dimension (WxHxD)

    512 x 131 x 367mm

Weight

  • Package Weight

    5.1 kg

Design

  • Stand Function

    Tilt

  • Stand Type

    Simple

Support

User Manual

6.22 MB, pdf, CHINESE(Simplified)

2009.06.04

Other Manuals (3)

Driver (1)

  • VGA(Graphics)

    Win 98/ME/2K/XP/X64/Vista, 0.06 MB, exe, MULTI LANGUAGE

    Version : 1.0

    2007.10.26 tooltipbox

    Close tooltip pop-up
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64 or higher
