245B

245B

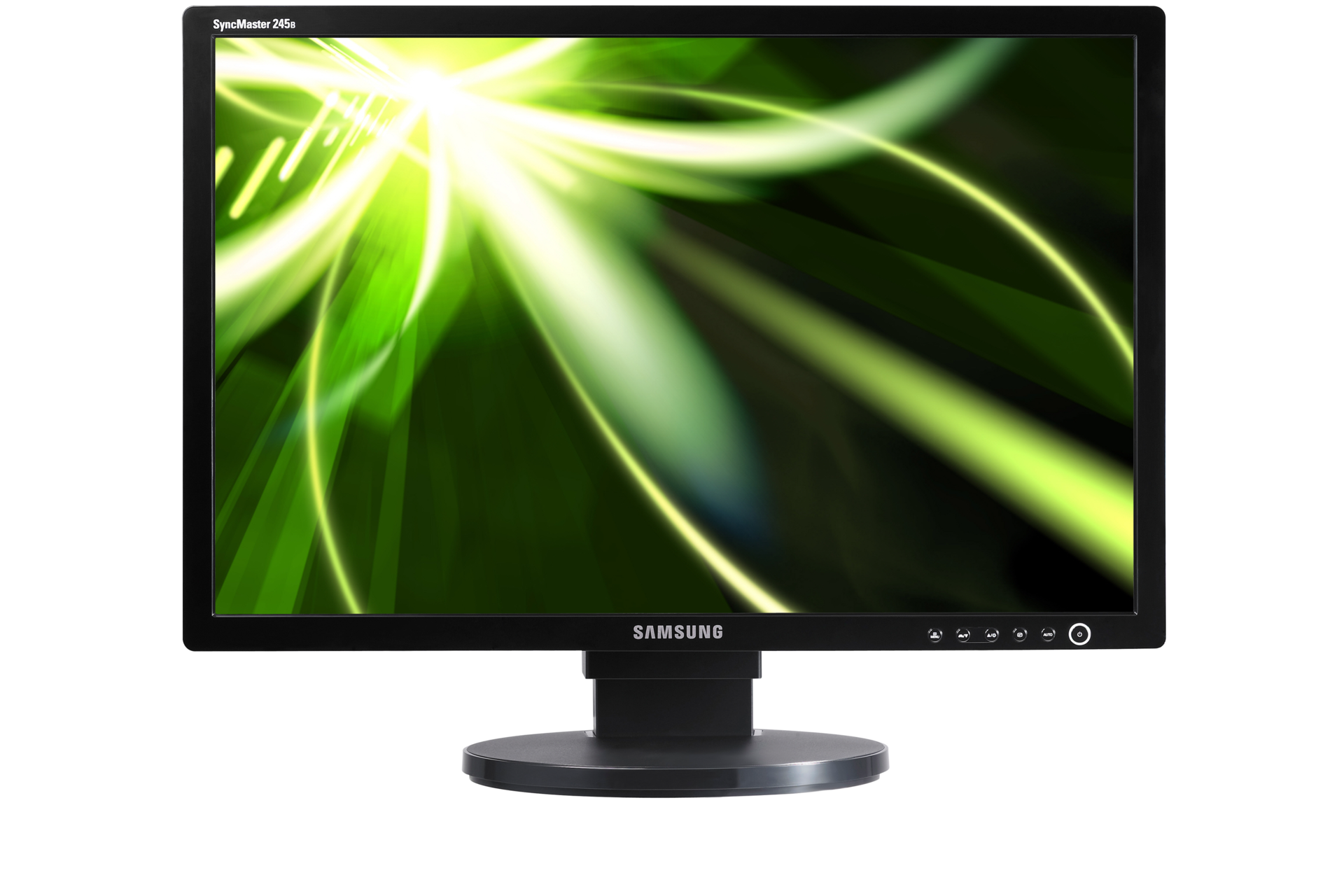

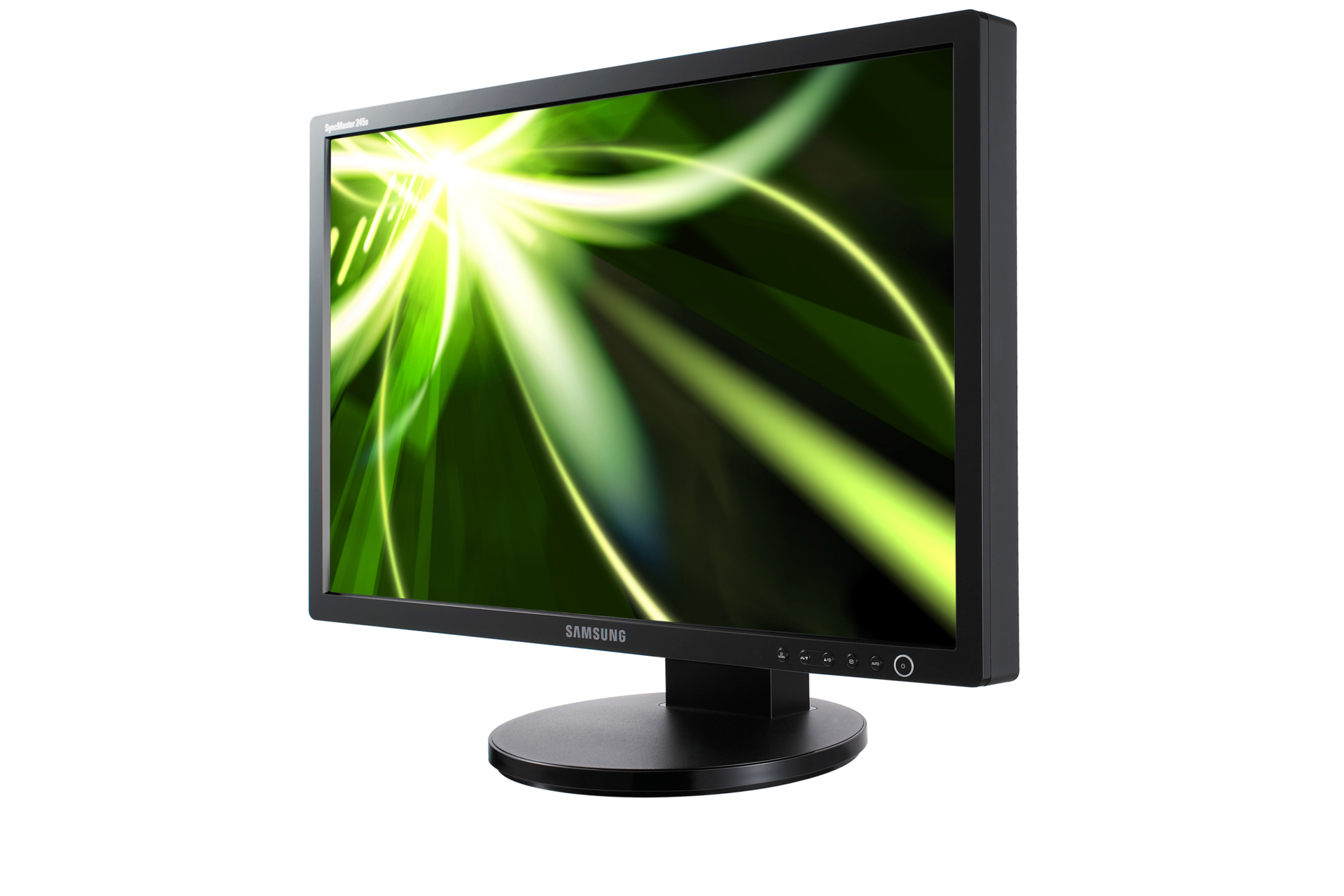

Bring yourself closer to your dreams with the SyncMaster 245B. Allow its expansive 24" wide-screen to give you the space to create, think and enjoy in a more liberated way.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

245B

Features

  • imagine an expanded sense of space

Windows Vista-ready

Windows Vista-ready
The 245B is certified for optimal performance with Windows Vista Premium.

detachable speaker

detachable speaker
Detachable Speaker (Option) - vivid and clear Sound (2W x 2Ch) Easy to check the sound without headphone

smaller pixel pitch

smaller pixel pitch
A smaller pixel pitch generates a tighter picture. A tighter picture enables optimum image intensity and exceptional clarity, bringing realism to the digital world.

HDCP (High-Bandwidth Digital Content Protection)

HDCP (High-Bandwidth Digital Content Protection)
DVI delivers video images with very high resolution and essentially perfect quality. You can enjoy digital contents with DVI interface (HDCP supported).

MagicBright 3

MagicBright 3
MagicBright3 provides optimal combination setting for the various contents for user working environment. With mouse, users can control OSD easily.

Dynamic Contrast 3000:1

Dynamic Contrast 3000:1
How can we make 3000:1 dynamic contrast? Monitor adjusts its brightness and gamma of each frame and makes optimised contrast between frames. Bright image : higher backlight with gamma control Dark image : lower backlight with gamma control

MagicSpeed (5ms)

MagicSpeed (5ms)
monitor supports fast response time to reduce blurring image.

MagicTune

MagicTune
Control every OSD with mouse MagicTune S/W provides convenient software OSD interface. Enhanced OSD GUI improves interaction with user and understanding of functions.

Innovative Power Saving

Innovative Power Saving
DPMS(Digital Power Management System) + Mechanical Power off Switch adopted. In DPMS mode, Uses less than 1W in stand-by mode.

Mountable Design

Mountable Design
Wall and Arm Mount Design - VESA wall-mount compatible design providing maximum functionality and flexibility Designed to meet VESA standards to accommodate any environment whether on desk, on the wall or to any position with arm mount.

high resolution

Clearer and sharper, the 245B lets you enjoy precisely defined images that let you work with more confidence. The high resolution (1920x1200) delivers richer, more vivid images with ultimate clarity. This makes it perfect for CAD-CAM work, graphic design, music or video editing, desktop publishing and medical pre-reading.

TCO 03

TCO 03
TCO 03 Compliant: Satisfied Energy, Emission, Ecology and Ergonomics standards. The most strictest international safety standard for monitors.

tech specs

Dimension of LS24HUBCBQ/XSA

Display

  • Screen Size

    24" Wide

  • Resolution

    1920 x 1200

  • Viewing Angle (Horizontal/Vertical)

    160˚/160˚

Panel

  • Brightness

    400cd/m²

  • Contrast Ratio

    1000:1 (DC 3000:1)

  • Response Time (G-to-G)

    5ms

SHOW MORE SPECSExpand

Signal Input

  • Video Signal

    Analog RGB, DVI

  • Sync. Signal

    Separate H/V, Composite H/V, SOG

  • Connector

    D-sub, DVI-D

Power

  • Power consumption

    100W

Features

  • Plug & Play

    DDC 2B

  • Multimedia Speakers

    optional

  • Special Features

    PC : Analog, Digital MagicColour MagicBright³ Power built-in Narrow Bezel Mechanical S/W DVI(HDCP) Option speaker

Dimension

  • Set Dimension with Stand (WxHxD)

    560 x 444.5 x 250mm

  • Shipment Dimension (WxHxD)

    733 x 557 x 350mm

Weight

  • Package Weight

    10.6 kg

Design

  • Stand Function

    Height Adjustable & Swivel & Tilt

Support

User Manual

3.17 MB, pdf, ENGLISH

2007.11.16

Other Manuals (1)

  • User Manual

    4.07 MB, pdf, CHINESE(Simplified)

    2007.11.16

Driver (1)

  • VGA(Graphics)

    Win 98/ME/2K/XP/X64/Vista, 0.06 MB, exe, MULTI LANGUAGE

    Version : 1.0

    2007.03.06 tooltipbox

    Close tooltip pop-up
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64 or higher
