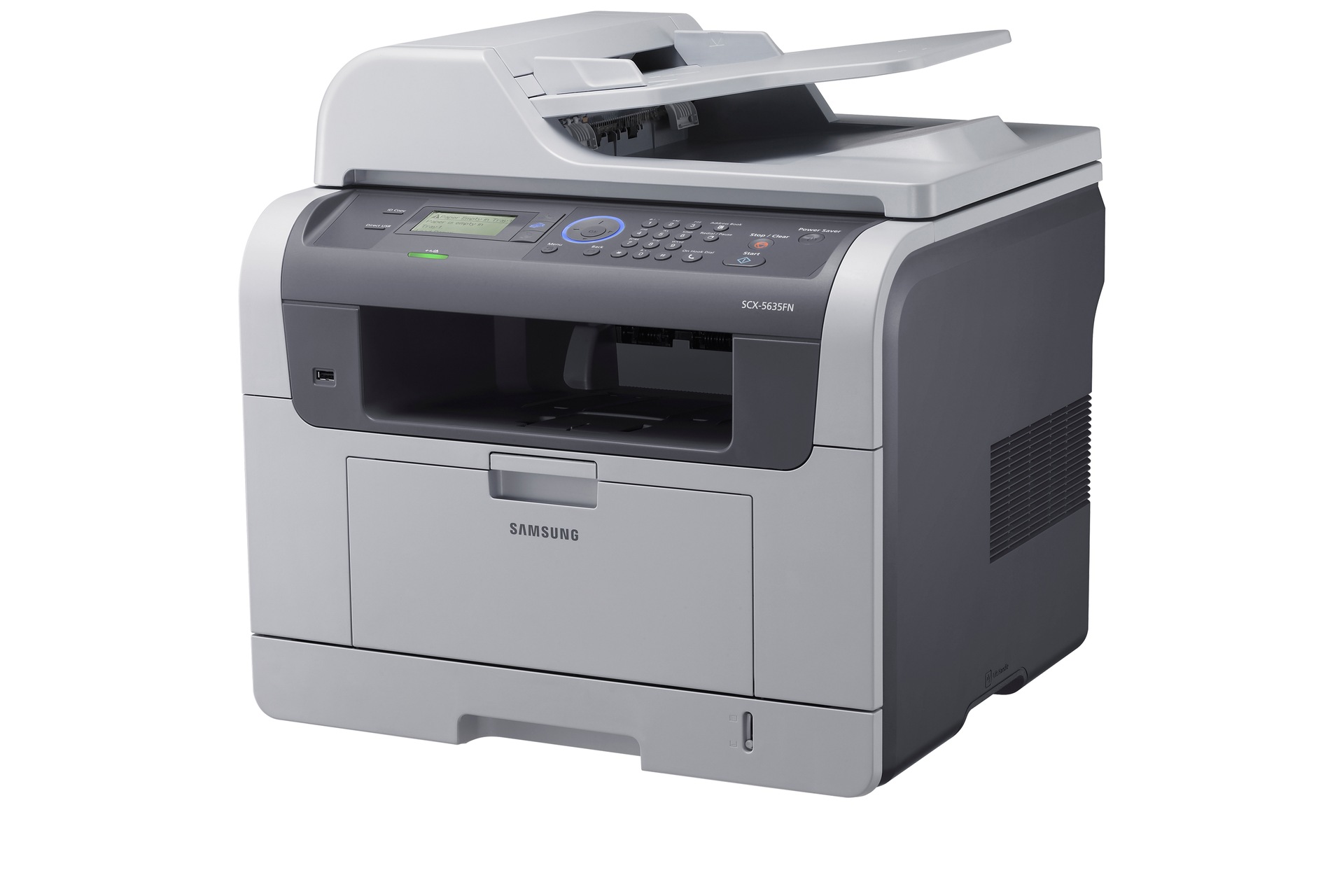

SCX-5635FN

SCX-5635FN

SCX-5635FN boosts up your work efficiency and performance. The smart office assistant, it supports workgroups users and small and medium business users. SCX-5635FN can print, copy, scan and fax with 33ppm printing speed, duplex and convenient network features that you require in workgroup environment. Getting the productivity boost has never been this easy.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

SCX-5635FN

Features

  • expand productivity with simplicity

Intuitive and easy UI

Intuitive and easy UI
Get everyone at work onboard quickly with simple and easy to use UI panel. Reduce training and troubleshooting time with simple intuitive menus and buttons. The 4 line backlight LCD spreads your control sight and blue lighted compass navigate you the job process status.

Robust maximum monthly duty

Robust maximum monthly duty
With an average of 1,000 to 3,000 prints a month, know you stand to get the most out of your multifunction printer. Even in the most demanding and challenging business environments, the SCX-5635FN leads in productivity- capable of delivering a maximum monthly duty of 80,000 pages.
Expandability with option items

Expandability with option items

- SCX-5635FN maximises your job environment with optional items. Expandable memories boost up printer’s performance with up to 384MB. Every printout is delivered quickly and smoothly without any bottleneck to disrupt workflow. - Broaden the capabilities of your device with a wireless network. SCX-5635FN allows you to connect without the need to restrict your workplace location due to hard wire cabling availability. Expand the network by connecting everyone and print from any location, simply and wirelessly.
Robust paper handling

Robust paper handling

SCX-5635FN supports up to 550 sheets composed of 50-sheet multipurpose tray, 250-sheet standard tray and optional 250-sheet tray. SCX-5635FN sets you free from frequent reloading paper and saves your time.
Direct USB

Direct USB

Change the way you look at printers, and how you work, with the outstanding features of the SCX-5635FN. A direct USB port turns it into a self-functioning PC to save time and effort, while letting you print and scan directly with a USB device.

High speed printing and copying

SCX-5635FN has the fastest printing and copying speed of up to 33ppm in A4 for desktop Style MFP within short distance of actual users, while a single page first print out time is as quick as 8.5 seconds.

Enhanced emulation

Built-in emulation technology ensures utmost compatibility with any computer or software, so the multifunction printer can process every document fast and easy. No matter the job or requirement, from basic prints to professional looking documents, you are guaranteed the printout and quality you need.

Reasonable maintenance cost

More economical to operate than other models in the market, the SCX-5635FN adds more value to set-up. Think of the compounded savings you stand to make, with each printout costing you less than ever. The assurance of reliability also minimises cost-wastage typically with paper jams and other malfunctions.

Support for various paper size

Maximum paper handling versatility with customizable paper input sizes. - Letter, Legal, Oficio, Folio A4, JIS B5, ISO B5, Executive, A5 - Min: 98 x 148mm (3.86” x 5.83”) Max: 215.9 x 355.6mm (8.5” x 14.0”) Legal.

Worry-free operations

The multi-talented SCX-5635FN will change the way you work. You get high performance that will boost productivity and streamline workflow. SCX-5635FN is designed with smart set design for easy and fast maintenance to reduce unavailability time so you can spend more time on the job and not fixing paper jams.

tech specs

Dimension of SCX-5635FN/XSS

Overview

  • Function

    Print, Scan, Copy, Fax

Print

  • Speed (Mono)

    Up to 33ppm in A4 (35ppm in Letter)

  • First Print Out Time (Mono)

    Less than 8 seconds (From Ready mode)

  • Resolution

    Up to 1200 x 1200dpi effective output

  • Duplex

    Built-in

  • Emulation

    PCL5e, PCL6, PS3, PDF 1.4, TIFF

SHOW MORE SPECSExpand

Copy

  • First Copy Out Time (Mono)

    Less than 9.5 seconds (From Ready mode)

  • Multi Copy

    1 - 99 pages

  • Zoom Rate

    25 - 400% (platen), 25 - 100% (ADF)

  • Duplex Copy

    Standard (1:1, 1:2)

  • Copy Features

    ID Copy, 2-up, 4-up, Poster Copy, Clone Copy, Collation Copy, Auto-fit

  • Resolution

    Up to 1200 x 1200dpi effective output

  • Speed

    Up to 33cpm in A4 (35cpm in Letter)

Scan

  • Compatibility

    TWAIN Standard, WIA Standard

  • Method

    Colour CCD

  • Resolution (Optical)

    Up to 600 x 600dpi

  • Resolution (Enhanced)

    Up to 4800 x 4800dpi

  • Scan to

    PC, Email, USB Memory, FTP, SMB

Fax

  • Compatibility

    ITU-T G3

  • Modem speed

    33.6Kbps

  • Resolution

    Standard: 203 x 98dpi Fine / Photo: 203 x 196 dpi Super Fine: 300 x 300 dpi Colour: Up to 200 x 200dpi

  • Memory

    4MB (225 pages)

  • Auto Dial

    Speed dial: 200 Locations

  • Fax Feature

    On hook Dial, Auto Redial, Last Number Redial, Auto Reduction, Multi-send, Delayed Send, Fax forwarding (Email / Fax), Broadcasting up to 209 locations

Paper Handling

  • Input Capacity and Types

    250-sheet Cassette Tray, 50-sheet Multi-purpose Tray

  • Output Capacity and Types

    150-sheet Face Down, 1-sheet Face Up

  • Media Size

    76.2 x 127mm (3" x 5") - 215.9 x 355.6mm (8.5" x 14")

  • Media Type

    Plain paper, transparency, envelope, labels, card stock, thick, thin, cotton, colour, preprinted,recycled, bond, archive

  • Capacity

    50-sheet

  • ADF Document Size

    Width: 142 - 216mm (5.6" - 8.5") Length: 148 - 356mm (5.8" - 14")

General Features

  • Display

    4 line Graphic LCD

  • Memory / Storage

    128MB (Max. 384MB)

  • OS Compatibility

    Windows 2000 / 2003 / 2008 Server / XP / Vista, Various Linux OS, Mac OS X 10.3 - 10.5, Windows Terminal Services, Citrix Presentation Server (NOT Ready Logo, only Compatibility), SAP (NOT Ready Logo, only Compatibility), Windows Terminal Services

  • Interface

    Hi-Speed USB 2.0, Ethernet 10/100 BaseTX

  • Noise Level

    Less than 52dBA (Printing), Less than 52.5dBA (Copying), Less than 26dB (Standby Initial) 39dB(Standby Long Term)

  • Duty Cycle, Monthly

    80,000 pages

  • Dimension (WxDxH)

    466 x 435 x 458mm

  • Weight

    18.8kg

Consumables

  • Yield

    Standard: Average Cartridge Yield 4,000 standard pages. High Yield: Average cartridge Yield 10,000 standard pages. (Ships with 4,000 pages Starter Toner Cartridge) Declared cartridge yield in accordance with ISO / IEC 19752

  • Type

    Single Cartridge

  • Model Code

    MLT-D208S, MLT-D208L

Support

Universal Print Driver Guide

0.91 MB, pdf, ENGLISH

2013.04.24

Other Manuals (8)

Software (13)

  • Scan OCR program

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 35.03 MB, exe, MULTI LANGUAGE

    Version : V1.01.10

    2014.07.29

  • Easy Printer Manager

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 43.28 MB, exe, MULTI LANGUAGE

    Version : V1.05.51.00

    2014.07.29

  • PC fax Utility

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 10.22 MB, exe, MULTI LANGUAGE

    Version : V1.10.28

    2014.07.29

  • Set IP

    Mac OS 10.5 ~ 10.9, 0.22 MB, zip, MULTI LANGUAGE

    Version : V1.00.09

    2014.07.18

  • Easy Printer Manager

    Mac OS 10.5 ~ 10.9, 48.25 MB, zip, MULTI LANGUAGE

    Version : V1.01.73.03

    2014.07.07

  • PC fax Utility

    Mac OS 10.5 ~ 10.9, 6.37 MB, zip, MULTI LANGUAGE

    Version : V1.01.41

    2014.07.07

  • SyncThru 6

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 208.73 MB, zip, MULTI LANGUAGE

    Version : V6.0.2.319

    2014.03.04

  • Set IP

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 1.41 MB, exe, MULTI LANGUAGE

    Version : V1.05.08.3:14

    2013.12.13 tooltipbox

Driver (16)

  • Scan Driver

    Mac OS 10.9, 15.48 MB, zip, MULTI LANGUAGE

    Version : V2.31.49

    2013.11.18

  • Printing & Scan Driver

    Linux, 15.35 MB, gz, MULTI LANGUAGE

    Version : V1.00.06

    2013.11.08 tooltipbox

    Close tooltip pop-up
    [Unified Linux Driver Install Guide]

    1. Make sure that you connect your machine to your computer.
    Turn both the computer and the machine on.

    2. When the Administrator Login window appears, type in root in the Login field
    and enter the system password.

    3. Download and extract the driver
    [root@localhost root]#tar xzf [Downloaded File Name(XXXX.tar.gz)]

    4. The driver will be extracted as ''cdroot'' folder in current path.

    5. Execute installation program.
    [root@localhost root]#./cdroot/autorun

    6. When the welcome screen appears, click ''Next'' and proceed installation.


    [Ubuntu OS Installation]

    1. Download and extract the driver

    2. Open ''Root Terminal''

    3. Execute installation program.

    $ sudo cdroot/autorun

    4. After install, PPD path is set again.

    $ sudo ln -s /usr/share/cups/model/samsung /usr/share/ppd/custom/samsung

    5. Execute Configurator, and Add your printer model name by Add Printer
  • Universal Scan Driver

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 22.49 MB, exe, MULTI LANGUAGE

    Version : V1.02.19

    2013.10.24

  • Universal Print Driver

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 20.35 MB, exe, MULTI LANGUAGE

    Version : V2.50.04.00:08

    2013.10.11 tooltipbox

    Close tooltip pop-up
    Samsung Universal Print Driver is a common single print driver solution for managing multiple printers. If you install this driver, you can use Samsung printers without installing multiple model specific drivers.
  • Universal Print Driver,PCL6

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 13.03 MB, exe, MULTI LANGUAGE

    Version : V2.50.04.00:08

    2013.10.11

  • Universal Print Driver PS

    Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 12.39 MB, exe, MULTI LANGUAGE

    Version : V2.50.04.00:08

    2013.10.11

  • Scan Driver

    Mac OS 10.4 ~ 10.8, 16.69 MB, zip, MULTI LANGUAGE

    Version : V2.21.65

    2012.10.12 tooltipbox

    Close tooltip pop-up
    Security setting should be changed in order to install drivers in Mac OS X 10.8:

    1. Run [System Preferences] under [Application] folder

    2. Select [Security & Privacy]

    3. Select [Anywhere] under [Allow applications downloaded from]
  • Smart Panel

    Mac OS 10.4 ~ 10.9, 3.54 MB, gz, MULTI LANGUAGE

    Version : V2.05.01

    2012.10.12 tooltipbox

    Close tooltip pop-up
    Security setting should be changed in order to install drivers in Mac OS X 10.8:

    1. Run [System Preferences] under [Application] folder

    2. Select [Security & Privacy]

    3. Select [Anywhere] under [Allow applications downloaded from]

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo
