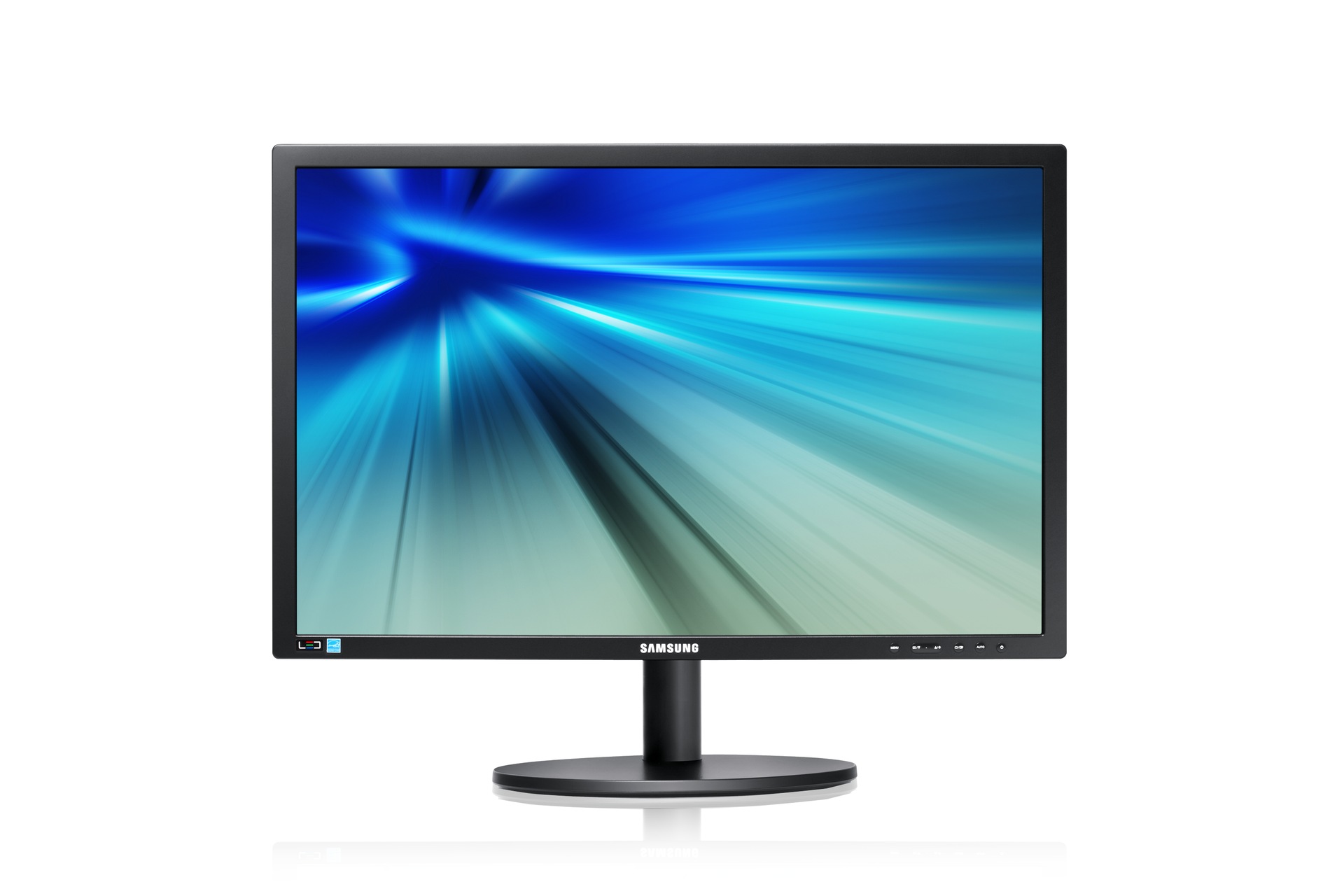

19” 420 Series Business LED Monitor (S19B420)

S19B420BW

  0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

19 420 Series Business LED Monitor (S19B420)

Features

  • Designed to deliver performance, professional picture quality and a comfortable viewing experience.
  • Conveniently Adjust Monitor Height, Tilt and Perspective
    A Monitor Design to Match Business Needs

Conveniently adjust monitor height, tilt and perspective


The Samsung LED* Business Monitor SB420 has been designed to help boost work efficiency, delivering a tailored experience with its choice of viewer settings. The height-adjustable stand allows users to adjust the screen and to set it at various levels, thereby enhancing the visual experience. Other features include the tilt and pivot capabilities, which not only helps to enhance comfort levels but also introduces different ways of working. The SB420 Monitor can rotate 90 degrees, allowing the user to adjust the view as appropriate. So you can take convenience and efficiency to amazing heights with the Samsung LED Business Monitor SB420. * Samsung LED displays combine LCD screens with LED edge-lights.

Help maximise workspace with an efficient detachable adaptor


If you need a work monitor that uses office space efficiently, then the Samsung LED Business Monitor SB420 is an outstanding choice. It features a detachable adaptor, which allows the monitor to be easily moved and installed. From physically moving the monitor with the carrying handle to quickly installing, the SB420 is ready to deliver an efficient and clean work space. The SB420 is also equipped and prepared for you as a VESA Wall mount, providing a multi-screen or wall mounted monitor. Optimising your office space is easily achieved with the Samsung LED Business Monitor SB420.

See it your way with wide viewing angles

See it your way with wide viewing angles
The Samsung LED Business Monitor SB420 features the Magic Angle Vertical to help deliver a quality screen which can be viewed at various angles. With 20 different angle steps (10 up and 10 down) you have the choice of moving the screen to align with your viewing position.

tech specs

19” 420 Series Business LED Monitor

Display

  • Screen Size
    19" (16:10) Screen Size
  • Panel Type
    TN, LED Type
  • Type
    LED Type
  • Brightness
    250cd/m² Brightness
  • Active Display Size (H x V)
    408.24 x 255.15mm
  • Contrast Ratio
    Mega ∞ DCR (Static 1000:1) Contrast Ratio
  • Resolution
    1,440 x 900 Resolution
  • Response Time
    5ms(On / Off)
  • Pixel Pitch
    0.2835 x 0.2835mm
  • Viewing Angle (Horizontal/Vertical)
    170° / 160° Viewing Angle (Horizontal/Vertical)
  • Color Support
    16.7M Colour Support

Interface

  • D-Sub
    1 x D-Sub
  • DVI
    1 x DVI

SHOW MORE SPECS

General Feature

  • Embedded Function
    Samsung MagicAngle, Samsung MagicBright, Samsung MagicColour, Off Timer, Image Size, Key Repeat Time supported, MagicTune
  • Additional PC S/W
    MagicTune,MultiScreen
  • OS Compatibility
    All OS
  • Windows Certification
    Yes

Design

  • Colour
    Matt Black
  • Stand Type
    HAS: range(100mm)
  • Stand Function
    Tilt range: -5° to +22° Pivot : -1 to +115 Swivel range : -45° to +45°
  • Wall Mount
    100 x 100 Wall Mount Supported

Power

  • Power Supply
    100-240V (50 / 60hz) Power Supply
  • Power Consumption
    20W(Typ.) Power Consumption
  • Power Consumption (DPMS)
    0.3W(Typ.) Power Consumption (DPMS)
  • Power Consumption (Stand-by)
    0.3W(Typ.) Power Consumption (Stand-by)
  • Type
    Built-in

Dimension

  • Set Dimension with Stand (WxHxD)
    MAX: 439 x 190 x 417.35MIN : 439 x 190 x 317.35mm
  • Set Dimension without Stand (WxHxD)
    439 x 60.25 x 290mm
  • Package Dimension (WxHxD)
    516 x 366 x 192mm

Weight

  • Set Weight with Stand
    CMI: 3.9 kgAMLCD: 3.75 kg
  • Set Weight without Stand
    CMI: 2.75 kgAMLCD: 2.6 kg
  • Package Weight
    CMI: 5.2 kgAMLCD: 5.05 kg

Accessory

  • Cables
    D-sub +DVI Cable
  • Power Cable Length
    1.5 m Power Cable Length
  • Others
    E-manual, Install CD, Quick Setup Guide included

Operation Conditions

  • Temperature
    10℃~ 40℃
  • Humidity
    10~80%

Certification and Compliance

  • Eco label certification
    UL (USA): UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1
  • EMC
    FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
  • Environment / Energy
    Energy Star / TCO 5.0/ Epeat Gold

Support

User Manual

4 MB, pdf, ENGLISH

2014.07.22

Driver (1)

  • Device(Install)

    Win 2000/XP/Vista/Win7/Win8 (32,64bit), 8.02 MB, exe, MULTI LANGUAGE

    2012.11.14 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster S19B420BW
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    If you have trouble for setting up the Monitor under Windows 2000/XP/Vista/7 this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 2000/ XP/ Vista/ 7/ 8(32bit/64bit)

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu Viewer
