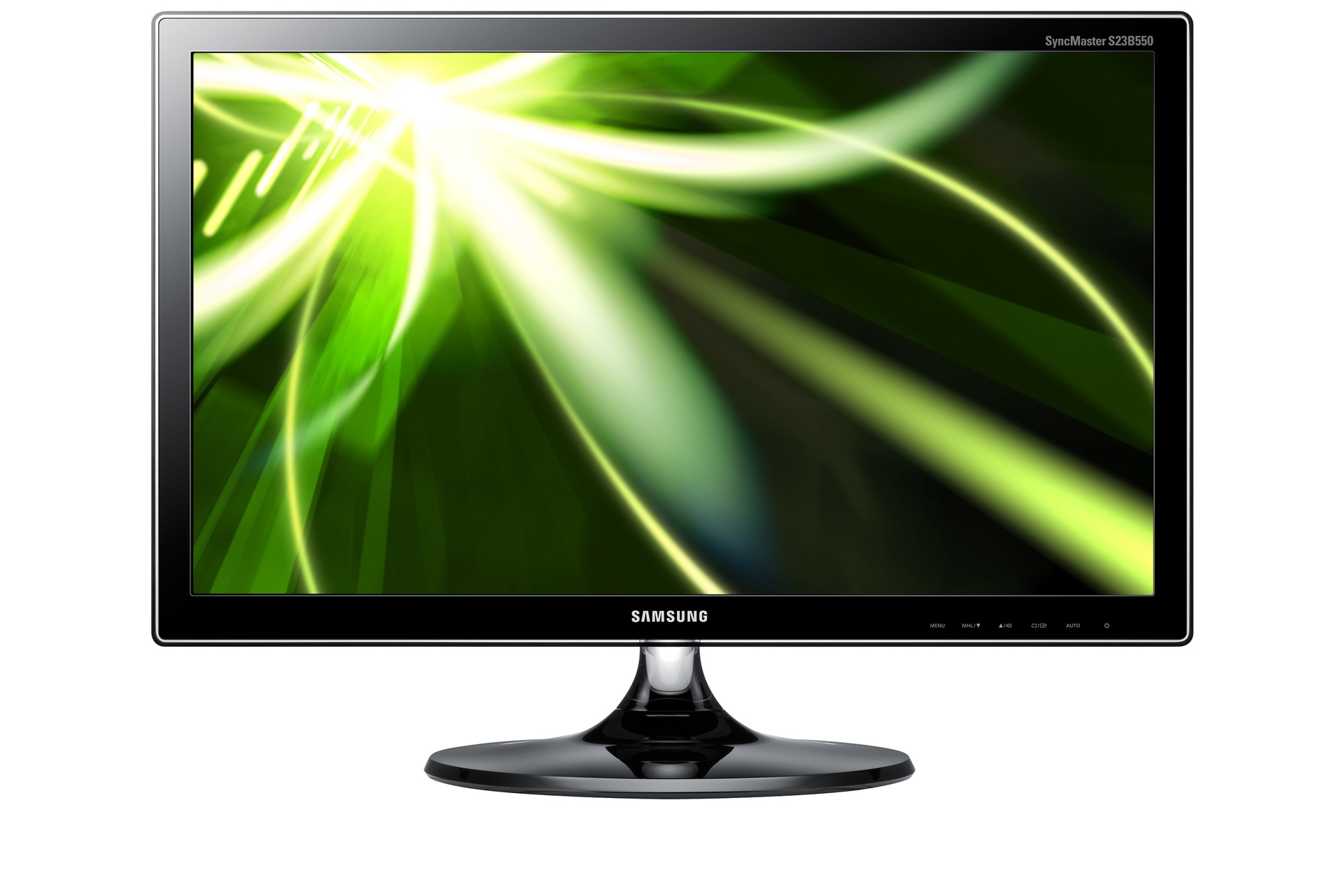

23inch Series 5 LED Monitor (S23B550V)

S23B550V

23inch Series 5 LED Monitor (S23B550V)   0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

23inch Series 5 LED Monitor (S23B550V)

Features

  • Viewing from mobile to monitor
  • The audio-video solution with built-in speakers
  • See it your way with wide viewing angles
  • Expand your experience with various inputs

See it your way with wide viewing angles

See it your way with wide viewing angles
This monitor features the Magic Angle Vertical to help deliver a quality screen which can be viewed at various angles. With 20 different angle steps (10 up and 10 down) you have the choice of moving the screen to align with your viewing position.

Expand your experience with various inputs

Expand your experience with various inputs
Samsung’s LED* Monitor HDMI with its wide range of inputs helps ensure that things from gaming to chatting with friends online** is easily achieved. The various inputs such as DP, HDMI and DVI, helps ensure that your monitor is compatible with and ready to handle most of your content.
*Samsung LED displays combine LCD screens with LED edge-lights
**Internet connection required. Data download and usage charges may apply. Speed will vary depending on the configuration, applications used and wireless settings
Viewing from mobile to monitor

Viewing from mobile to monitor

Enjoy mobile content on a big screen with Mobile High-Definition Link (MHL). You can experience entertainment with the luxury of a 23'' monitor and high-quality viewing. MHL allows you to watch videos and other compatible content which is on your mobile device via the monitor by connecting the mobile device to the monitor with the convenient cable included in the box. View your mobile content on the monitor in stunning Full HD. If your mobile phone is a compatible device, you may also be able to charge the mobile phone whilst it is connected to the monitor.* MHL helps provide you with mobile portability with the comfort of home for an optimised Full HD view.
*Please refer to the specifications / manual for compatibility details.

Mega Dynamic Contrast

Mega Dynamic Contrast
Experience amazing levels of colour, brilliance and picture quality through the Mega Dynamic Contrast Ratio. The Samsung SB550 monitor delivers brilliant images that are packed with breathtaking 5,000,000:1 contrast ratio which produce deep blacks and pristine whites. You will immediately notice the clear picture quality and its unbelievable intensity. It is like an explosion of colours.
The audio-video solution with built-in speakers

The audio-video solution with built-in speakers

With a built-in Samsung Stereo Speaker, you can minimise the need for bulky external speakers to take pleasure in great sound. This monitor provides an audio-video solution, with a 5 Watt 2 channel speaker delivering high-quality stereo sound to give you a rich and enhanced multimedia experience. Enjoy movies and in exceptional quality thanks to Samsung’s outstanding audio. Experience convenience and make the most of your space in your home or office with this efficient built-in speaker system.

tech specs

Dimension of LS23B550VS/XY

Display

  • Screen Size

    23" (16:9)

  • Type

    LED^

  • Brightness

    250cd/m²

  • Contrast Ratio

    Mega ∞ DCR (Static 1,000:1)

  • Resolution

    1,920 x 1,080

  • Response Time

    2ms (GTG)

  • Viewing Angle (Horizontal/Vertical)

    170° / 160°

  • Color Support

    16.7M

Interface

  • D-Sub

    1

  • Wireless Display

    No

  • DVI

    No

  • HDMI

    2

  • Dual Link DVI

    No

  • USB

    No

  • Display Port

    No

  • Audio In/Out

    1

  • Speaker

    Built-in Speaker (5W x 2ch)

  • USB Hub

    No

SHOW MORE SPECSExpand

General Feature

  • Mobile Control

    No

  • Embedded Function

    Multi Screen S / W, Samsung MagicAngle, Samsung MagicBright3, Samsung MagicColour, Off Timer, MagicTune, Customised Key, Image Size

  • Additional PC S/W

    No

  • OS Compatibility

    Yes

  • Windows Certification

    Yes

  • Mobile High-Definition Link (MHL)

    Yes

Design

  • Colour

    ToC

  • Stand Type

    Simple

  • Stand Function

    Tilt

  • Wall Mount

    Yes

Power

  • Power Supply

    100 - 240V (50 / 60hz)

  • Power Consumption

    40W

  • Power Consumption (DPMS)

    0.5W

  • Power Consumption (Stand-by)

    0.5W

  • Type

    External Adaptor

Dimension

  • Set Dimension with Stand (WxHxD)

    553.20 x 410.15 x 195.00mm

  • Set Dimension without Stand (WxHxD)

    553.2 x 336.2 x 56.3mm

  • Package Dimension (WxHxD)

    647 x 414 x 132mm

Weight

  • Set Weight with Stand

    2.95kg

  • Set Weight without Stand

    2.75kg

  • Package Weight

    4.45kg

Accessory

  • Cables

    D-sub Cable, MHL Cable, Stereo Cable

  • Others

    E-manual, Install CD, Quick Setup Guide

Support

User Manual

9.2 MB, pdf, ENGLISH

2014.04.29

Driver (1)

  • Device(Install)

    Win 2000/XP/Vista/Win7/Win8 (32,64bit), 8.02 MB, exe, MULTI LANGUAGE

    Version : 1.0

    2012.11.27 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster S23B550V
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    If you have trouble for setting up the Monitor under Windows 2000/XP/Vista/7 this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 2000/ XP/ Vista/ 7/ 8(32bit/64bit)
