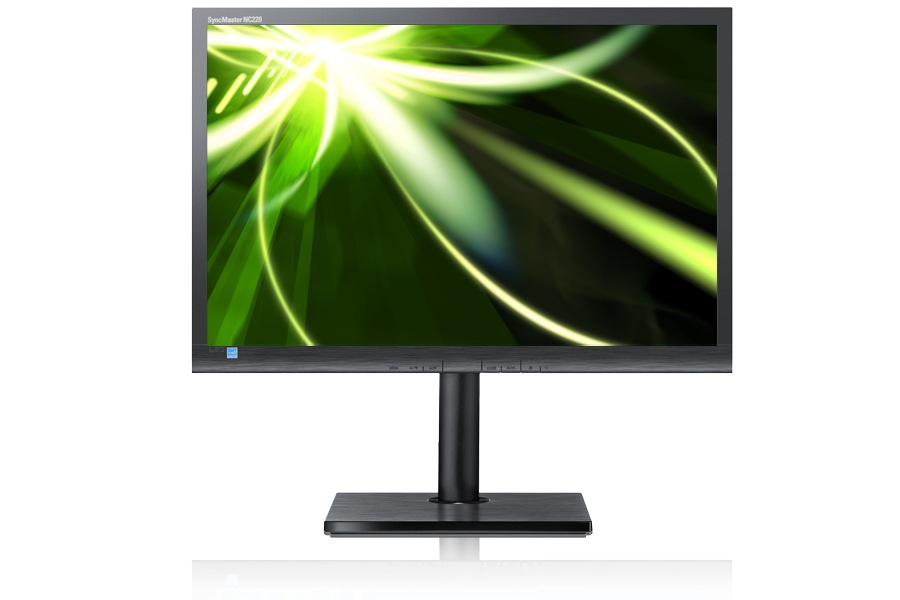

22" LED Vmware Zero Client Display (NC220)

NC220

The Samsung C series allows you to benefit from the power of Samsung’s LED* display technology and the advantages of cloud computing. Designed specifically for business use. The Samsung C series achieves high levels in display performance with its picture quality and slim design. The display also offers Power over Ethernet (UPoE) capabilities (*NC models only) so you can power your display and access the Ethernet through a single cable. The C series can be powered down with one simple step. The display is available in two different models so you have the option of choosing the display that best addresses your business needs and requirements.
* Samsung’s LED displays utilise LCD Screens with LED edge lights.
0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

22 LED Vmware Zero Client Display (NC220)

Features

  • 22” LED PCoIP Zero Client
  • C Series: All-in-one (circuitry in back of panel)
  • Teradici Tera1100 chipset
  • Dual Display and USB Peripheral Support

Little Maintenance

Little Maintenance
Because all software and data is stored on the centralised host platform, the network is easy to install and easy to maintain.

Security you can trust

Security you can trust
Consolidate “almost all” of your resources on the data centre and deliver your applications and data over LAN / WAN via an encrypted protocol PColP to your zero client. Access your critical data and applications while they are maintained and controlled in the data centre.
All-in-one design

All-in-one design

Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of not having a separate thin client box is that you can use your desk space in a productive manner. These innovative features come together exceptionally for an all-in-one design that helps increase desktop space. * Samsung’s LED displays utilise LCD Screens with LED edge lights.
VMware Certified PCoIP Cloud Monitor

VMware Certified PCoIP Cloud Monitor

Innovative PCoIP technology allows consolidation of most of your IT resources into a data centre, and provides high-performance computing via the IP network with minimal reduction in performance or information, this provides a virtualised set of hardware to the operating system. It lets you run virtual multiple machines .At the desktop, the integrated PCoIP portal decompresses and distributes video, audio and data contents while preserving high performance and virtually real-time graphics.
Access to exceptional graphics

Access to exceptional graphics

Exceptional graphics are enabled by the PCoIP protocol, giving users access to full performance graphics from VMware View enabled virtual machines. Full 3D modelling graphics are also available when using PCoIP enabled workstation platforms or PCoIP Host cards in standard PC’s in conjunction with a GPU.

tech specs

Dimension of LF22NEBHBNM/XY

Display

  • Screen Size

    22"

  • Type

    A-Si TFT active matrix

  • Brightness

    250cd/sq.m

  • Contrast Ratio

    1,000:1

  • Resolution

    1,680 x 1,050

  • Response Time

    5ms

  • Viewing Angle (Horizontal/Vertical)

    170° / 160° deg (CR≥10) 178° / 178° deg (CR≥5)

  • Color Support

    16.7 million

Interface

  • D-Sub

    RGB InRS-232C

  • DVI

    DVI-out (for Dual, Digital-out)

  • USB

    USB 1.1 x 4EA

  • Audio In/Out

    Headphone Out / Audio In / MIC In

SHOW MORE SPECSExpand

Design

  • Wall Mount

    100 x 100

Power

  • Power Consumption

    Max : 50 W, Typical : 38W

  • Type

    External Adaptor

Dimension

  • Set Dimension with Stand (WxHxD)

    508.0 x 396.3 x 216.6mm (with Stand)

  • Set Dimension without Stand (WxHxD)

    508.0 x 344.3 x 49.0mm (w / o Stand)

  • Package Dimension (WxHxD)

    585.0 x 422.0 X 167 mm

Weight

  • Set Weight with Stand

    5.5 kg

  • Package Weight

    7.4 kg

Support

User Manual

1.48 MB, pdf, ENGLISH

2012.07.12

Other Manuals (1)

  • Quick Guide

    1.73 MB, pdf, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, HUNGARIAN, INDONESIAN, ITALIAN, JAPANESE, KAZAKH, POLISH, RUSSIAN, SPANISH, SWEDISH, TURKISH

    2012.02.09

Driver (1)

  • Device(Install)(Monitor driver)

    Windows 7(32bit,64bit), 7.9 MB, exe, MULTI LANGUAGE

    Version : 1.0

    2011.08.08 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster NC220
    3. Carrier or Corporate Customer
    Open Market
    4. Description


    If you have trouble for setting up the Monitor under Windows 7, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows7(32bit/64bit)
