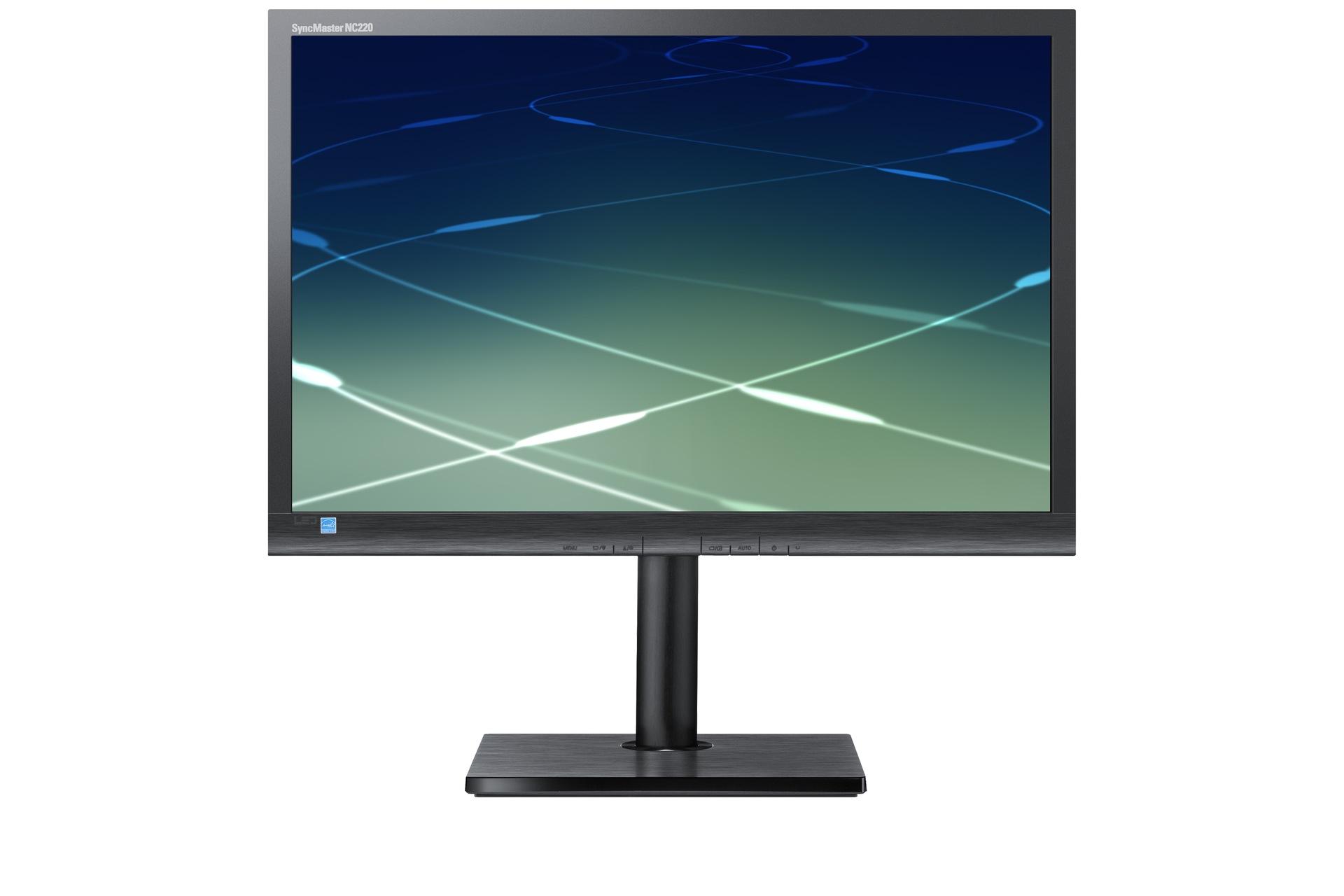

22" LED VMware Zero Client Display (NC220P)

NC220P

22 LED VMware Zero Client Display (NC220P) The Samsung C series allows you to benefit from the power of Samsung’s LED* display technology and the advantages of cloud computing. Designed specifically for business use, the Samsung C series achieves high levels in display performance with its picture quality and slim design. The display also offers Power over Ethernet (UPoE) capabilities (*NC models only) so you can power your display and access the Ethernet through a single cable. The C series can be powered down with one simple step. The display is available in two different models so you have the option of choosing the display that best addresses your business needs and requirements.

* Samsung’s LED displays utilise LCD Screens with LED edge lights.
0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

22" LED VMware Zero Client Display (NC220P)

Features

  • 22” LED* PCoIP Zero Client
  • UPOE – Power Over Ethernet
  • C Series: All-in-one (in back of panel)
  • Teradici Tera1100 chipset
    *Requires connection to Cisco Catalyst 4500E Switch
Power over Ethernet

Power over Ethernet

Samsung’s Cloud Display embraces the beneficial Power over Ethernet technology, while providing an internet connection. Power over Ethernet allows the device to receive its power from a ‘SWITCH’ in the network. This switch is connected to a power supply (UPS) that minimises downtime and helps to ensure work is not lost when the conventional grid power supply is unstable.
All-in-one design

All-in-one design

Samsung's innovative Cloud Display integrates a zero client into the LED* screen. Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of not having a separate client box is that you can use your desk space in a productive manner. These innovative features come together exceptionally for an all-in-one design that helps increase desktop space.
* Samsung’s LED displays utilise LCD Screens with LED edge lights.
VMware Certified PCoIP Cloud Monitor

VMware Certified PCoIP Cloud Display

Innovative PCoIP technology allows consolidation of most of your IT resources into a data centre, and provides high-performance computing via the IP network with minimal reduction in performance or information. This provides a virtualised set of hardware to the operating system and it lets you run multiple virtual machines. At the desktop, the integrated PCoIP portal decompresses and distributes video, audio and data contents while preserving high performance and virtually real-time graphics.
Access to superior graphics

Access to exceptional graphics

Exceptional graphics are enabled by the PCoIP protocol, giving users access to full performance graphics from VMware View enabled virtual machines. Full 3D modelling graphics are also available when using PCoIP enabled workstation platforms or PCoIP Host cards in standard PC's in conjunction with a GPU.
Security you can trust

Security you can trust

Consolidate “almost all” of your resources on the data centre and deliver your applications and data over LAN / WAN via an encrypted protocol PColP to your zero client. Access your critical data and applications while they are maintained and controlled in the data centre.
Little Maintenance

Little Maintenance

Because all software and data is stored on the centralised host platform, the network is easy to install and easy to maintain.

tech specs

Dimension of LF22NPBHBNP/XY

Display

  • H-Scanning Frequency

    31 - 80KHz

  • V-Scanning Frequency

    56 - 75Hz

Panel

  • Diagonal Size

    22" (56cm)

  • Type

    A-Si TFT active matrix

  • Resolution

    1,680 x 1,050

  • Pixel Pitch (mm)

    0.282 x 0.282mm

  • Active Display Area

    473.76 x 296.10mm

  • Brightness

    250cd/m²

  • Contrast Ratio (Dynamic)

    10,000:1

  • Viewing Angle (Horizontal/Vertical)

    170° / 160° (CR ≥ 10), 178° / 178° (CR ≥ 5)

  • Response Time (G-to-G)

    5.0ms

  • Display Colour

    16.7M

  • Contrast Ratio

    10,000:1

SHOW MORE SPECSExpand

Connectivity

  • Input
    RGB

    Analog In D-SUB

    Audio

    Stereo Mini Jack

  • Output
    Video

    Digital-Out

    Audio

    Stereo Mini Jack

Mechanical Specification

  • Dimension
    Set Dimension (WxHxD)

    508.0 x 388.4 x 197.0mm (with Stand) 508.0 x 388.4 x 50.5mm (w / o Stand)

    Package Dimension (WxHxD)

    585 x 422 x 167mm

  • Weight
    Set Weight

    5.5kg

    Package Weight

    7.0kg

  • VESA Mount

    100 x 100mm

  • Stand Type

    HAS Stand

Operation

  • Operating Temperature

    10 - 40°C

  • Humidity

    10 - 80%

General Feature

  • Key

    ED backlight, No local O / S

Power

  • Power Supply

    Max. 51 watts UPOE Adaptor

  • Power Consumption
    Off Mode

    0 watts

    On Mode

    51 watts (Max) / 35 watts (Typ)

    Sleep Mode

    No sleep mode for NC products

  • Type

    Max. 51 watts UPOE Adaptor

Accessory

  • Included

    User Manual, UPOE Adaptor, Quick Set Up Guide, Warranty Card

Embedded PC

  • CPU

    Tera1100

  • Ethernet

    10 / 100 / 1,000

  • Connectivity
    USB

    4EA

    Output

    (1) Video Out (DVI, for dual) (2) LAN 2EA (RJ 45, Giga) (function: LAN hub) (3) Audio (HeadPhone) (4) Serial Port (5) Optional Built-in Speaker (1.5 watts x 2)

Certification

  • EMC

    FCC, CE, KC, KCC, VCCI, C-TICK, CCC

  • Safety

    UL, CB, IC60601 (Medical)

Support

User Manual

1.45 MB, pdf, ENGLISH

2012.07.17

Other Manuals (1)

  • Quick Guide

    1.92 MB, pdf, KOREAN, ENGLISH, ARABIC, CHINESE, CHINESE, FRENCH, GERMAN, HUNGARIAN, INDONESIAN, ITALIAN, JAVANESE, KAZAKH, POLISH, PORTUGUESE, RUSSIAN, SPANISH, SWEDISH, TURKISH

    2012.01.25

Driver (1)

  • Device(Install)(Monitor driver)

    Windows 7(32bit,64bit), 7.9 MB, exe, MULTI LANGUAGE

    Version : 1.0

    2012.01.26 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster NC220P
    3. Carrier or Corporate Customer
    Open Market
    4. Description

    If you have trouble for setting up the Monitor under Windows 7, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows7(32bit/64bit)
