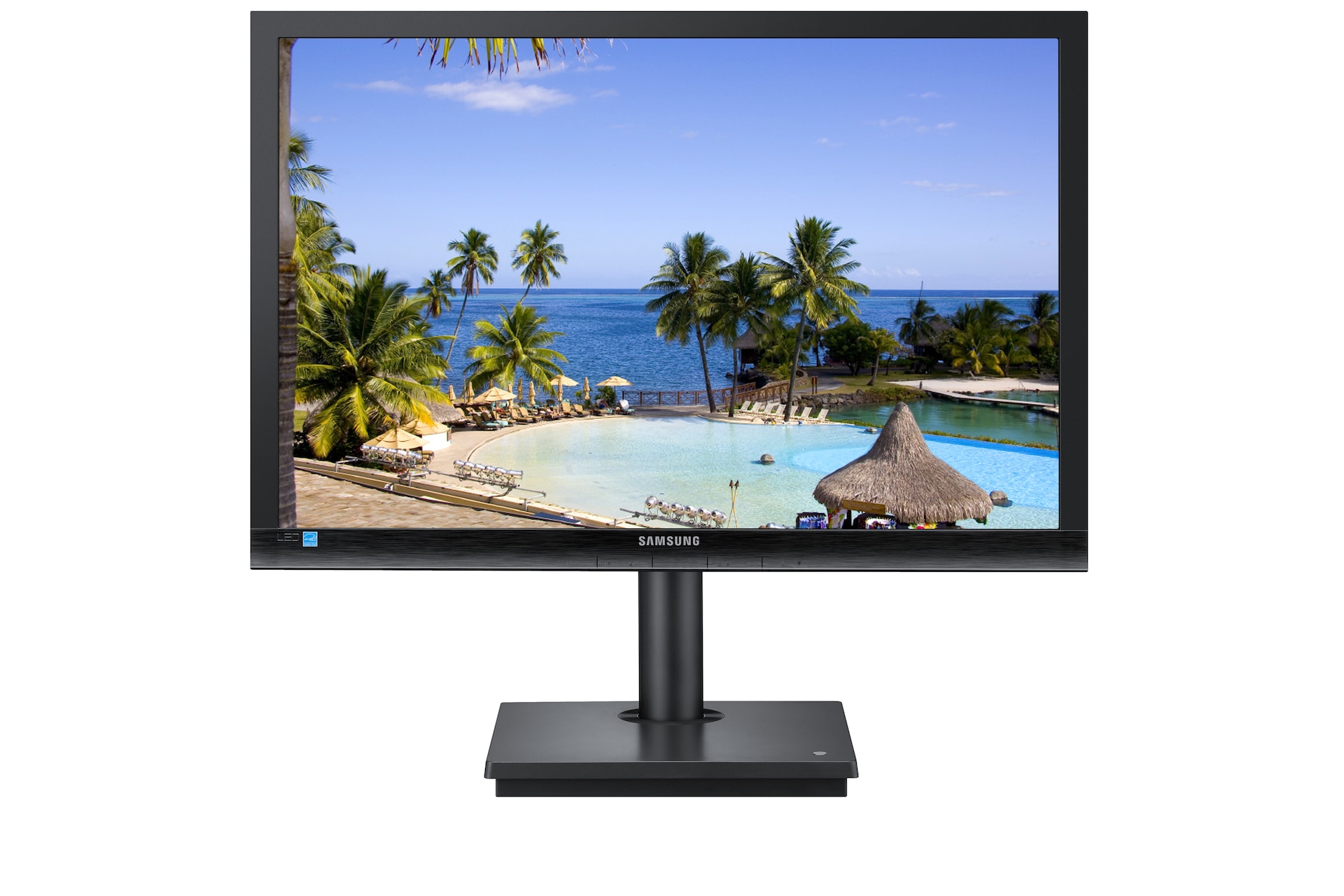

22" LED WES7 Thin Client Display (TS220W)

TS220W

The Samsung S Series is built with great features and capabilities. The S series is an innovative approach to display stand design due to its ability to house circuitry and other devices within its casing. This facilitates a slim design and minimises the amount of loose cables and wires. The S series can also be wall mounted, providing businesses with great versatility and interior design options. The S series model comes in three different screen sizes and two different models to suit individual business needs. 0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Layer Popup Close
At a Glance
  • 22” LED* Thin Client
  • S Series: All-in-one (circuitry in base of unit)
  • WES7 Embedded OS
  • AMD Ontario 1.0GHz Dual Core CPU
Remote management S / W

Remote management S / W

Samsung’s Cloud Display delivers amazing levels of convenience by using the remote management software of MagicRMS Pro. It delivers a centralised operation and saves administrators the time and hassle associated with physically having to visit each device for routine checks. Other benefits include virtually real-time device status monitoring, an inventory process and finally remote upgrading of firmware to all devices. With so many standout benefits for day-to-day operations, the MagicRMS software helps to make the office environment productive.
All-in-one design

All-in-one design

Samsung's innovative Cloud Display integrates a thin client into the LED* screen. Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of not having a separate thin client box is that you can use your desk space in a productive manner. These innovative features come together exceptionally for an all-in-one design that helps increase desktop space.
* Samsung’s LED displays utilise LCD Screens with LED edge lights.
Security you can trust

Security you can trust

Consolidate “almost all” of your resources on the data centre and deliver your applications and data over LAN/WAN via a number of encrypted protocols including RDP, HDX and PColP to your thin client. Access your critical data and applications while they are maintained and controlled in the data centre.
Little Maintenance

Little Maintenance

Because all software and data is stored on the centralised host platform, the network is easy to install and easy to maintain.

Display

  • Screen Size22"
  • TypeLED Display
  • Brightness250cd/m²
  • Contrast Ratio1,000:1
  • Resolution1,920 x 1,080
  • Response Time5ms
  • Viewing Angle (Horizontal/Vertical)170° / 160°
  • Color Support16.7 Million

Interface

  • D-Sub1ea
  • DVI1ea
  • USB6ea
  • Audio In/OutHeadphone / line out, MIC in
  • SpecialRJ45
View remaining tech specs

General Feature

  • Embedded Function[OS] Windows Embedded Standard 7 (WES 7) [Client SW] - Microsoft RDP(7.1) - Citrix Online Plug-in (12.1) - VMWare (Vew 4.6) [Others] - Enhanced Write Filter (EWF) - Internet Explorer 8.0 - Media Player 12
  • Additional PC S/WMagic RMS Pro
  • Windows CertificationYes
  • Energy/Environment MarkTCO, Engergy Star

Design

  • ColourBlack
  • Stand TypeSwivel / Pivot / Height Adjustable
  • Wall Mount100 x 100

Power

  • Power Supply100 - 240V (50 / 60Hz)
  • Power ConsumptionMax: 50W, Typical: 30W
  • Power Consumption (Stand-by)Less than 2.7W
  • Type14V 4.5A 63W External Adapter

Dimension

  • Set Dimension with Stand (WxHxD)513.0 x 424.1 x 227.0mm
  • Set Dimension without Stand (WxHxD)513 x 317 x 50mm
  • Package Dimension (WxHxD)576 x 382 x 179mm

Weight

  • Set Weight with Stand4.87kg
  • Package Weight6.74kg

Accessory

  • CablesDVI, Power Cable, Power Cord
  • OthersUser Manual, Quick Setup Guide, Warranty Card

Support

User Manual

5.6 MB, pdf, ENGLISH

2012.07.12

Other Manuals (1)

  • Quick Guide

    6.07 MB, pdf, KOREAN, ENGLISH, ARABIC, CHINESE, CHINESE, FRENCH, GERMAN, HUNGARIAN, INDONESIAN, ITALIAN, JAPANESE, KAZAKH, POLISH, PORTUGUESE, RUSSIAN, SPANISH, SWEDISH, TURKISH

    2012.01.25

Driver (1)

  • Device(Install)

    Windows 7(32bit,64bit), 7.9 MB, exe, MULTI LANGUAGE

    2012.01.30 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster TS220W
    3. Carrier or Corporate Customer
    Open Market
    4. Description

    If you have trouble for setting up the Monitor under Windows 7, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows7(32bit/64bit)

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu Viewer
