R01 R0101 ph 04110200 STW-S630S
  • S630S 1 FrontS630SLhttp://images.samsung.com/is/image/samsung/ph_STW-S630S_001_Front?$L1-Thumbnail$ph_STW-S630S_001_Front525330370370default1921575
defaultdefault

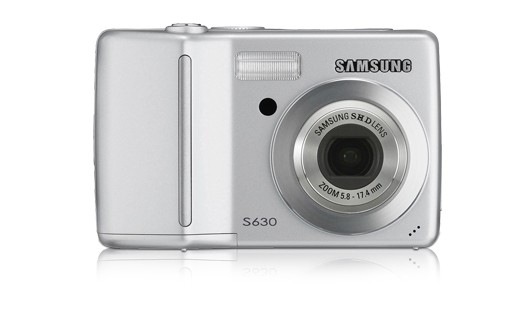

S630S Front

versatile & colorful

imagine convenience just a click away

Product Features

See All

Specifications

See All

Image Sensor

Sensor Type

  • 1/2.5" CCD

Effective Pixel

  • Approx. 6 Megapixel

Total Pixel

  • Approx. 6.1 Megapixel

Effect

Color Effect

  • Normal, B & W, Sepia, Red, Blue, Green, Negative, RGB

Interface

Digital output connector

  • USB 2.0

Audio

  • Mono

Video Output

  • PAL & NTSC (user selectable)

DC Power Input Connector

  • 4.2 V , 24 pin Connector

Physical Specification

Dimension

  • Dimension (WxHxD) : 99.8 x 62.8 x 25.7mm (excluding protrusions)

Weight

  • Approx. 136 g (without batteries and card)

Lens

Focal Length

  • SHD Lens f = 5.8 ~ 17.4mm (35mm film equivalent : 35 ~ 105mm)

F Value

  • F2.8 ~ F7.1 (Wide), F4.9 ~ F12.4 (Tele)

Digital Zoom

  • Still Image mode : 1X ~ 5X, Play mode : 1X ~ 11X (depends on image size)

Storage

Media

  • Internal memory: Approx.16 MB flash memory External, memory: SDHC / MMC / SD card (Up to 4 GB Guaranteed),

File format

  • Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1, Movie Clip : AVI (MJPEG), Audio : WAV

Power

Power Source

  • Power Supply Type : Primary Battery: 2X AA Alkaline, Rechargeable battery (0ptional) : SNB-2512B KIT (2X AA 2,500 mAh Ni-MH Battery & Charger)
