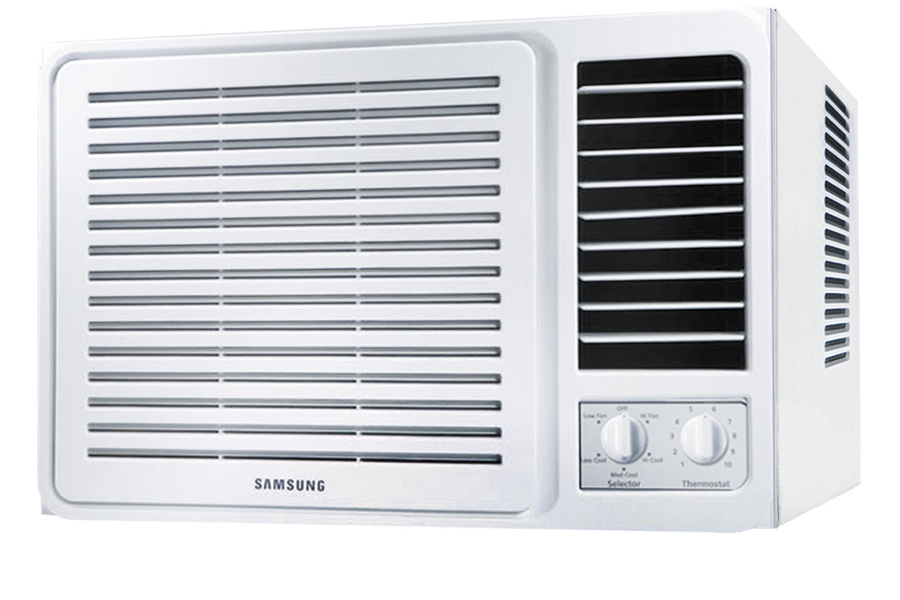

RAC Window System AW18P1B

AW18P1B

RAC Window System AW18P1B Compact yet powerful, it provides fresh, cool air to every corner of your room. 0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

RAC Window System AW18P1B

Features

  • Window type air conditioner

a delightful day with good'sleep mode

a delightful day with good'sleep mode
What if you can have 82% longer deep - sleep hours, what if you can keep optimum skin temperature while sleeping, and what if you can save up to 30% energy everyday? Based on precise studies undertaken for many years, Samsung's Good'sleep Mode will miraculously change your life, enabling all three what - if's.

easy installation & maintanence

easy installation & maintanence
Its Compact Size & light weight make easier installation & maintenance than other products; 4cm smaller in width, 4.5cm shorter in Depth, 12kg lighter.

improved air quality by "3M Filtrete"

improved air quality by "3M Filtrete"
3M innovation has developed a frameless, self - supporting filter with an array of small flow channels incorporating micro structured technology. 3M Filtrete performs 16% better dust colleting than other conventional filters, even though pressure drop has been improved.

powerful "UTR" compressor

powerful "UTR" compressor
Prompt and powerful cooling with UTR compressor.

high efficiency

high efficiency
Perfect choice for high performance.

powerful cooling

powerful cooling
Even under extreme temperatures, customers can rely on their air conditioner's performance to provide cool air rapidly & powerfully, allowing them to immediately enjoy the cool comfort of their homes and offices.

high - efficiency compressor

high - efficiency compressor
Samsung air conditioner with its UTR PlusTM compressor has increased energy capacity, more powerful efficiency, with decreased power consumption.

certificate for reliability & performance

certificate for reliability & performance
Certificate received from the Center for Environmental Energy Engineering (CEEE). University of Maryland, USA. Test results for performance and reliability concluded that Samsung's UTR PlusTM compressor showed bearing performance and resultant expected field life 80% to 100% better than that of commercially available reciprocating compressors.

new designed hand grille

new designed hand grille
Samsung's newly designed hand grille on the new UTR series gold grille for UTR Diamond series and silver grille for Platinum series makes these products beautiful and easy to access.

deluxe display

deluxe display
The newly designed display shows the room temperature and fan speed and the soft touch buttons are convenient to use.

4 - way air direction

4 - way air direction
This Window Type air conditioner provides fresh air in 4 directions. Its size is compact, but it can blow air to every corner of your room.

dehumidification

This Window Type air conditioner removes moisture and humidity, two big discomforts in summer making your room pleasant and fresh.

tech specs

Dimension of AW18P1BXTC

Performance

  • Capacity (Btu/hr)

    18,008

  • Air Circulation (Max, CFM)

    11.3

  • Capacity (Cooling, kW)

    5.278

  • Energy Efficiency
    EER (Cooling, Btu/W)

    10.5

    Power consumption

    1,810

  • Noise Level

    58/61

General Feature

  • Air Purification
    Anti-Bacteria Coating

    Yes

  • Moisture Removal (Pts/hr)

    1.7

  • Convenience
    Rust Free Cabinet

    Yes

    Washable Grille

    Yes

    Easy to Acess Filter

    Yes

    Auto Swing

    Yes

    Slide In/Out

    Yes

    Remote controller

    No

  • Operating Mode
    Temperature Control

    Yes

    Good Sleep

    No

    Timer

    No

    Energy Saving Mode

    No

    Auto Restart

    No

  • Air Flow
    Air Direction

    4 way

    Air Flow Control Step (Cool/Fan)

    3/2

    Air Discharge

    Side

  • Air Ventilation

    Yes

SHOW MORE SPECSExpand

Physical Specification

  • Dimension
    Net Dimension (WxHxD)

    620 x 421 x 690 mm

    Net Dimension (Depth without Grille)

    690mm

Electrical Data

  • Energy Efficiency
    Operating Current

    7.9

  • Power Source
    Φ/V/Hz

    220/60/1
