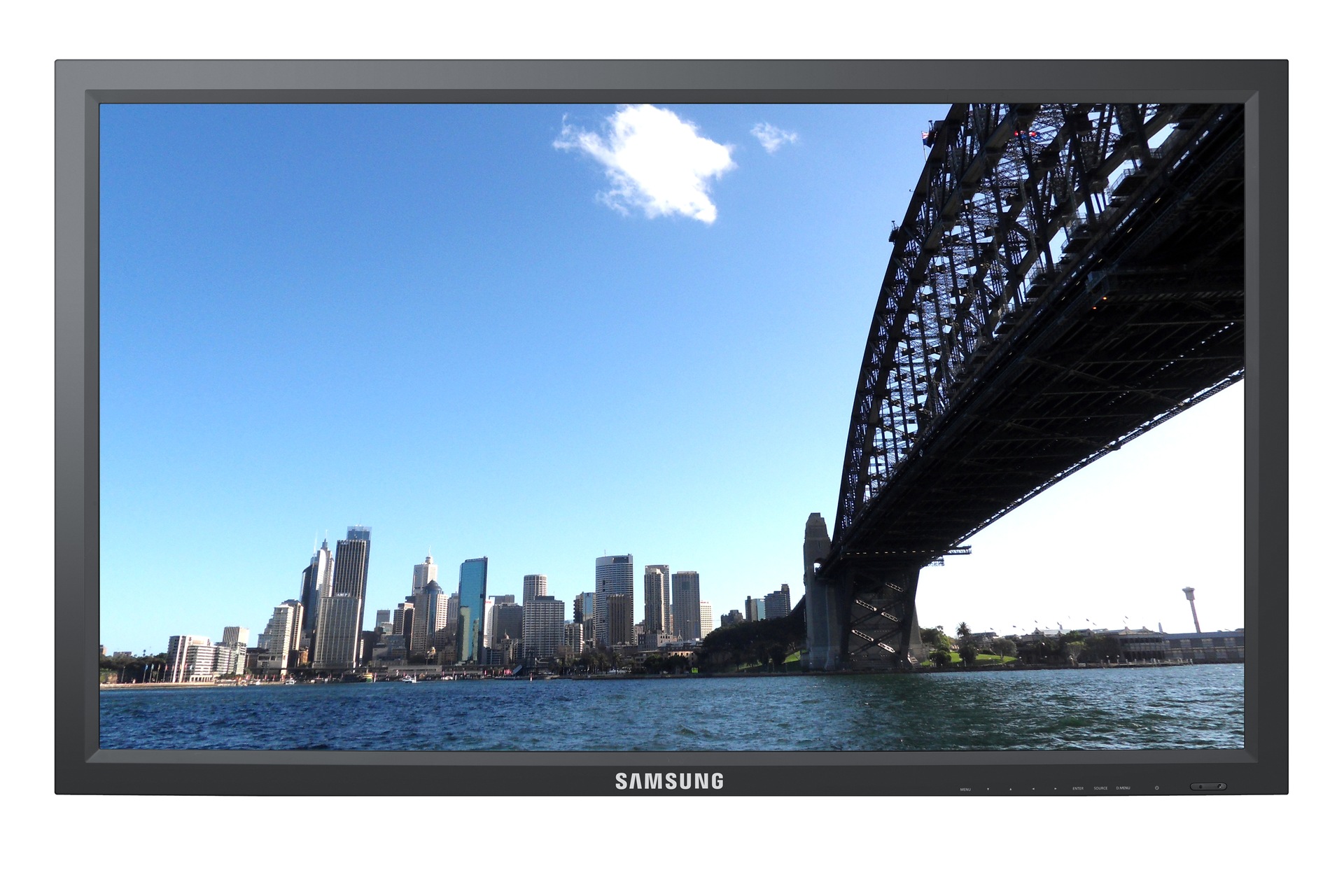

  • 400MX-3 1 Front400MX-3Phttp://images.samsung.com/is/image/samsung/ph_LH40HBPLBC-XS_001_Front?$L1-Gallery$ph_LH40HBPLBC-XS_001_Front30002000370370default1929521

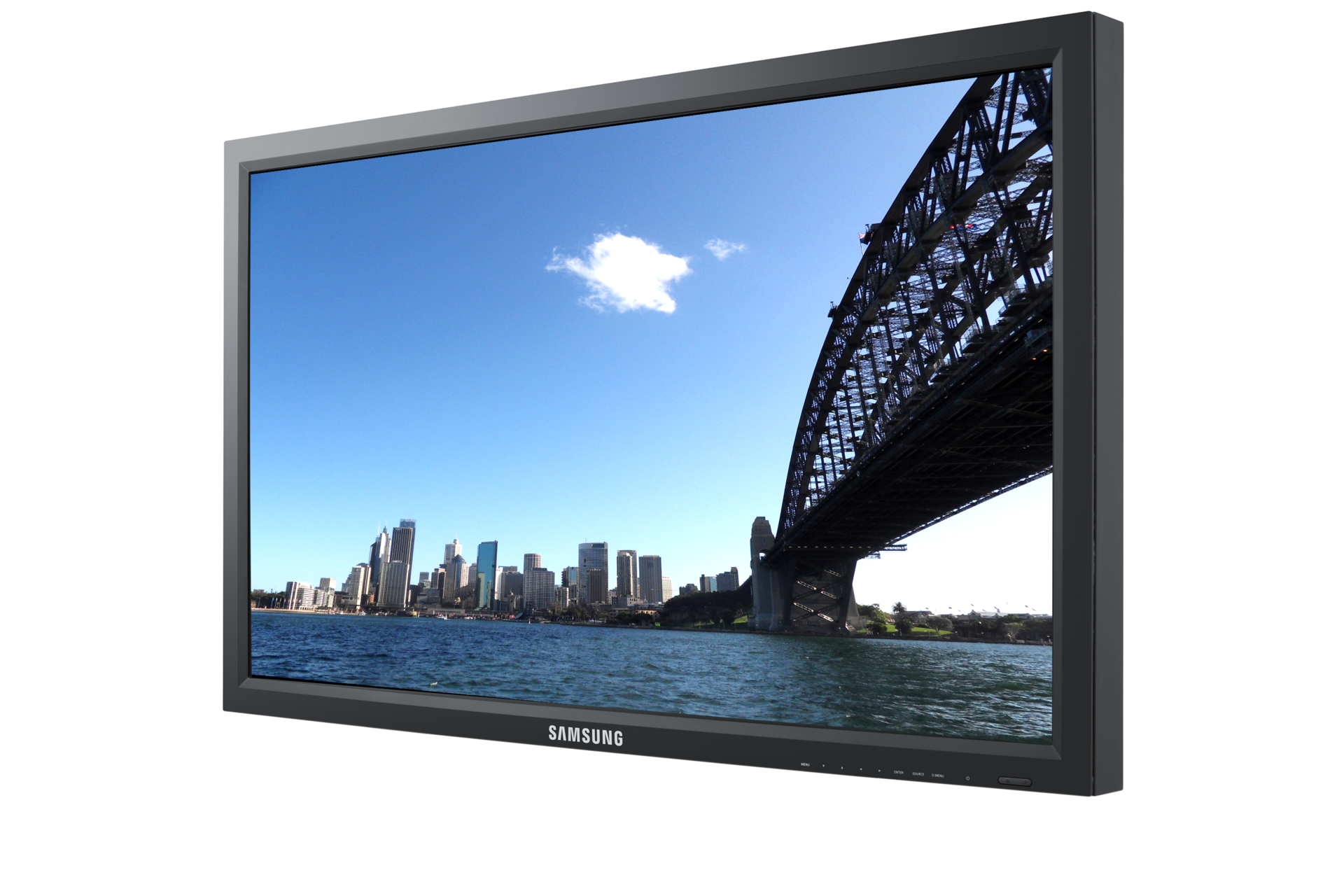

  • 400MX-3 2 Right Angle400MX-3Phttp://images.samsung.com/is/image/samsung/ph_LH40HBPLBC-XS_002_Right-Angle?$L1-Gallery$ph_LH40HBPLBC-XS_002_Right-Angle30002000370370default5689488

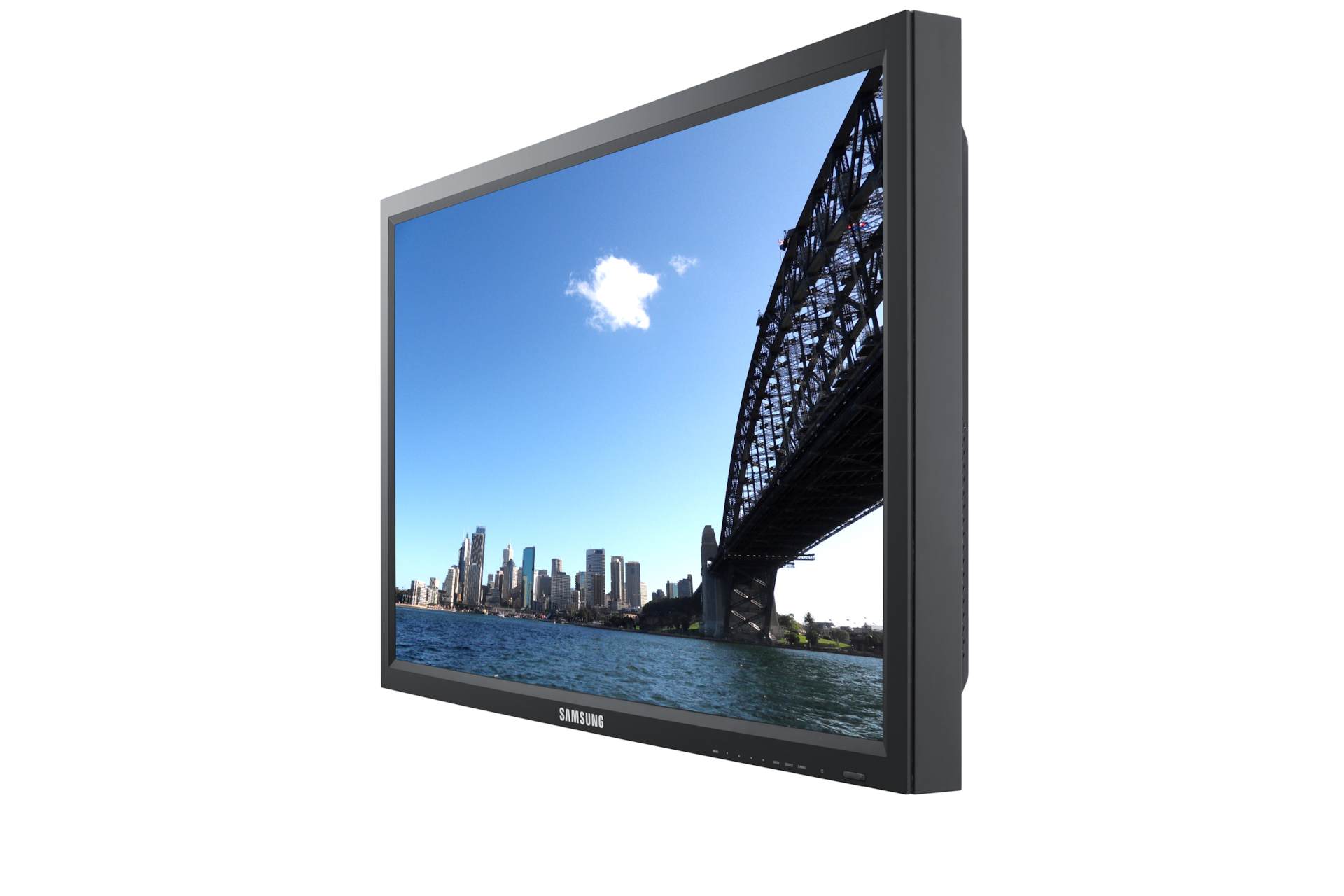

  • 400MX-3 3 Right Angle400MX-3Phttp://images.samsung.com/is/image/samsung/ph_LH40HBPLBC-XS_003_Right-Angle?$L1-Gallery$ph_LH40HBPLBC-XS_003_Right-Angle30002000370370default5689490

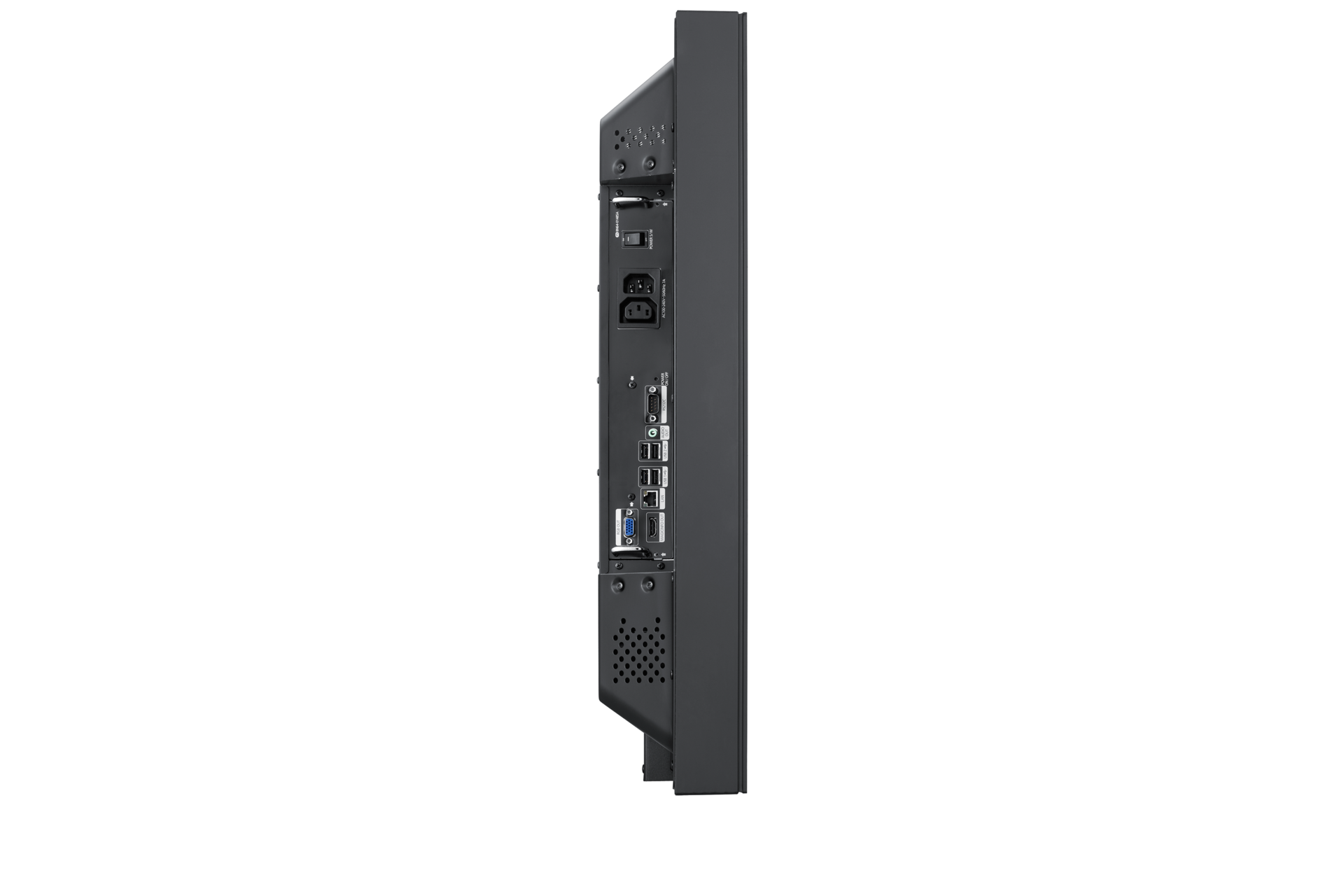

  • 400MX-3 4 Left400MX-3Phttp://images.samsung.com/is/image/samsung/ph_LH40HBPLBC-XS_004_Left?$L1-Gallery$ph_LH40HBPLBC-XS_004_Left30002000370370default5689492
defaultdefault
400MX-3 Front

Product Features

See All

Specifications

See All

Panel

  • 40" Diagonal Panel Size
  • 885.6 x 498.15mm Active Panel Display Area
  • Panel Viewing Angle:178˚/178˚
  • 8ms Panel Response Time
  • 16.7 million (8 bit) Display Colors
  • Color Garmut (0.72)

Connectivity

  • Analog D-SUB, DVI-D, Display Port
  • RCA (L / R), Stereo mini Jack
  • Stereo mini Jack
  • 5V (for SBB)

Mechanical Specification

  • 19.3kg Set Weight

Display

  • 30 - 81kHz H-scanning Frequency
  • V-Scanning Frequency 56 - 85Hz
  • 148.5MHz Max Pixel Frequency

Power

  • Power Type:Internal
  • Power Consumption (Off Mode):Under 1 Watt
Panel
Diagonal Size
Active Display Area
Viewing Angle (Horizontal/Vertical)
Response Time (G-to-G)
Display Color
Color Gamut
Display
H-Scanning Frequency
V-Scanning Frequency
Maximum Pixel Frequency
Connectivity
Input
RGB
Audio
Output
Audio
Power Out
Power
Type
Power consumption
Off Mode
Mechanical Specification
Weight
Set Weight
