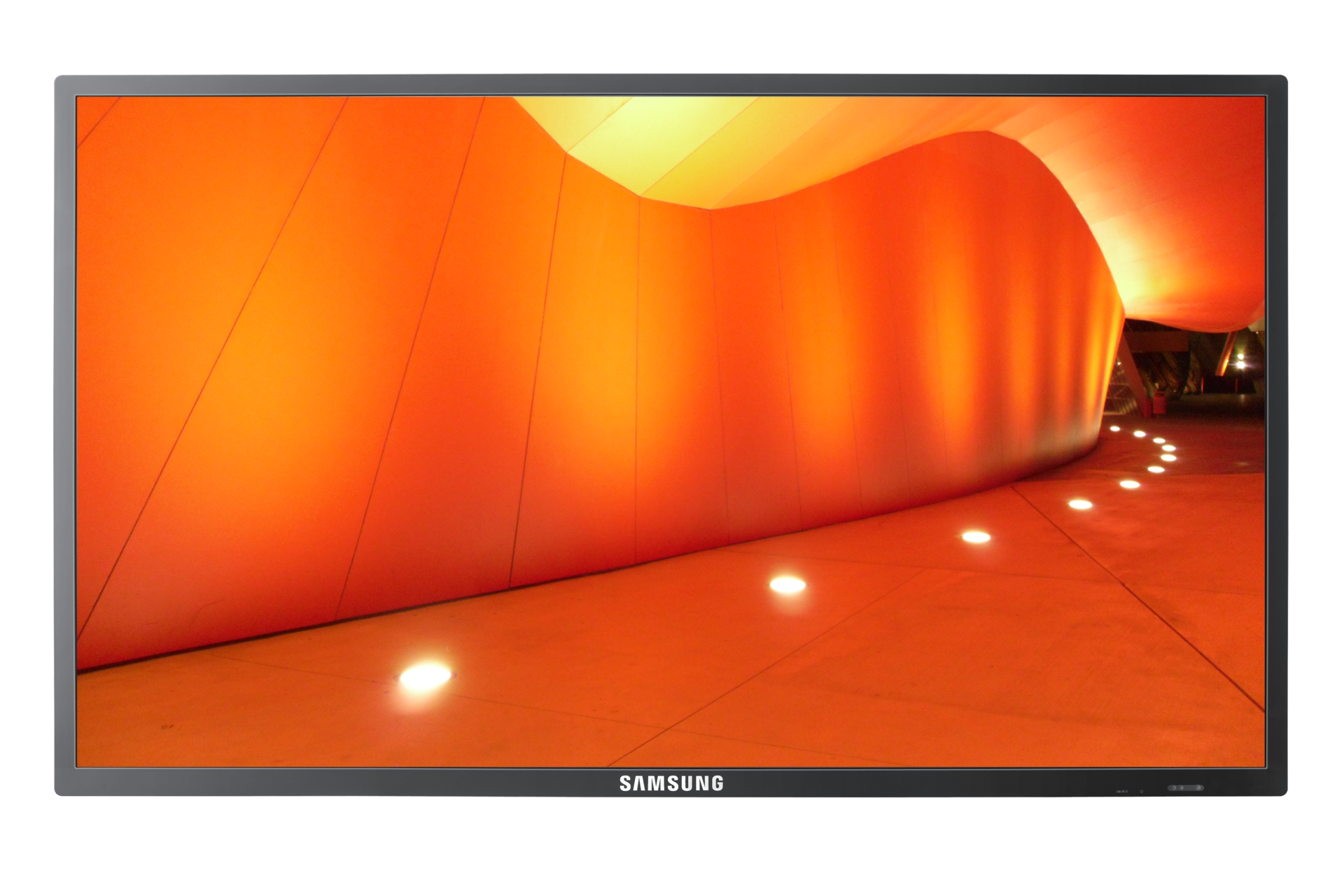

550DX Front

Product Features

See All

Specifications

See All

Panel

  • 20,000:1 Dynamic Contrast Ratio
  • 55" Diagonal Panel Size
  • S-PVA (DID) Panel
  • 1,920 x 1,080 (16:9) Resolution
  • 0.21 x 0.63mm Pixel Pitch
  • 1,209.6 x 680.4mm Active Panel Display Area
  • 700cd/m² Panel Brightness (Typical)
  • 4,000:1 Contrast Ratio
  • Panel Viewing Angle: 178˚/178˚
  • 8ms Panel Response Time
  • 16.7 million (8 bit) Display Colors
  • Color Garmut (0.72)

Connectivity

  • Analog D-SUB, DVI-D, Display Port

Display

  • 30 - 81kHz H-scanning Frequency
  • V-Scanning Frequency 56 - 85Hz
  • 148.5MHz Max Pixel Frequency
Panel
Contrast Ratio (Dynamic)
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area
Brightness
Contrast Ratio
Viewing Angle (Horizontal/Vertical)
Response Time (G-to-G)
Display Color
Color Gamut
Display
H-Scanning Frequency
V-Scanning Frequency
Maximum Pixel Frequency
Connectivity
Input
RGB
