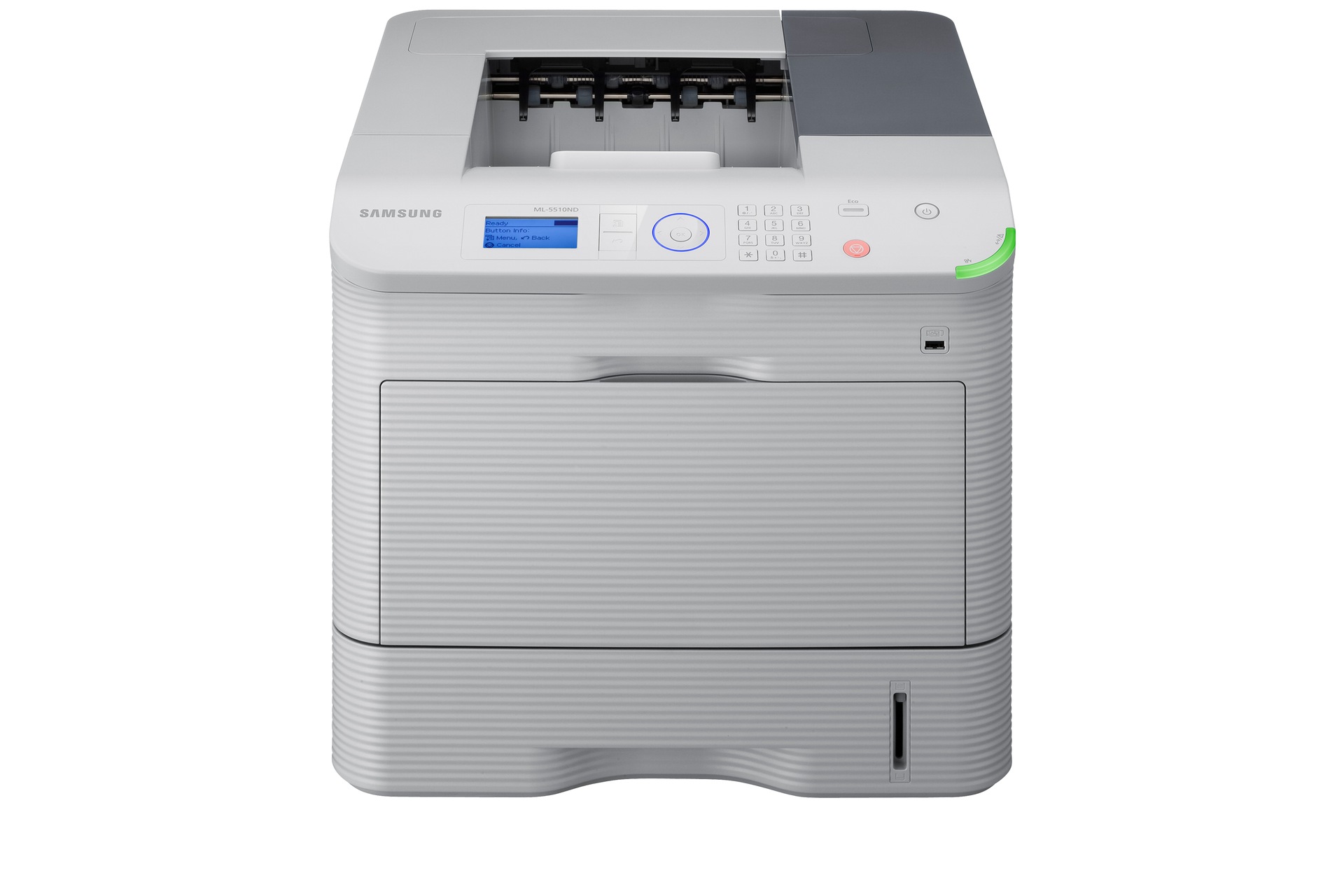

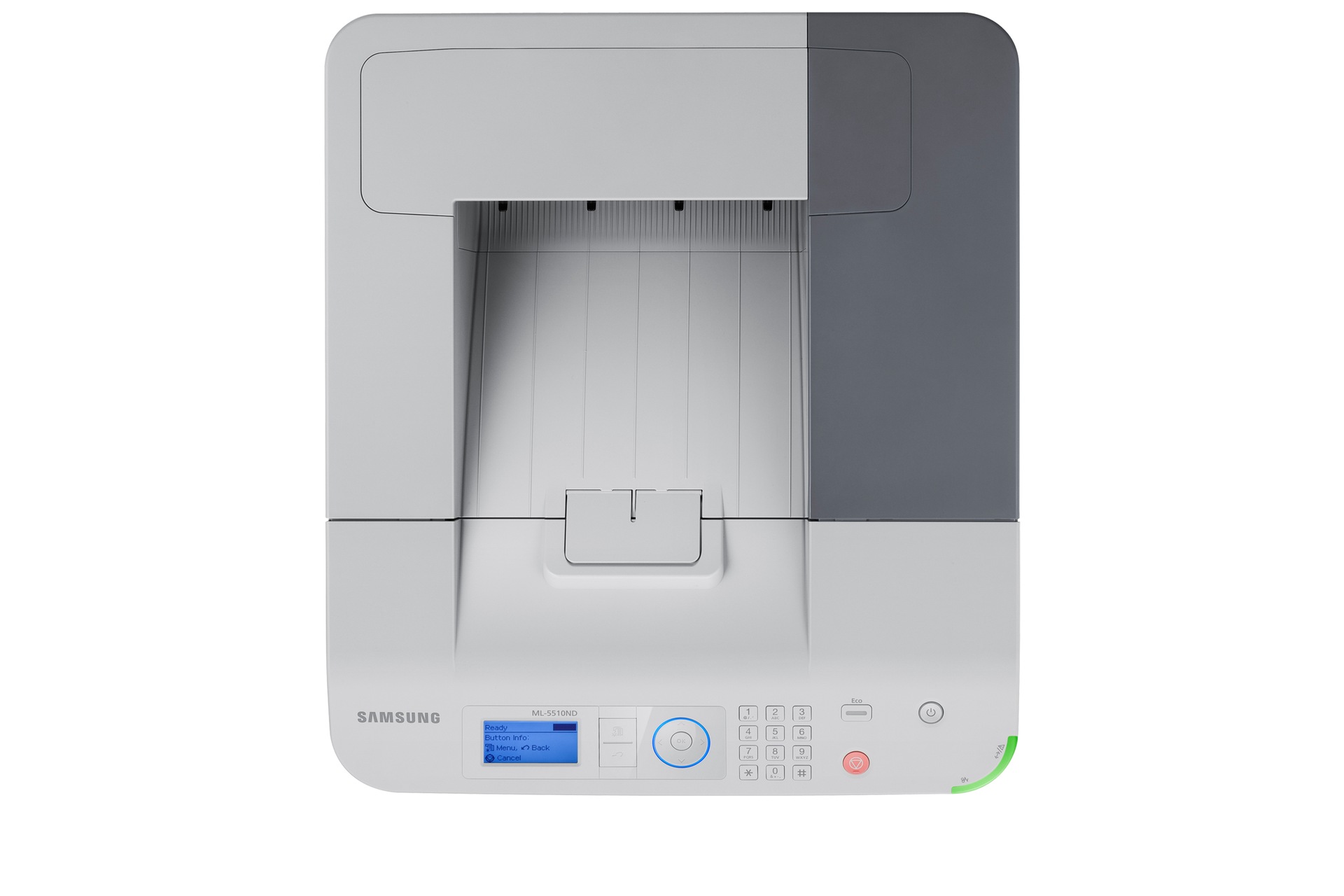

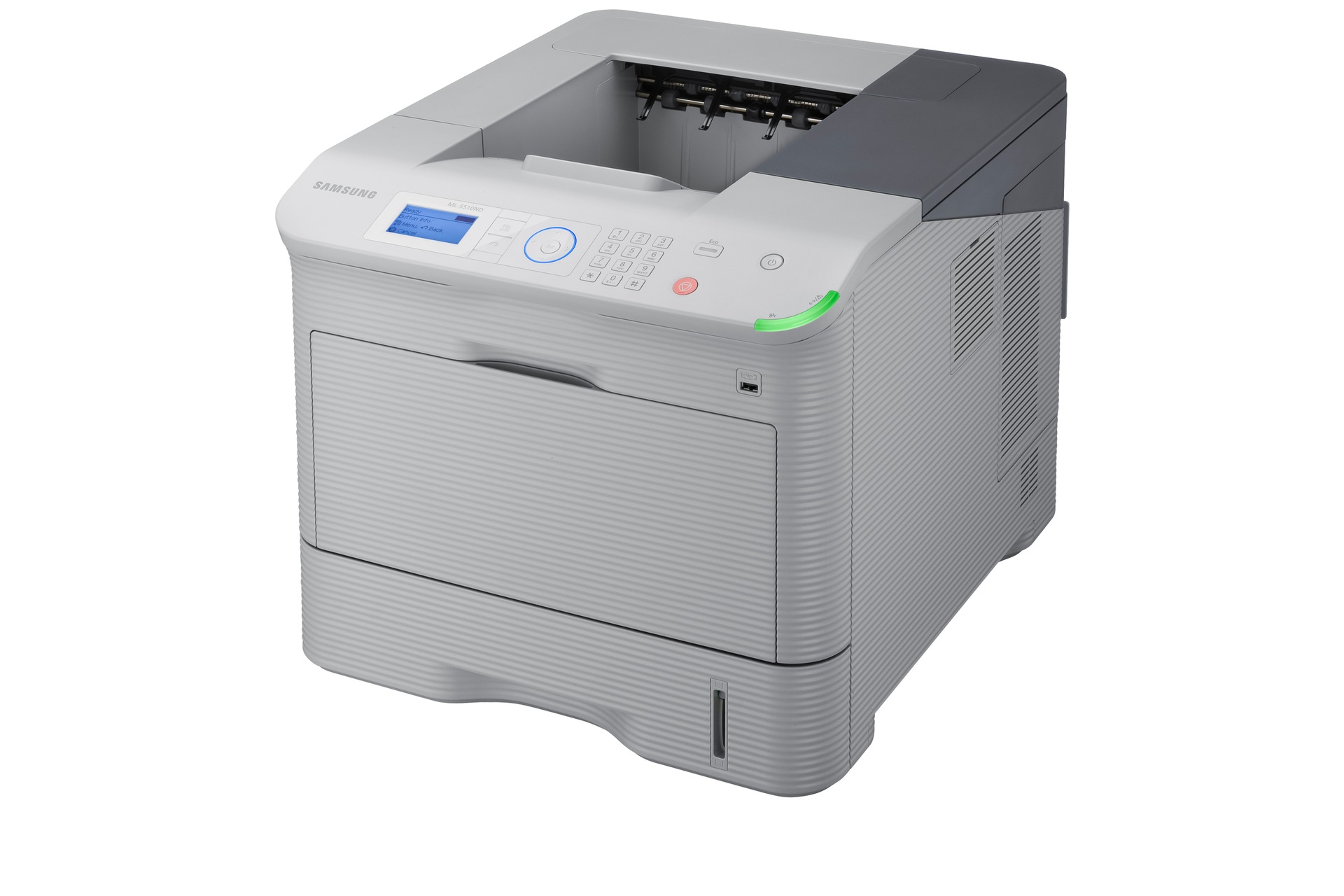

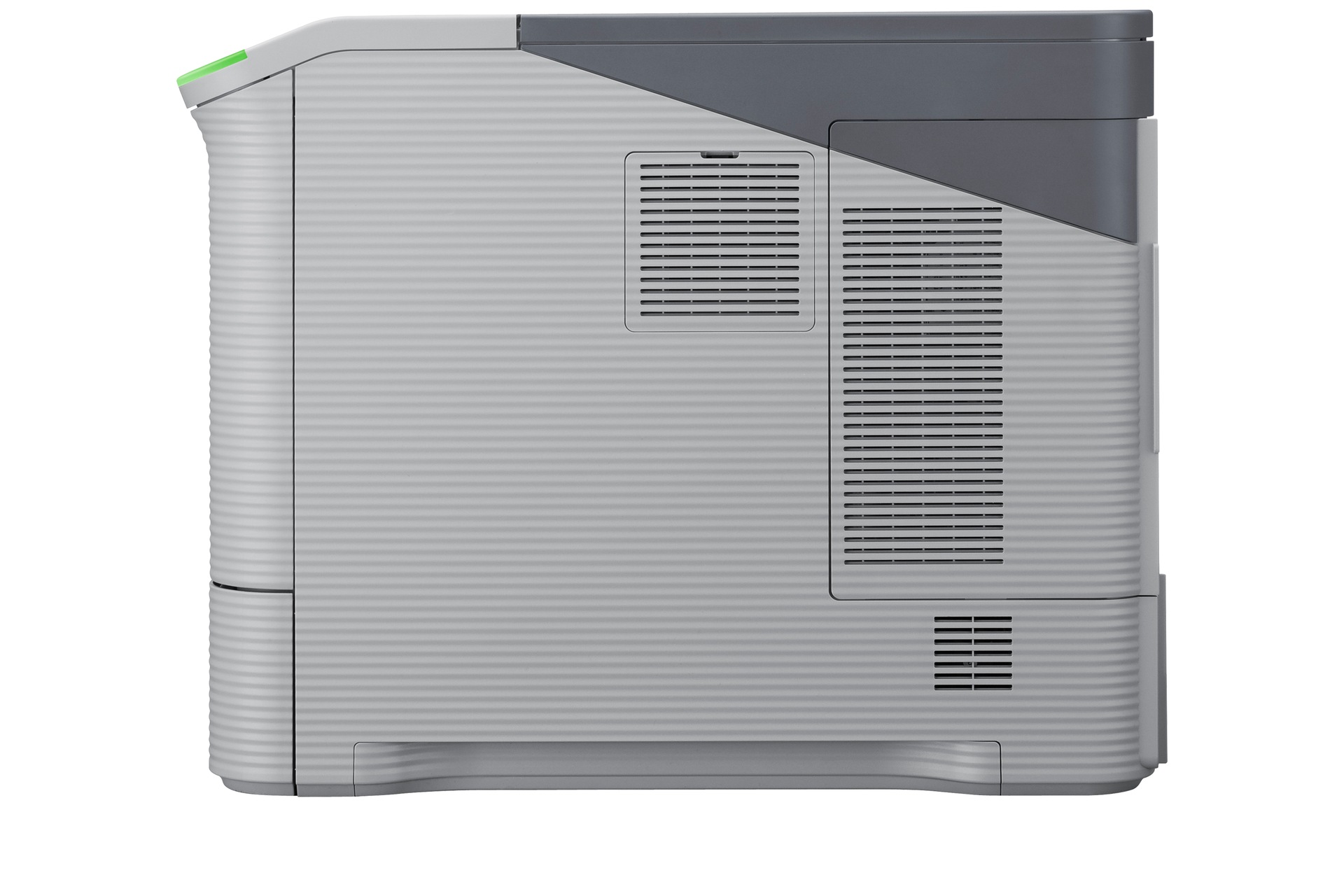

1,200 x 1,200dpi 52ppm Mono Laser Printer ML-5510ND

ML-5510ND

1,200 x 1,200dpi 52ppm Mono Laser Printer ML-5510ND Delivering a business print solution that answers both simplicity and productivity needs can be a challenge, especially across today’s diverse business environment. With hassle-free integration and easy-to-use functionality, the Samsung Mono Laser Printer ML-5510/6510 series delivers unlimited productivity – simply. 0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

1,200 x 1,200dpi 52ppm Mono Laser Printer ML-5510ND

Features

  • Seamless integration for a simple business workflow solution

Totally adaptable, easily customizable

Totally adaptable, easily customizable
The Samsung ML-5510ND can be customized to suit your business needs. With a fully modular setup and plenty of expandability options, this printer meets the exact needs of your business.

Fed up with paper feeding?

Fed up with paper feeding?
Feel free to multitask while your documents print: the ML-5510ND will crank through even your biggest print jobs without relying on you for a paper refill. Upgrade the standard 520-page capacity cassette and 100-page multi-purpose tray with 520-page optional second cassettes and 2,000-page high capacity feeder for even larger capacity paper handling, perfect for all of your bulk printing needs. Sometimes, bigger really is better.

The printer that works with your budget.

The printer that works with your budget.
The ML-5510ND lets you choose the right consumables option which you can afford. Toner cartridges are available in cost-effective standard-yield 10,000-page version and high yield 30,000-page version which provide a lower cost per page and require fewer replacements.

One less noisy office distraction

One less noisy office distraction
You shouldn’t have to struggle to hear yourself think while sitting at your own desk. That’s why the Samsung ML-5510ND is engineered to be whisper quiet, generating a noise level of just 55dBA while it’s printing. That’s less than the gentle hum of a running refrigerator! A desktop printer that does its work while letting you focus on yours? Cool.
Welcome to your high performance office

Welcome to your high performance office

The ML-5510ND increases your productivity with a print speed of 52ppm in A4. If its breathtakingly fast printing speed isn’t enough, when you factor in the processing power that comes with an 700MHz processor, Gigabit network and memory expandable up to 768MB, there’s no doubting the high-octane performance the ML-5510ND can bring to any office.
Save time and earth with convenient one-touch eco mode

Save time and earth with convenient one-touch eco mode

One touch of the ECO button lets you print using less toner on each page to extend the life of toner cartridge and administrator can modify for more eco-friendly print setting for multiple pages per sheet and duplex mode with toner save mode. And it doesn’t stop there. With the unique Result Simulator you can see exactly how much CO2, electricity and paper you have saved with the settings you’ve selected. Giving you real insight into the positive impact the Samsung ML-5510ND is having on your costs and the environment too .
Connect with your colleagues

Connect with your colleagues

Connect everyone in your office to one network and keep everything running smoothly. They’ll share a common printer and you’ll save time from servicing multiple machines. And with the Gigabit LAN you can increase your performance by hooking it up to the network. Improve your communication skills with the ML-5510ND laser printer and keep your lines of communication open.
Compass Navigation

Compass Navigation

Always know where your job stands with the ML-5510ND’s navigation feedback LED pattern. It keeps you clued in with its 11 different job status indicators, including error and warning situations.
Fast CPU

Fast CPU

With a 700MHz. processor, the ML-5510ND works fast to reduce wait time from network printing and improve office productivity with its quick processing and rapid fire printing.
Expandable Memory

Expandable Memory

The built-in memory in the ML-5510ND means that it can handle your workload without breaking a sweat. Enjoy fast processing with the standard 256MB of built-in RAM, or upgrade to 768MB to handle even your biggest jobs with ease.
SyncThru™ Web Service

SyncThru™ Web Service

Tired of having to install software just to manage your printer? Now you can change printer settings, upgrade firmware and check your printer’s status easily with just a web browser and the innovative SyncThru™ Web Service.
SyncThru™ Admin 5

SyncThru™ Admin 5

Who says you can’t do it all? SyncThru™ Admin 5 lets you easily install, manage and monitor all your networked digital print devices on an accessible interface. You also have the ability to analyze data in greater detail with easy-to-read reports.
CounThru™ 2 Pro / Enterprise

CounThru™ 2 Pro / Enterprise

Get printer status without leaving your seat. Receive low toner level warnings, system error notifications and even usage and customer billing summaries with Samsung’s proprietary CounThru™ 2 Pro / Enterprise interface.
Paper Jam

Paper Jam

Don’t let your productivity come to a halt. The ML-5510ND features semi-retard roller works to pick up only one piece of paper at a time while preventing sticky situations like misfeeds and paper jams.
Optional Hard Disk

Optional Hard Disk

The optional 160GB hard disk upgrade helps you monitor and manage jobs, reduces network congestion, and optimizes print job retention for confidential and delayed printing.

tech specs

Dimension of ML-5510ND/XSS

Overview

  • Function

    Low CPP (2 - piece toner cartridge system) / Print

Print

  • Speed (Mono)

    Up to 52ppm in A4 (55ppm in Letter)

  • Resolution

    Up to 1,200 x 1,200 dpi effective output

  • First Print Out Time (Mono)

    As fast as 7.8 seconds

  • Emulation

    PCL5e, PCL6, KS / KSSM, KS5895, IBM ProPrinter, EPSON, PostScript3, PDF Direct V1.7, XPS v1.0

  • Duplex

    Optional

SHOW MORE SPECSExpand

Paper Handling

  • Input Capacity and Types

    520-sheet Cassette, 100-sheet Multi Purpose Tray @ 80g/m², (550-sheet Cassette, 100-sheet Multi Purpose Tray @ 75g/m²)

  • Output Capacity and Types

    500-sheet Face - Down

  • Media Size

    76 x 127mm (3" x 5") - 216 x 356mm (8.5" x 14"), (Envelope: Monarch, No10, DL, C5, C6, No9)

  • Media Type

    Printer Default, Plain Paper, Thick Paper, Thin Paper, Bond Paper, Color Paper, CardStock, Labels, Transparency, Envelope, Preprinted, Recycled Paper, Archive, Extra Thick

  • Capacity

    Print

General Feature

  • Processor

    Samsung 700MHz

  • Memory / Storage

    256MB (Max. 768MB)

  • OS Compatibility

    Windows 2000 / XP (32 / 64bits) / Vista (32 / 64bits) / 2003 Server (32 / 64bits) / 2008 Server (32 / 64bits) / 7 (32 / 64bits) / 2008 Server R2 (64bits) Various Linux OS: RedHat Enterprise Linux WS 4, 5 (32 / 64 bit) Fedora 4, 5, 6, 7, 8, 9, 10, 11, 12 (32 / 64 bit) SuSE Linux 10.0, 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32 / 64 bit) Mandriva 2005, 2006, 2007, 2008, 2009, 2009.1 (32 / 64 bit) Ubuntu 5.04, 5.10, 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10(32 / 64 bit) SuSE Linux Enterprise Desktop 10, 11 (32 / 64 bit) Debian 4.0, 5.0 (32 / 64 bit) Mac OS 10.3 - 10.6 UNIX OS: Sun Solaris 9,10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4

  • Interface

    Ethernet 10 / 100 / 1,000 Base TX, High Speed USB 2.0, Host USB 2 Port (Rear 1 Port & Front 1 Port), IEEE 1284B Parallel connector (Option), 802.11b,g,n wireless network (Option)

  • Noise Level

    Less than 56dBA (Printing), Background Noise Only (Less than 30dBA) (Standby)

  • Duty Cycle, Monthly

    275,000 sheets

  • Dimension (WxDxH)

    464 x 540 x 420mm

  • Weight

    34.2kg (Inc. Imaging Unit / Toner / WTB), 30.6kg (exc. Imaging Unit / Toner / WTB)

  • Power consumption

    820watts (Active) / 100watts (Ready) / 10watts (Sleep)

Consumables

  • Yield

    Standard: Average Cartridge Yield 10K standard pages, High Yield: Average Cartridge Yield 30K standard pages, (Ships with 10,000 pages Starter Toner Cartridge), Imaging Unit: Average Yield 80K standard pages, Declared cartridge yield in accordance with ISO / IEC 19752.

  • Type

    2 - piece Cartridge (Toner & Imaging Unit (Drum Unit)

  • Model Code

    Toner Cartridge: MLT-D309L, MLT-D309S, Imaging Unit: MLT-R309

Option

  • Options

    520-sheet Cassette Tray @80g/m² (550-sheet Cassette Tray @75g/m²), 2,000-sheet High Capacity Feeder @80g/m², Short Stand, 500-sheet Finisher with Stapler, 400-sheet 4-bin Mailbox, 160GB HDD, 512MB Memory, IEEE 1284B Parallel Connector, 802.11b,g,n wireless network, Duplexer
