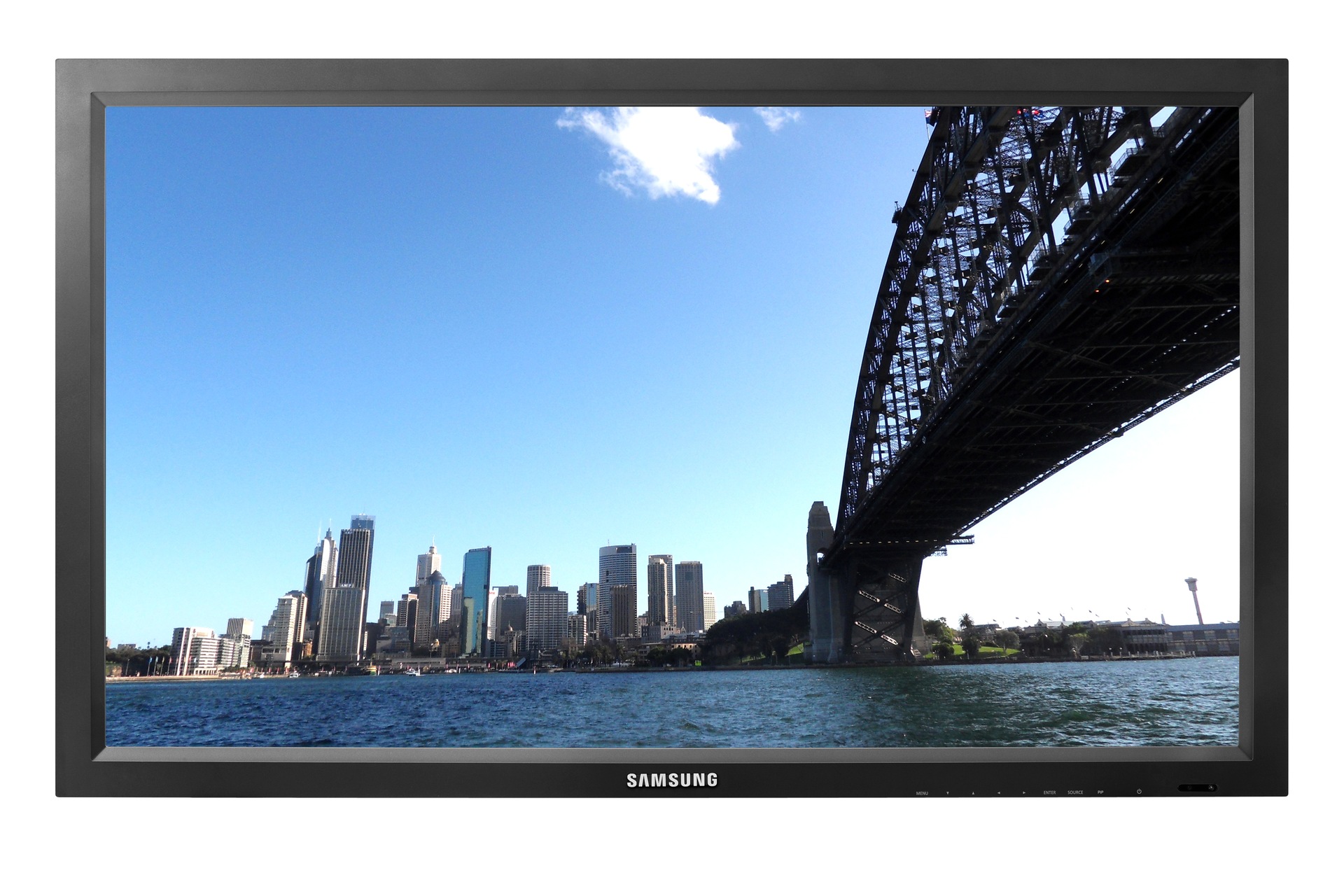

320MX Samsung's MXN series is ideal for public, corporate, and commercial displays. Designed with an array of special features such as advanced anti-burn technology, a slim and simple design that makes it easy to multi display. Compatible first for PC’s makes the Samsung 320MX a high performance monitor with a competitive price to match.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.



  • large format display monitor

3 way burn-in protection

3 way burn-in protection
3 Types of Anti-Burn Program. Screen burn-in is a major concern of customers. Samsung plasma monitors support three types of anti-burn protection. Samsung new plasma monitor supports Anti-burn protection timer in OSD Menu, this timer helps you choose protection mode, period and operation time that you want. If you select these items, Samsung plasma monitors operates selected anti-burn PGM during selected operation time per selected period. For example, if you select All White, 1 hour period & 5 minutes operation time, Samsung plasma monitors automatically operates All White mode every 5 minutes each hour. - Signal Pattern Process, this function moves black & silver strips from right to left on the screen. - All White, this function refreshes plasma's cell and will change screen to all white. - Auto Pixel Shift, this function shifts 3 or 4 pixels according to this order, right, top, left, bottom. The user cannot see the movement since it involves only a few pixels. User can choose the number of pixels and moving period in OSD Menu.

pivot support

pivot support
Samsung LFD Monitors have a pivot function that freely rotates around 90° degrees, allowing you to easily view a vertical image or text without mouse scrolling.

enhanced colour with DNIe Pro

enhanced colour with DNIe Pro
New Technology of Samsung: Brighter & Clearer Images. Video signal: AV, S-Video, Component, HDMI (Not PC Signal).


PIP (Picture In Picture) / PBP (Picture By Picture): Multi tasking function allows you to enjoy an image from two different sources at once. Work and play at the same time.

pivot technology

pivot technology
Flexible Pivot Function that freely rotates around 90˚ degrees, allowing you to easily View a vertical image or text without mouse scrolling. This function gives you more flexibility, supporting presentations in portrait mode.

power saving system

power saving system
DPMS (Display Power Management Signalling) Adopted uses less than 1W in stand-by mode and the monitor goes to stand-by mode automatically after checking its status.

VESA wall mount standard

VESA wall mount standard
VESA Flat Display Mounting Interface Standard Support. - Customer can find 3rd party installation company in anywhere easily.

extended video wall format

extended video wall format
Extended Video Wall Function - Full Mode: Video Wall regardless of cabinet bezel. - Natural Mode: User can adjust video wall image. Support All Video wall Combination from 1 x 1 to 5 x 5.


With 2 HDMI, it can be connected to variety of AV devices such as game consoles, DVD players, camcorders, home theatres as well as computers with high resolution contents such as 1080P.

tech specs

Dimension of LH32MGQLBC/XY


  • Screen Size


  • Resolution

    1366 x 768

  • Viewing Angle (Horizontal/Vertical)

    178°/ 178°

  • Color Support



  • Brightness


  • Contrast Ratio


  • Response Time (G-to-G)

    8ms (GTG)


Signal Input

  • Video Signal

    Analog RGB, DVI-D, CVBS, HDMI

  • Sync. Signal

    Separate H / V, composite, SOG

  • Connector

    D-Sub, RS232C cable


  • Power Consumption

    143 watts

  • Stand-by Power (DPMS)

    < 2 Watts (Energy Saving ON)

  • Type



  • Included

    MDC Program, User Manual, Power cable, Remote controller, Batteries, etc

General Feature

  • Plug&Play

    DDC 2B

  • Embedded Function

    Lamp Error Detection, Video Wall (2 x 2, 3 x 3, 4 x 4, 1 x 5, 5 x 1, 5 x 5), Safety Lock, Temperature Sensor, Built in Fan, RS232C, Network Support with SBB

  • OS Compatibility


  • Cabinet Colour



  • Audio In/Out

    5W x 2ch (Built-in)


  • Set Dimension with Stand (WxHxD)

    780 x 545 x 311mm

  • Set Dimension without Stand (WxHxD)

    780 x 482 x 109mm

  • Package Dimension (WxHxD)

    890 x 590 x 256mm


  • Package Weight

    16.7 kg


  • Stand Type

    Semi Stand (Optional)

  • Wall Mount

    Mounting Kit Available (option)


User Manual

3.65 MB, pdf, ENGLISH


Other Manuals (2)

Driver (1)

  • VGA(Graphics)

    Win 98/ME/2K/XP/X64/Vista, 0.05 MB, exe, MULTI LANGUAGE

    Version : 1.0


    Close tooltip pop-up
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64
