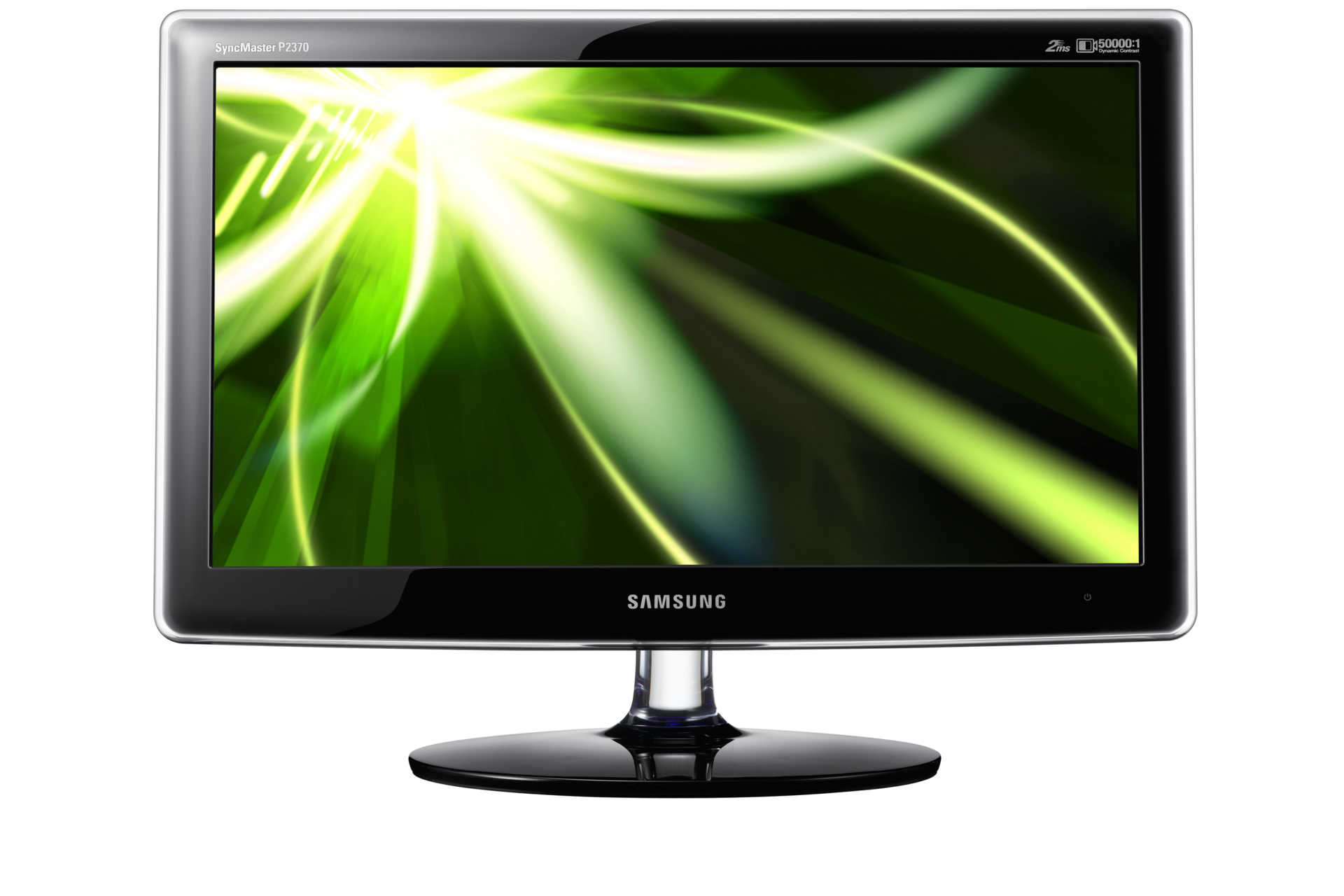

P2370

P2370

When was the last time you found yourself staring at a monitor that wasn't turned on? The sleek artful design of Samsung's P2370 is just one of the things that will surprise you. Recyclable and VOC-free, it will fit anywhere in your home as well as on the planet. Of course there's the true HD picture too. With a wider screen and more space, image loss and distortion aren't an issue. It's picture perfect. Even without a picture.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

P2370

Features

  • 23" ultra-slim design LCD monitor

See the big picture.

See the big picture.
The only time you’ll see an image stretched or distorted on the screen of 70 series monitor is when the director wants you to. The series monitor has been optimised for Full HD sources. So what you’ll see is as perfect as a home theatre, a 16:9 ratio. In other words, the way your games and movies were meant to be seen.

See both sides of everything.

See both sides of everything.
Look to your right, then left. If gadgets, sidebars and movies feel clipped or crammed, you need a wider monitor. Like the 70 series monitor. It’s wide enough to pull up two internet screens side by side. With excellent viewing angles, your eyes will move more easily across the screen. And with more space you can enjoy what’s there instead of wondering where it went.

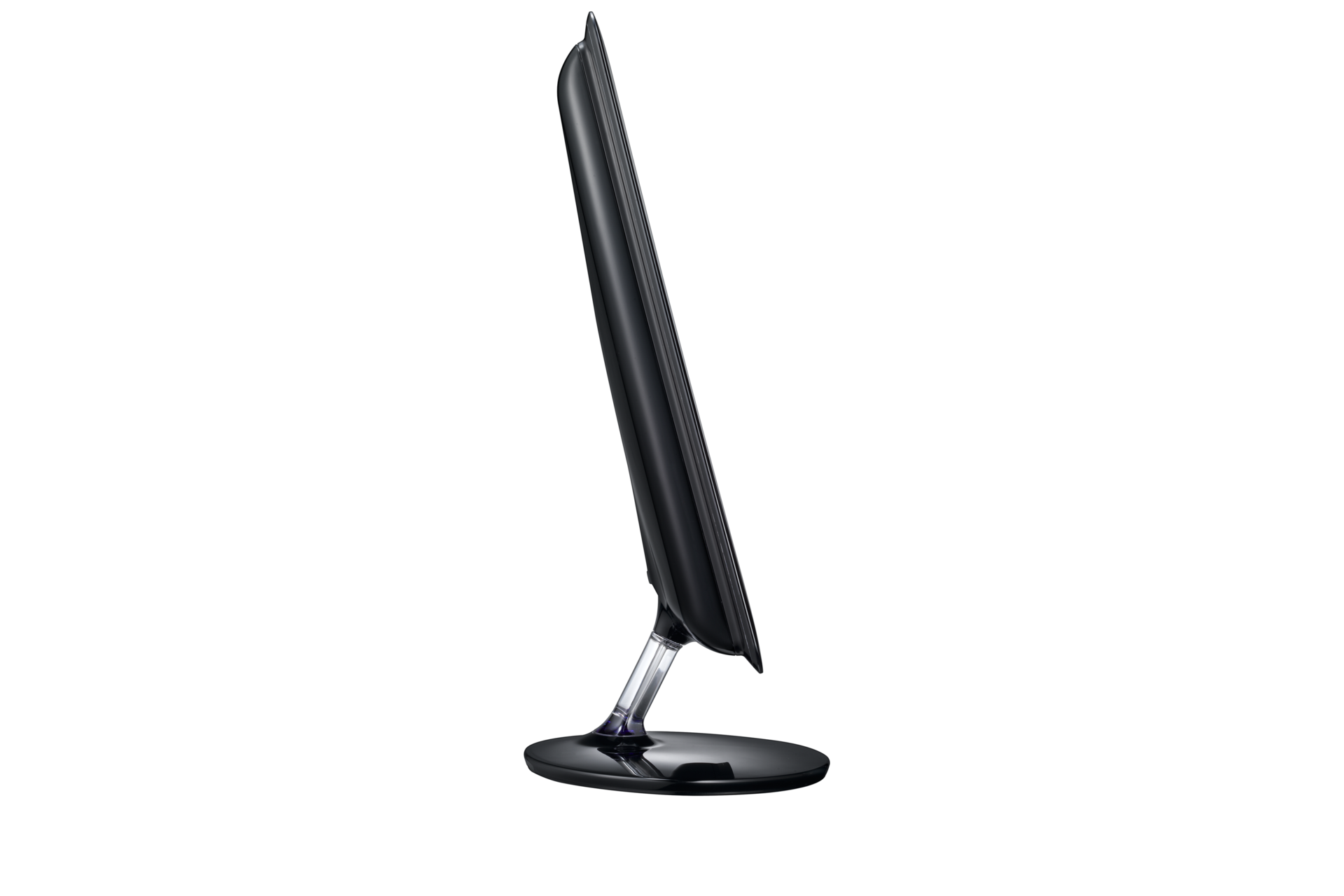

Thin is always in.

Thin is always in.

Front, back or sideways, our ultra-slim 70 series monitor is a stunning addition to any room. With a screen depth of only 30mm, the 70 series monitor can be placed anywhere plus, ToC™ adds a touch of unique style to its surroundings with a hint of rich red infused into the bezel. Sporting a slim, innovative design, the 70 series monitor is so beautiful that blending in is almost impossible.

Even life isn’t this real.

Even life isn’t this real.
You’ll want to take a second look at Samsung’s P2370. And a third and a fourth. At 1920 x 1080 it delivers breathtakingly vivid HD on a wide screen. There’s so much photorealistic detail that every time you watch something on it, you’ll feel like you’re seeing it for the very first time.
Part high-tech. Part eye candy.

Part high-tech. Part eye candy.

70series monitor is finely crafted from its cobalt blue, crystal neck all the way around to its clean, black silhouette. The high-gloss bezel actually changes colour with the room’s light. Turn it on, and the function button automatically fades off. It’s also just as beautiful from the back as it is from the front so feel free to show it off at any angle.
Plant one on your desk.

Plant one on your desk.

You see a glossy high tech monitor. So do we. But we also see a bezel that can be recycled into a bicycle or a maybe even a computer. Our 70 series monitor is created with a unique manufacturing process and are VOC-Free. Even better, they use up to 33% less power. That in turn reduces the amount of CO2 emitted into the atmosphere. It’s one piece of computer equipment that can be used for generations to come.
Available in green.

Available in green.

Energy Star rated, our 70 series monitor use up to 33% less power. That’s equal to planting four new trees per year. Plus, the power-off feature automatically shuts off the monitor when you’re not using it, not only saving energy but also prolonging the monitor life. Being green never felt so good, or was this easy.
MagicBright 3™

MagicBright 3™

Control your screen’s display with just one click. MagicBright 3™ automatically optimises brightness, contrast and gamma correction, based on the mode you choose.
Windows Vista Premium

Windows Vista Premium

Windows Vista Premium certification is only granted to monitors that satisfy stringent Microsoft compatibility tests before they qualify for the logo.

tech specs

Dimension of LS23EFHKF/ZN

Display

  • Screen Size
    23W
  • Resolution
    1920 x 1080
  • Viewing Angle (Horizontal/Vertical)
    170º / 160º (CR > 10)
  • Color Support
    16.7M

Panel

  • Brightness
    250cd/m²
  • Contrast Ratio
    DC 50,000:1 (1000:1) (typ)
  • Response Time (G-to-G)
    2ms (GTG)

SHOW MORE SPECSExpand

Signal Input

  • Video Signal
    Analog RGB / DVI
  • Sync. Signal
    Separate H / V, composite, SOG
  • Connector
    DVI-I

Power

  • Power Consumption
    30W (typ)
  • Stand-by Power (DPMS)
    1W (typ)
  • Type
    External

General Feature

  • Plug&Play
    DDC 2B
  • Embedded Function
    MagicBright³, off timer, image size colour effect, customised key, MagicWizard & MagicTune with AssetManagement, Windows Vista Premium, safe mode (DownScaling in UXGA)
  • OS Compatibility
    0
  • Energy/Environment Mark
    No
  • Cabinet Colour
    Charcoal Grey

Interface

  • Audio In/Out
    No

Dimension

  • Set Dimension with Stand (WxHxD)
    571.0 x 423.0 x 190.0mm
  • Set Dimension without Stand (WxHxD)
    571.0 x 364.5 x 47.0mm
  • Package Dimension (WxHxD)
    694 x 437 x 116mm

Weight

  • Package Weight
    5.9 kg

Design

  • Stand Function
    No
  • Stand Type
    Simple
  • Wall Mount
    No

Support

Quick Guide

1.69 MB, pdf, ENGLISH

2009.07.21

Other Manuals (2)

Driver (2)

  • Device(Install)

    Windows 7(32bit,64bit), 7.9 MB, exe, MULTI LANGUAGE

    2009.10.29 tooltipbox

    Close tooltip pop-up
    If you have trouble for setting up the Monitor under Windows Windows 7(32bit,64bit), this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 7(32bit,64bit)


  • Device(Install)

    Win 98/ME/2K/XP/X64/Vista, 0.06 MB, exe, MULTI LANGUAGE

    2009.02.23 tooltipbox

    Close tooltip pop-up
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo

Have a question or need product support? Go to our support sectionGo
