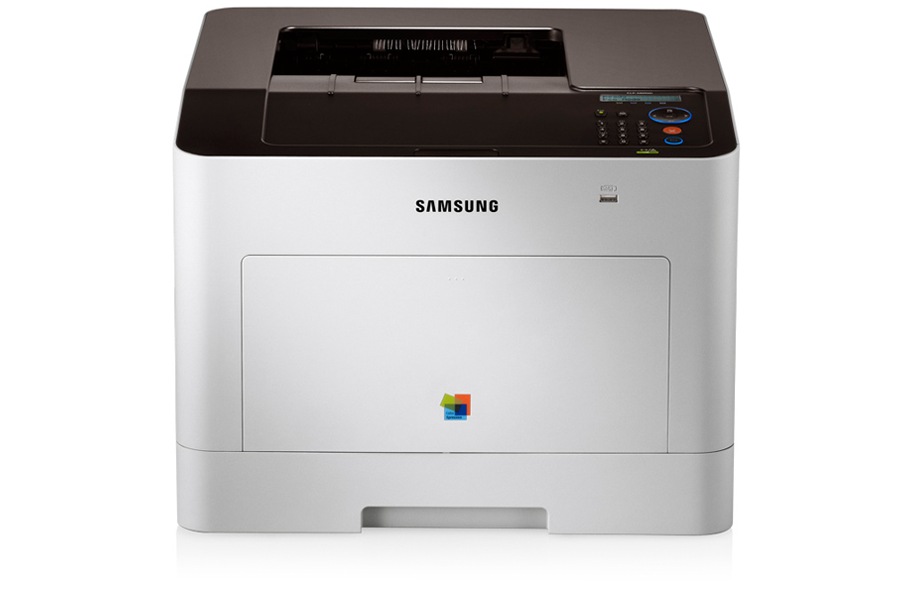

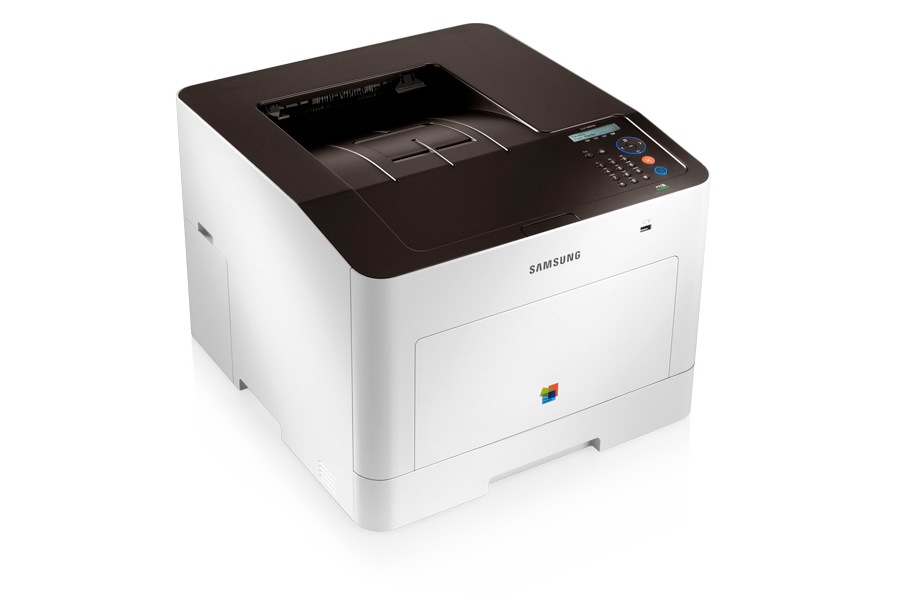

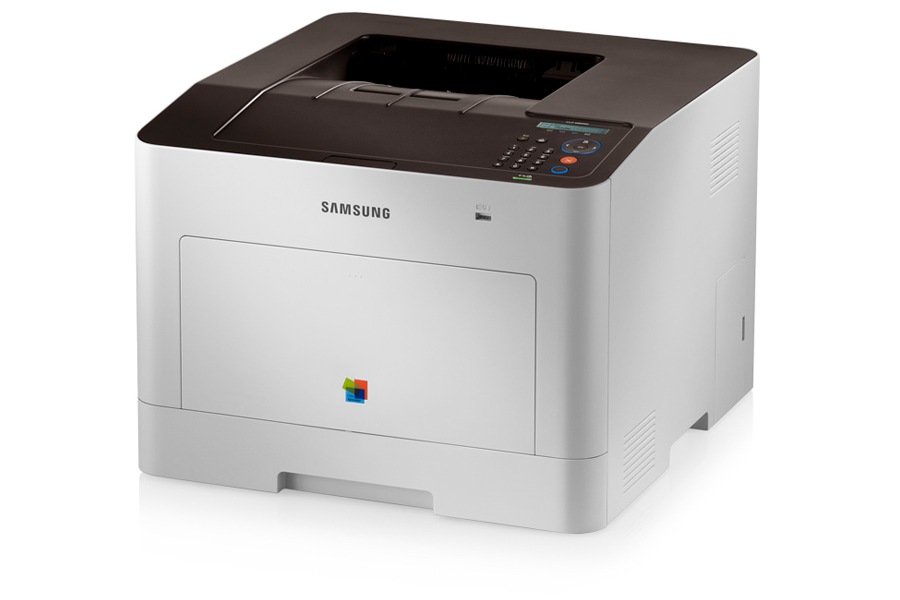

CLP-680ND

Features

  • High quality printouts with ReCp
  • New polymerised toner
  • Boost productivity with superfast performance
  • Different paper for different printouts

Product Configuration

Product Configuration

Professional colour printing made easy for you (Convenient USB printing)

Professional colour printing made easy for you (Convenient USB printing)
You can boost the productivity of your business with a convenient, low-maintenance printer, and the CLP-680ND provides just that opportunity with its extensive features. With the Direct USB slot located at the front just below the operating panel, you can print from a USB key straight from the device, without the need of a computer, essentially bringing a PC performance to your printer. This feature also benefits those needing to scan images or documents, as the results can be saved and transferred more easily than ever.

Professional colour printing made easy for you (Easy Operating Paner)

Professional colour printing made easy for you (Easy Operating Paner)
With the CLP-680ND you can increase your entire workgroup’s workflow with a range of easy-to-use features and ingenious time-saving support software that helps free you to work smarter and faster.
* Easy operating panel
With the CLP-680ND's 4 line liquid crystal display and intuitive 5 key compass navigation you can control the device's status, browse the menu and access all the time-saving, money-saving features in comfort.

Professional colour printing made easy for you(Secure, confidential printing)

Professional colour printing made easy for you(Secure, confidential printing)
The CLP-680ND lets you increase your entire organisation’s workflow with a range of easy-to-use features and ingenious time-saving support software that help free you to work smarter and faster. Should you need to print sensitive data through your device, you can now ensure confidential print jobs remain confidential. By entering a password on the convenient user interface, you can retrieve and control a print job at your convenience, keeping documents away from any prying eyes. The integrated numeric keypad makes this process easier and more secure than ever.

More power, higher productivity

More power, higher productivity
The CLP-680ND's 533 MHz Dual CPU is the new colour laser printer that brings more power and higher productivity to your workspace. It offers speed and economy without compromising on quality. With 512MB standard memory, expanding up to 1GB, it is the ideal colour printer for a wide range of businesses. You can increase your entire workgroup’s print flow with a range of easy-to-use features and convenient time-saving support software that helps your business operate faster and more efficiently.

Easy Solution support (Easy Eco Driver)

Easy Solution support (Easy Eco Driver)
The printer also brings you software support designed to put you in control of delivering ultimate quality printouts easier than ever before.
* Easy Eco Driver
Easy Eco Driver helps you compile digital documents in multiple formats and makes it easy to share them with others - even through social networks.

Speedy and flexible paper handling

Speedy and flexible paper handling
In any working environment, refilling paper and resolving jams can cause unwanted delays. The CLP-680ND solves these problems by offering up to three different media types, a 50 page multipurpose tray and a 250 and 520 sheet cassette, providing a total paper input capacity of 820 sheets. Should you need to print or copy onto heavier weights of paper, it is robust enough to handle up to 220gsm with ease. The CLP-680ND enhances your business with speedy, flexible and high-quality printing.

Get the right result before printing

Get the right result before printing
The Samsung Easy Colour Manager is an intuitive printing software solution that allows you to move and resize any image and adjust its colour balance, saturation, brightness and contrast prior to printing. It lets you select and grab the precise image you want to print, helping your business save on toner and paper costs

Take the stress out of print management

Take the stress out of print management
The Easy Printer Manager lets you manage all your devices from one location for maximum control. This allows you to monitor toner status, change device settings or even set up alerts through email, considerably reducing the stress of having to deal with multiple projects simultaneously

Easy toner replacement

Easy toner replacement
Gone are the days of fiddly, dirty and time-consuming toner cartridge changes. It’s all made easier with a push loading drawer. What’s more, the high yield cartridges mean fewer changes.

Network Ready

Network Ready
With amazing Samsung Mobile Printing solution, you don’t have install any drivers to your mobile devices. Simply Just Install Samsung Mobile Print application on your mobile devices, and you can print
Enjoy quality printouts

Enjoy quality printouts

Samsung’s unique ReCP (Rendering Engine for Clean Page) Technology and Up to 9,600 x 600dpi effective output improve the overall quality and vibrancy of your colour printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps
Polymerized toner

Polymerized toner

Our newly developed polymerized toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid colours, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.
Low power consumption

Low power consumption

The CLP-680ND lets businesses operate more efficiently and economically than ever, saving on toner, paper and energy while continuing to produce vibrant, colourful and professional results. Despite its impressive list of features and functions, the CLP-680ND consumes less energy than most of its competitors. Its innovative polymerised toner requires lower fusing temperatures, and its instant fusing technology saves warm-up time before first print, increasing your productivity while saving you time. In addition, our new dual-core processor makes it one of the greenest devices around today.
Low cost, low impact on the world

Low cost, low impact on the world

With the CLP-680ND, users can enjoy professional productivity while staying in complete control of their TCO. Our specially developed higher-yield cartridges result in more time between changes and less expense with each print out, with 6,000 and 3,500 pages for black / white and colour cartridges respectively. Costs can be cut further thanks to the integrated duplex feature, saving up to 50% on your paper consumption. The Eco button and the smart eco driver functions make it easier to save energy, and the integrated result simulator even lets you monitor how much CO2, power and paper you have saved.

tech specs

Dimension of CLP-680ND/XSS

Overview

  • Function
    Print
  • Value Added Function
    One-touch Eco Mode, Direct USB, Mobile Print

Print

  • Speed (Mono)
    Up to 24ppm in A4 (25ppm in Letter)
  • Speed (Colour)
    Up to 24ppm in A4 (25ppm in Letter)
  • First Print Out Time (Mono)
    Less than 17 seconds (From Ready Mode)
  • First Print Out Time (Colour)
    Less than 17 seconds (From Ready Mode)
  • Resolution
    Up to 9,600 x 600dpi Effective Output (600 x 600 x 4 bit)
  • Emulation
    PCL5Ce / PCL6C / PS3 / PDF V1.7 / SPL-C (Samsung Printer Language Colour)
  • Duplex
    Built-In

SHOW MORE SPECSExpand

Paper Handling

  • Input Capacity and Types
    250-Sheet Standard Cassette / 50-Sheet MP Tray (Max 820 Sheets)
  • Output Capacity and Types
    150-Sheet Face Down
  • Media Size
    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127mm (3" x 5") ~ 216 x 356mm (8.5" x 14") ]
  • Media Type
    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy
  • Envelope Capacity
    20-Sheet

General Features

  • Processor
    Dual CPU (Main : ARM11 533MHz / Sub : ARM9 150MHz)
  • Display
    2-Line LCD
  • Interface
    High-Speed USB 2.0, USB Host, Ethernet 10/100/1,000 Base-TX
  • Noise Level
    Less than 52dBA (Printing) / Less than 32dBA (Standby)
  • Memory/Storage
    256MB (Max 512MB)
  • OS Compatibility
    Window 2003 / 2008 / XP / Vista / 7 / 2003 Server / 2008 Server / 2008 Server R2 / Mac OS X 10.4 - 10.7 / Various Linux, UNIX OS
  • Duty Cycle, Monthly
    60,000 Images
  • Dimension (WxDxH)
    420.0 x 452.5 x 311.3mm (16.54" x 17.81" x 12.26")
  • Weight
    20.15kg (44.42lb)
  • Power consumption
    450W (Average) / 10W (Standby) / 1W (Sleep Mode) / 1.49kWh (TEC)

Consumables

  • Black Toner Cartridge
    Standard Toner Cartridge Yield: 6,000 Standard Pages
    (Ships with 2,000 Pages Starter Toner Cartridge)
  • Yellow/Magenta/Cyan Toner Cartridge
    Standard Toner Cartridge Yield: 3,500 Standard Pages
    (Ships with 1,500 Pages Starter Toner Cartridge)
  • Transfer Belt
    Approx. 100,000 Pages
  • Waste Toner Container
    Approx. 14,000 images (Mono) / 3,500 images (Colour)

Option

  • Option
    520-Sheet Cassette / IEEE 1284B Parallel Connector / 512MB Memory
