At a Glance
  • Distinctive square-shaped video display that adds visual interest and showcases your business message

Generate customer interest with visually appealing video displays

Generate customer interest with visually appealing video displays

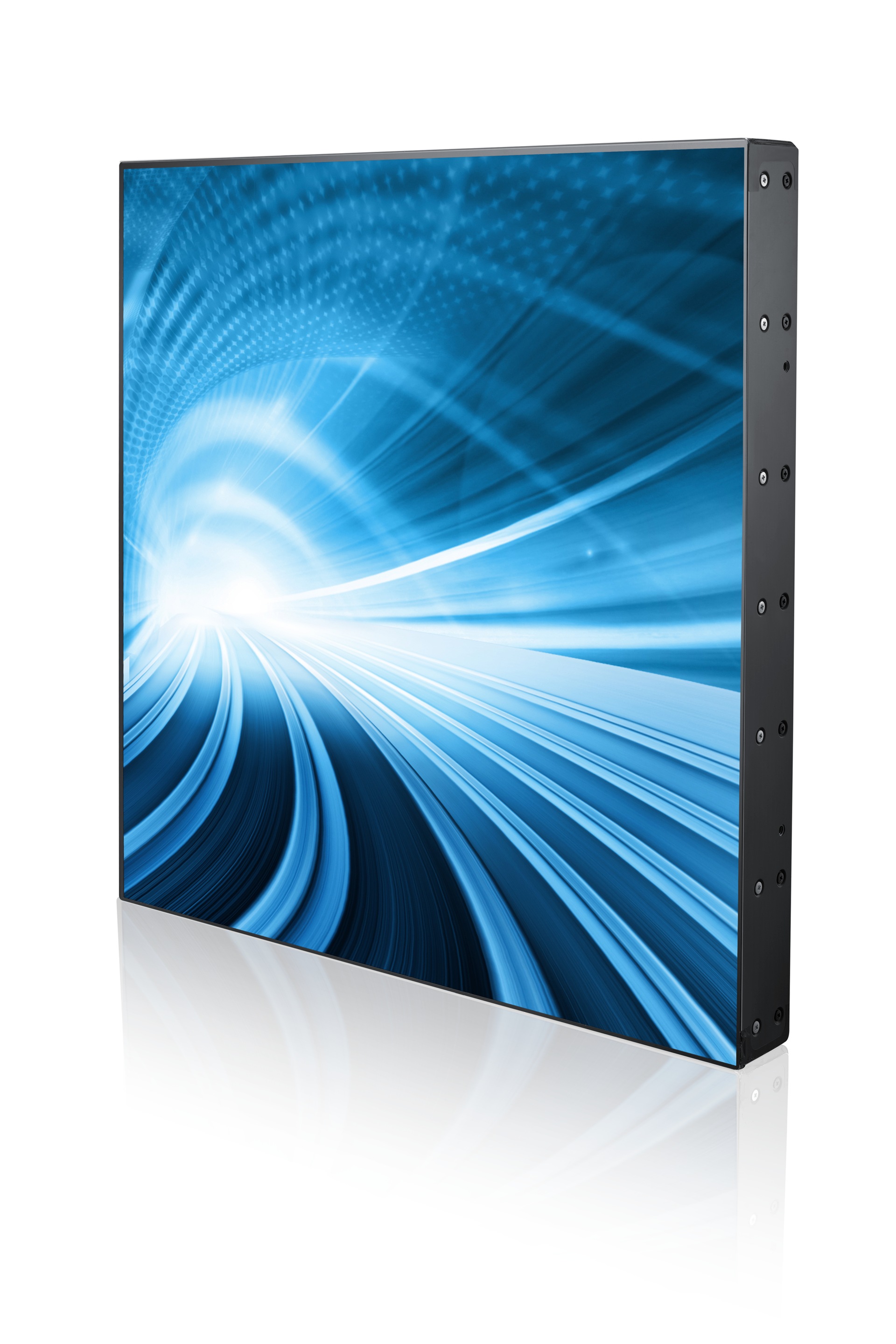

To capture and maintain customer attention, retailers are relying more on digital displays to generate customer interest and to differentiate themselves from the competition. The Samsung UD22B square display is designed especially for the retail and venue market. Its square shape and supernarrow bezel create a striking, artistic video wall that draws customer attention.

Design a Dramatic Video Wall with the Display’s Distinctive Shape and Slim Bezel

Design a Dramatic Video Wall with the Display’s  Distinctive Shape and Slim Bezel

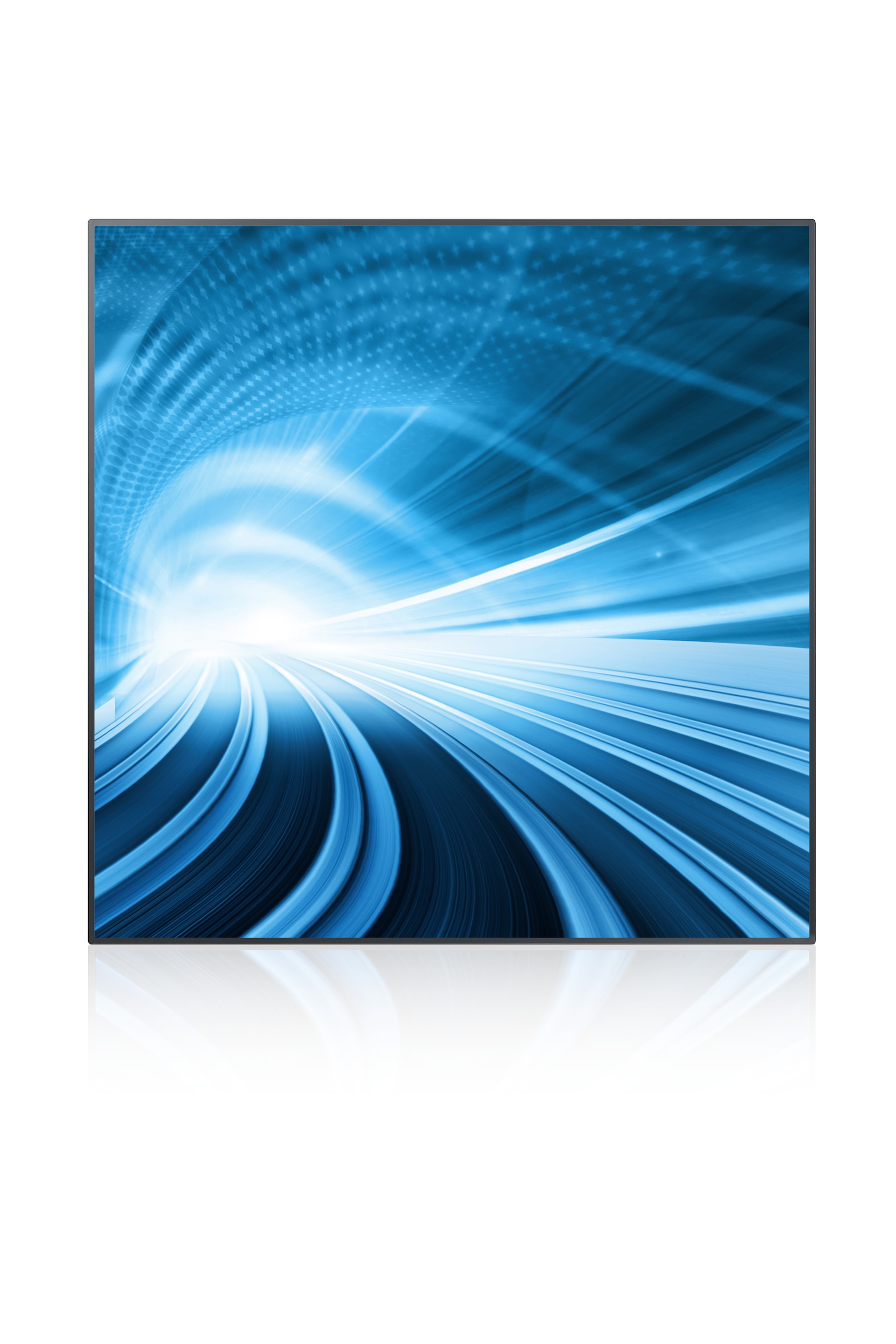

Create a captivating video wall with the UD22B square ratio (1:1) screen. The shape of the display is ideal for interactive point-of-sale and advertising displays. Super-narrow bezel-to-bezel measurements (5.5 mm or 0.22 in.) provide a near-seamless video wall. Plus, the digital loop out creates a single image across multiple displays (up to 100) without compromising picture quality.

Decrease Operating Expenses with Samsung Direct LED Backlight Technology

Decrease Operating Expenses with Samsung Direct LED Backlight Technology
The UD22B features high-efficiency Samsung Direct LED backlight technology. LEDs in the UD22B are behind the display panel, and the light is emitted from the rear of the panel. The LED backlight unit (BLU) produces clear picture quality with high contrast levels for high-impact images. The UD22B generates less heat by centralizing the heat around the sides of the screen. Less heat generation equates to nominal operating costs because less energy is needed to cool the display.

Improve Efficiency by Scheduling and Controlling Content Using a LAN

Improve Efficiency by Scheduling and Controlling Content Using a LAN

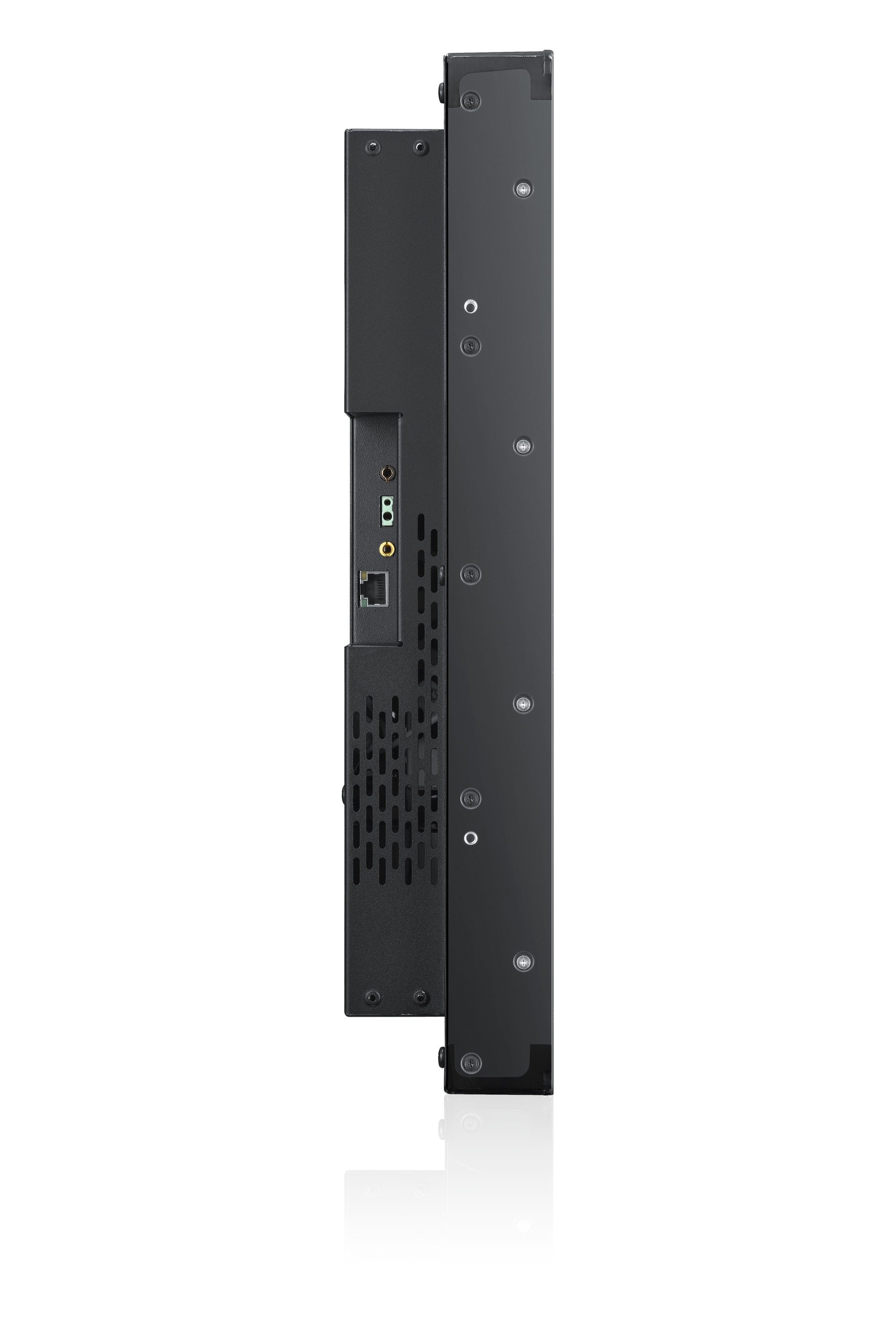

Use Smart Scheduling to control the video wall content at all times. You can program up to three day and time calendars for when content is to be displayed. Smart Scheduling also includes a holiday management option to schedule your content appropriately. Use the upgraded Multi Display Control solution to control multiple remote monitors through the embedded RS-232 and RJ45 interfaces. The Multi Display Control feature allows you to direct monitors over long and short distances with remote technology. You can also control your content over a LAN or WAN.

Increase Display Functionality and Manageability with Powerful Optional Features

Increase Display Functionality and Manageability with Powerful Optional Features
The optional Samsung set-back box (SBB) increases display functionality and manageability, enabling you to control your business's brand identity with ease. This powerful feature, which can be simply connected to the UD Series, guarantees high performance and reliability. It also renders the process of personalising messages to your customers more straightforward. The innovative and versatile slide-in module is designed to satisfy changing commercial needs and fit in seamlessly with local demands with minimum effort and cost.

Easy Wall Mount Kit

Easy Wall Mount Kit
Our wall mount kit has a push and pull design which makes it easy to create video wall arrangements. This allows products to be showcased in an innovative way that generates customer interest. Dismantling the built-in unit from the wall or furniture is as easy as setting it up, saving valuable time for users working across multiple locations.


  • Diagonal Size21.6"
  • TypeS-PVA(DID)
  • Resolution960 x 960 (1:1 Aspect Ratio)
  • Pixel Pitch(mm)0.1345mm(H) * 0.1345mm(V)
  • Active Display Area387.36 * 387.36 mm
  • Brightness450 cd/m2
  • Contrast Ratio (Dynamic)4000:1
  • Viewing Angle (Horizontal/Vertical)178/178
  • Response Time (G-to-G)8ms
  • Display Colour8 bit - 16.7M
  • Colour Gamut72%

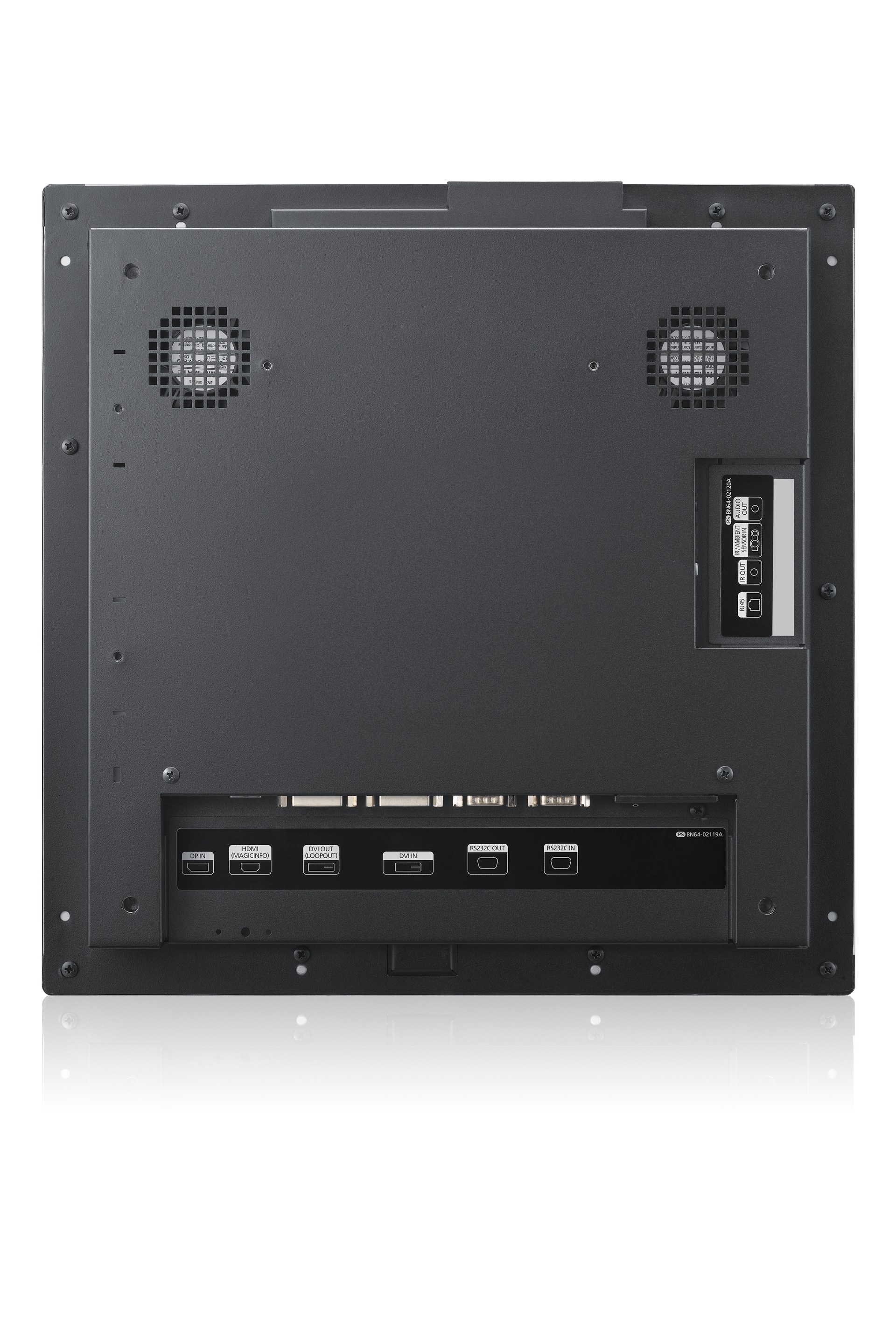

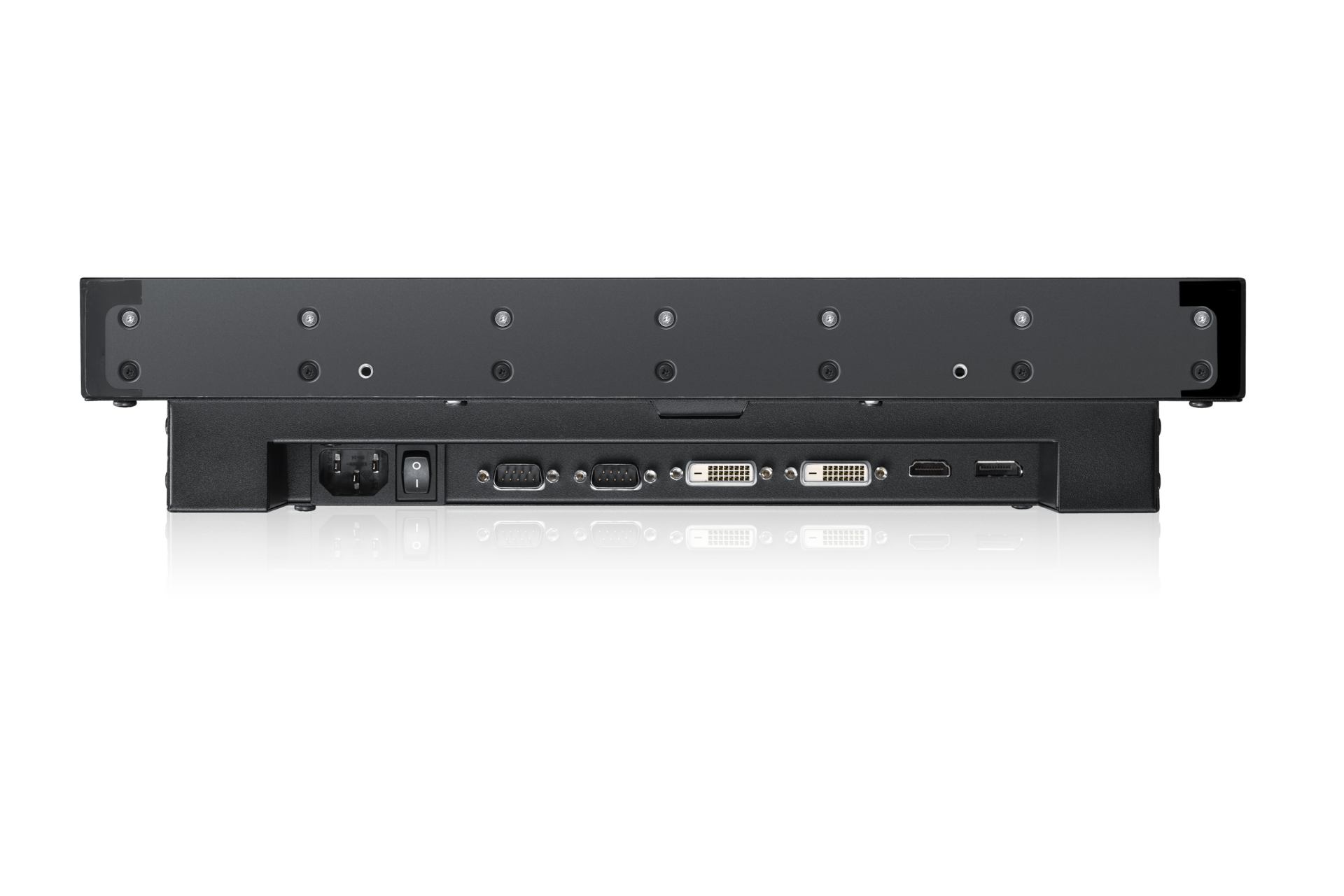

  • Input

    • RGBDVI-D, Display Port
    • VideoHDMI
    • AudioN/A
  • Output

    • RGBDVI-D(Loop-out)
    • VideoN/A
    • AudioStereo mini Jack
    • Power OutN/A
View remaining tech specs

Mechanical Specification

  • Dimension

    • Set Dimension (WxHxD)393.3*393.3*81.5
    • Package Dimension (WxHxD)473.0*473.0*187
  • Weight

    • Set Weight6.5kg
    • Package Weight7.7kg
  • VESA Mount300*300mm
  • Protection GlassN/A
  • Stand TypeN/A
  • Media Player Option TypeN/A


  • Operating Temperature0℃~ 40℃
  • Humidity10~80%


  • Energy Efficiency ClassN/A
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
  • Power Consumption

    • Off Modeless than 1W
    • On ModeMax 71.50 / Typical 67 / BTU 243.815
    • Sleep Modeless than 1W

Embedded PC

  • CPUSBB-A Type
  • N/BSBB-A Type
  • S/BSBB-A Type
  • GPUSBB-A Type
  • MemorySBB-A Type
  • EthernetSBB-A Type
  • Connectivity

    • USBSBB-A Type
    • OutputSBB-A Type
    • OthersSBB-A Type


  • IncludedQuick Setup Guide, Warranty Card, Application CD, Power Cord, DVI Cable Remote Controller, Batteries, Panel Cover
  • Optional

    • MountPush-Wall Mount
    • SpecialtyN/A
    • StandN/A
