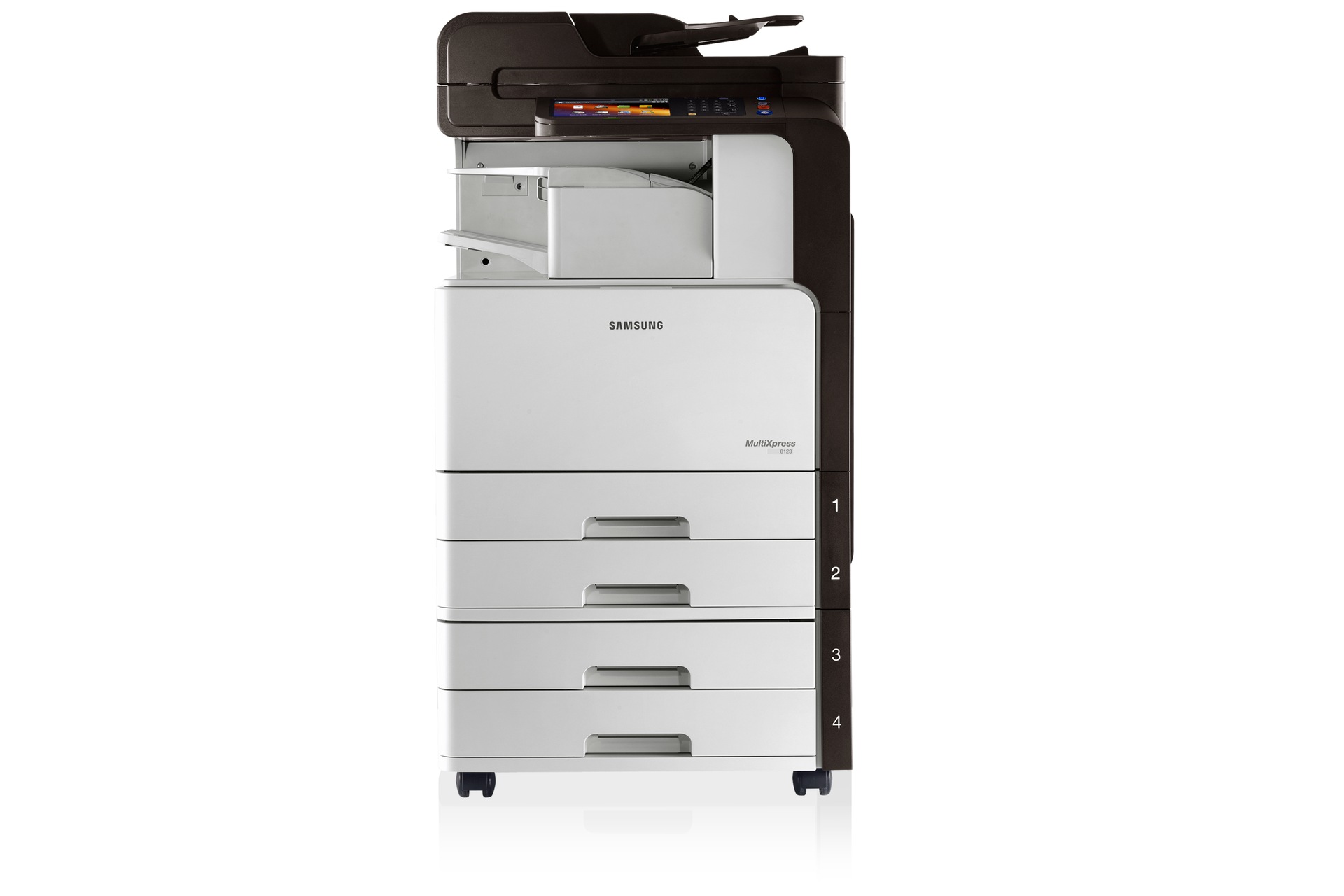

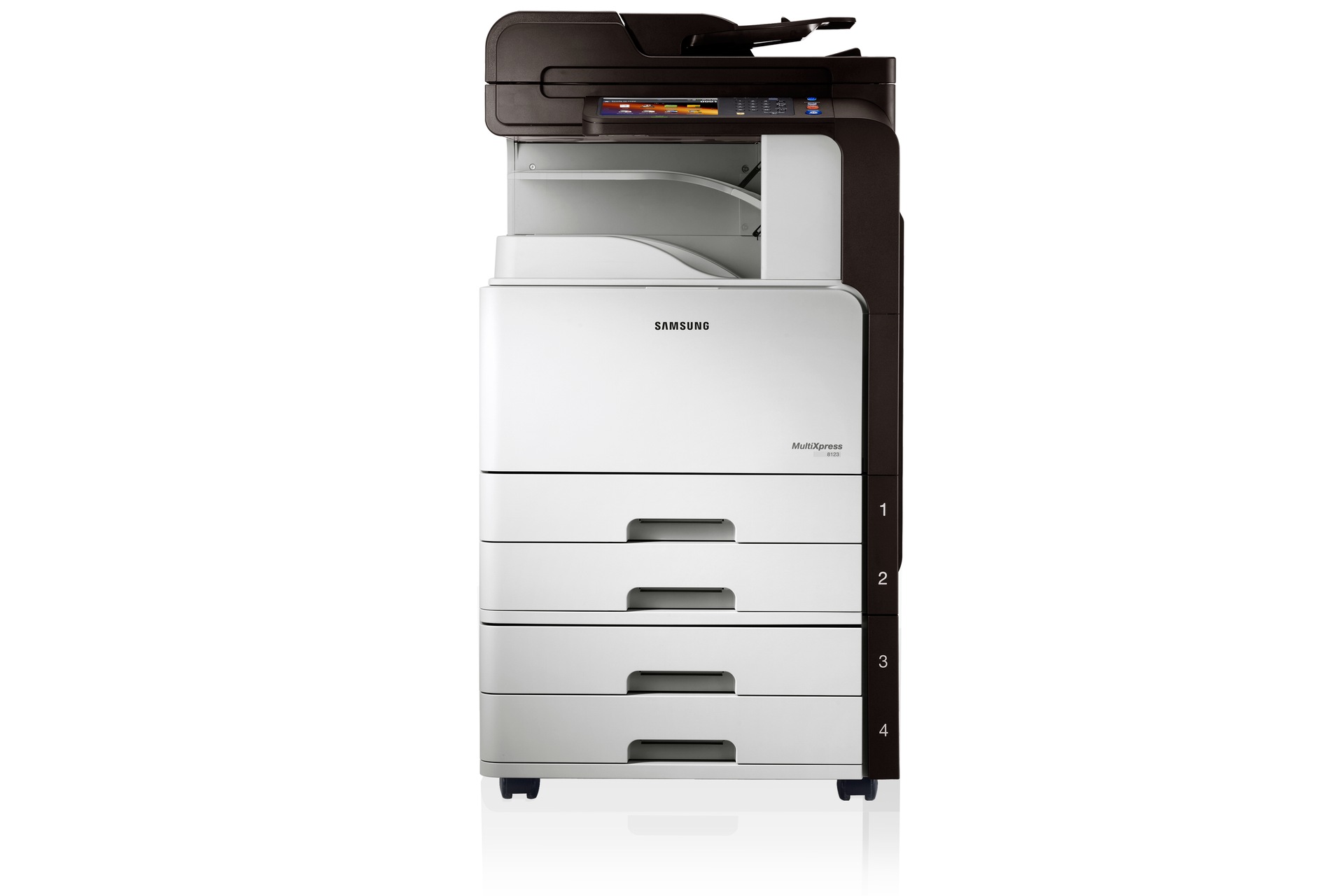

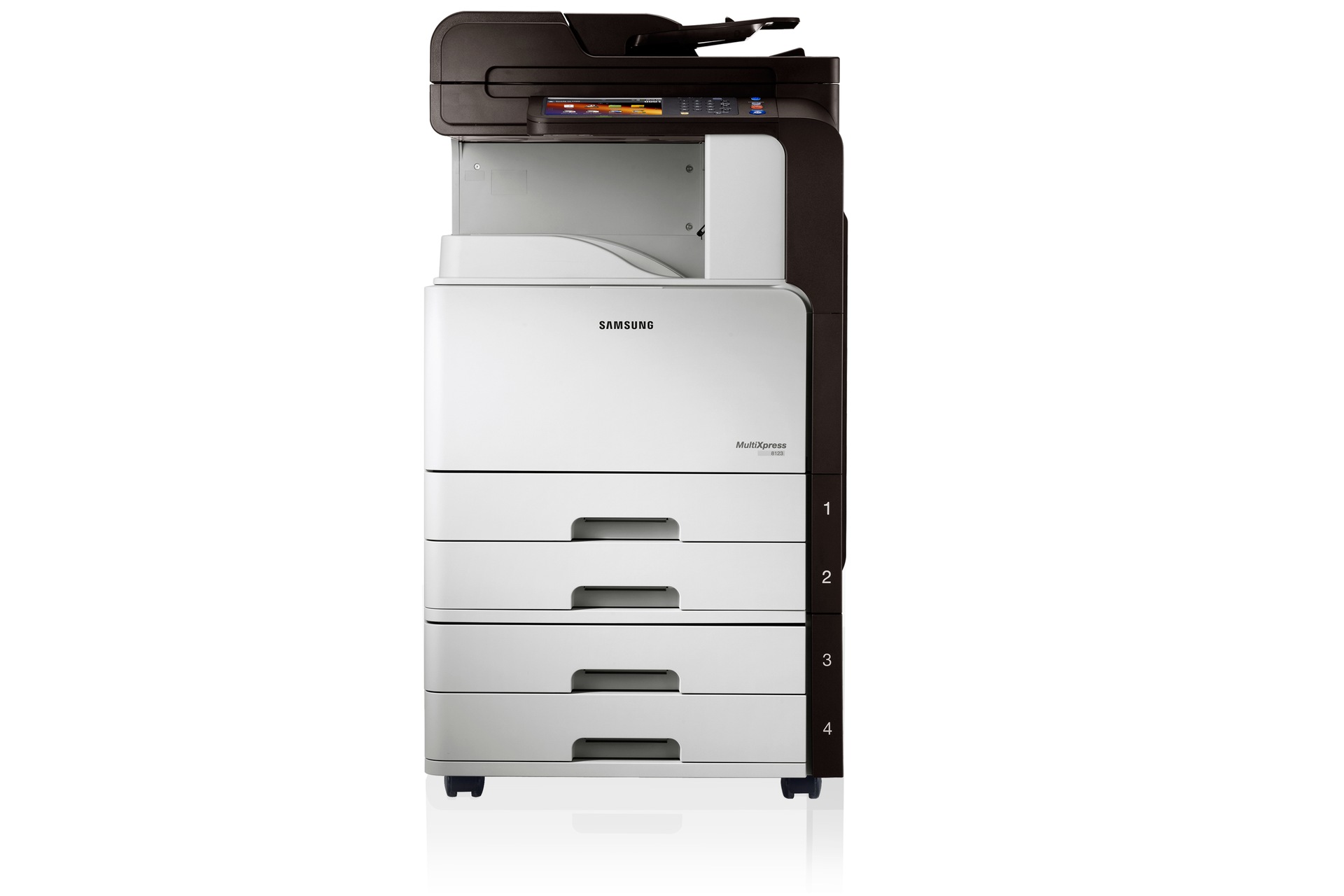

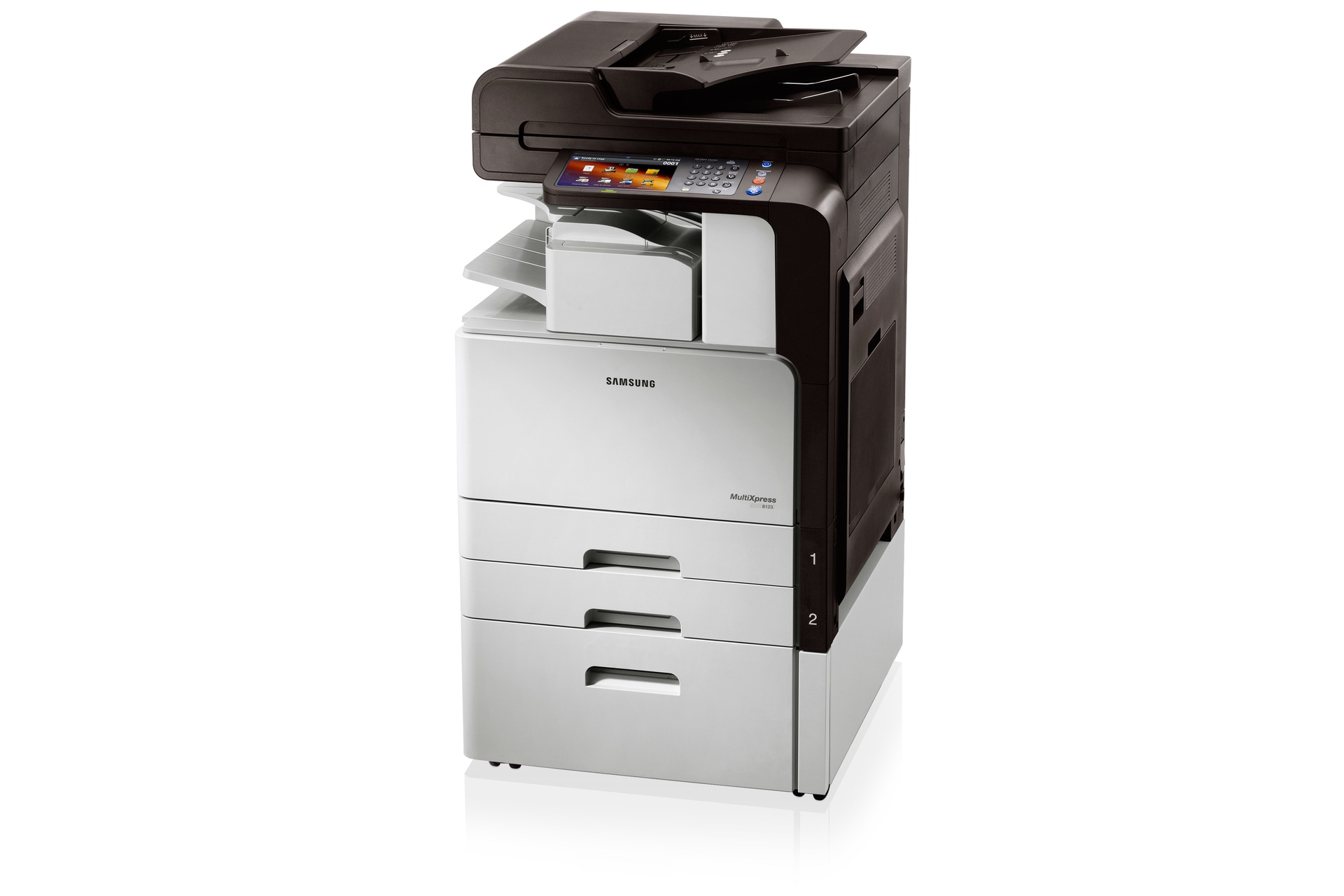

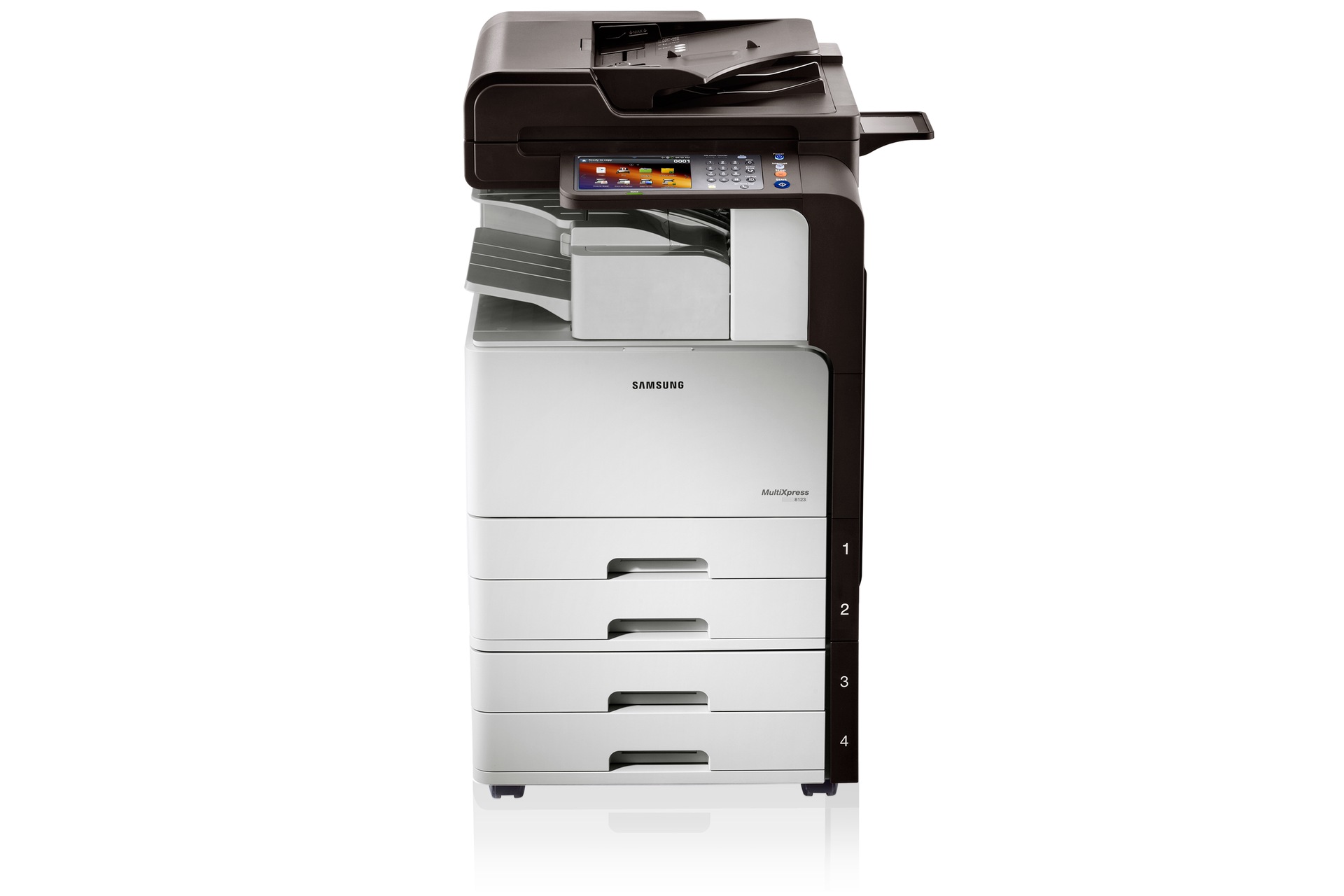

SCX-8123NA 23ppm A3 Mono Multifunction Printer

SCX-8123NA

0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Layer Popup Close

Need more Info?

Request information about Samsung business products, solutions and services. We will contact you shortly.

Email Us BusinessUK@samsung.com

MAKE A REQUEST

SCX-8123NA 23ppm A3 Mono Multifunction Printer

Features

  • Our A3 MFPs will exceed the expectations of the most demanding users through enhanced productivity, faster output, flexible finishing options and cost saving solutions compatibility

Product Configuration

Product Configuration
Twice the power delivers more performance

Twice the power delivers more performance

Office productivity increases dramatically with fast printing and scanning capabilities, thanks to a fully integrated Samsung 1GHz Dual Core processor. Handling of large print/copy jobs is faster, and scan throughput is swifter. In fact, with every task taking 1.5 times quicker, you can spend more time working and less time waiting around.

Smart Samsung Solutions Support

Smart Samsung Solutions Support
Samsung offers a range of In-house solutions for user extensibility.
Enjoy quality printouts

Enjoy quality printouts

Samsung's unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your black & white printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.
Polymerized Toner

Polymerized Toner

Our newly developed polymerized toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid detail, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.
Make the most of your floor space

Make the most of your floor space

With every business looking at maximising resources and working efficiently, you need a device that can optimise every inch of available floor space. Even in small, confined offices, its slim and simple design allows the Samsung SCX-8123NA to deliver big results. The Samsung SCX-8123NA is designed to be quickly and easily installed. Setting up is a simple two-person job, and features an optimized package with everything you need including pre-installed DADF.
No need for additional space or fixture

No need for additional space or fixture

With the space saving 350-Sheet Inner finisher, you don't have to sacrifice more space for additional features.
Low Power Consumption

Low Power Consumption

With its ingenious All-in-One board, overall energy consumption is kept low by minimising power requirement. In fact, compared to conventional board it reduces TEC (Typical Electricity Consumption) by up to 60%. Meanwhile, Samsung Instant Fusing System (IFS) technology helps you print and copy faster, use less energy, and reduce energy costs
Intuitive, Smart UI

Intuitive, Smart UI

For maximum control and visibility, the SCX-8123NA features a 7” colour touch panel with smooth flicking and scrolling. Thanks to the intuitive nature of the smart User Interface, you can manage and control even the most complex jobs quickly and easily.
Control costs the Eco way

Control costs the Eco way

Every business sees the need to cut costs wherever it can. You can save paper and energy with the ECO button. All it takes is one push and you can print more onto every page, including 2-up, 4-up and duplex, and also save more toner with automatic blank pages skipping. With Easy-Eco Driver you’ll be able to accurately preview your document before printing. Adjust output quality and other settings to meet your requirements and budget, as well as removing unnecessary text, images and other elements. Reduce wasted printouts and achieve more economically efficient printing.
Seperated consumables

Seperated consumables

Managerial costs can be kept under control. With separated Toner and OPC, and a Developer unit providing a yield of 300,000, your company can reduce maintenance costs.
Easy Mobile Printing

Easy Mobile Printing

Get more from all your mobile devices easily, quickly and conveniently without the need for installing any print drivers. Wireless printing, scanning and file transfers let you do more on the go. Samsung's easy 3 step mobile print : Install application, Select device and Print file.

tech specs

General

  • Functions
    Standard
    Print, Copy, Scan, Network, Duplex
    Optional
    Fax, NW PC Fax
  • Processor
    1GHz (Dual Core)
  • Operational Panel
    7" Color Touch-Panel LCD, 800 x 480 (WVGA)
  • Memory
    Standard
    768MB
  • Hard Disk Drive
    320GB or higher(Option, Usable Space: 88GB)
  • Interface
    Standard
    High Speed USB 2.0 Device/Host, Ethernet 10/100/1000 BASE TX
  • Warm-up time
    From Power On
    25 sec
    From Sleep
    25 sec
  • Power Consumption
    Max 1.5kW( Ready : 100W, Low power : 16W, Sleep : 1.5W )
  • Noise Level
    Copying: 53dBA, Printing: 49dBA, Ready: 30dBA, Sleep: 27dBA
  • Dimension (WxDxH)
    560 x 600 x 794 mm / 22.0" x 23.6" x 31.2:" (including Platen Cover)
  • Weight
    55.8 Kg / 123 lbs (including Platen Cover)
  • Max. Monthly Duty Cycle
    100,000 Pages

Print

  • Speed
    Speed (Mono)
    23 ppm in A4/Letter
  • First Print Out Time
    First Print Out Time (Mono)
    9 sec (From Ready Mode)
  • Resolution
    Default : 2,400 x 600 dpi Effective Output (600 x 600 x 2 bit) / Max : 9,600 x 600 dpi effective output (600 x 600 x 4 bit)
  • Emulation
    PCL5c, PCL6, Postscript 3, PDF 1.7+, XPS
  • Duplex Print
    Built-in
  • Operating System
    Windows 8 / 7 / Vista / XP / 2008R2 / 2008 / 2003, Mac OS 10.4 - 10.8, RedHat Enterprise Linux WS 4 / 5 (32/64bit), Fedora Core 2 - 10 (32/64bit), SuSE Linux 9.1 (32bit), OpenSuSE 9.2 / 9.3 / 10.0 / 10.1 / 10.2 / 10.3 / 11.0 / 11.1 (32/64bit), Mandrake 10.0 / 10.1 (32/64bit), Mandriva 2005-2009 (32/64bit), Ubuntu 6.06 / 6.10 / 7.04 / 7.10 / 8.04 / 8.10 (32/64bit), SuSE Linux Enterprise Desktop 9 / 10 (32/64bit), Debian 3.1 / 4.0 / 5.0 (32/64bit)
  • Direct Print Support
    Jpeg,Tiff,PDF,Samsung PRN

SHOW MORE SPECS

Copy

  • Speed
    Speed (Mono)
    23 cpm in A4/Letter
  • First Copy Out Time
    First Copy Out Time (Mono)
    6.7 seconds
  • Reduce / Enlarge Range
    25% - 400%
  • Multi Copy
    9,999 Pages
  • Copy Features
    ID Copy, Clone Copy, N-UP Copy, Poster Copy

Scan

  • Speed
    Speed (Mono)
    45 ipm (300 dpi / A4/Letter)
  • Color Mode
    Mono / Gray / Color
  • Compatibility
    Network TWAIN
  • Method
    Color CCDM-MMT
  • Resolution (Optical)
    600 x 600 dpi
  • Resolution (Enhanced)
    Up to 4,800 x 4,800 dpi
  • Scan Destinations
    E-mail, USB, FTP, SMB, HDD, PC
  • Scan Document Size
    Width: Up to 297mm / Length: Up to 432mm
  • Scan Document Weight
    N/A

FAX

  • Compatibility
    ITU-T G3, Super G3
  • Modem Speed
    33.6 Kbps
  • Resolution
    Up to 600 x 600 dpi (Mono)
  • Compression Method
    MH/MR/MMR/JBIG
  • Memory
    DRAM / Optional HDD Back-up
  • Auto Dial
    Support
  • Fax Feature
    Speed Dial, Group, Dial, On-hook Dial, Auto Redial, Caller ID, Secure Reception, Fax forwarding, etc.

Paper Handling

  • Input Capacity
    Cassette
    520-Sheet Standard Cassette x 2
    Multipurpose tray
    100-Sheet MP Tray
    Other Options
    520-Sheet Optional Cassette x 2
    Maximum
    2,180 Sheets ( 1,140-Sheet Standard + 1,040-Sheet Optional DCF)
  • Media Type
    Cassette
    Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Colored / Archive / Glossy
    Multipurpose tray
    Printer Default / Plain Paper / Thick Paper / Thin Paper / Bond Paper / Color Paper / CardStock / Labels / Envelope / Preprinted / Letterhead / Recycled Paper / Cotton / Archive / Glossy
    Other Options
    Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Colored / Archive / Glossy
  • Media Size
    Cassette
    Cassette 1: 148 x 210 mm ~ 297 x 354 mm (5.8" x 8.2" ~ 11.7" x 14") / Cassette 2: 148 x 210 mm ~ 297 x 432 mm (5.8" x 8.2" ~ 11.7" x 17")
    Multipurpose tray
    98 x 148 mm ~ 297 x 432 mm (3.8" x 5.8" ~ 11.7" x 17")
    Other Options
    148 x 210 mm ~ 297 x 432 mm (5.8" x 8.2" ~ 11.7" x 17")
  • Media Weights
    Cassette
    Plain Paper: 71~90g/㎡(21~24 lb), (Duplex : 20~24lb) / Thick Paper: 91~105g/㎡(25~28 lb), (Duplex : 25~28lb) / Heavy Weight 1 Paper : 106~120g/㎡ / Heavy Weight 2 Paper : 121~175g/㎡ / Extra Heavy Weight 1 Paper : 176 ~ 216g/㎡ / Thin Paper: 60~70g/㎡ (16~19 lb) / Bond Paper: 105~120g/㎡ (28~32 lb) / Punched Paper: 71~90g/㎡ (19~24 lb) / Pre-Printed : 71~90g/㎡ (19~24 lb) / Recycled : 60~90g/㎡ (16~24 lb) / CardStock : 105~163g/㎡ (28~43lb) / Letterhead : 71~90g/㎡ (19~24 lb) / Cotton paper : 75~90g/㎡ (20~24 lb) / Label : 120~150g/㎡ (32~40 lb)
    Multipurpose tray
    16~47lb (60 to 176g/㎡) ( Simplex, Duplex )
    Other Options
    Plain Paper: 71~90g/㎡(21~24 lb), (Duplex : 20~24lb) / Thick Paper: 91~105g/㎡(25~28 lb), (Duplex : 25~28lb) / Heavy Weight 1 Paper : 106~120g/㎡ / Heavy Weight 2 Paper : 121~175g/㎡ / Extra Heavy Weight 1 Paper : 176 ~ 216g/㎡ / Thin Paper: 60~70g/㎡ (16~19 lb) / Bond Paper: 105~120g/㎡ (28~32 lb) / Punched Paper: 71~90g/㎡ (19~24 lb) / Pre-Printed : 71~90g/㎡ (19~24 lb) / Recycled : 60~90g/㎡ (16~24 lb) / CardStock : 105~163g/㎡ (28~43lb) / Letterhead : 71~90g/㎡ (19~24 lb) / Cotton paper : 75~90g/㎡ (20~24 lb) / Label : 120~150g/㎡ (32~40 lb)
  • Output Capacity
    Standard: 500 Sheets (Center Output Tray), Optional Inner Finisher: 350 Sheets (50-Sheet Top Tray / 300-Sheet Finishing Tray / Stapling / Offset)
  • adf
    Type
    DADF
    Document Capacity
    100 Sheets
    Document Size
    Width: 128~ 297mm / Length : 140~ 432mm
    Document Weight
    40~128gsm @simplex / 50~128gsm @duplex

Consumables

  • Toner
    Black
    25,000 pages (6% Coverage)
  • Waste Toner Container
    100,000 pages

Option

  • Option
    Cabinet Stand, Dual Cassette Feeder, Job Separator, Inner Finisher, Fax Kit, FDI Kit, Hard Disk, Working Table, SmarThru Workflow, CounThru

Solution

  • Device Management
    Yes
  • Output Management
    Yes
  • Document Management and Distribution
    Yes
  • Mobility
    Yes
