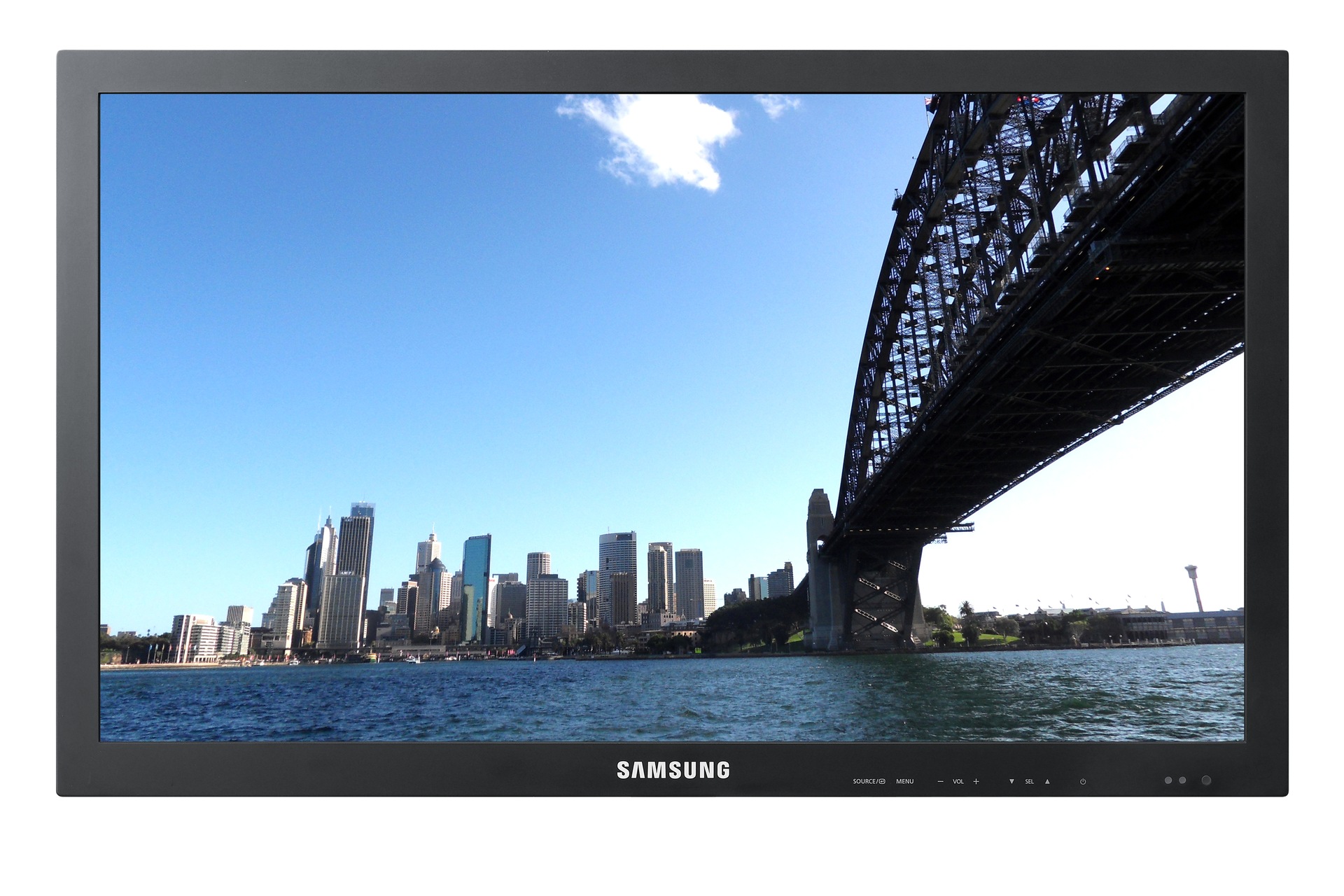

230MXN Front

Put your message across clearly and professionally

• Enjoy vivid colour and picture clarity with high contrast ratio
• View from a range of positions due to ultra-high viewing angle
• Discover versatile input and control thanks to RS232C connectivity
• Save money and space with high-quality built-in speakers

Product Features

See All

Specifications

See All

Display

H-Scanning Frequency

  • 30kHz ~ 81kHz

Maximum Pixel Frequency

  • 164MHz

V-Scanning Frequency

  • 56Hz ~ 85Hz

Connectivity

Input

  • RGB : Analog D-SUB

Panel

Diagonal Size

  • 23"

Type

  • C-PVA

Resolution

  • 1920 x 1080

Pixel Pitch(mm)

  • 0.2566 (H) x 0.2566 (V)

Active Display Area

  • 509.76 x 286.74

Brightness

  • 300cd/m²

Contrast Ratio (Dynamic)

  • 5000:1

Viewing Angle (Horizontal/Vertical)

  • 178 / 178

Response Time (G-to-G)

  • 8ms

Display Color

  • 16.7M

Color Gamut

  • 72%

Contrast Ratio

  • 3000:1
Display
H-Scanning Frequency
Maximum Pixel Frequency
V-Scanning Frequency
Panel
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area
Brightness
Contrast Ratio (Dynamic)
Viewing Angle (Horizontal/Vertical)
Response Time (G-to-G)
Display Color
Color Gamut
Contrast Ratio
Connectivity
Input
RGB
