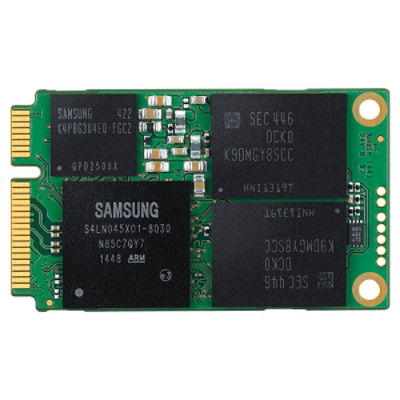

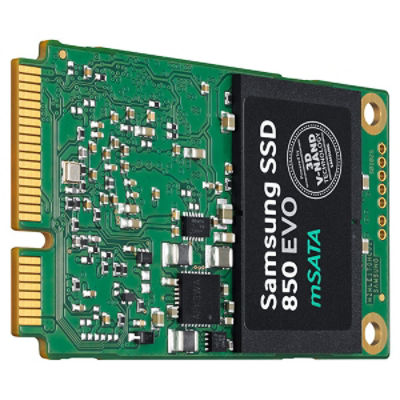

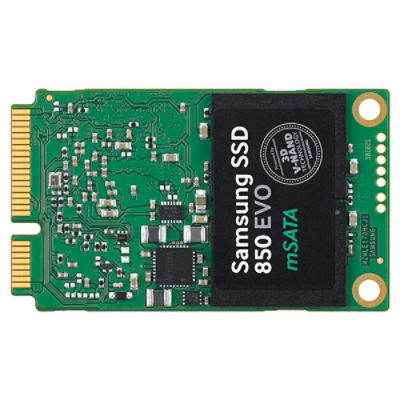

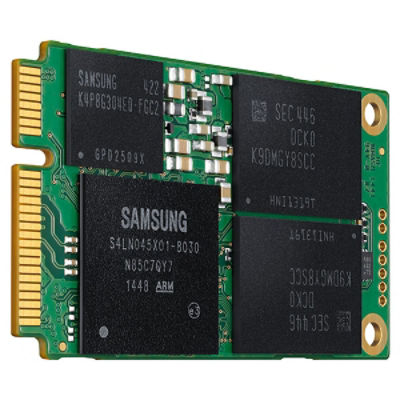

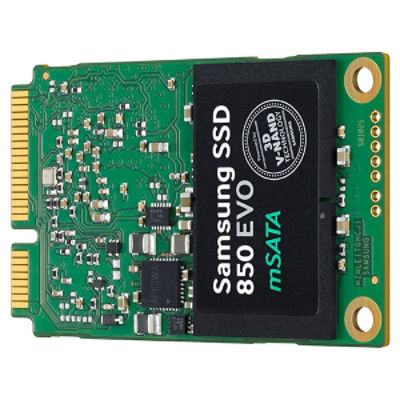

SSD 850 EVO mSATA 250GB Memory & Storage - MZ-M5E250BW | Samsung US



4.4 OUT OF 5 STARS (14)

Innovative V-NAND Technology

Incredible Read/Write Performance

$ 94.99
Save $5

Ships in 7 to 10 business days

Free shipping on all orders over $50

Price includes $5 instant savings - now through 11/05/16 ONLY!!!


Form Factor
540MB/s Seq. Read
540MB/s Seq. Read
520MB/s Seq. Write
520MB/s Seq. Write

3D V-NAND Technology

Samsung’s innovative 3D V-NAND flash memory architecture breaksthrough density, performance, and endurance limitations of today’s conventional planar NAND architecture. Samsung 3D V-NAND stacks 32 cell layers vertically resulting in higher density and better performance utilizing a smaller footprint.

TurboWrite Technology

Achieve incredible read/write performance to maximize your everyday computing experience with Samsung’s TurboWrite technology. You can obtain up to 2x faster random read write speeds than the award-winning Samsung 840 EVO. The 850 EVO delivers class-leading performance* in sequential read (540MB/s) and write (520MB/s) speeds. Plus, gain optimized random performance in all QD for better real-world performance.


Samsung’s Magician software enables RAPID Mode for up to 2x faster performance* by utilizing unused PC memory (DRAM) as a high-speed cache. The newest version of Samsung Magician supports up to a 4 GB cache on a system with 16 GB of DRAM.

Enhanced Endurance and Reliability

The 850 EVO doubles the endurance* and reliability** compared to the previous generation 840 EVO** and features a class-leading*** 5 year warranty. With enhanced long-term reliability, the 850 EVO assures long-term dependable performance of up to 30% longer than the previous generation 840 EVO.

Improved Energy Efficiency

The 850 EVO delivers significantly longer battery life on your notebook* with a controller designed and optimized for 3D V-NAND that supports. Device Sleep for Windows at a highly efficient 2mW. The 850 EVO supports 25% better power efficiency than the 840 EVO during write operations thanks to ultra-efficient 3D V-NAND only consuming 50% less energy than that of traditional Planar 2D NAND.

Ultimate Flexibility

The versatile 850 EVO mSATA has you covered no matter which connector type or physical slot size your device has, making it perfect for desktops, laptops and even ultra-thin tablet PCs.

Advanced Encryption

The 850 EVO comes fortified with the latest hardware-based full disk encryption engine. The AES 256-bit hardware encryption secures data without any performance degradation and complies with TCG Opal 2.0. Easily integrate into Windows with Microsoft e-drive IEEE-1667 to keep your data protected at all times.

Dynamic Thermal Guard Protection

The 850 EVO’s Dynamic Thermal Guard constantly monitors and maintains ideal temperatures for the drive to operate in optimal conditions to ensure the integrity of your data. The Thermal Guard automatically throttles temperatures down when temperatures rise above optimal critical threshold. This protects your data while maintaining responsiveness to help ensure your computer is always safe from overheating.

One-Stop Install Navigator

Migrate your data with ease. With the One-Stop Install Navigator, Samsung Data Migration and Magician software are installed simultaneously for your convenience to ensure that your SSD settings are optimized for an efficient data transfer.

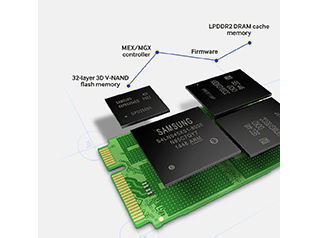

Samsung Quality Components

As the industry SSD leader, Samsung uniquely designs, develops and manufactures products in-house. That means you're getting fully-optimized solutions for a better performance without the risk of compatibility errors.

Features and specifications are subject to change without prior notification


Form Factor



540MB/s Seq. Read

540MB/s Seq. Read

520MB/s Seq. Write

520MB/s Seq. Write

Secure Encryption

Secure Encryption

5-yr Limited Warranty

5-yr Limited Warranty

See All Specs
  • Type

    Product Type



    SATA 6Gb/s Interface, compatible with SATA 3Gb/s & SATA 1.5Gb/s interface

  • Application


    Client PCs

  • Storage


    250 GB* *Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Key Features

    Sequential Read Speed

    Up to 540 MB/s Sequential Read * *Performance may vary based on system hardware & configuration

    Sequential Write Speed

    Up to 520 MB/s Sequential Write * *Performance may vary based on system hardware & configuration

    Random Read Speed

    Random Read (4KB, QD32):Up to 97,000 IOPS Random Read * Performance may vary based on system hardware & configurationRandom Read (4KB, QD32): Up to 95,000 IOPS Random Read * Performance may vary based on system hardware & configuration

    Random Write Speed

    Random Write (4KB, QD32): Up to 88,000 IOPS Random Write * *Performance may vary based on system hardware & configurationRandom Write (4KB, QD1): Up to 40,000 IOPS Random Write * Performance may vary based on system hardware & configuration

    Memory Speed

    Samsung 32 layer 3D V-NANDSamsung 512 MB Low Power DDR3 SDRAM


    Samsung MGX Controller

    Trim Support


    AES Encryption

    AES 256 bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

    S.M.A.R.T. Support


    GC (Garbage Collection)

    Auto Garbage Collection Algorithm

    WWN Support

    World Wide Name supported

    Device Sleep Mode Support


    Internal Storage


    Temperature proof


  • General

    Power Consumption (W)

    50 MW * Actual power consumption may vary depending on system hardware & configuration Average: 2.3 W *Maximum: 3.6 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration


    3V ± 5% Allowable voltage

    Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Environmental Specs

    Operating Temperature

    32ºF - 158ºF


    1500G & 0.5ms (Half sine)

  • Form Factor



  • Dimensions (W x D x H)


    1.18" x 2" x 0.15"

  • Weight



  • Software

    Management SW

    Magician Software

  • Warranty


    5 Years Limited Warranty or 75TBW Limited Warranty
