AM071NN1DEH/TK

Wind Free 1 Way cassette

Even & fast cooling No Direct wind Silent operation

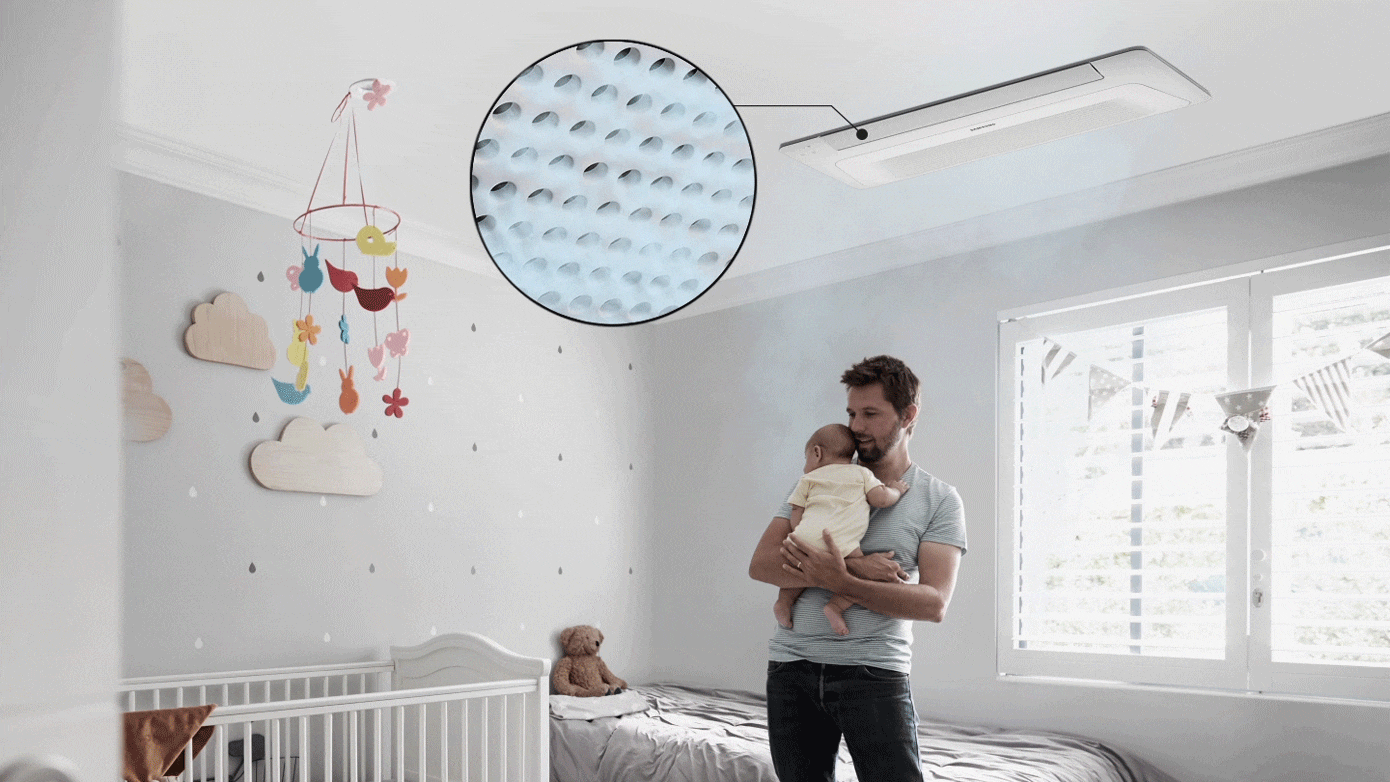

Stay Cool without direct wind

Wind-Free™

Wind-Free™ Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.Cool air is gently dispersed through 10,000 micro air holes, so you don’t feel too hot or cold.

Stay Cool without direct wind

Energy saving with Wind-Free

Energy Saving

Wind-Free™ Cooling allows efficient energy saving

Energy saving with Wind-Free

*Tested on Outdoor unit AM050FXMDEH, Indoor unit AM056NN1DEH, AM036NN1DEH, AM022NN1DEH when running simultaneously, individual result may vary depending on consumer usage.

Faster cooling in wide area

Long Wind

Wider and bigger blade cools large area much faster, without leaving dead zone.

Faster cooling in wide area
Specification
  • Features
    • Type 1 Way CASSETTE
  • Model Name
    • Indoor Unit AM071NN1DEH/TK
  • Power Supply (Indoor Unit) [Φ, #, V, Hz]
    • 1,2,220-240,50
  • System
    • Mode HP/HR
  • Capacity
    • Cooling [kW] ‎7.10‎
    • Cooling [Btu/h] ‎24,200‎
    • Heating [kW] ‎8.00‎
    • Heating [Btu/h] ‎27,300‎
  • Power Input (Nominal)
    • Cooling 1) [W] ‎80.00‎
    • Heating 2) [W] ‎80.00‎
  • Current Input (Nominal)
    • Cooling 1) ‎0.40 A‎
    • Heating 2) ‎0.40 A‎
  • Fan
    • Type Crossflow Fan
    • Motor (Output) [W] ‎54 x 1‎
    • Air Flow Rate (High / Mid / Low) [CMM] ‎16.5/14.5/12‎
    • Air Flow Rate(High/Mid/Low)[L/S] ‎275/242/200‎
  • Piping Connections
    • Liquid Pipe (Φ, mm) ‎9.52‎
    • Liquid Pipe (Φ, inch) ‎3/8‎
    • Gas Pipe (Φ, mm) ‎15.88‎
    • Gas Pipe (Φ, inch) ‎5/8‎
    • Drain Pipe (Φ,mm) ‎VP20 (OD 25,ID 20)‎
  • Field Wiring
    • Power Source Wire 1.5 ~ 2.5
    • Transmission Cable 0.75 ~ 1.50
  • Refrigerant
    • Type R410A
    • Control Method EEV INCLUDED
  • Sound
    • Sound Pressure ‎42 / 39 / 36 dBA‎
    • Sound Power ‎60 dBA‎
  • External Dimension (Indoor Unit)
    • Net Weight (kg) ‎13.5‎
    • Shipping Weight (kg) ‎17.3‎
    • Net Dimensions (WxHxD) (mm) ‎1200 x 138 x 450‎
    • Shipping Dimensions (WxHxD) (mm) ‎1435 x 224 x 525‎
  • Panel Size
    • Panel model PC1BWFMAN
    • Panel Net Weight (kg) ‎5.0‎
    • Shipping Weight (kg) ‎7.0‎
    • Net Dimensions (WxHxD) (mm) ‎1410 x 35 x 500‎
    • Shipping Dimensions (WxHxD) (mm) ‎1473 x 124 x 568‎
Manual Download

Wind Free 1 Way cassette
(AM071NN1DEH/TK)

Manuals

2021.01.12

Installation Guide ver 1.0

(ENGLISH)

2021.01.12

Installation Guide ver 1.0

(ARABIC)

2021.01.12

Installation Guide ver 1.0

(FRENCH)

2021.01.12

User Manual ver 1.0

(ENGLISH)

2021.01.12

User Manual ver 1.0

(ARABIC)

2021.01.12

User Manual ver 1.0

(FRENCH)
