AM071NN4DEH/TK

Wind Free 4 Way cassette

Even & fast cooling No Direct wind Silent operation

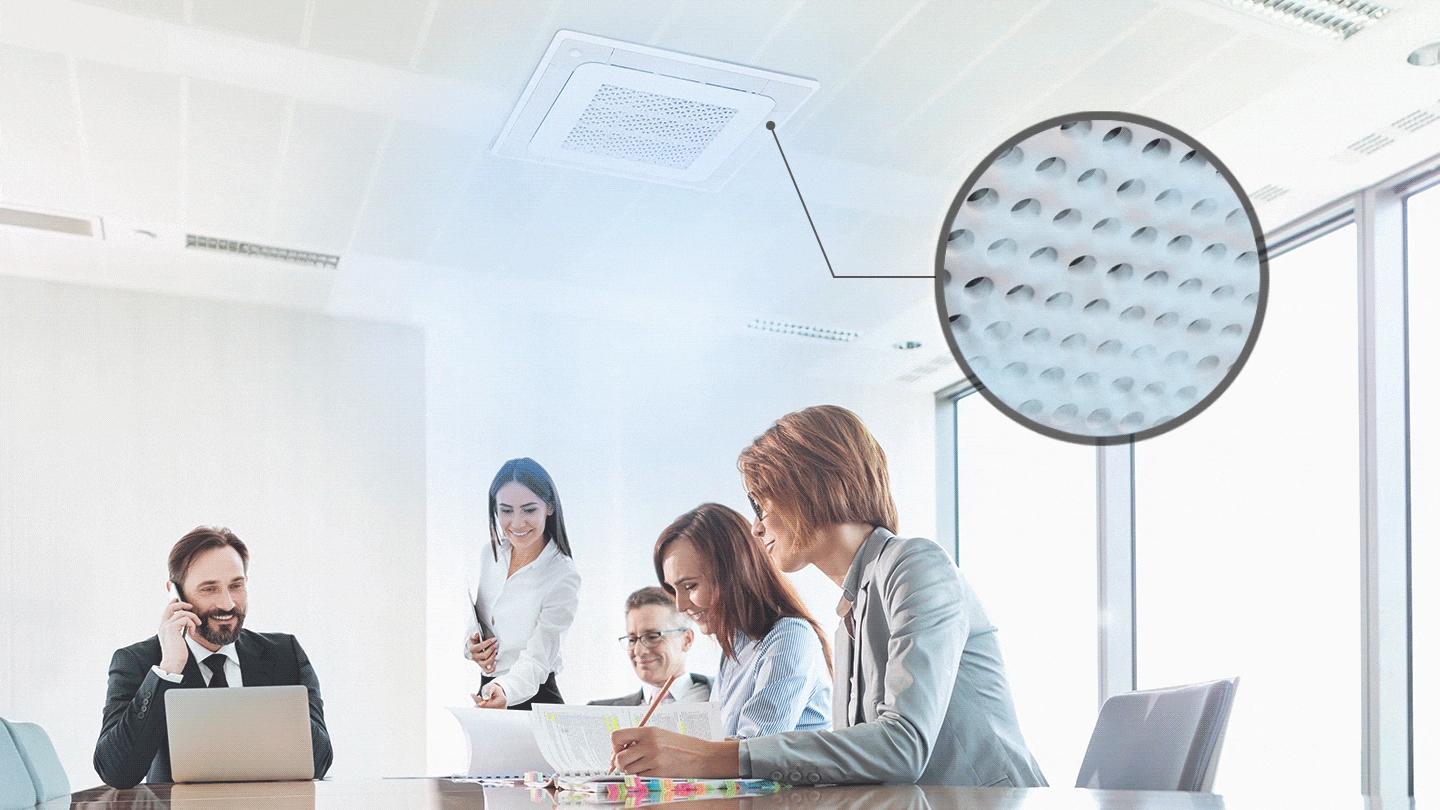

Stay cool without direct wind

Wind-Free™

Wind-Free Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.

Stay cool without direct wind

*PC4SUFMAN(4way 600*600) : 8,976 micro hole, PC4NUFMAN(4way) : 15,672 micro hole

Energy saving with Wind-Free™ Cooling

Energy Saving

Wind-Free Cooling allows efficient energy saving up to 55%.

Energy saving with Wind-Free™ Cooling

*Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running simultaneously. Individual result may vary depending on consumer usage.

Wider cooling range

Big Blade

Big and optimized blades enable even wider cooling range.

Wider cooling range

*Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.

Optimized operation by MDS

Motion Detect Sensor

Motion Detect Sensor enables customized air flow and energy effcient operation.

Optimized operation by MDS
Specification
  • Features
    • Type 4 WAY CASSETTE S
  • Model Name
    • Indoor Unit AM071NN4DEH/TK
  • Power Supply (Indoor Unit) [Φ, #, V, Hz]
    • 1,2,220-240,50
  • System
    • Mode HP/HR
  • Capacity
    • Cooling [kW] ‎7.10‎
    • Cooling [Btu/h] ‎24,200‎
    • Heating [kW] ‎8.00‎
    • Heating [Btu/h] ‎27,300‎
  • Power Input (Nominal)
    • Cooling 1) [W] ‎45.00‎
    • Heating 2) [W] ‎45.00‎
  • Current Input (Nominal)
    • Cooling 1) ‎0.31 A‎
    • Heating 2) ‎0.31 A‎
  • Fan
    • Type Turbo Fan
    • Air Flow Rate (High / Mid / Low) [CMM] ‎17.0/15.5/14.5‎
    • Air Flow Rate(High/Mid/Low)[L/S] ‎283/258/242‎
  • Piping Connections
    • Liquid Pipe (Φ, mm) ‎9.52‎
    • Liquid Pipe (Φ, inch) ‎3/8‎
    • Gas Pipe (Φ, mm) ‎15.88‎
    • Gas Pipe (Φ, inch) ‎5/8‎
    • Drain Pipe (Φ,mm) ‎VP25 (OD 32,ID 25)‎
  • Field Wiring
    • Power Source Wire 1.5 ~ 2.5
    • Transmission Cable 0.75 ~ 1.50
  • Refrigerant
    • Type R410A(Contains fluorinated greenhouse gas, GWP=2,088)
    • Control Method EEV INCLUDED
  • Sound
    • Sound Pressure ‎35/34/33 dBA‎
    • Sound Power ‎54 dBA‎
  • External Dimension (Indoor Unit)
    • Net Weight (kg) ‎15.00‎
    • Shipping Weight (kg) ‎18.50‎
    • Net Dimensions (WxHxD) (mm) 840 x 204 x 840 mm
    • Shipping Dimensions (WxHxD) (mm) ‎898 x 275 x 898‎
  • Panel Size
    • Panel model PC4NUFMAN
    • Panel Net Weight (kg) ‎6.30‎
    • Shipping Weight (kg) ‎8.70‎
    • Net Dimensions (WxHxD) (mm) ‎950 x 64 x 950‎
    • Shipping Dimensions (WxHxD) (mm) ‎1,010 x 117 x 1,000‎
