LS32R750UEEXXY

32" UHD clamp-type Monitor with Space-Saving Design

Space-Saving Design 3-sided bezeless screen Integrated clamp for quick and easy installation
size 32"

Space-Saving Design

When not in use, the Samsung Space Monitor can be pushed back to sit flat against a back wall to help free up your work surface. When it’s time for use, simply pull the Space Monitor towards you and adjust to your preferred viewing position.

Space-Saving Design

Maximized Desk Space

Samsung Space Monitor helps you use more of your work space. In side-by-side comparison on a 47.2 inch x 19.7 inch (120cm x 50cm) desk, the Space Monitor provides up to 40 percent more usable surface area than a conventional Samsung monitor of equivalent size (Samsung SD850).

Maximized Desk Space

4K Ultra HD

With 4x the pixels of Full HD, the 31.5” Space Monitor delivers more screen space and amazingly life-like UHD images. View documents and webpages with less scrolling, work more comfortably with multiple windows and toolbars, and enjoy your photos, videos and games in stunning 4K quality.

4K Ultra HD

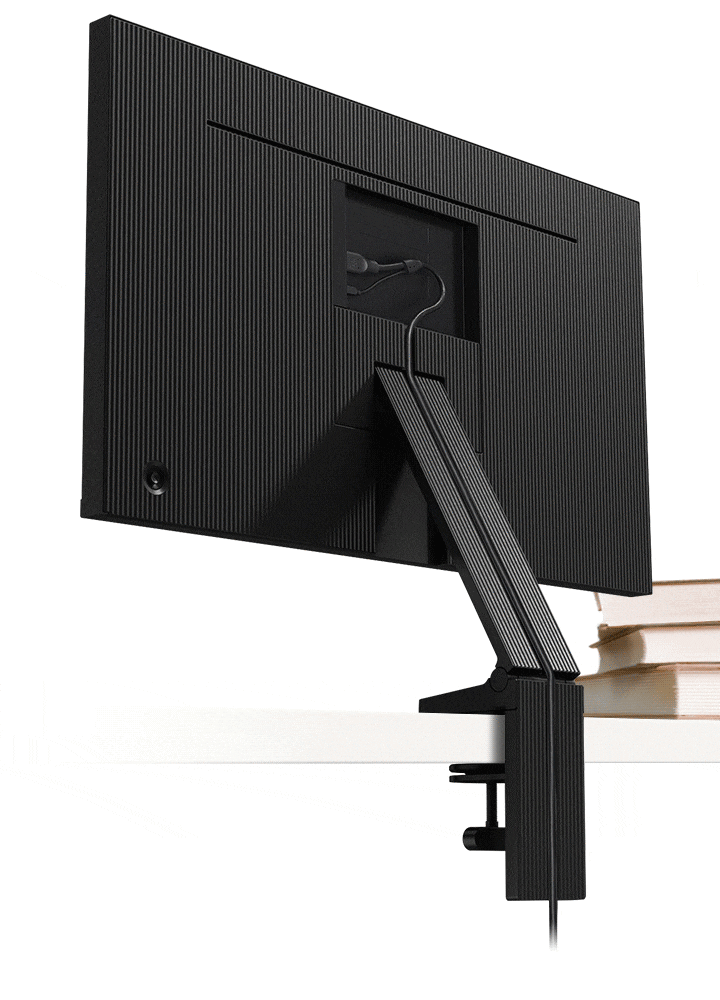

Concealed Cables

Samsung Space Monitor stand neatly conceals its power/HDMI Y–cable in recessed chases to prevent tangling and keep your work space clear and free from clutter.

Concealed Cables

Stylish Design

With its slim panel featuring a 3-sided bezeless screen, the Samsung Space Monitor offers an understated stylish solution for any workplace or home interior.

Stylish Design

Zero-Level HAS

Samsung Space Monitor’s zero-level HAS (Height Adjustable Stand) allows easy positioning of the screen for optimum comfort and convenience. Its adjustment span allows viewing from a height of 8.4 inches (213 mm) above the desk top (27-inch screen) all the way down to surface level.

Zero-Level HAS

Robust Hinge

Samsung Space Monitor’s stand employs a robust hinge that helps ensure consistent and reliable performance. Developed using Samsung technology, the durable hinge helps assure smooth and precise screen positioning time after time.

Robust Hinge

Adjustable Eye Level

Samsung Space Monitor can be quickly and easily raised or lowered to the optimum viewing height for almost any user and purpose, making it a versatile solution for use at home or in public spaces such as libraries.

Adjustable Eye Level

Easy Installation

Samsung Space Monitor’s stand features an integrated clamp for quick and easy installation. Adjustable up to 3.54 inches (90 mm), the clamp allows the Space Monitor to be securely attached to desks and tables with a range of thicknesses.

Easy Installation
Specification
  • Display
    • Screen Size (Inch) 31.5
    • Screen Size (cm) 80.0
    • Screen Size (Class) 32
    • Flat / Curved Flat
    • Active Display Size (HxV) (mm) 697.3 x 392.2mm
    • Screen Curvature N/A
    • Aspect Ratio 16:9
    • Panel Type VA
    • Brightness (Typical) 250cd/m2
    • Peak Brightness (Typical) N/A
    • Brightness (Min) 200cd/m2
    • Contrast Ratio Static 2500:1(Typ.)
    • Dynamic Contrast Ratio Mega ∞ DCR
    • HDR(High Dynamic Range) N/A
    • Resolution 3,840 x 2,160
    • Response Time 4(GTG)
    • Viewing Angle (H/V) 178°(H)/178°(V)
    • Color Support 1B
    • Color Gamut (NTSC 1976) 72%
    • Color Gamut (DCI Coverage) N/A
    • sRGB Coverage 100%(Typ.)
    • Adobe RGB Coverage N/A
    • Refresh Rate 60Hz
  • General Feature
    • Samsung MagicAngle N/A
    • Samsung MagicBright Yes
    • Samsung MagicUpscale Yes
    • Samsung MagicRotation Auto N/A
    • Eco Saving Plus Yes
    • Eco Motion Sensor N/A
    • Eco Light Sensor N/A
    • 0.00 W Off mode N/A
    • Eye Saver Mode Yes
    • Flicker Free Yes
    • Picture-In-Picture Yes
    • Picture-By-Picture Yes
    • Active Crystal Color N/A
    • Quantum Dot Color N/A
    • Game Mode Yes
    • Image Size Yes
    • USB Super Charging No
    • Daisy Chain N/A
    • Easy Setting Box Yes
    • Windows Certification Windows 10
    • FreeSync No
    • FreeSync 2 N/A
    • Smart Eco Saving N/A
    • Off Timer Plus Yes
    • Smartphone Wireless Charging N/A
    • Game Color Mode N/A
    • Screen Size Optimizer N/A
    • Black Equalizer N/A
    • Low Input Lag Mode N/A
    • Refresh Rate Optimizor N/A
    • Custom Key N/A
    • Super Arena Gaming UX N/A
    • Sound Interactive LED Lighting N/A
  • Interface
    • Wireless Display No
    • D-Sub No
    • DVI No
    • Dual Link DVI No
    • Display Port No
    • Display Port Version 1.2
    • Display Port Out No
    • Display Port Out Version No
    • Mini-Display Port 1 EA
    • HDMI 1 EA
    • HDMI Version 2.0x1
    • Audio In No
    • Headphone No
    • USB Ports No
    • USB Hub Version 2.0
    • USB-C No
    • USB-C Charging Power N/A
    • Thunderbolt 3 N/A
    • Thunderbolt 3 Charging Power (Port 1) N/A
    • Thunderbolt 3 Charging Power (Port 2) N/A
    • Ethernet (LAN) N/A
  • Audio
    • Speaker No
    • USB Sound Bar (Ready) No
  • Operation Conditions
    • Temperature 10~40 ℃
    • Humidity 10~80,non-condensing
  • Calibration
    • Factory Tunning N/A
    • Built in Calibration Engine N/A
    • LUT(Look-up Table) Bit Depth N/A
    • Gray Balance N/A
    • Uniformity Correction N/A
    • Color Mode N/A
    • CMS(Color Management Software) N/A
    • Factory Calibration Report N/A
  • Design
    • Colour BLACK
    • Stand Type Dual Hinge
    • HAS(Height Adjustable Stand) 0~184.7mm
    • Tilt -5.0°(±2.0°)~ 20.0°(±2.0°)
    • Swivel N/A
    • Pivot N/A
    • Wall Mount N/A
  • Eco
    • Energy Efficiency Class N/A
    • Recycled Plastic N/A
  • Circuit Amps
    • Power Supply AC 100~240V
    • Power Consumption (Max) 54 W
    • Power Consumption (Typ) N/A
    • Power Consumption (DPMS) ≤0.5 W
    • Power Consumption (Off Mode) ≤0.3 W
    • Power Consumption (Yearly) N/A
    • Type External Adaptor
  • Set Dimension (WxHxD)
    • Net Dimension with Stand (WxHxD) 714.5 x 757.2 x 115.5 mm
    • Net Dimension without Stand (WxHxD) 714.5 x 418.2 x 26.0 mm
    • Package Dimension (HxWxD) 978.0 x 159.0 x 502.0 mm
  • Weight
    • Net Weight with Stand 7.0 kg
    • Net Weight without Stand 4.8 kg
    • Package Weight 9.4 kg
  • Accessory
    • Power Cable Length N/A
    • D-Sub Cable N/A
    • DVI Cable N/A
    • HDMI Cable Yes
    • HDMI to DVI Cable N/A
    • DP Cable No
    • USB Type-C Cable N/A
    • Thunderbolt 3 Cable No
    • Mini-Display Gender No
    • Install CD No
    • Quick Setup Guide Yes
    • Clean Cloth N/A
  • Disclaimer
    • Disclaimer N/A

Features and specifications are subject to change without prior notification. Images are used for illustrative purposes only.
