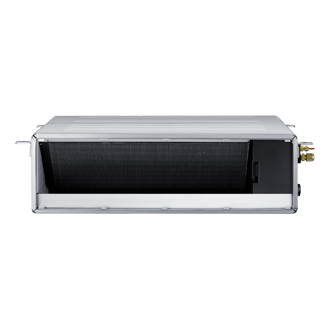

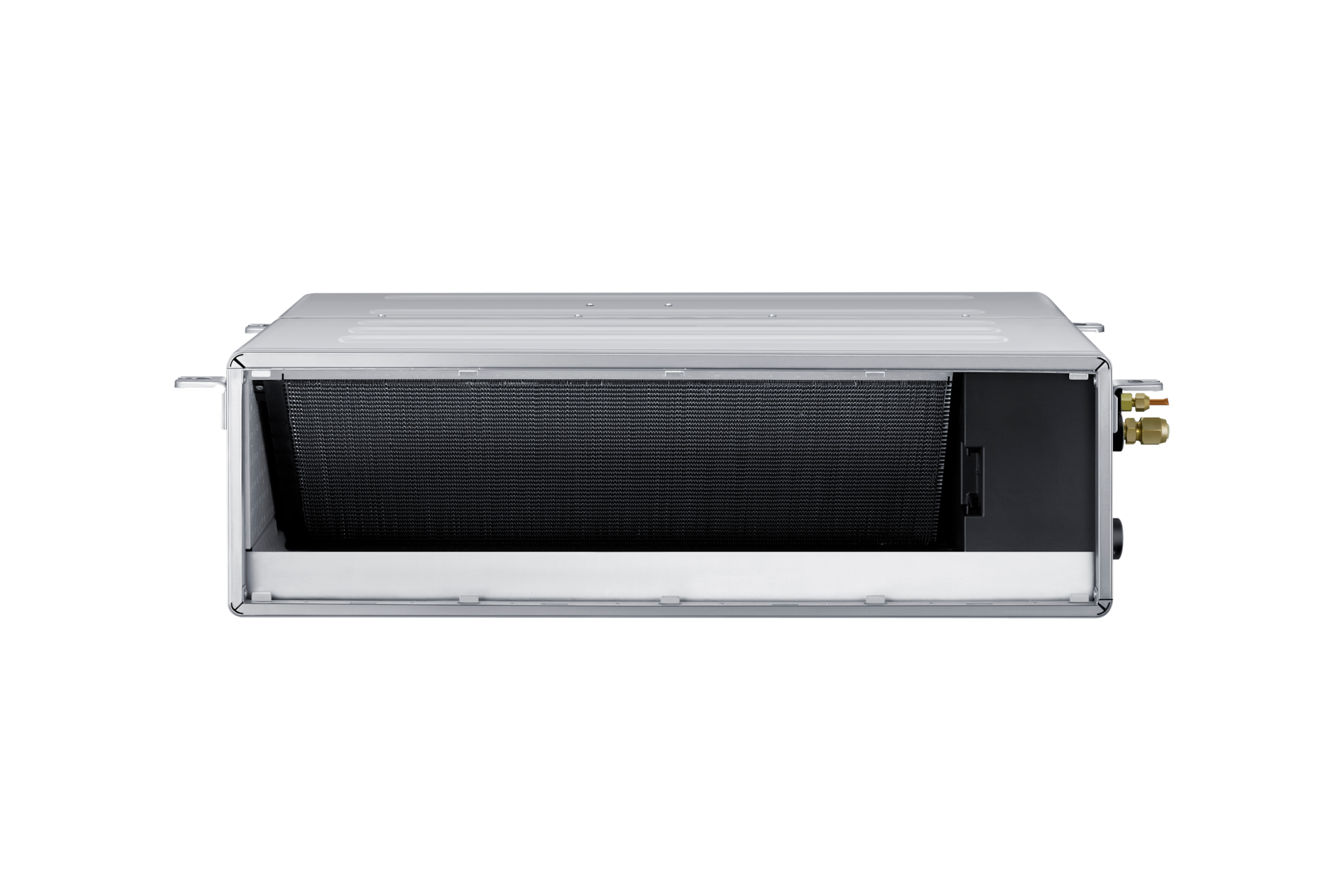

DVM S, Duct S, 3.6kW, 147Pa, 700mm depth
AM036HNMPKH/EU
Please scan the QR Code with your mobile device, and place the product image in desired place.
Specifications
-
Cooling [Btu/h]
12,300 Btu/h
-
Cooling (Min / Std / Max)
3.6 kW
-
Type
DUCT S
-
Indoor Unit
AM036HNMPKH/EU
-
1,2,220-240,50
-
Mode
HP/HR
-
Cooling (Min / Std / Max)
3.6 kW
-
Cooling [Btu/h]
12,300 Btu/h
-
Heating (Min / Std / Max)
4.0 kW
-
Heating [Btu/h]
13,600 Btu/h
-
Cooling (Min / Std / Max)
0.050 kW
-
Heating (Min / Std / Max)
0.050 kW
-
Cooling 1)
0.50 A
-
Heating 2)
0.50 A
-
Type
Sirocco Fan
-
Motor (Output) [W]
153 x 1 W
-
Air Flow Rate (High / Mid / Low) [L/S]
200.00/158.33/133.33
-
External Static Pressure (Min / Std / Max) [mmAq]
0.00/2.50/15.00 mmAq
-
External Static Pressure (Min / Std / Max)
0.00/24.52/147.10 Pa
-
Air Flow Rate (High / Mid / Low) [m3/h]
720/570/480 ㎥/h
-
Liquid Pipe (Φ, mm)
6.35 mm
-
Liquid Pipe (Φ, inch)
1/4"
-
Gas Pipe (Φ, mm)
12.70 mm
-
Gas Pipe (Φ, inch)
1/2"
-
Drain connection size
VP25 (OD 32,ID 25)
-
Indoor (V)
1.5 ~ 2.5
-
Outdoor (V)
0.75 ~ 1.5
-
Type
R410A(Contains fluorinated greenhouse gas, GWP=2,088)
-
Control Method
EEV INCLUDED
-
Sound Pressure Level (Outdoor, High)
29/26/23 dBA
-
Sound Power
52.0 dBA
-
Net Weight (kg)
25.5 kg
-
Shipping Weight (kg)
30.0 kg
-
Unit Dimension (WxHxD)
850 x 250 x 700 mm
-
Shipping Dimension (WxHxD)
1064 x 320 x 784 mm
-
Drain Pump
MDP-G075SQ(built-in)MDP-G075SP(external)
-
Sound Pressure Level (Indoor, Low), dBA
750 / 24
-
Sound Pressure Level (Indoor, Quiet Mode), dBA
Removable/Wahable/Mildew proof
