Recommended clearance measurements to install my Front-Load Washer (WF45K6500AV)?

Last Update Date : Apr 09. 2018

Dimensions and clearances


The following guidelines will help you determine if your wahser fits in the space you have available. We recommend at least 25 mm (1 inch) of clearance on all sides, 150 mm (5.9 inches) of clearance at the back, 50 mm (2 inch) of clearance at the front and 432 mm (or 17 inches) at the top. Remember that when it comes to clearance around the washer, more clearance is better than less.

Note: The provided information refers to the appliances sold in Canada. The available settings and options may differ from appliances sold in other countries.

Specification sheet


Specification 1


Dimensions:

  • A. Height-overall: 984 mm (or 38.7 inches)

  • B. Width: 686 mm (or 27 inches)

  • C. Depth with door open: 1386 mm (or 54.6 inches)

  • D. Depth: 864 mm (or 34 inches)

Note: The net weight of the washer is 108 kg (or 238 lb).

Alcove or closet installation


Minimum clearance for stable operation:

  • Sides: 25 mm (or 1 inch)

  • Top: 432 mm (or 17 inches)

  • Rear: 150 mm (or 5.9 inches)

  • Front: 50 mm (or 2 inches)

Note: When it comes to clearance around the washer, more clearance is better than less.

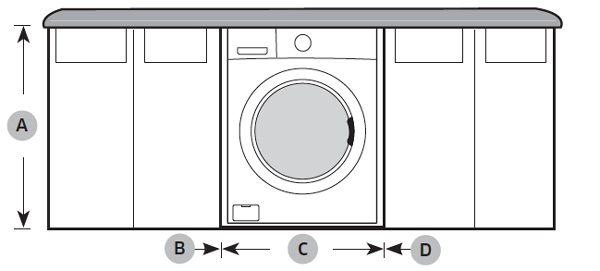

Undercounter installation


Specification 2


Dimensions & clearances:

  • A. Height: 991 mm (or 39 inches)

  • B. Side clearance (left): 25 mm (or 1 inch)

  • C. Width: 686 mm (or 27 inches)

  • D. Side clearance (right): 25 mm (or 1 inch)

Side by side installation


Specification 3


Dimensions & clearances:

  • A. Side clearance: 25 mm (or 1 inch)

  • B. Width: 686 mm (or 27 inches)

  • C. Top clearance: 432 mm (or 17 inches)

  • D. Depth: 864 mm (or 34 inches)

  • E. Front clearance: 50 mm (or 2 inches)

  • F. Rear clearance: 150 mm (or 5.9 inches)

Note: If both the washer and a dryer are installed in the same location, the front of the alcove or closet must have at least a 465 cm² (72 in²) unobstructed air opening. Your washer alone does not require a specific air opening.
