Galaxy S7 - Insert or remove a Micro SD card (SM-G930W8)

Last Update date : Oct 01. 2020
Galaxy S7 - Insert or remove a Micro SD card (SM-G930W8)

Your device lets you use a Micro SD, Micro SDHC, or Micro SDXC card to expand memory space. This secure digital card lets you exchange pictures, music, and data with Micro SD compatible devices. Your device accepts memory cards with maximum capacity of 200 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

Screens and settings available may vary by wireless service provider and software version.

Insert the Micro SD Card

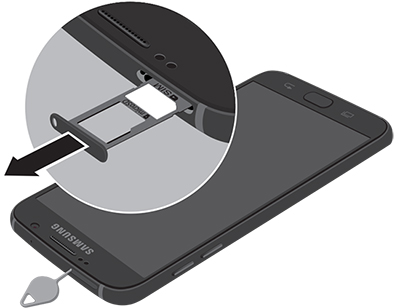

1 Insert the ejector tool into the hole in the SIM and Micro SD card tray on the top of your device, as shown below. When the tray pops out, pull it out of the device.
Galaxy S7: How do I insert or remove the microSD card for my Samsung Galaxy S7?

Take care not to insert the ejector tool into the microphone hole also on top of your device.

2 Carefully place the Micro SD card into the larger opening in the tray and insert the tray.
Galaxy S7: How do I insert or remove the microSD card for my Samsung Galaxy S7?

The SIM card is in the smaller opening, lower on the tray.

Remove the Micro SD Card

You must unmount the microSD card before removing it.

1 From the Home screen, touch Apps.
2 Touch Settings.
3 Scroll to and touch Storage.
4 Touch Eject next to SD card to safely unmount the Micro SD card.
5 Insert the ejector tool into the hole in the SIM and Micro SD card tray on the top of your device, as shown below. When the tray pops out, pull it out of the device.
Galaxy S7: How do I insert or remove the microSD card for my Samsung Galaxy S7?

Be careful not to insert the ejector tool into the microphone hole also on top of your device.

6 Remove the microSD card from the tray and reinsert the tray.
Micro SD Card Classes

   • Micro SD cards have capacity up to 2GB.


   • Micro SDHC (High Capacity) cards offer capacity up to 32GB.


   • Micro SDXC (eXtended Capacity) cards have capacity from over 32GB and up to 2TB, currently.


   • Each type of card has a speed rating of 2, 4, 6, 8, or 10, from slowest to fastest.


While you can use any class of Micro SD card in your device, the Micro SDXC card is recommended for high-resolution video recording due to its large storage capacity and high-speed read/write capability.


For less demanding use, such as still photography, regular Micro SD or Micro SDHC cards will be sufficient.

What can I do if I lost the ejector tool?
What can I do if I lost the ejector tool?

If you lost the ejector tool, don’t panic! It is easy to replace it with a very common object: a paper clip. Unfold one of the end of the paperclip (as shown above) and use it as an ejector tool. As you can see, it is a very simple DIY!
