Gear VR - How do I switch the device holder on my Gear VR with controller (SM-R325)?

Last Update Date : May 09. 2018

Device holder

The USB Type-C device holder is attached to the Gear VR by default. If your mobile device's multipurpose jack is USB Type-C, you can connect the mobile device to the Gear VR. If your mobile device's multipurpose jack is Micro USB, replace the device holder with the Micro USB device holder before connecting your mobile device to the Gear VR.

Note: The provided information refers to Gear VR sold in Canada. The available settings and options may differ for devices sold in other countries.

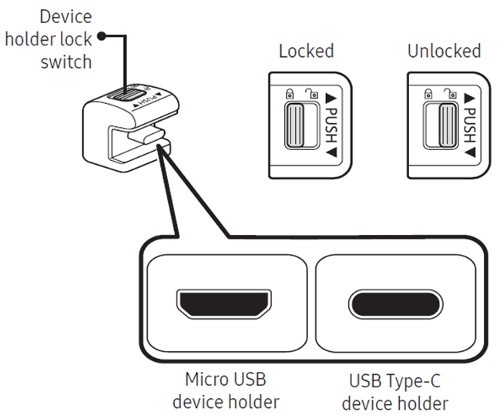

Presentation of the device holder

Note: The device holder can be switched to allow USB-C and Micro USB compatible smartphones to be used with the Gear VR.

Gear VR - How do I switch the device holder on my Gear VR with controller (SM-R325)?

Important: The USB Type-C device holder is attached to the Gear VR by default.

Switching the device holder

Follow the steps below to switch out the device holder:

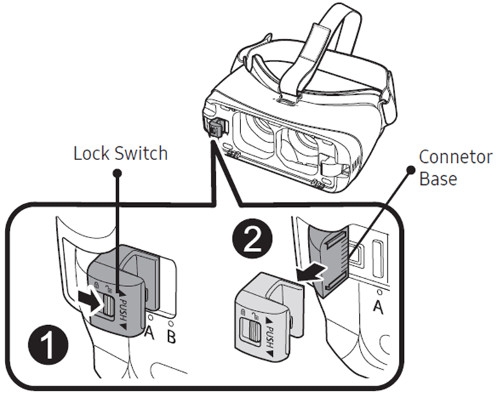

1 Pull the device holder (on the right side) to the right then remove the front cover.
2 Slide the lock switch to the unlock position (1) and then remove the device holder from the Gear VR by pulling it out (2).
Gear VR - How do I switch the device holder on my Gear VR with controller (SM-R325)?

Note: Be careful not to break the connector base while trying to remove the device holder.

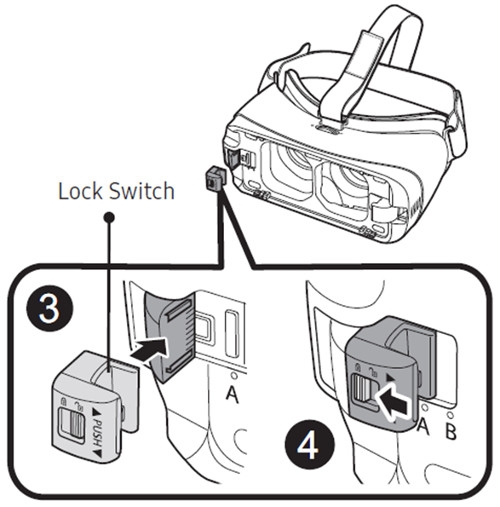

3 Take the other device holder and slide its lock switch to the right (3). Align the connector on the grooves and slide it into the holder slot (4) and then lock the holder by sliding the lock switch to the lock position.
Gear VR - How do I switch the device holder on my Gear VR with controller (SM-R325)?

Note: Do not slide the device holder into the holder slot while the lock switch is in the locked position. This may damage the lock switch’s latch.

Important: Make sure to lock the device holder by sliding the lock switch to the locked position. If not, the phone may accidentally separate from the Gear VR and get damaged.
