The Frame - Connect to Cable and Scan for Channels on the 43” UHD 4K The Frame (UN43LS003AF)

Last Update Date : Jul 21. 2018
Connect to Cable and Scan for Channels on the 43” UHD 4K The Frame (UN43LS003AF)

To watch TV on your Frame, connect a cable line or antenna, and then run the Auto Program function. The Frame will scan for all available channels and create a list of the channels found.

The provided information refers to televisions sold in Canada. The available settings and options may differ from televisions sold in other countries.

Connecting The Frame TV to Cable or AntennaClick to Expand
Connecting The Frame TV to Cable or Antenna

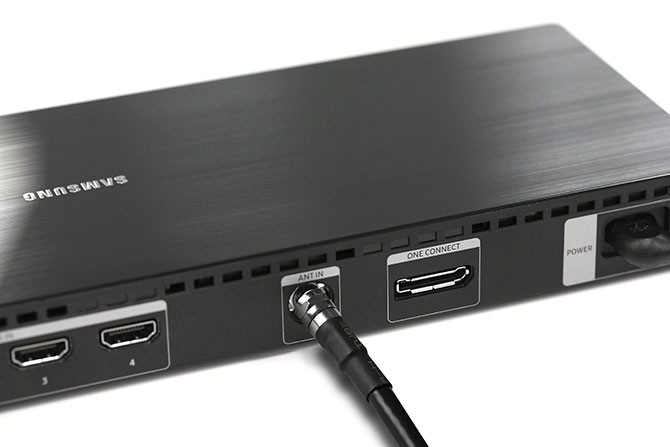

Connect the coax cable into the ANT IN port of the One Connect Box.

Make sure your One Connect Box is connected to The Frame TV.

Scanning for ChannelsClick to Expand

Before you start watching TV, adjust the different picture settings and modes for the perfect looking picture.

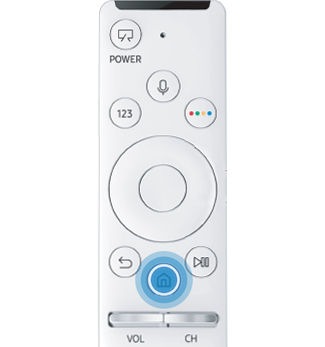

1. Press the Home button on your OneRemote

Scanning for Channels 1

2. Navigate to Settings.

3. Navigate to Broadcasting.

4. Select Auto Program.

Auto Program automatically scans and indexes all channels received through the Frame's antenna input connector. If the Frame has saved channels, Auto Program deletes the existing list, and then saves the newly scanned channels.

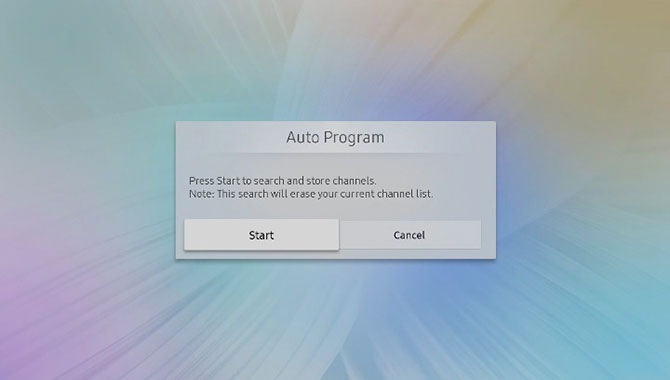

5. Select Start to begin Auto Program.

Scanning for Channels 2

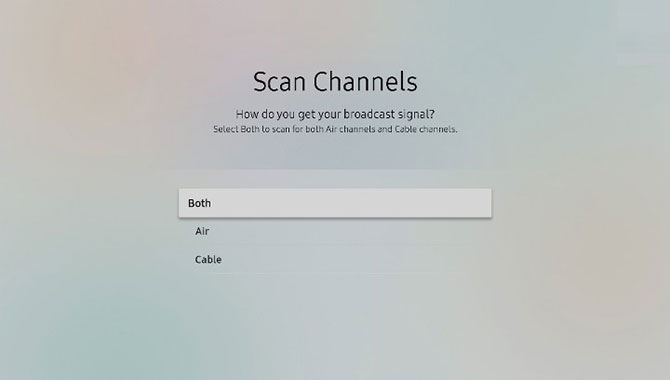

6. Select the Broadcast signal that you use. Select Both to scan for both air and cable channels, Air to scan for channels through an antenna, or Cable to scan for channels through a cable line.

Scanning for Channels 3

Instructions may vary depending on the broadcast signal selected.

7. After all channels have been scanned, select Close.
