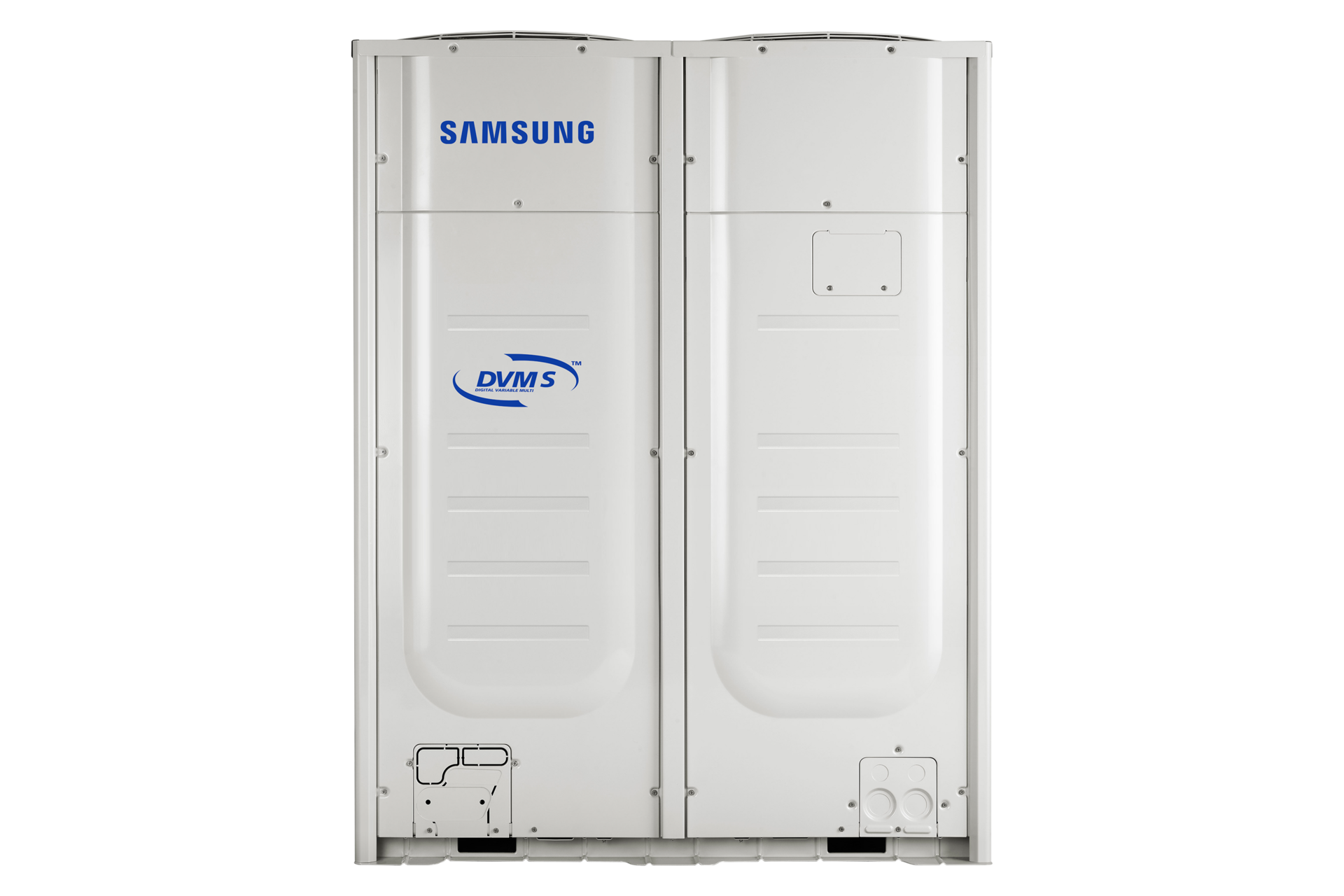

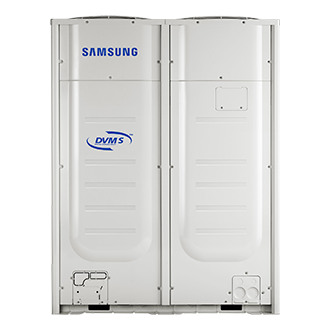

DVM S, Standard, Cooling Only R410a, 380~415V, 50Hz, 3Ф, Outdoor Unit

DVM S, Standard, Cooling Only R410a, 380~415V, 50Hz, 3Ф, Outdoor Unit

AM220MXVAGC/TS

  • The worlds largest capacity
  • Compact size
  • High energy efficiency

Pilih Kapasitas Anda

More choice of capacity, even less cost

As a single unit, it offers a wide range of capacities – from 8HP to 30HP. It’s the world’s first system to offer a single 30HP unit, so you can reduce the installation and management costs and save valuable space.

More usable space – no compromise

Its compact size leaves you plenty of extra space that can be used for other purposes without compromising on performance thanks to its highly efficient Inverter Scroll Compressor and Hybrid heat exchanger.

Advanced performance & energy efficiency

Its advanced technology radically improves performance and reduces wasted energy. It includes a highly efficient Inverter Scroll Compressor, an innovative Hybrid heat exchanger and a large capacity diffuser.

Improved reliability in cold conditions

An advanced refrigerant control system ensures the compressor continues working reliably – even if everything is frozen. Its flash injection technology provides a great improvement in heating performance at -25°C.

Instant shut off and gas leak protection

There’s no need to worry about gas leaks or the accidental loss of refrigerant. A Gas Leak Operation System quickly detects leaks and automatically takes the pump down a step and cuts off the refrigerant supply.

* Complies with the safety requirements of the BS-EN 378 standard.

* Complies with the safety requirements of the BS-EN 378 standard.

Flexibly install it almost anywhere

Provides the flexibility to be installed almost anywhere, regardless of its location or distance from the building. It has a piping length of up to 220m (721.79ft) and can reach up to a height of 110m (360.9ft).

Control your cooling anywhere

An optional Wi-Fi Kit lets you remotely control up to 16 indoor units using an App*. Anytime and anywhere you can turn them on and off, select the operating mode and temperature, and utilize their other functions.

* Available on iPhones and Android devices. A Wi-Fi connection is required.

* Available on iPhones and Android devices. A Wi-Fi connection is required.

Spesifikasi

  • Cooling [Btu/h] 210,200 Btu/h
  • Cooling [kW] 61.60 kW
  • EER (Nominal Cooling) 3.13
  • Net Dimensions (WxHxD) (mm) 1,295 x 1,695 x 765 mm
