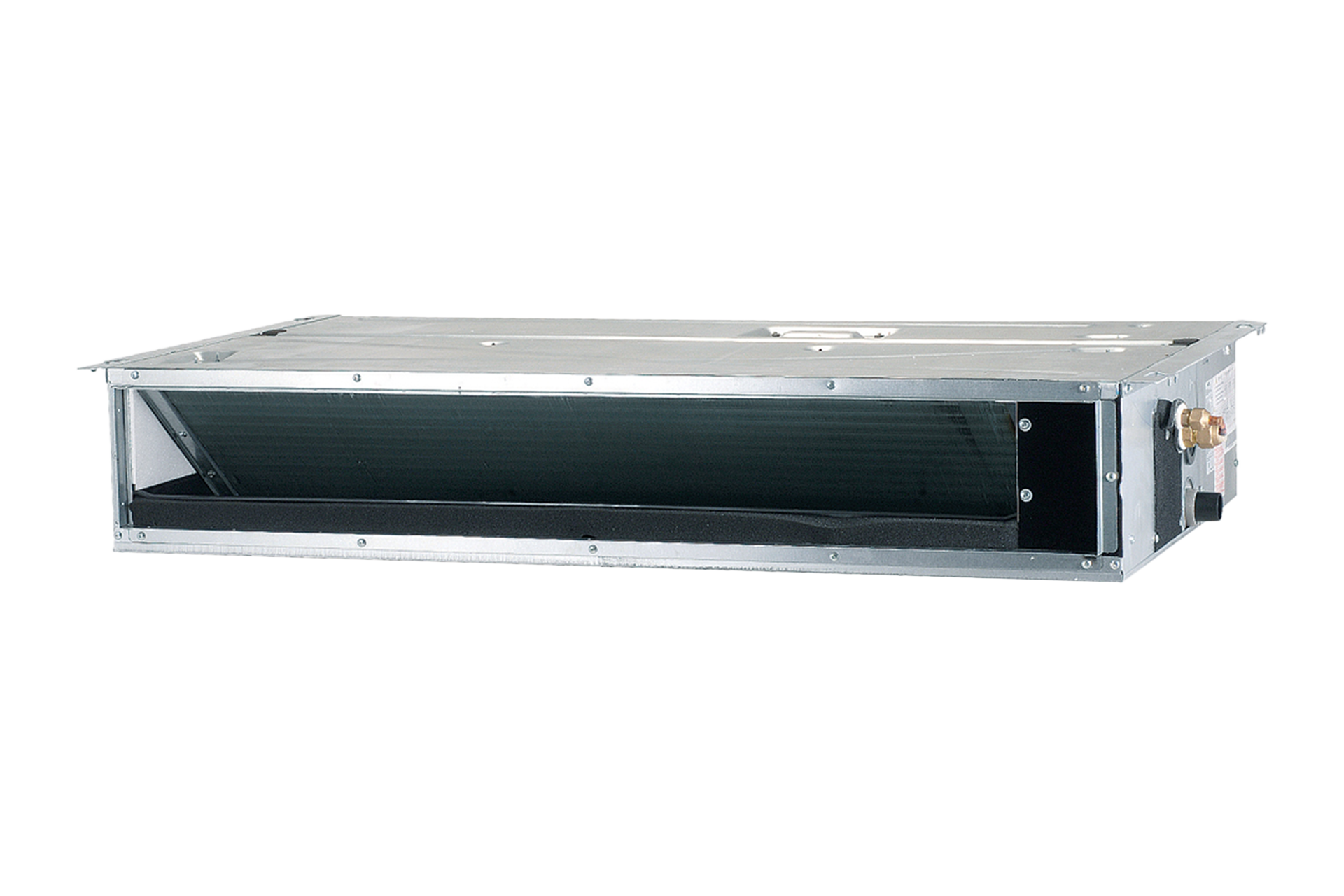

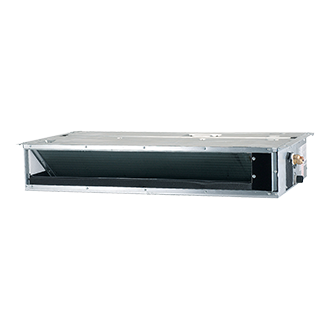

FJM R32 Slim Duct Heat Pump 3.5kW | AJ035TNLDEG

FJM, R32, Slim Duct, Heat Pump, 3.5kW

AJ035TNLDEG/EU

High efficiency microchannel heat exchanger
Auto Restart function
Long-life HD 40 permanent filter included

Flexibly fits & blends into more places

2-way Air Inlet

Install your air conditioner in a wide variety of locations. It has a 2-way air inlet – bottom or rear – that gives you much more flexibility in selecting an installation location. It can be configured to provide the optimum airflow to almost any room, while being concealed behind ceilings.

Bottom Side

Rear Side

Blends in with a compact & elegant design

Slim & Compact Design (199mm Height)

Enhance the look and feel of almost any space. Being 199mm high and 700mm* wide, its slim and compact design is highly elegant, so it can be discretely concealed in many locations. It also makes installation, maintenance and repair quick and easy, so it’s ideal for a wide range of businesses.

* Based on the AM036KNLDEH/EU model. The width of other models may vary.

Automatically monitor filter cleanliness

Easy Filter Cleaning

Maintain your air conditioner easily and cost-effectively. The filter cleaning indicator automatically notifies you when the filter is due for cleaning after 1,000 hours of operation*. The design of the duct system makes this very simple, so it reduces maintenance time and its financial impact.

* 1,000 hours is the default setting, but this can be adjusted to 2,000 hours on the internal PCB.

Simple set up, automatically even cooling

Smart Pressure Control

Enjoy maximum comfort and efficiency with minimum effort. The Smart Pressure Control automatically optimizes the air volume and pressure and minimizes noise, ensuring consistent cooling and heating in any situation. The external static pressure (ESP) can also be adjusted using a remote control

* Product images may differ from the actual product.

Flexible drainage Installation

Optional High Lift-Up Drain Pump

Enjoy a greater choice of installation locations and maintain your system conveniently. An optional High Lift-Up Drain Pump lifts condensed water up to 750mm, compared with the previous limit of 700mm, and you can easily check, repair or install a new drain pump by simply removing the right-side panel.

Specifications

Features

Type Home duct S

Model Name

Indoor Unit AJ035TNLDEG/EU

Power Supply (Indoor Unit) Φ, #, V, Hz

1,2,220-240,50

System

Mode HP

Capacity

Cooling 3.5 kW
Cooling [Btu/h] 11,900 Btu/h
Heating 3.8 kW
Heating [Btu/h] 13,000 Btu/h

Power Input

Cooling 40 W
Heating 40 W

Current Input

Cooling 0.4 A
Heating 0.4 A

Fan

Type Sirroco Fan / BLDC
Motor (Output) 69 x 1 W
Air Flow Rate (High / Mid / Low) 9.5 / 7.9 / 6.2 CMM
Air Flow Rate(High/Mid/Low)[L/S] 158 / 131 / 103
External Static Pressure (Min / Std / Max) [mmAq] 0 / 1 / 3 mmAq
External Static Pressure (Min / Std / Max) [Pa] 0 / 9.8 / 29.4 Pa

Piping Connections

Liquid Pipe 6.35 mm
Liquid Pipe 1/4
Gas Pipe 9.52 mm
Gas Pipe 3/8
Drain Pipe (Φ,mm) VP25 (OD 32, ID 25)

Field Wiring

Power Source Wire 1.0 ~ 1.0
Transmission Cable 0.75 ~ 1.0

Refrigerant

Type R410A(Contains fluorinated greenhouse gas, GWP=2,088), R32(Contains fluorinated greenhouse gases, GWP=675)
Control Method EEV NOT INCLUDED

Sound

Sound Pressure 34 / 30 / 25 dBA
Sound Power Level 50 dBA

External Dimension (Indoor Unit)

Net Weight 14.8 kg
Shipping Weight 17.7 kg
Net Dimensions (WxHxD) 700 x 199 x 440 mm
Shipping Dimensions (WxHxD) 949 x 280 x 544 mm
