AM056NN4DEH/TL

DVM, Wind-free,4-way, R-410A, Indoor unit

Wind-free Various Panel options Individual blade control

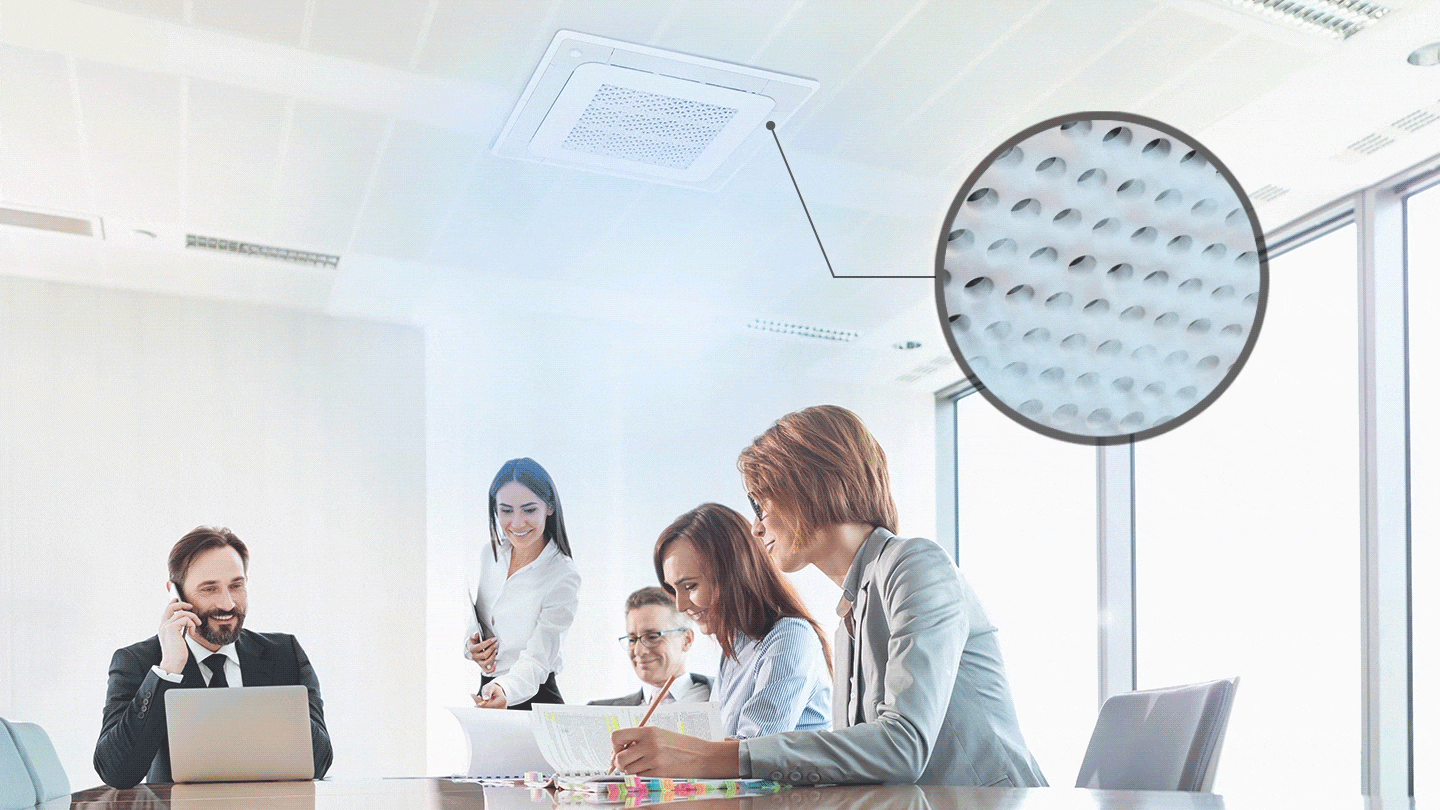

Stay cool without direct wind

Wind-Free™

Wind-Free Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.

Stay cool without direct wind

*PC4SUFMAN(4way 600*600) : 8,976 micro hole, PC4NUFMAN(4way) : 15,672 micro hole

Energy saving with Wind-Free™ Cooling

Energy Saving

Wind-Free Cooling allows efficient energy saving up to 55%.

Energy saving with Wind-Free™ Cooling

*Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running simultaneously. Individual result may vary depending on consumer usage.

Wider cooling range

Big Blade

Big and optimized blades enable even wider cooling range.

Wider cooling range

*Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.

Optimized operation by MDS

Motion Detect Sensor

Motion Detect Sensor enables customized air flow and energy effcient operation.

Optimized operation by MDS
Specification
  • Features
    • Type 4 WAY CASSETTE S
  • Model Name
    • Indoor Unit AM056NN4DEH/TL
  • Power Supply (Indoor Unit) [Φ, #, V, Hz]
    • 1,2,220-240,50
  • System
    • Mode HP/HR
  • Capacity
    • Cooling [kW] 5.60 kW
    • Cooling [Btu/h] 19,100 Btu/h
    • Heating [kW] 6.30 kW
    • Heating [Btu/h] 21,500 Btu/h
  • Power Input (Nominal)
    • Cooling 1) [W] 32.00 W
    • Heating 2) [W] 32.00 W
  • Current Input (Nominal)
    • Cooling 1) 0.22 A
    • Heating 2) 0.22 A
  • Fan
    • Type Turbo Fan
    • Air Flow Rate (High / Mid / Low) [CMM] 15.0/14.0/13.0 CMM
    • Air Flow Rate(High/Mid/Low)[L/S] 250/233/217
  • Piping Connections
    • Liquid Pipe (Φ, mm) 6.35 mm
    • Liquid Pipe (Φ, inch) 1/4"
    • Gas Pipe (Φ, mm) 12.70 mm
    • Gas Pipe (Φ, inch) 1/2"
    • Drain Pipe (Φ,mm) VP25 (OD 32,ID 25)
  • Field Wiring
    • Power Source Wire 1.5 ~ 2.5
    • Transmission Cable 0.75 ~ 1.50
  • Refrigerant
    • Type R410A
    • Control Method EEV INCLUDED
  • Sound
    • Sound Pressure 33/32/30 dBA
    • Sound Power 50 dBA
  • External Dimension (Indoor Unit)
    • Net Weight(kg) 15.00 kg
    • Shipping Weight (kg) 18.50 kg
    • Net Dimensions (WxHxD) (mm) 840 x 204 x 840 mm
    • Shipping Dimensions (WxHxD) (mm) 898 x 275 x 898 mm
  • Panel Size
    • Panel model PC4NUFMAN
    • Panel Net Weight (kg) 6.30 kg
    • Shipping Weight (kg) 8.70 kg
    • Net Dimensions (WxHxD) (mm) 950 x 64 x 950 mm
    • Shipping Dimensions (WxHxD) (mm) 1,010 x 117 x 1,000 mm

* Images shown here are for representational purpose only, actual may vary. All features, specifications and prices are subject to change without prior notice. Model availability may vary from location to location.

Technical Support

Manual Download

DVM, Wind-free,4-way, R-410A, Indoor unit (AM056NN4DEH/TL)

Manuals

2019.01.15

User Manual ver 1.0

(ENGLISH)

2018.02.27

Installation Guide ver 1.0

(ENGLISH)

2018.01.10

User Manual ver 1.0

(ENGLISH)

2017.02.27

Installation Guide ver 1.0

(ENGLISH)
