DRL / Position

Samsung LEDs DRL position lamp illuminating on a brown sedan

Efficiency and
Performance for Day and Night

Increased Conspicuity Protects Your Vehicle at
All Times

Samsung LEDs exceptional technology offers extended
usage periods and robust light intensity with high
reliability even during daytime

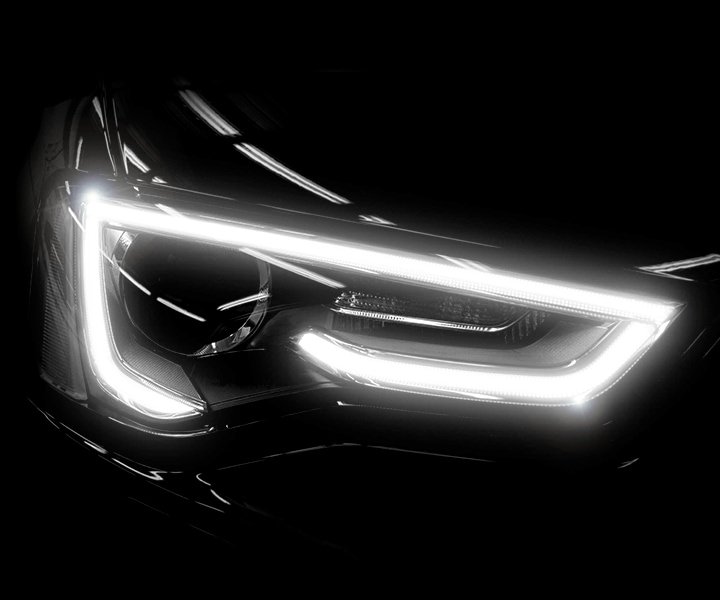

Samsung LEDs an enlarged image of trapezoid line shaped powerful white headlamp

Fx Series

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
1W White Gen2
  • · Luminous Flux: 144 lm @ 350 mA
  • · Forward Voltage: 3.0 V
  • · Thermal Resistance: 4.5 K/W (Rth J-S elec.)
3W White Gen2
  • · Luminous Flux: 400 lm @ 1,000 mA
  • · Forward Voltage: 3.0 V
  • · Thermal Resistance: 3.0 K/W (Rth J-S elec.)

C Series

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
[Gen1] 1W Bi-Color
  • · PKG Size (L x W x H) : 3.00 x 2.00 x 0.86 mm
  • · White : Typ. 120lm, 3.2V @ 350mA, 25℃, R2 (0.33,  0.35)
  • · Amber : Typ. 75lm, 3.2V @ 350mA, 25℃, A0 (0.57,  0.42)
[Gen2] 3W White
  • · PKG Size (L x W x H) : 1.50 x 1.90 x 0.75 mm
  • · Typ. 400lm, 3.0V @ 1A, 25℃, R2 (0.33,  0.35)
  • · Rth_J-S (Elec) 2.5 K/W, Rth_J-S (Real) 3.8 K/W

I Series

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
[Gen1] 3W White
  • · PKG Size (L x W x H) : 3.60 x 3.60 x 0.48 mm
  • · Typ. 385lm, 3.0V @ 1.0A, 25℃, R2 (0.33, 0.35)
  • · Rth_J-S (Elec) 2.8 K/W, Rth_J-S (Real) 3.7 K/W

P Series

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
0.2W White
  • · Luminous Intensity: 3.5 cd @ 50 mA
  • · Forward Voltage: 3.1 V
  • · Thermal Resistance: 60 K/W
0.2W White 4 Pin
  • · Luminous Intensity: 4.0 cd @ 50 mA
  • · Forward Voltage: 3.1 V
  • · Thermal Resistance: 40 K/W
0.5W White
  • · Luminous Intensity: 13 cd @ 140 mA
  • · Forward Voltage: 3.5 V
  • · Thermal Resistance: 45 K/W
0.5W White 6 Pin
  • · Luminous Intensity: 13 cd @ 140 mA
  • · Forward Voltage: 3.5 V
  • · Thermal Resistance: 30 K/W

S Series

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
[Gen1] 0.7W White
  • · PKG Size (L x W x H) : 2.30 x 2.30 x 0.55 mm
  • · Typ. 90lm, 2.9V @ 200mA, 25℃, T2 (0.32,  0.33)
  • · Rth_J-S (Elec) 4.2 K/W, Rth_J-S (Real) 7.3 K/W
