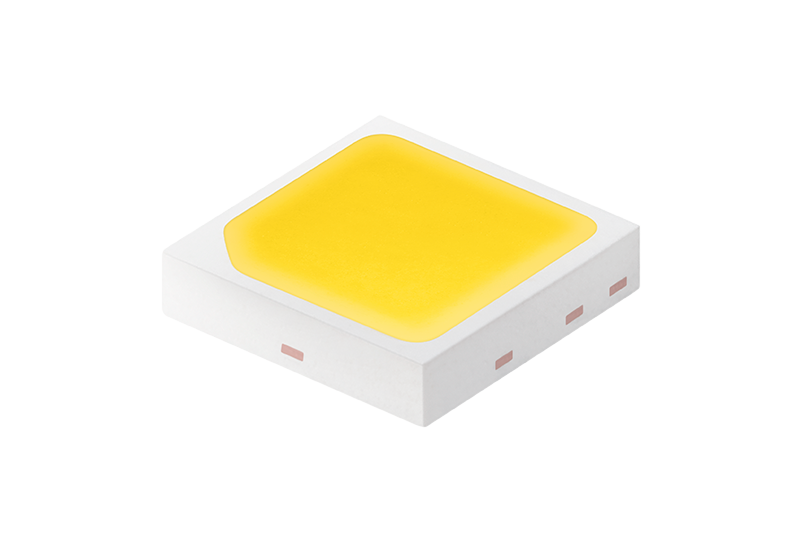

Samsung LM302N LED for circadian lighting
Samsung LM302N LED for circadian lighting
Samsung LM302N LED for circadian lighting
Samsung LM302N LED for circadian lighting

Mid Power LEDs

LM302N Energizing

Tech Spec

  • Wattage 0.9 W
  • Forward Voltage 6.1 V
  • Luminous Flux 123 lm
  • Luminous Efficacy 134 lm/W
  • Melanopic Ratio 1.01
  • Condition 5000K, 150 mA, 25°C

tech spec detail
CRI CCT PART NUMBER Melanopic Ratio LUMINOUS FLUX (lm) @ 150 mA
BIN MIN MAX
80+ 3000K SPMWH3326FC5FBV☆S0 0.66 SE
SF
115
124
124
133
3500K SPMWH3326FC5FBU☆S0 0.75 SE
SF
115
124
124
133
4000K SPMWH3326FC5FBT☆S0 0.83 SE
SF
115
124
124
133
5000K SPMWH3326FC5FBR☆S0 1.01 SE
SF
115
124
124
133
5700K SPMWH3326FC5FBQ☆S0 1.11 SE
SF
115
124
124
133
6500K SPMWH3326FC5FBP☆S0 1.19 SE
SF
115
124
124
133

Note: "☆" can be "0" (Whole Bin), "3" (3-step MacAdam), "Y" (Kitting)
