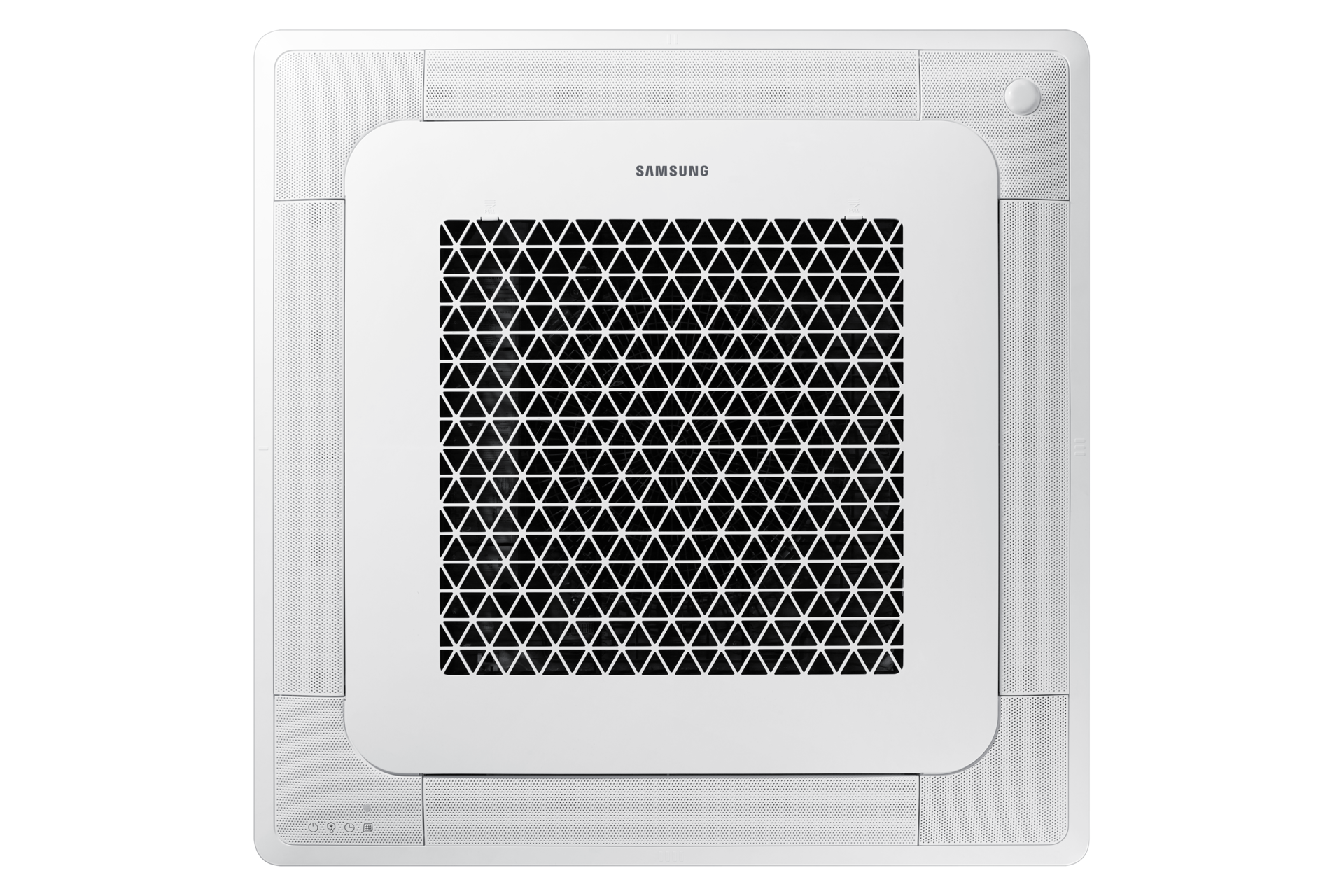

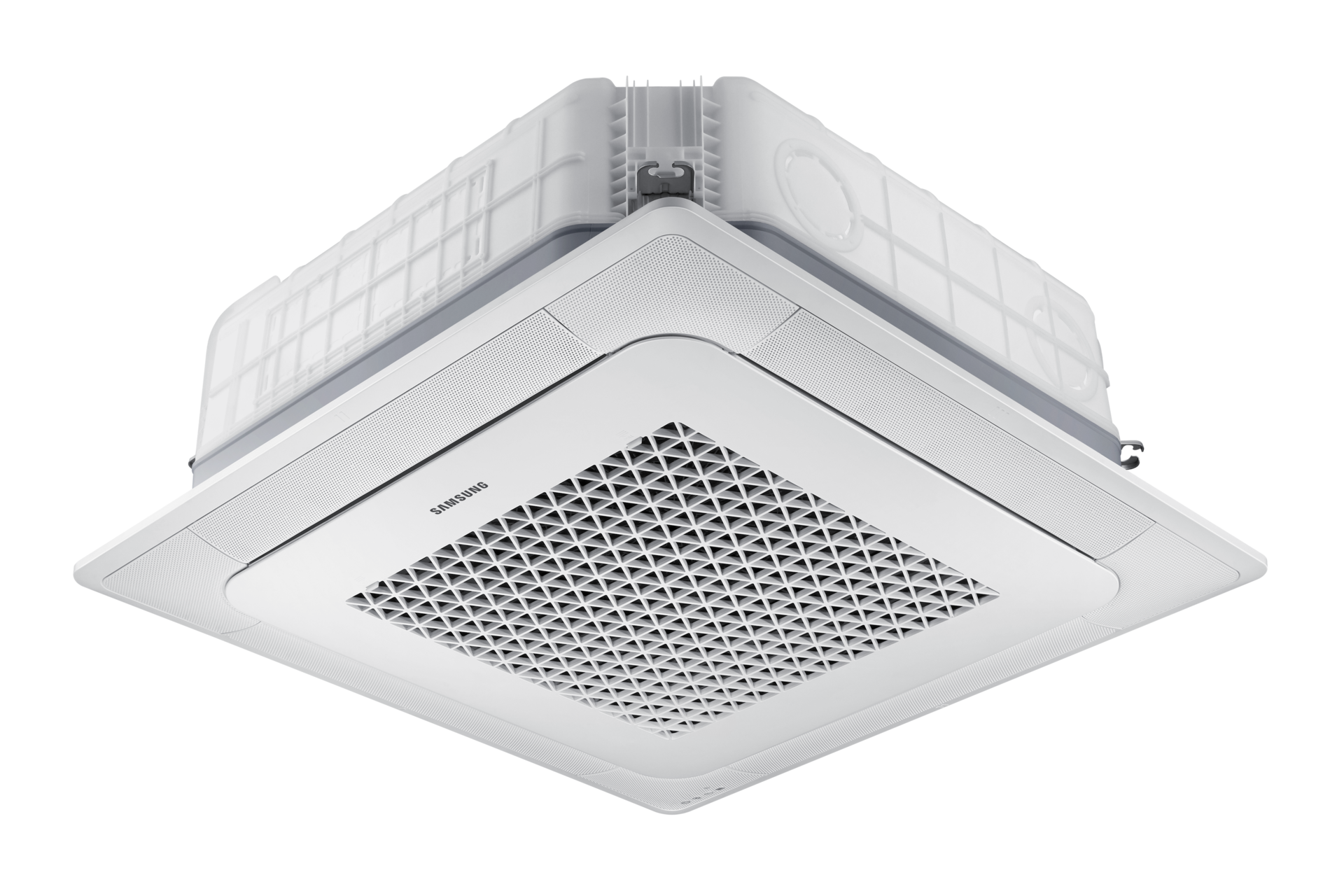

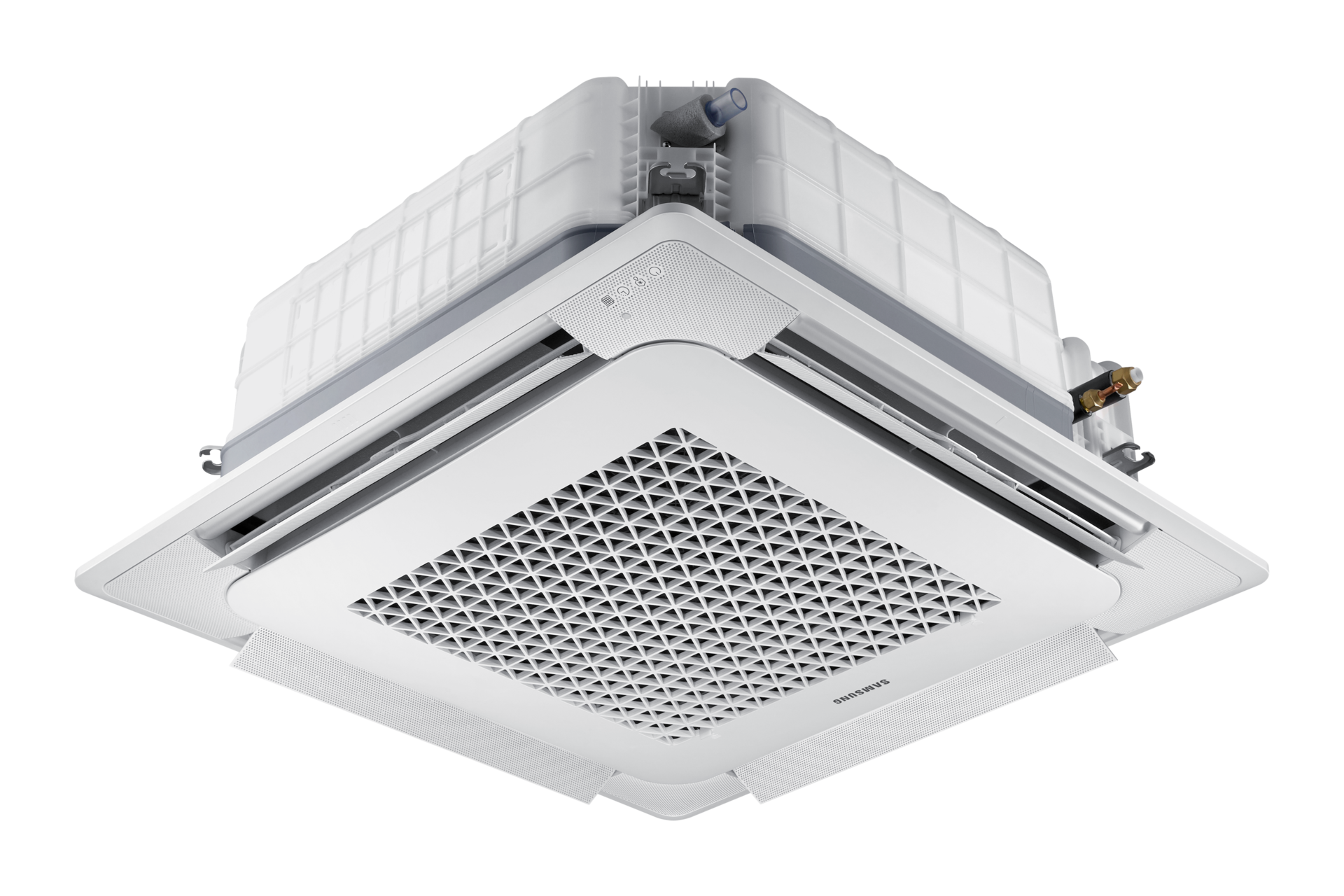

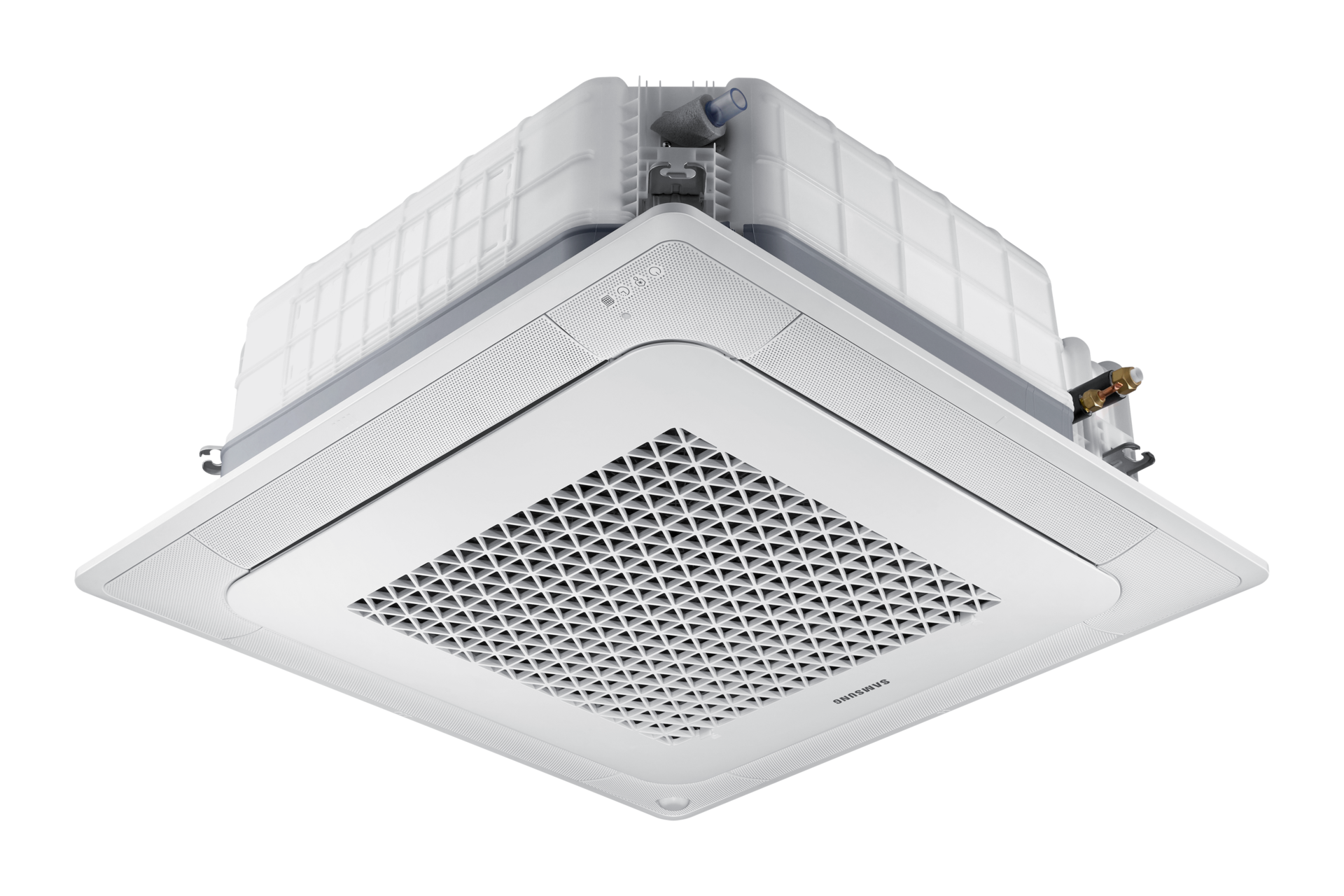

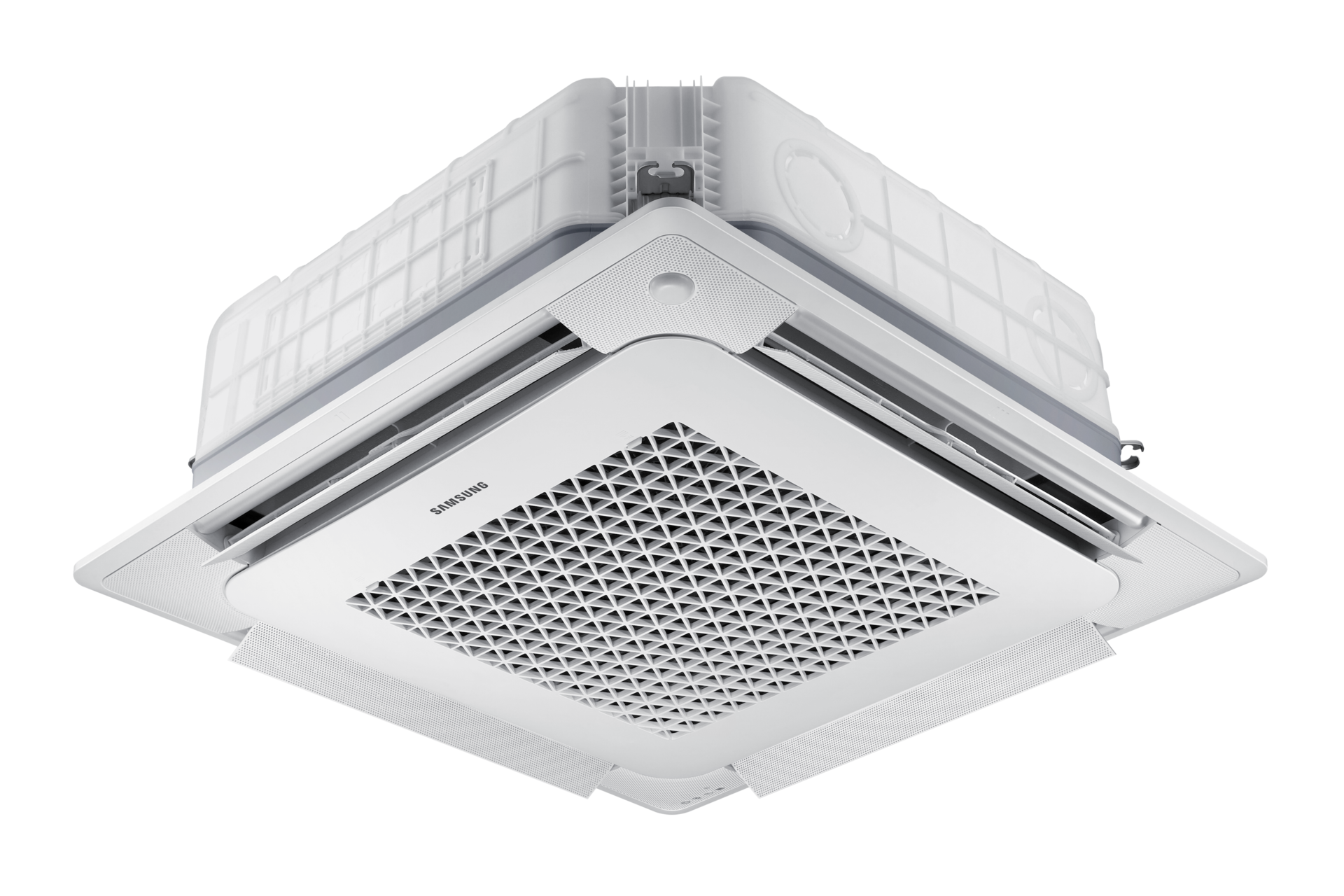

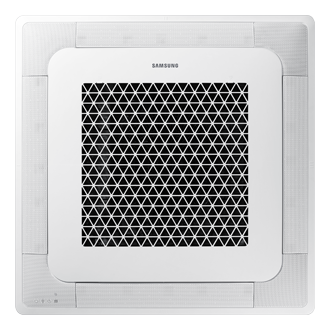

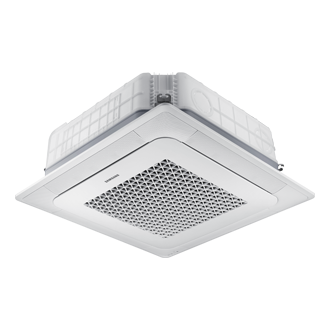

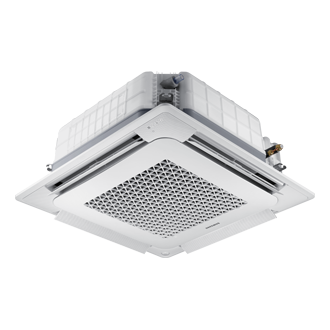

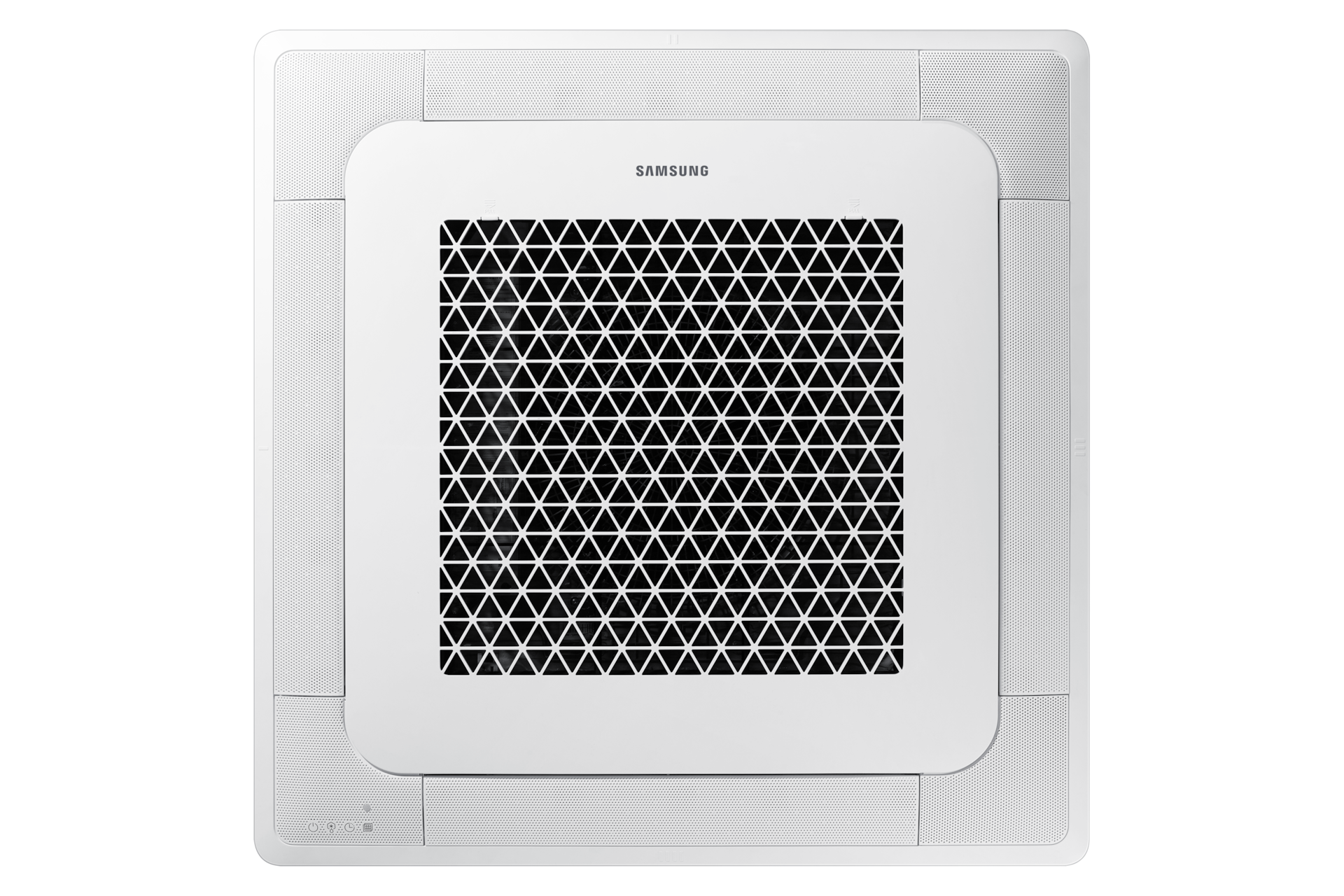

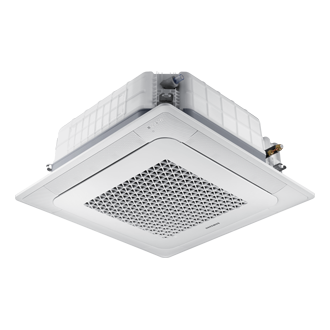

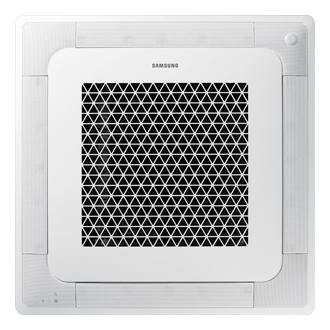

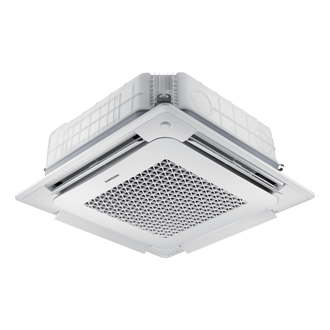

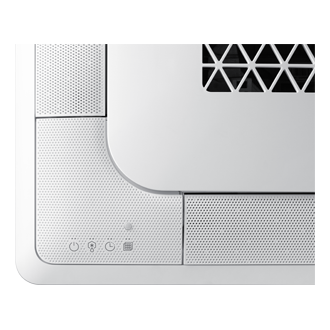

Indoor unit 4Way WindFree Cassette AC with Digital Inverter, Cooling/Heating 42000 BTU/hr 220 / 1Φ

Features
Gallery
Spec
Review
Support
Compare

Wider cooling range

Big Blade

Big and optimized blades enable even wider cooling range.

*Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.

Specifications

Cooling [Btu/h] 15200 / 42000 / 53000 Btu/h
Cooling [kW] 12.3 kW
Net Dimensions (WxHxD) (mm) 940 x 1420 x 330 mm

Features

Type 4Way

Model Name

Indoor Unit AC048TN4PCH/SU
Outdoor Unit AC048TX4PCH/SU

System

Mode Heat Pump

Capacity

Cooling [kW] 12.3 kW
Cooling [Btu/h] 15200 / 42000 / 53000 Btu/h
Heating [kW] 4.08 / 16.00 / 18.00 kW

Power

Cooling Power Input (Min/Std/Max) 1.00 / 3.39 / 6.10 kW
Heating Power Input (Min/Std/Max) 0.74 / 4.70 / 7.00 kW
Cooling Current Input (Min/Std/Max) 4.70 / 15.20 / 27.50 A
Heating Current Input (Min/Std/Max) 4.20 / 20.50 / 31.00 A

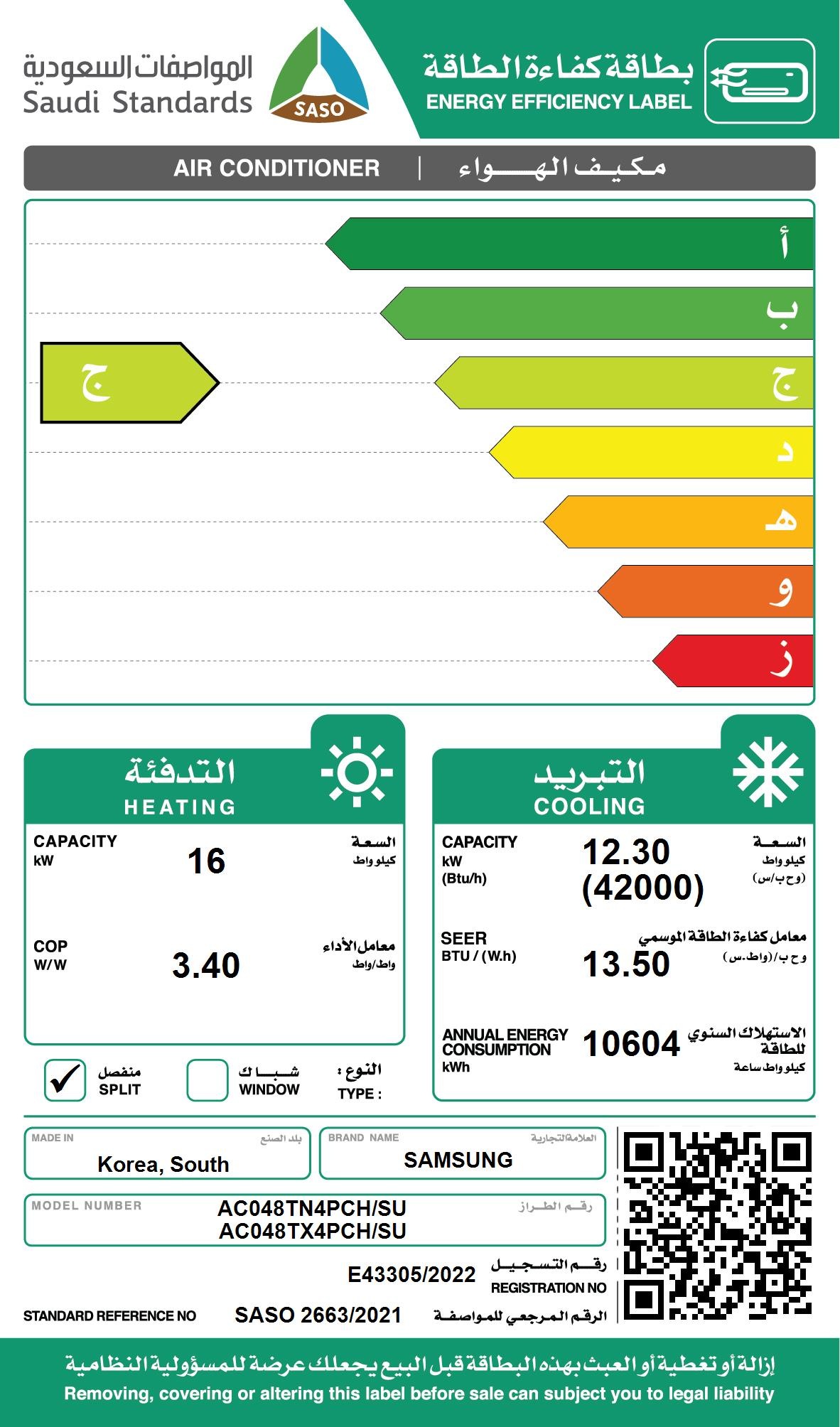

Energy Efficiency

EER (Nominal Cooling) [(Btu/h)/W] 12.4 Btu/Wh
COP (Nominal Heating) 3.4 W/W
SEER (Cooling Energy Grade) C
SEER (Cooling) [Btu/Wh] 13.50 Btu/Wh

Piping Connections

Liquid Pipe (Φ, mm) 9.52 mm
Liquid Pipe (Φ, inch) 3/8"
Gas Pipe (Φ, mm) 19.05 mm
Gas Pipe (Φ, inch) 3/4"
Installation Max. Length [m] 75 m
Installation Max. Height [m] 30 m

Refrigerant

Type R-410A
Factory Charging (kg) 3.80 kg

Power Supply (Indoor Unit) [Φ, #, V, Hz]

1,2,230,60

Fan

Type Turbo
Air Flow Rate Cooling (H/M/L) [m³/min] 34.0/27.5/21.5 ㎥/min
Motor (Output) [W] 97 W
Number of Unit (EA) 1 EA

Power Supply (Outdoor Unit) [Φ, #, V, Hz]

1,2,230,60

Sound

Sound Pressure (High / Mid / Low) [dB(A)] 45 / 41 / 37 dBA

External Dimension (Indoor Unit)

Panel Net Weight (kg) 20.0 kg
Shipping Weight (kg) 23.5 kg
Net Dimensions (WxHxD) (mm) 840 x 288 x 840 mm
Shipping Dimensions (WxHxD) (mm) 898 x 357 x 898 mm

Compressor

Type Twin BLDC Rotary
Model Name UG5TK5450FJX
Output(kW) 4.12 kW
Oil (Type) POE
Oil (Initial Charge) [cc] 1700 cc

Fan (Outdoor Unit)

Air Flow Rate (Cooling) [m³/min] 115 ㎥/min

Sound (Outdoor Unit)

Sound Pressure Level (Cooling) 55 dBA

External Dimension (Outdoor Unit)

Panel Net Weight (kg) 98.0 kg
Shipping Weight (kg) 108.0 kg
Net Dimensions (WxHxD) (mm) 940 x 1420 x 330 mm
Shipping Dimensions (WxHxD) (mm) 995 x 1598 x 426 mm

Operating Temp. Range

Cooling (℃) -15~54 ℃
Heating (℃) -20~24 ℃
