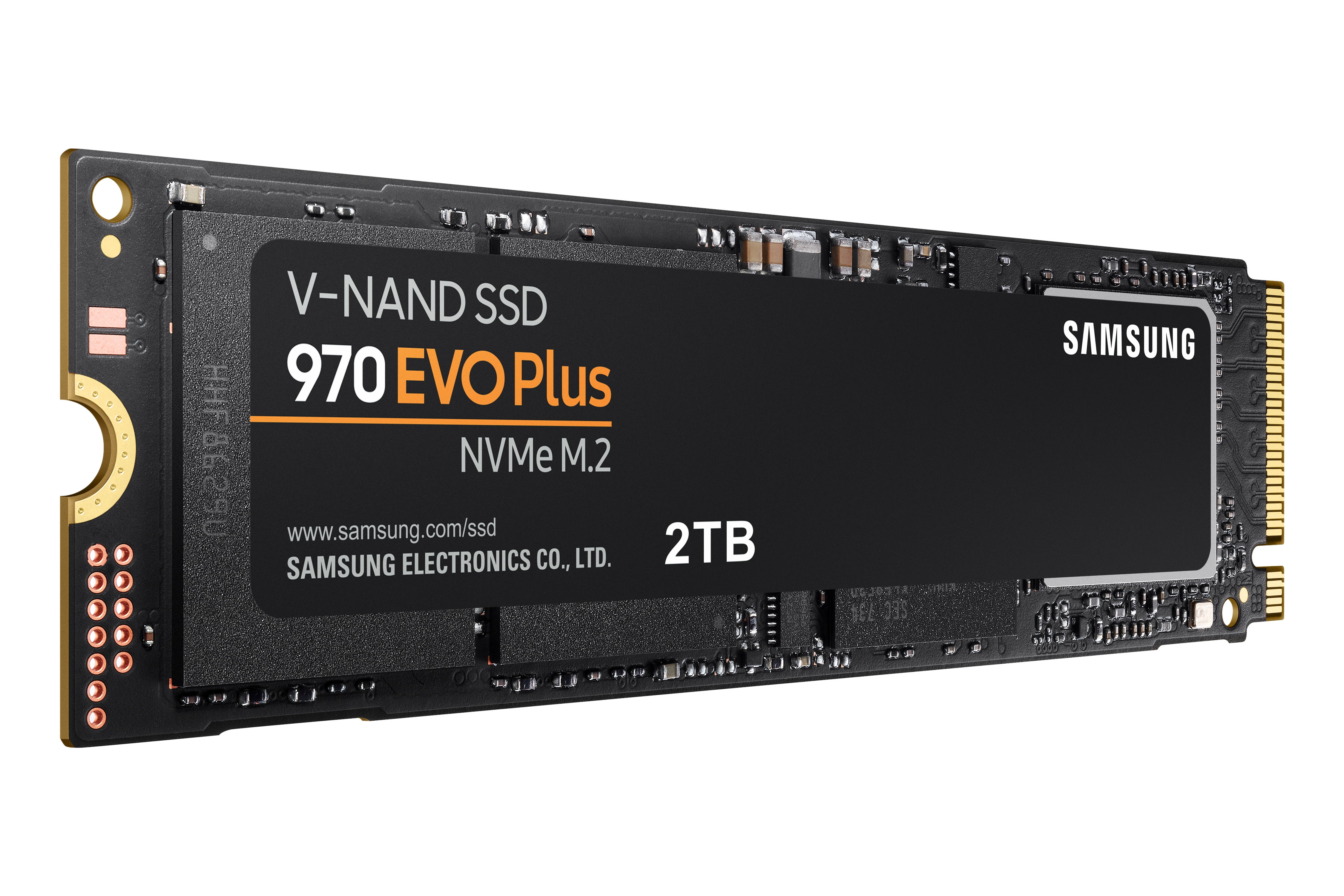

SSD 970 EVO Plus NVMe M.2 2 TB
A Samsung Pro is ready to assist you and answer any questions.
- Images must be in BMP, PNG, GIF or JPEG format.
- File size must be 5 MB or less.
- Image must be at least 100 pixels tall.
- Image must be at least 100 pixels wide.
- It contains copyrighted media (and you don't hold the copyright)
- It contains media not related to the product
We may not publish your review if:
- It contains copyrighted media (an you don't hold the copyright)
- It contains media not related to the product
Superior NVMe Read/Write performance with speeds up to 3,500/3,300 MB/s
V-NAND reliability backed by up to 5 yr. warranty
Earn 1% back in rewards
Ships by Aug. 27
Free shipping on all orders
3,500MB/s Seq. Read
3,300MB/s Seq. Write
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 2TB, with reliability of up to 1,200 TBW.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%* faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.
* Test system configuration: Intel Core i7-7700K CPU @4.2GHz, DDR4 2400MHz 32GB, OS-Windows 10 Built 10240, Chipset–ASUS PRIME Z270-A.
* *Up to 53 percent performance increase for sequential write speed for 250GB version
The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.
The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.
* Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model, 1,200 TBW for 2TB model.
* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
970 EVO Plus
PCIe Gen 3.0 x 4, NVMe 1.3
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Sequential Read Speed
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 3,300 MB/s * Performance may vary based on system hardware & configuration
Random Read Speed
Random Read (4KB, QD32): Up to 620,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
Random Write Speed
Random Write (4KB, QD32): Up to 560,000 IOPS; Random Write (4KB, QD1): Up to 62,000 IOPS * Performance may vary based on system hardware & configuration
Samsung Phoenix Controller
Samsung V-NAND 3-bit MLC
Samsung 1GB Low Power DDR4 SDRAM
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Device Sleep Mode Support
Average Power Consumption (system level)
* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
3.3 V ± 5 % Allowable voltage
1.5 Million Hours Reliability (MTBF)
0 - 70 ℃ Operating Temperature
1,500 G & 0.5 ms (Half sine)
Dimensions (W x H x D)
80.15 x 22.15 x 2.38 (mm)
Max 8.0 g Weight
Magician Software for SSD management
5-Year Limited Warranty or: 1200 TBW Limited Warranty
