Connect the Subwoofer to Your Soundbar

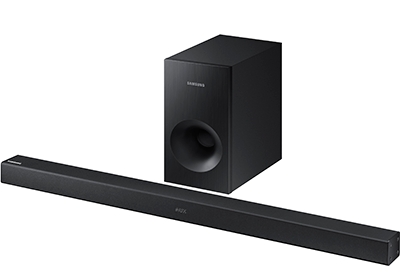

Out of the box, the Subwoofer is linked to your Soundbar. Just plug everything in and turn it on. For more details, check out Automatic Connection below. If for some reason, it doesn't connect skip down to Manual Connection.

Automatic Connection

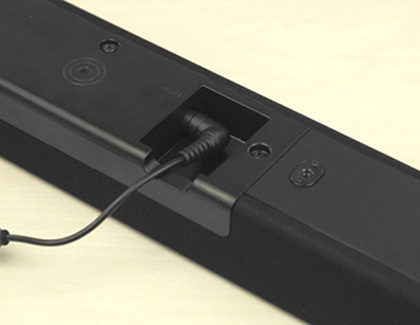

  1. Plug a power cord into the DC 24V (Power Supply In) port located on the rear panel of the soundbar.

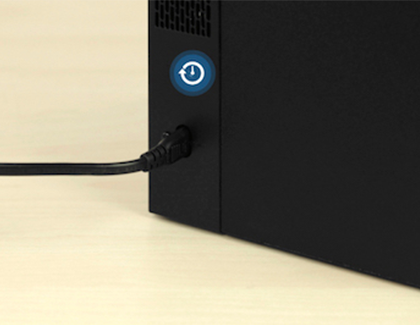

  2. Plug in the power cord into the subwoofer.

  3. Plug both power cords into an AC wall outlet.

  4. Turn on the soundbar.

  5. When the subwoofer is completely connected, the blue LED LINK Indicator on the subwoofer stops blinking and glows continuously. If the blue LED does not stop blinking, the linking process has failed. Please refer to the "Manual Connection" section below.

Manual Connection

The remote is required to manually connect the soundbar and subwoofer.

  1. Plug the power cord into the DC 24V (Power Supply In) port located on the rear panel of the soundbar.

  2. Plug the power cord into the subwoofer.

  3. Plug both power cords into an AC wall outlet.

  4. Press the ID SET button on the back of the subwoofer.

    Use a small, pointed object like a paper clip.

  5. Continue holding until the STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.

  6. While the main unit is powered off (in STANDBY mode), press and hold the Mute button on the remote control.

  7. Continue holding until the ID SET message appears on the soundbar's display.

  8. To finalize the link, turn on the soundbar while the subwoofer's Blue LED blinks.

  9. The main unit and the subwoofer should now be linked (connected) and the Blue LED solid. If the Blue LED is still blinking, the linking process has failed. Turn off the main unit and start again from Step 2.

    If the problem persists, please contact Samsung for further assistance.
