32" UHD clamp-type Monitor SR75 with Space-Saving Design
Space-Saving Design
When not in use, the Samsung Space Monitor pushes back to sit flat against a back wall and leave your entire work surface clear. When it’s time for use, simply pull the Space Monitor towards you and adjust to your preferred viewing position.
Maximized Desk Space
Samsung Space Monitor lets you use more of your work space. In side-by-side comparison on a 47.2 inch x 19.7 inch (120cm x 50cm) desk, the Space Monitor provides up to 40 percent more usable surface area than a conventional monitor of equivalent size (Samsung SD850).
4K Ultra HD
With 4x the pixels of Full HD, the 31.5” Space Monitor delivers more screen space and amazingly life-like UHD images. View documents and webpages with less scrolling, work more comfortably with multiple windows and toolbars, and enjoy your photos, videos and games in stunning 4K quality.

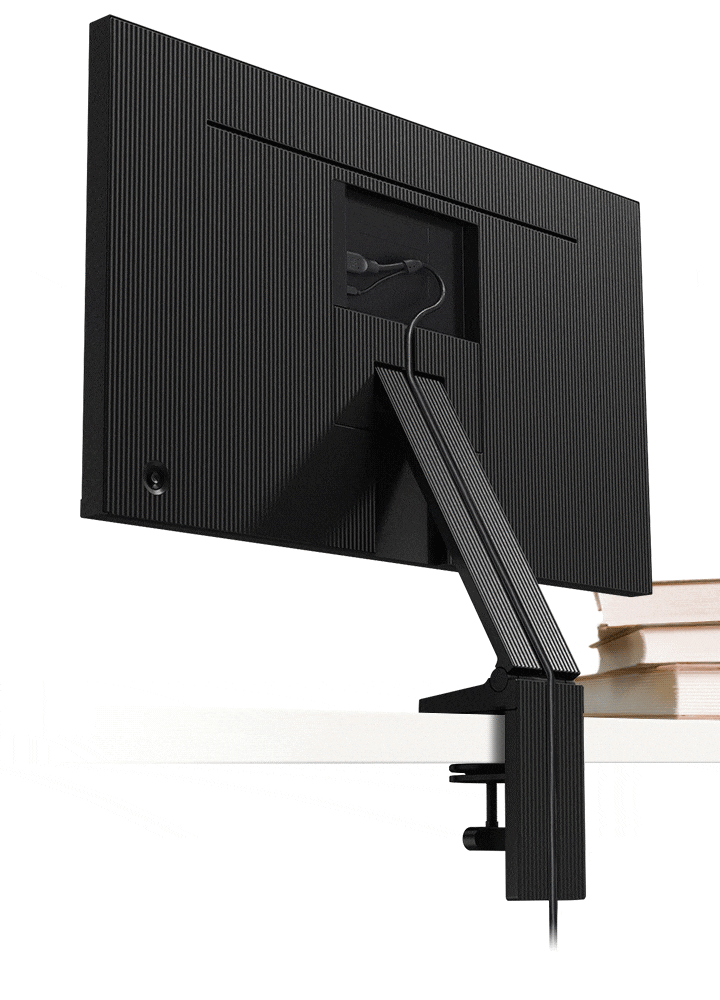

Concealed Cables
Samsung Space Monitor stand neatly conceals its power/HDMI Y–cable in recessed chases to prevent tangling and keep your work space clear and free from clutter.
Stylish Design
With its slim panel featuring a 3-sided bezeless screen, the Samsung Space Monitor offers an understated stylish solution for any workplace or home interior.
Zero-Level HAS
Samsung Space Monitor’s zero-level HAS (Height Adjustable Stand) allows easy positioning of the screen for optimum comfort and convenience. Its best-in-class adjustment span allows viewing from a height of 8.4 inches (213 mm) above the desk top (27-inch screen) all the way down to surface level.
Robust Hinge
Samsung Space Monitor’s stand employs a robust hinge that ensures consistent and reliable performance. Developed using Samsung technology and tested internally to withstand over 5,000 movements, the durable hinge assures smooth and precise screen positioning time after time.
Adjustable Eye Level
Samsung Space Monitor can be quickly and easily raised or lowered to the optimum viewing height for any user and any purpose, making it a versatile solution for use at home or in public spaces such as libraries.
Multi-tasking
PBP displays input from two sources on the screen at their native resolution. PIP lets you resize the second source to up to 25% of the screen and position it anywhere. And with Samsung’s screen- splitting Easy Setting Box software, you can instantly arrange windows for optimal multi-tasking.
Multi-tasking
PBP displays input from two sources on the screen at their native resolution. PIP lets you resize the second source to up to 25% of the screen and position it anywhere. And with Samsung’s screen- splitting Easy Setting Box software, you can instantly arrange windows for optimal multi-tasking.
Multi-tasking
PBP displays input from two sources on the screen at their native resolution. PIP lets you resize the second source to up to 25% of the screen and position it anywhere. And with Samsung’s screen- splitting Easy Setting Box software, you can instantly arrange windows for optimal multi-tasking.
Easy Installation
Samsung Space Monitor’s stand features an integrated clamp for quick and easy installation. Adjustable up to 3.54 inches (90 mm), the clamp allows the Space Monitor to be securely attached to desks and tables with a wide range of thicknesses.
-
Display
- Screen Size (Inch) 31.5
- Screen Size (cm) 80.0
- Screen Size (Class) 32
- Flat / Curved Flat
- Active Display Size (HxV) (mm) 697.3 x 392.2 mm
- Aspect Ratio 16:9
- Panel Type VA
- Brightness (Typical) 250 cd/m2
- Brightness (Min) 200 cd/m2
- Contrast Ratio Static 2500:1 (Typ.)
- Dynamic Contrast Ratio Mega ∞ DCR
- Resolution 3,840 x 2,160
- Response Time 4 (GTG)
- Viewing Angle (H/V) 178° (H) / 178° (V)
- Colour Support 1B
- Colour Gamut (NTSC 1976) 72%
- sRGB Coverage 100% (Typ.)
- Refresh Rate 60 Hz
-
General Feature
- Samsung MagicBright Yes
- Samsung MagicUpscale Yes
- Eco Saving Plus Yes
- Eye Saver Mode Yes
- Flicker Free Yes
- Picture-In-Picture Yes
- Picture-By-Picture Yes
- Game Mode Yes
- Image Size Yes
- USB Super Charging No
- Easy Setting Box Yes
- Windows Certification Windows 10
- FreeSync No
- Off Timer Plus Yes
-
Interface
- Wireless Display No
- D-Sub No
- DVI No
- Dual Link DVI No
- Display Port No
- Display Port Version 1.2
- Display Port Out No
- Display Port Out Version No
- Mini-Display Port 1 EA
- HDMI 1 EA
- HDMI Version 2.0 x 1
- Audio In No
- Headphone No
- USB Ports No
- USB Hub Version 2.0
- USB-C No
-
Audio
- Speaker No
- USB Sound Bar (Ready) No
-
Operation Conditions
- Temperature 10~40 ℃
- Humidity 10~80, non-condensing
-
Design
- Color BLACK
- Stand Type Dual Hinge
- HAS (Height Adjustable Stand) 0~184.7 mm
- Tilt -5.0°（±2.0°）~ 20.0°（±2.0°）
-
Eco
- Energy Efficiency Class B
-
Power
- Power Supply AC 100~240 V
- Power Consumption (Max) 54 W
- Power Consumption (Typ) 53.0 W
- Power Consumption (DPMS) ≤0.3 W
- Power Consumption (Off Mode) ≤0.3 W
- Power Consumption (Yearly) 77 kWh/year
- Type External Adaptor
-
Dimension
- Set Dimension with Stand (WxHxD) 714.5 x 757.2 x 115.5 mm
- Set Dimension without Stand (WxHxD) 714.5 x 418.2 x 26.0 mm
- Package Dimension (WxHxD) 978.0 x 159.0 x 502.0 mm
-
Weight
- Set Weight with Stand 7.0 kg
- Set Weight without Stand 4.8 kg
- Package Weight 9.4 kg
-
Accessory
- HDMI Cable Yes
- DP Cable No
- Thunderbolt™ 3 Cable No
- Mini-Display Gender No
- Install CD Yes
- Quick Setup Guide Yes
* Key feature may differ from Key Spec.
