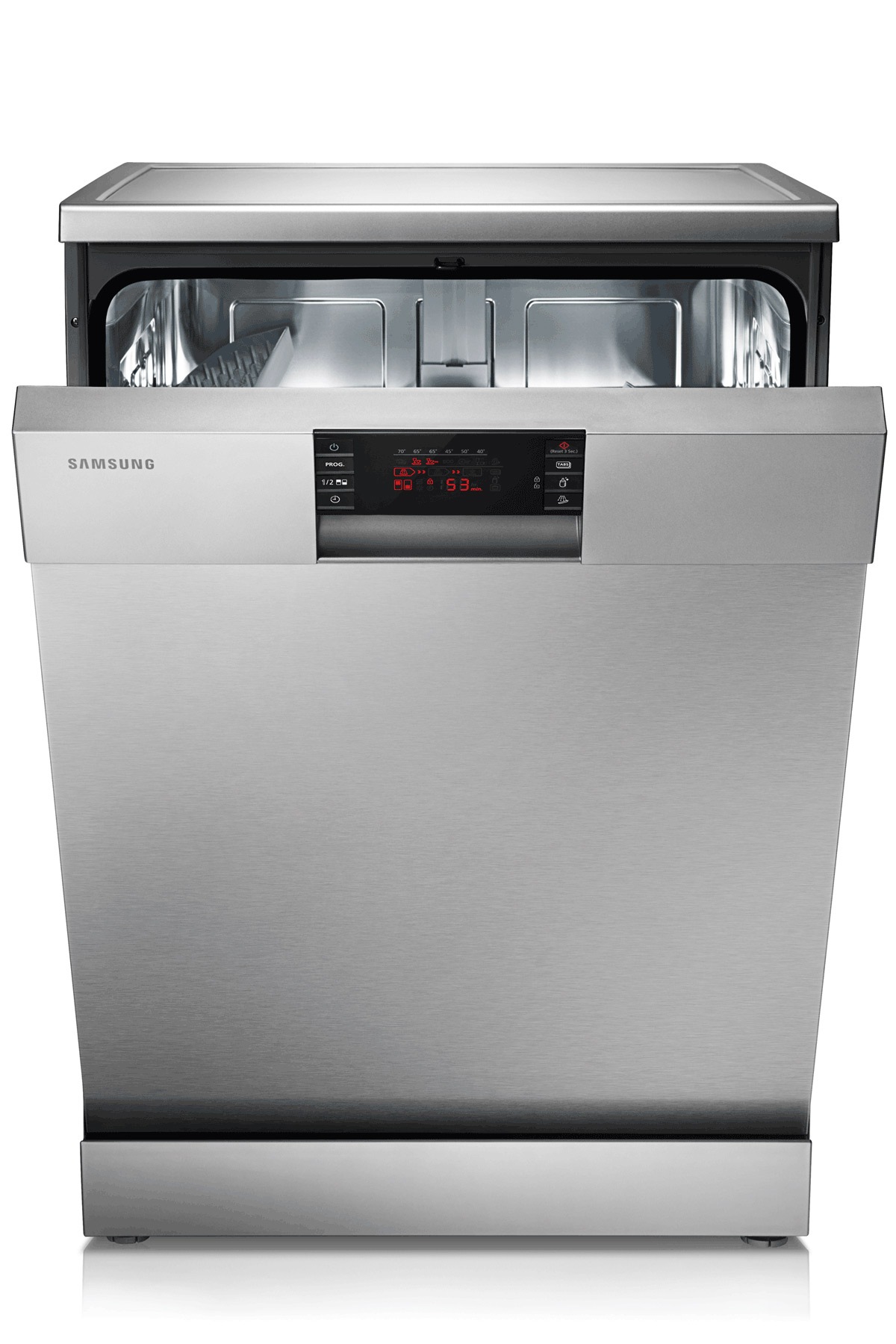

13 P/S Samsung Gala Stand-alone Ez Clean Steel Dishwasher

DW-FG520L

  0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

13 P/S Samsung Gala Stand-alone Ez Clean Steel Dishwasher

Features

  • Smart Use of Space. No need to pre-wash by hand
  • Half Load Option. Big Dish Loading (Load items as tall as 36cm)
  • Easy Unloading. Flexible Loading
  • Angled Racking System

Big Dish Loading (up to 36cm in height)

Big Dish Loading (up to 36cm in height)
You can load a dish as tall as 36cm height so it’s easy to wash large items such as oven trays, baking trays, pizza trays and cake pans.

Full Flex Tine (Half Load Option)

Full Flex Tine (Half Load Option)
The full flex tine (lower rack only) system creates the space for large dishware when you need it. Its adjustable fold down tines in 2 steps to help provide more flexibility so various forms of dishes or bowls can be loaded in.

Adjustable Upper Basket

Adjustable Upper Basket
If required, the height of the upper rack can be adjusted in order to create more space for large utensils either in the upper rack or lower rack. The upper rack can be adjusted by lifting the handle in a downward or upward direction. Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or removed when not required for use.

Angled Racking System

Angled Racking System
The rack allows dishes to rest at an angle, so water runs off easily and drying becomes more efficient.

Flex Half Load

Flex Half Load
The half load option can be used to operate either the upper or the lower rack when washing small amounts of dishes that fill half or less of the dishwasher’s capacity.

tech specs

DW-FG520L

Design

  • Colour/Material
    ALF
  • Control Type
    Button
  • Control Panel Style
    Front
  • Display lamp color
    Red

Performance

  • Capacity
    13 Plate / Servings
  • Energy Star
    3.5
  • Energy Annual consumption
    255
  • Noise level (dBA)
    48
  • Cycle time (min)
    149
  • Drying System
    Condensing
  • Water Star
    4.5
  • Water Annual consumption
    11.8

SHOW MORE SPECS

Option

  • Storm Wash
    No
  • Delay Start
    1-24h
  • Sanitise
    70°C
  • Half Load
    Upper / lower
  • Child Lock
    Yes
  • Multi-in 1
    Yes
  • Rinse Plus
    No
  • Dry plus
    No

Interior

  • Cavity
    Stainless steel
  • Interior lights
    No
  • Basic spray arms
    3
  • Storm Wash
    No

Programs

  • Number of programs
    7
  • Intensive
    Yes (70°C)
  • Daily Auto
    No
  • Daily
    Yes (65°C)
  • Normal
    Yes (65°C)
  • Express
    Yes (45°C)
  • Quick
    Yes (50°C)
  • Delicate
    Yes (40°C)
  • Pre Wash
    Yes
  • Rinse & Dry
    No

Safety devices

  • Aqua stop(hose leakage)
    Yes

Upper Rack

  • Adjustable Height
    2 stage
  • Full flex tines
    Yes
  • Fold down tines
    No
  • Foldable cup shelves
    Yes
  • Cup support clip
    No
  • Knife rack
    Yes
  • Basket handle
    Yes

Lower Rack

  • Big Dish loading (36cm in height)
    Yes
  • Full flex tines
    Yes
  • Fold down tines
    Yes
  • Basket handle
    Yes

Cutlery Rack

  • 1stop 3rd rack
    No
  • Cutlery basket
    Yes

Net Dimension

  • Width (mm)
    598
  • Height(mm)
    845
  • Depth(mm)
    570
  • Weight (Kg)
    47

Gross dimension

  • Width (mm)
    670
  • Height(mm)
    885
  • Depth(mm)
    660
  • Weight (Kg)
    50

Power / Ratings

  • Electrical(Volts/Hertz/Amps)
    220 ~ 240V; 50Hz; 10A
  • Heater Watts
    2,000W
  • Circulation Motor(w)
    125W
  • Drain Pump(w)
    30W
  • Levelling screws
    0 to 40mm
  • Hard Countertop Installation
    Yes
