Reversing the Door of your Bottom Mounted Fridge Freezer

■ Reversing the Door

Before you reverse the refrigerator door, make sure to unplug the refrigerator. Samsung recommends that reversing of the door opening is only completed by Samsung approved Service providers. This will be on a chargeable basis and at the customers expense.

ㆍAny damage caused while attempting to reverse the door opening is not covered under the appliance manufactures warranty.

ㆍAny repairs requested due to this circumstance will be completed on a chargeable basis at the customers expense.

- Before attempting to reverse the refrigerator doors ensure that the refrigerator is disconnected from the mail electricity supply and all food stuffs are emptied from inside the appliance.

- If the customer does not feel confident to follow instruction in the user manual, a Samsung qualified service engineer must be contacted to carry out this change.

- Do not plug in Refrigerator just after door reverse finished process and wait for at least one hour.

Required Tools

Reversing the Door of your Bottom Mounted Fridge Freezer
1 Remove the Cover Wire(1) and Cap door L(2).
Reversing the Door of your Bottom Mounted Fridge Freezer

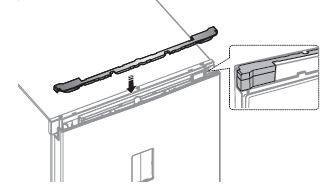

2 Remove the Cover Hinge to push a hook like below Pictures.
Reversing the Door of your Bottom Mounted Fridge Freezer
3 Disconnect the housing.

And then remove 2screws on the Upper Hinge and Upper Hinge.

Reversing the Door of your Bottom Mounted Fridge Freezer

¤ CAUTION : The door is heavy, be careful not to injure yourself when removing the door.

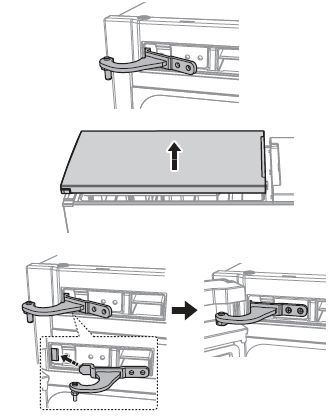

4 Remove the fridge door from the Middle hinge by carefully lifting the door straight up.
Reversing the Door of your Bottom Mounted Fridge Freezer

¤ CAUTION : The door is heavy, be careful not to injure yourself when removing the door.

5 Disassemble the Middle hinge.
Reversing the Door of your Bottom Mounted Fridge Freezer
6 Remove the freezer door from the Bottom hinge by carefully lifting the door straight up.
Reversing the Door of your Bottom Mounted Fridge Freezer

 ¤ CAUTION : The door is heavy, be careful not to injure yourself when removing the door.

7 Lay the refrigerator carefully.

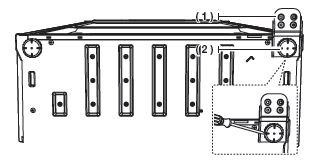

Remove the Leg(1) and the Hinge Low(2).

Reversing the Door of your Bottom Mounted Fridge Freezer

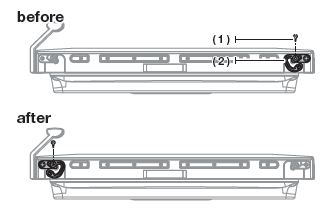

8 Remove the screw (1) on the bottom right side of fridge and freezer door. Switch Lever Auto Closer (2) from right to the left.
Reversing the Door of your Bottom Mounted Fridge Freezer
9 Assemble the Middle hinge by the Phillips Head(+) screw driver. First of all, assemble the Freezer door and Hinge Mid. And then assemble Hinge Low and Fridge Door with Assy Hinge Up.
Reversing the Door of your Bottom Mounted Fridge Freezer

· Assembling procedure of the Door

Hinge Mid → Freezer Door → Hinge Low → Fridge Door with Assy Hinge Up

¤ CAUTION : Be careful not to injure yourself during operation.

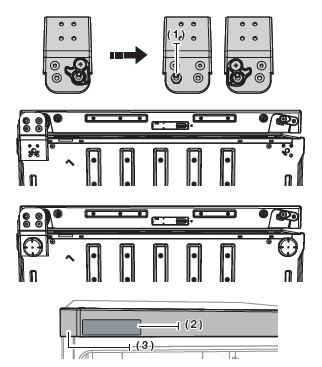

10 Switch the position of Bottom hinge and Leg( Right → Left).

Assemble the Hinge Low after putting the Freezer Door in the middle hinge.

Reversing the Door of your Bottom Mounted Fridge Freezer

· Disassemble the Guide auto close and the Shaft-hinge(1).

· Assemble the Shaft-hinge and the Guide auto close like this Picture.

· Put the Cap Cover Control Panel(2) out from the Cover Control Panel(3) like the Picture.

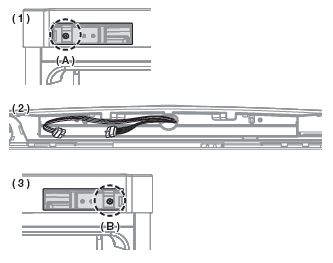

11 After removing a Cover control(1), switch the Wire door(2) direction to opposite side on Fridge Door (Display only).

Assemble the Cover- Control with Screw (A) like a Picture(3).

Reversing the Door of your Bottom Mounted Fridge Freezer

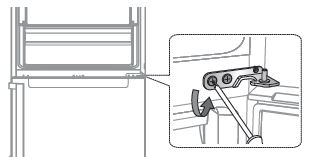

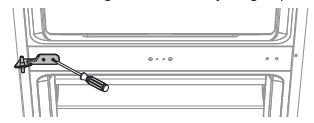

12 Use 11mm wrench to separate the Top hinge shaft. Flip the hinge shaft and reattach the Top hinge shaft.
Reversing the Door of your Bottom Mounted Fridge Freezer
13 Insert the Top hinge to make the hole a little bigger and then put out the Top hinge to assemble the Fridge door.
Reversing the Door of your Bottom Mounted Fridge Freezer

· Assemble step

- Assemble the Top hinge on the Fridge door.

- Assemble the Middle hinge on the Fridge door.

- Insert the Top Hinge on the Cabinet.

- Assemble the screw.

14 Connect the wire and then insert it onto the Cover- Control.

Insert the wire into the Cover Hinge and then fold the fixer bot to disassemble as below picture.

Reversing the Door of your Bottom Mounted Fridge Freezer
15 Assemble the Cover Hinge to match the Hinge.
Reversing the Door of your Bottom Mounted Fridge Freezer
16 Change the Wire door direction to opposite side and assemble the door cover.
Reversing the Door of your Bottom Mounted Fridge Freezer
17 Switch the handles from the to left the right.
Reversing the Door of your Bottom Mounted Fridge Freezer
18 Detach the Fridge and the Freezer door gaskets and then attach them after rotating them 180˚.
Reversing the Door of your Bottom Mounted Fridge Freezer

 · When you reverse the Freezer Door, detach the Freezer Door gasket and the inside left gasket(A).

And then attach the inside gasket to the right (B). Attach the Freezer door gasket after rotating it 180˚

(Only for RB31F***B, RB29***B model)

Reversing the Door of your Bottom Mounted Fridge Freezer
