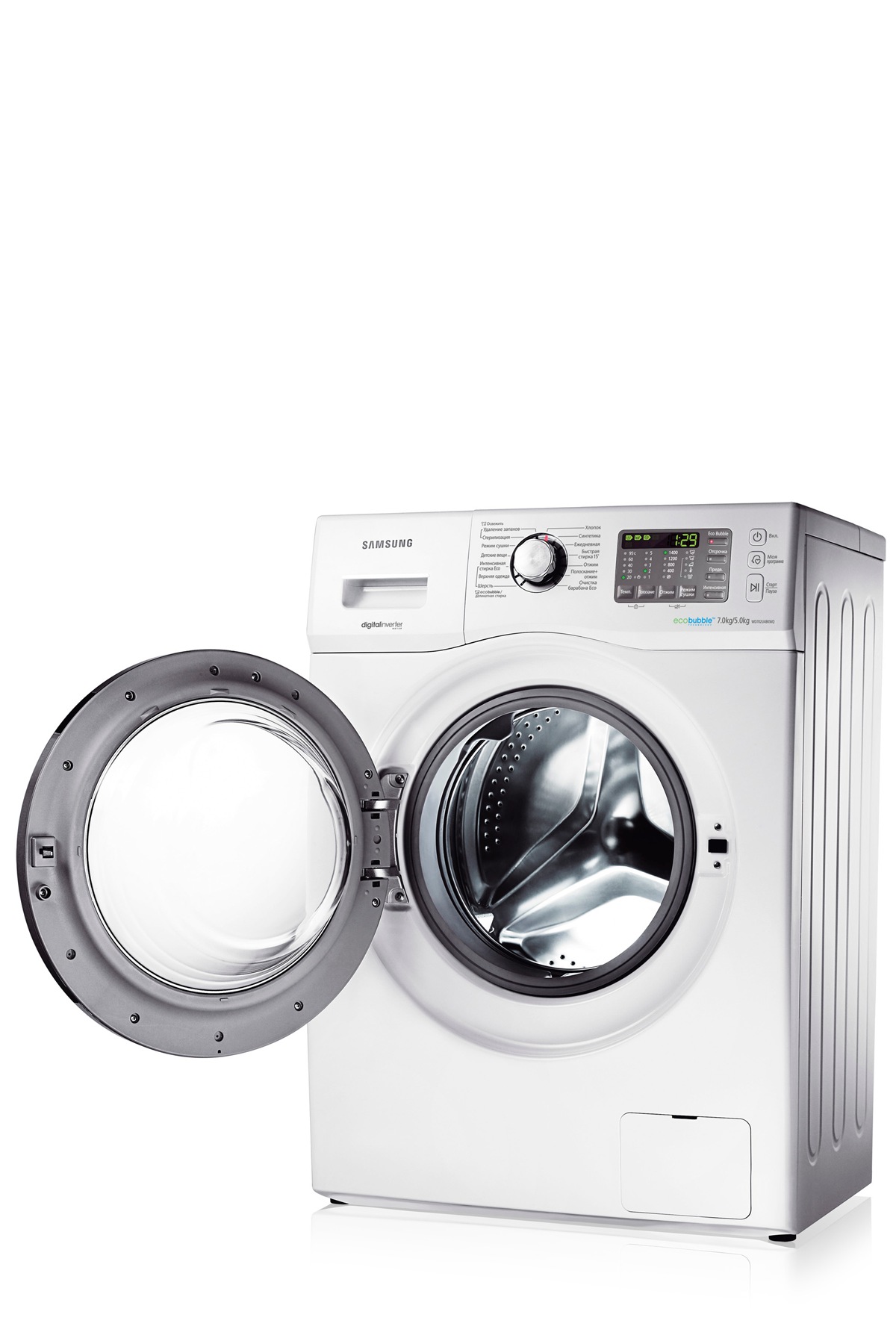

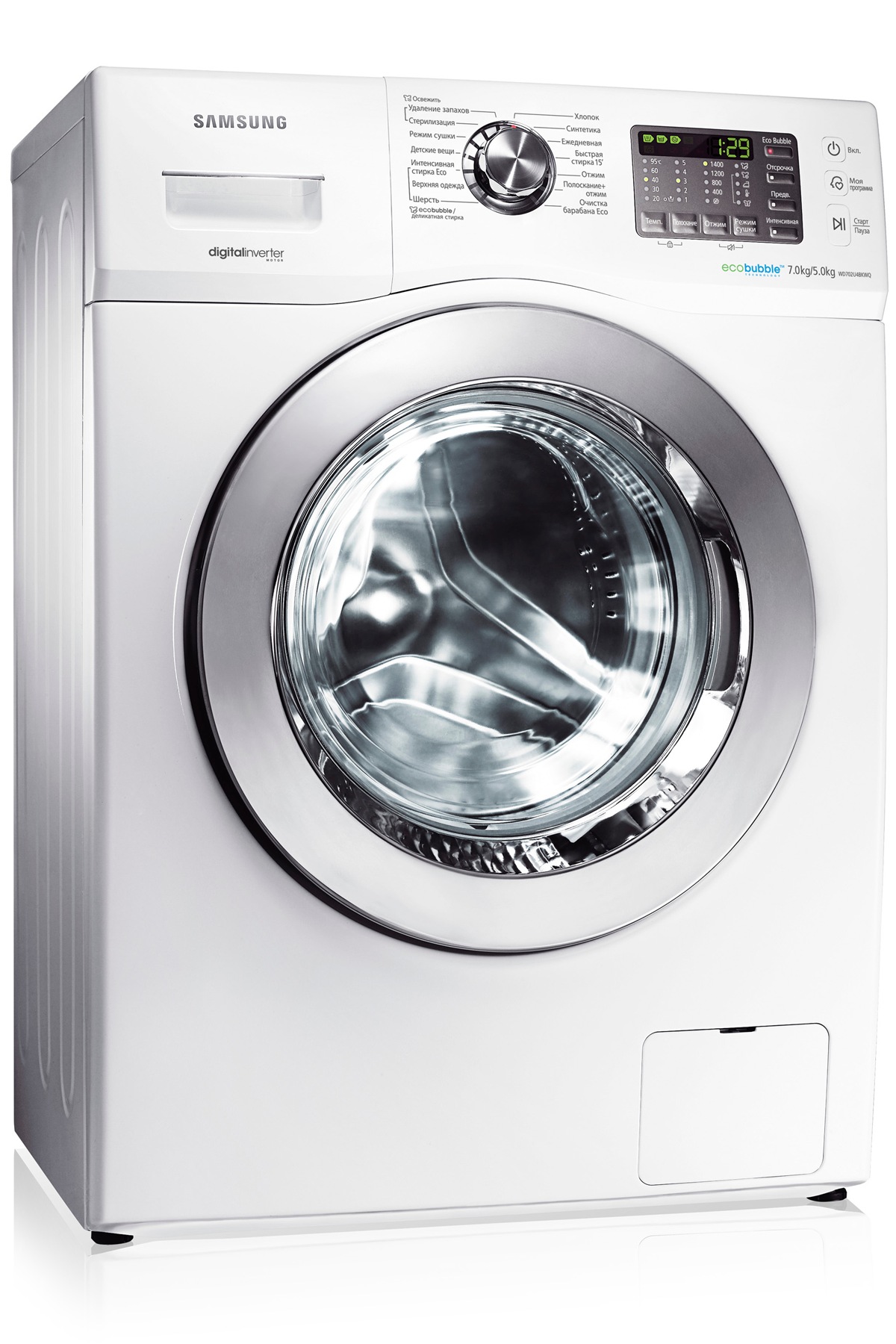

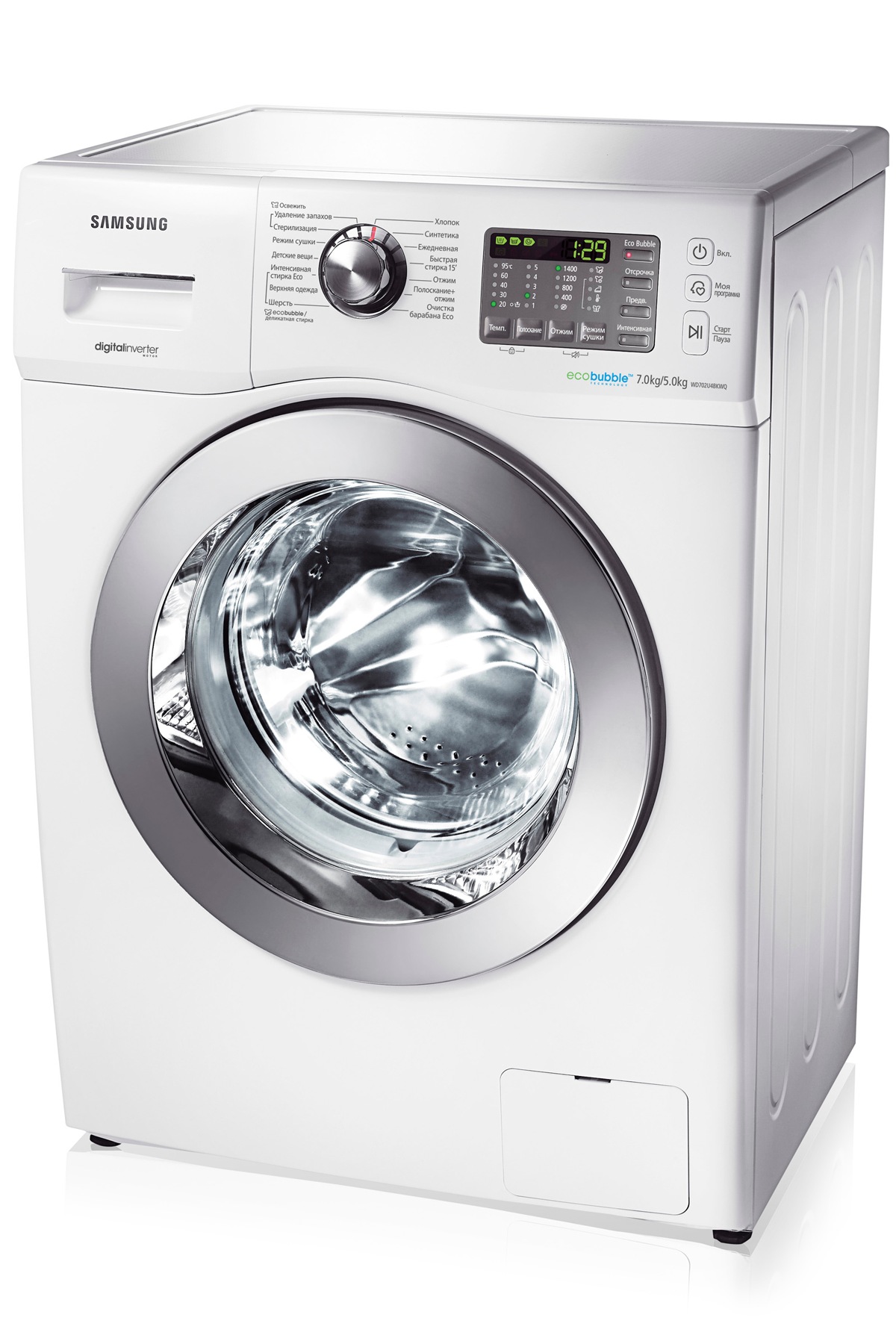

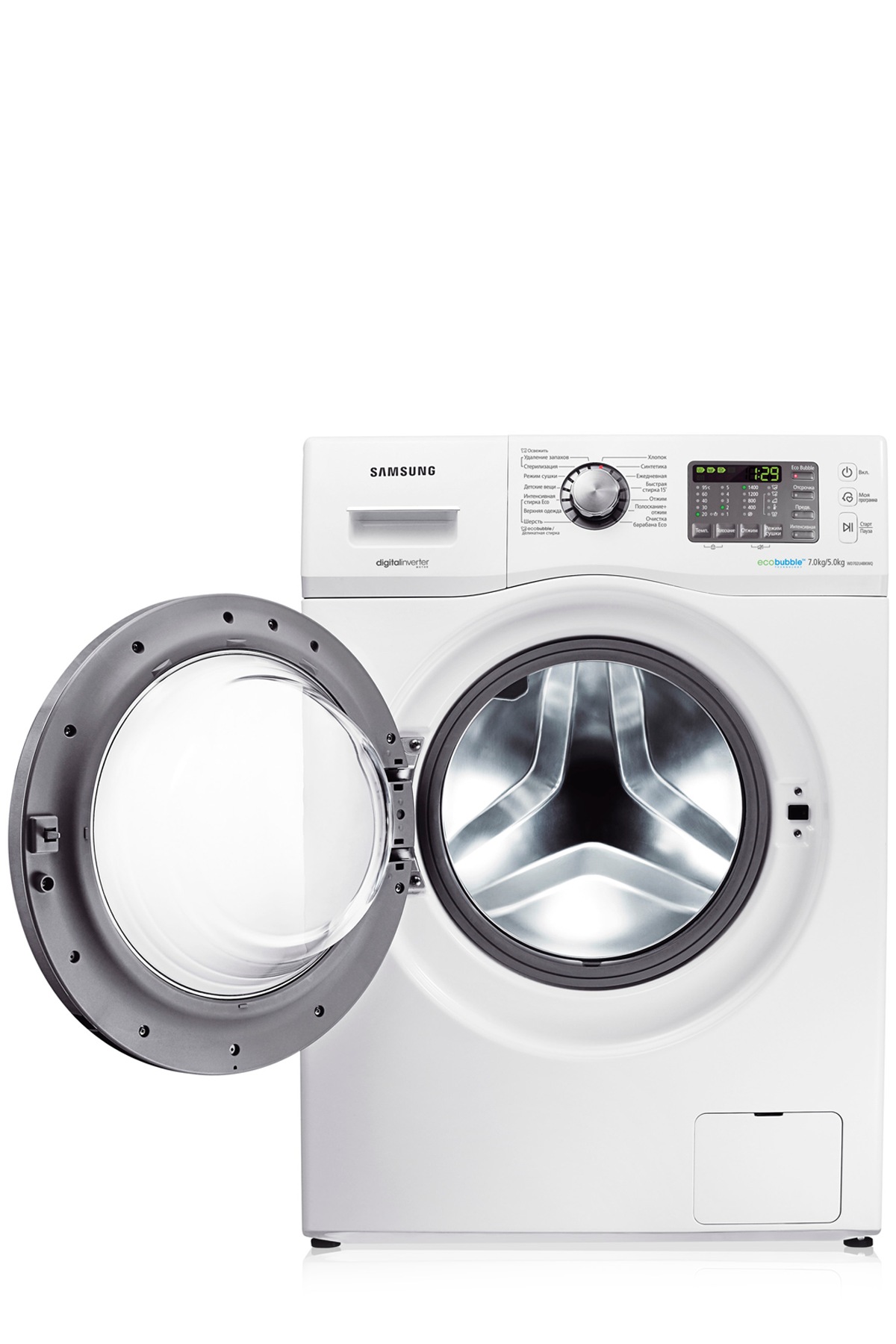

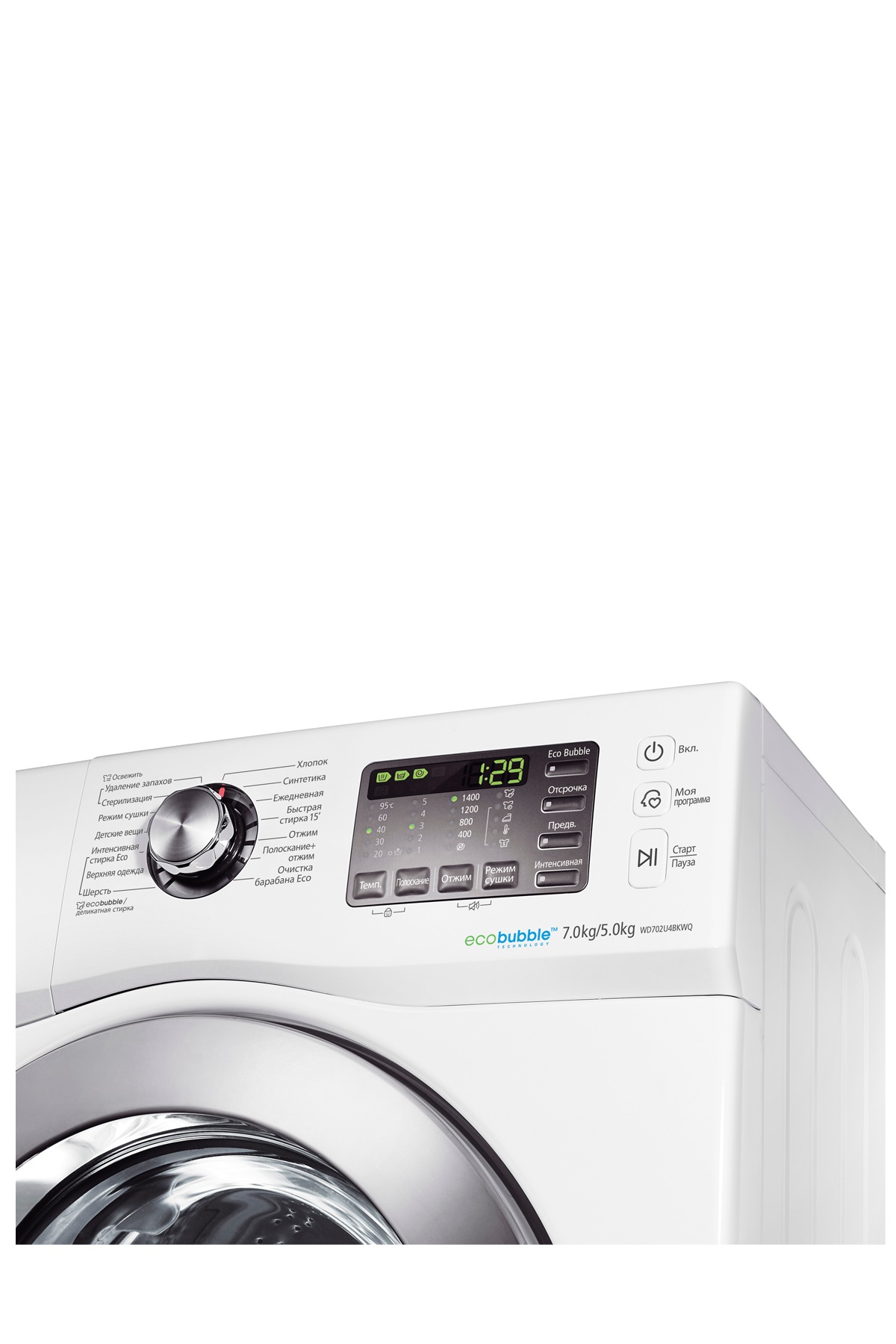

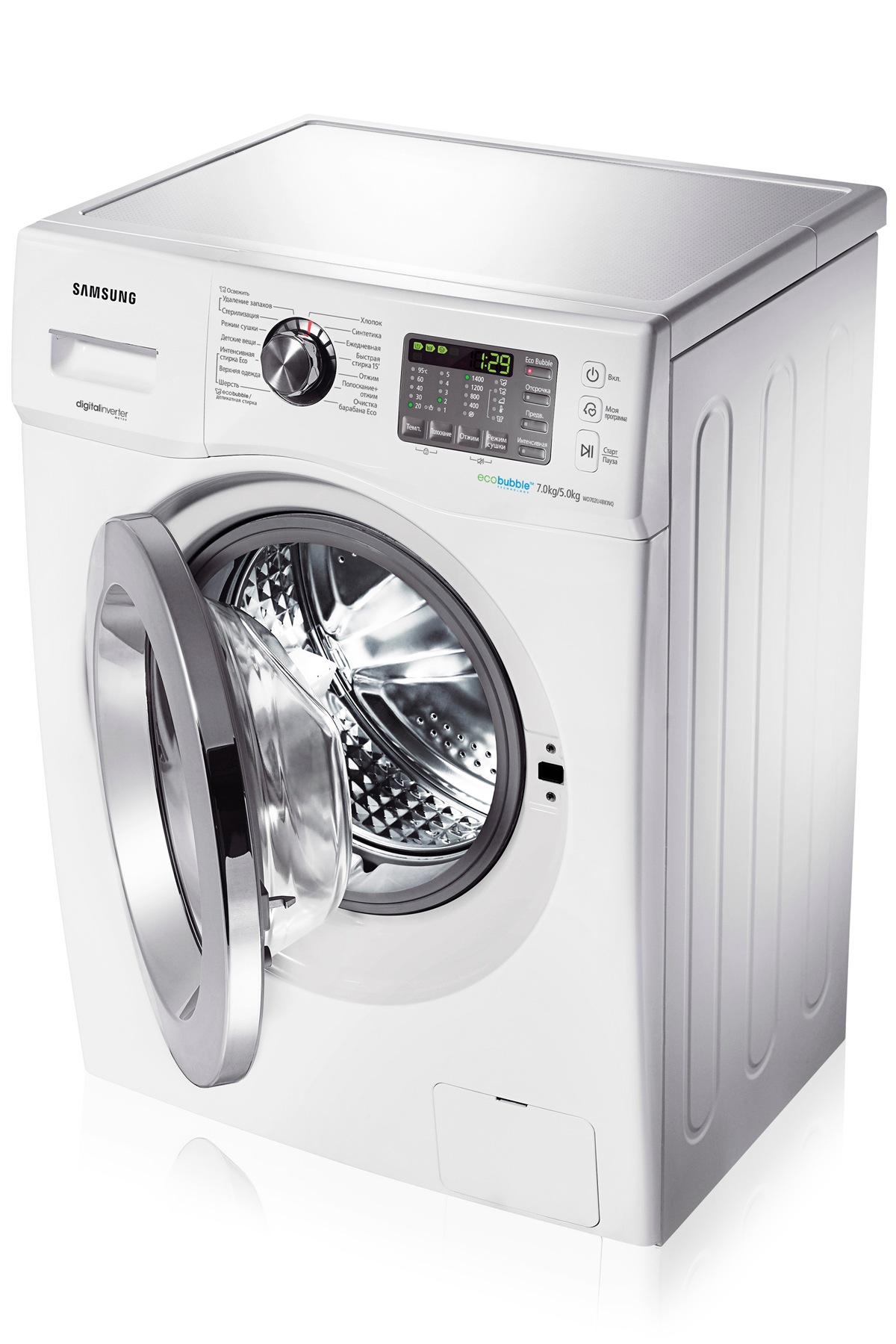

Front Load Washing Machine
WD702

WD702U4BKWQ/SP

Samsung WD702 front load washing machine that gets more out of your laundry detergent with the new Samsung washer with Ecobubble™ technology. Inside is a unique bubble generator that dissolves detergent thoroughly and injects it with air to produce a rich, soapy foam. Even at cooler temperatures, this foam penetrates fabrics faster than in conventional washers, cleaning as effectively as a warm standard cycle. The result? A gentle clean that saves energy.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Front Load Washing Machine WD702

Features

  • Eco Bubble Technology
  • Digital Inverter Motor
  • Diamond Drum
  • Ceramic Heating for power & efficiency

Eco Bubble Technology

Eco Bubble Technology
Breakthrough Ecobubble™ technology froths up detergent with air and water before the cycle begins, generating cleansing bubbles that penetrate fabrics faster than concentrated detergent. Wash clothes as effectively in cool water as you would in warm water. The cool water is gentle on your clothes and protects water-repellent fabrics. * Tested in accordance with IEC 60456 Ed.5/4kg Wash Load / Super Eco Wash cold vs. Cotton 40° without Eco Bubble (WF906). Individual results may vary.

Ceramic Heating for power & efficiency

Ceramic Heating for power & efficiency
Prevent calcium compound build-up, which absorbs more electricity. The quick-heating ability o of ceramic heaters also increased energy efficiency, translating into cost savings on your next electricity bill.
Digital Inverter Motor

Digital Inverter Motor

The digital inverter motor is brushless, so it runs much cooler and uses less energy than motors found in conventional washing machines.

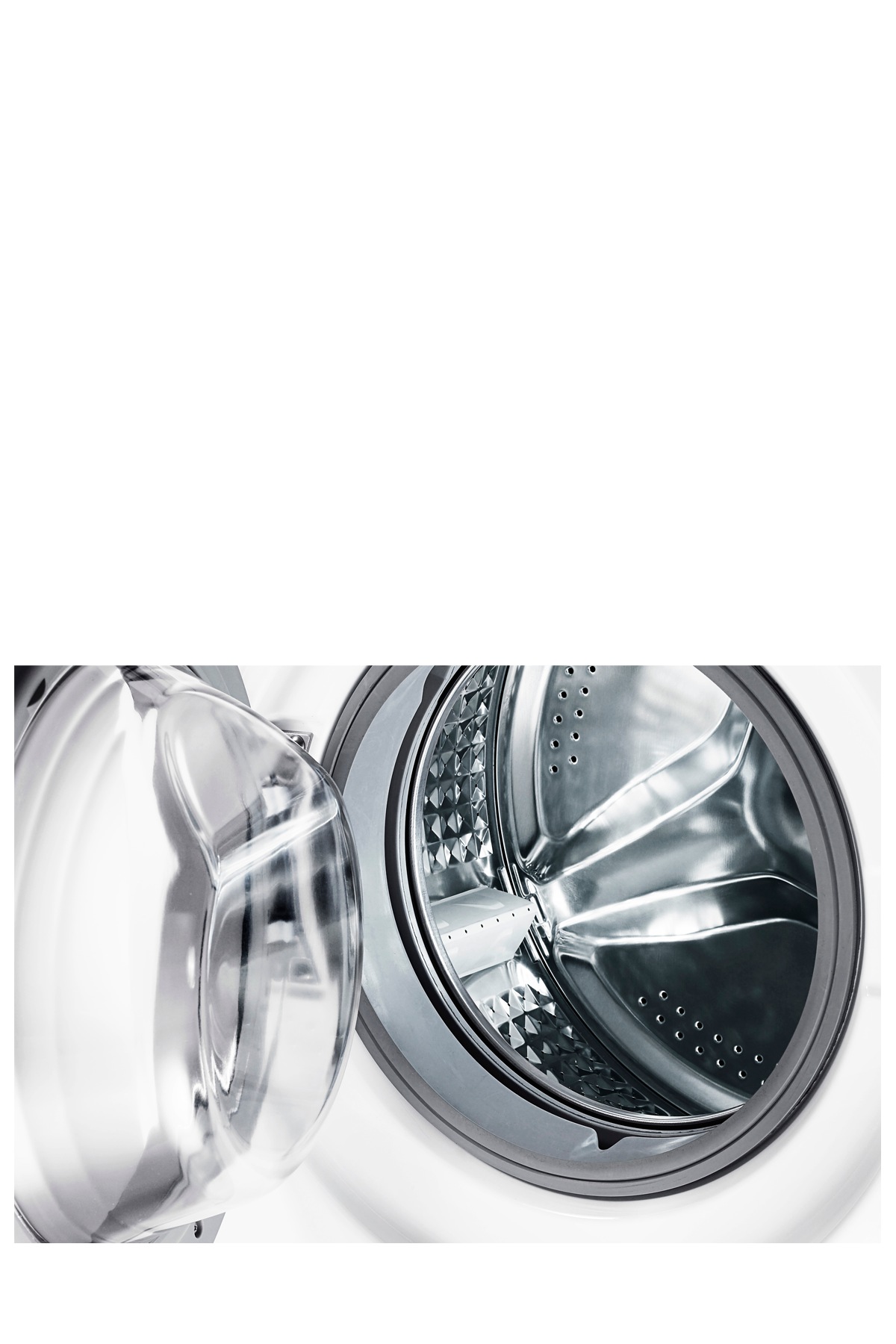

Diamond Drum

Diamond Drum
Samsung’s Eco Bubble Washing Machine features unique Diamond DrumTM Technology, which replaces the typical washing drum with one covered in deep, diamond-shaped depressions. The small and smooth exit holes minimise wear and tear, and keep your fabrics safe from snags, creating a gentle but effective wash.

tech specs

Dimension of WD702U4BKWQ/SP

Feature

  • Fuzzy Logic Control

    Yes

  • Standard Cycle Time

    130 minutes (with bubble)

  • Express Wash Time

    Yes

  • Jog Dial

    Yes

  • Available Body Color

    White

  • Available Door Color

    Chrome

  • Display Type

    LED

  • Spining Performance

    A

  • Spin Speed
    Max

    1,400rpm

  • Door Lock Display

    Yes

  • Child Lock

    Yes

  • Time Left Display

    Yes

  • Progress Indicator

    Yes

  • Delay End

    Yes

  • Fault Check Display

    Yes

  • Rinse+Spin

    Yes

  • Pre-Wash

    Yes

  • Denim

    No

  • Silk&Lace

    No

  • Sports Wear

    No

  • Outdoor Care

    Yes

  • Baby Care

    Yes

  • OverVolt Control

    Yes

  • Hot/Cold Water

    No

  • Dark Garment

    No

  • Daily Wash

    Yes

  • Heavy Wash

    No

  • Super Eco Wash

    Yes

  • Eco Drum Clean

    Yes

  • Rinse Time +

    Yes

  • Temperature

    Yes

  • Rinse Hold

    Yes

  • Anti-Foam Control

    Yes

  • Overheating Control

    Yes

  • Safety
    Self Cleaning Filter

    Yes

    Self Diagnostic System

    Yes

  • Eco Bubble™ Technology

    Yes

  • Sound Off

    Yes

  • Aqua Control Hose

    No

  • Leakage Sensor

    No

  • Time Saving

    No

  • Easy Iron

    No

  • Intensive

    Yes

  • Ceramic Heater

    Yes

  • Silver Wash

    No

  • Diamond Drum

    Yes

  • Wrinkle Prevent

    Yes

Performance

  • Energy consumption (Kwh/year)

    1.19kWh/cycle

  • Energy Efficiency

    B

  • Washing Capacity

    7kg (Drying Capacity: 5.0kg)

  • Water Consumption

    77L/cycle

  • Energy Rating

    B

SHOW MORE SPECSExpand

Programs

  • Program
    Cotton

    Yes

    Synthetics

    Yes

    Bedding

    No

    Wool(Wool mark)

    Yes

    Hand Wash

    No

    Delicates

    No

    Drain

    No

    Spin

    Yes

    Hand wash for wool

    No

  • Wash Options
    Soak

    No

  • Special Features
    Quick Wash

    Yes

Physical Specifications

  • Dimension
    Net (WxHxD)

    600 x 850 x 550mm

    Gross (WxHxD)

    657 x 890 x 626mm

  • Loading Quantity
    40ft H/C

    162

  • Weight
    Net

    64kg

    Gross

    67kg
