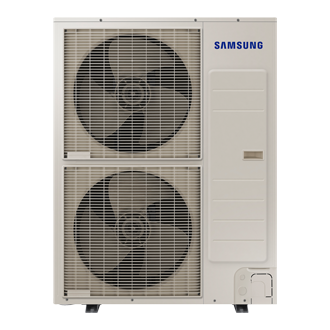

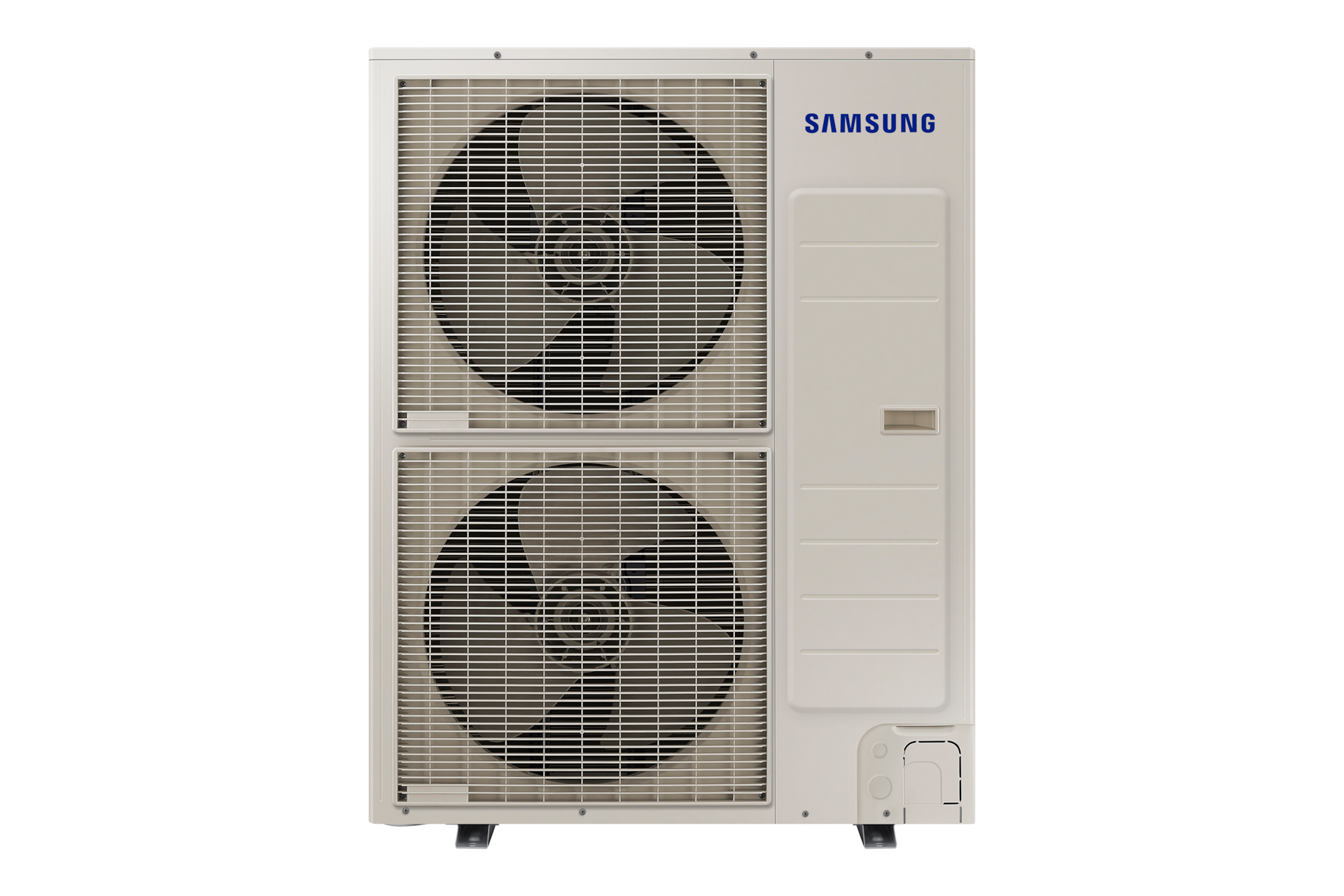

AM7500K DVM S ECO with Simultaneous Cooling & Heating

AM7500K DVM S ECO with Simultaneous Cooling & Heating

AM060TXMDEH/TK

  • Simultaneous Cooling & Heating
  • Compact Size
  • 4-way Piping
  • Cool and heat differentrooms together
    Simultaneous Cooling & Heating
  • Space-saving cooling fits in more places
    Compact Size
  • Connects more ways,fits more places
    4-way Piping

Cool and heat differentrooms together

Simultaneous Cooling & Heating

Cool and heat separate rooms at the same time. The outdoor unit can be connected to the indoor units of various rooms, so you can control the operating mode and temperature of each space. It is an ideal solution for large residential houses and hotel sites.

* Only available in HR models.

Space-saving cooling fits in more places

Compact Size (Small Footprint and Volume)

Make good use of valuable space with a compact design. With a height of just 1210mm and a small footprint of only 0.318m², its overall volume is 5% less than competing models*. It makes it a convenient space-saving option in offices and can be installed easily in a wide range of locations.

* Based on internal testing. Height comparison in 6HP models: Samsung DVM S ECO = 1210mmm vs. Model of a competing brand = 1380mm.

* Based on internal testing. Height comparison in 6HP models: Samsung DVM S ECO = 1210mmm vs. Model of a competing brand = 1380mm.

Connects more ways,fits more places

4-way Piping

Install and maintain your outdoor unit easily in more places.Its 4-way piping system* has connections at the front, side, bottom and rear, so it gives you much more flexibility. It can be configured to suit almost any room without additional fittings, while still being discretely concealed.

* Not available on all models.

* Not available on all models.

Optimized performanceand energy use

6 Pole 9 Slot BLDC Motor and PHE Sub-cooler

Save money with a highly efficient heating and cooling performance. A 6 Pole 9 Slot BLDC Motor, with 9 magnets packed around 6 poles, reduces the temperature fluctuation and power consumption. A PHE Sub-cooler* also expands the heat exchange area to deliver even greater energy savings.

* Only available in certain models.

Flexibly install and use in more places

High Elevation (up to 50m) with long piping

Enjoy more choice when selecting the optimum installation location. It has a maximum piping length of up to 300 meters (984 feet) between the outdoor and indoor units. It also works efficiently and reliably at an elevation of up to 50 meters (164 feet), which is the equivalent of 10 stories.

* A maximum piping length & elevation may vary depending on Model.

* A maximum piping length & elevation may vary depending on Model.

Quiet &efficiently comfortable cooling

Low Noise Level

Make less noise, but still benefit from powerful air conditioning. With its compact design and sound absorbing technology it makes much less noise than conventional models*. So you can enjoy fewer noisy distractions in working environments. And you can activate a Silent mode for night-time**.

* Based on internal testing. Results may vary depending on environmental factors and individual use.
** Disabled as standard, but it can be activated during the installation/service stage.

* Based on internal testing. Results may vary depending on environmental factors and individual use.
** Disabled as standard, but it can be activated during the installation/service stage.

More efficient & durable Heat Exchanger

Dual Coated Aluminum Fins

Enhance the performance of the Heat Exchanger without it being inhibited by frost or corrosion. The Dual Coated Aluminum Fins have an anti-corrosive layer of epoxy acrylic and a hydrophilic layer of acrylic resin and surfactant that disperses water, so it doesn’t inhibit the heat exchange rate.

Specifications

Download
  • Capacity 15.5 kW
  • Cooling [Btu/h] 52,900 Btu/h
  • EER (Nominal Cooling) 3.6
  • Net Dimensions (WxHxD) (mm) 940 x 1,210 x 330 mm
