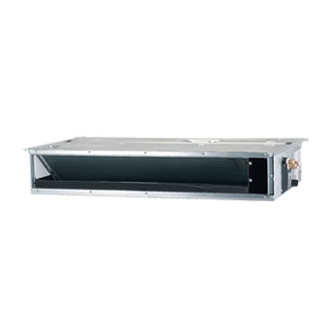

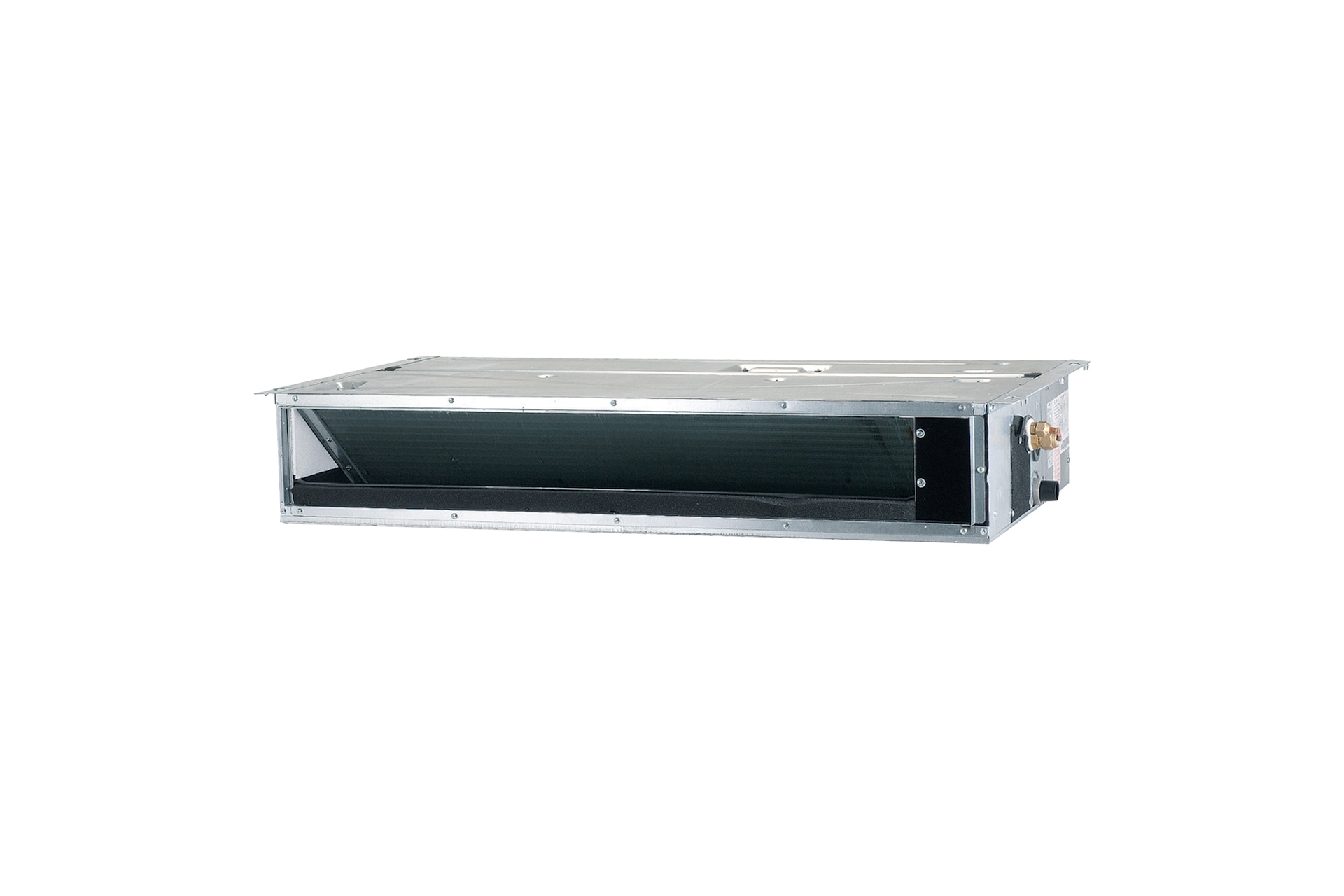

DVM, Low Static Pressure Duct, Heat Pump R410a, Indoor Unit

DVM, Low Static Pressure Duct, Heat Pump R410a, Indoor Unit

AM140FNLDCH/MG

  • Flexible Installation with Compact Slim Duct
  • Enjoy Powerful And Silent Air Conditioning At Your Disposa

Available Capacity

DVM, Low Static Pressure Duct, Heat Pump R410a, Indoor Unit

42700 Btu/h
Flexible Installation Flexible Installation

Flexible Installation

Thanks to the option to set up the air inlet on either the bottom or rear of the unit, the Slim Duct can be customized to suit any business environment. This flexibility in installation means it can be configured to suit almost any room and is easily concealed behind ceilings, allowing it to blend in while providing an enhanced airflow to the surrounding space.

Slim Design Slim Design

Slim Design

Only 199 mm thick, the Slim Duct can be concealed almost anywhere. The slimmest Samsung model is more than 20 mm thinner than its two most similar models. Its slender design is not only highly elegant, it makes installation, maintenance and repair quick and easy, rendering it more suitable and effective to a wider range of businesses.

Easy to Maintain Easy to Maintain

Easy to Maintain

The Slim Duct is designed to allow easy access for maintenance. By simply opening the bottom panel of the unit, users can access parts easily, reducing the downtime period dedicated to servicing, and minimizing the financial impact on your business.

Easier Drain Pump Installation Easier Drain Pump Installation

Easier Drain Pump Installation

Users are now able to introduce a new drain pump from the side, meaning there is no longer any need to remove the top cover. By shifting the right side panel, the pump can easily be installed, checked or repaired, saving businesses time and money.

Anti-Virus Filter

The anti-virus filter lets businesses and their users benefit from cleaner air in their premises. This feature is specifically designed to extract dust particles and to minimize the spread of mould and harmful bacteria. This generates a more comfortable and safe environment for business users.
Anti-Virus Filter Anti-Virus Filter

Easy Filter Cleaning

An automatic indicator signals when the filter is due for cleaning after 1,000 hours of operation. The duct design system means this is an extremely simple process which reduces maintenance time and the subsequent financial impact on businesses.
Easy Filter Cleaning Easy Filter Cleaning

Smart Pressure Control

Whatever the environment, our Smart Pressure Control System supplies users with consistent cooling and heating power. External Static Pressure (ESP) adjusts the unit's fan speed so that your ideal ambience is achieved with a quieter, more efficient operation.
Smart Pressure Control Smart Pressure Control

Optional High Lift-Up Drain Pump

Samsung ducted air conditioning technology includes the option of a high lift-up drain pump. This lifts condensed water up to 750 mm compared with previous 700mm limits. As a result, this system is more convenient because it allows users to be more flexible in terms of where they install the unit.
Optional High Lift-Up Drain Pump Optional High Lift-Up Drain Pump

Specifications

Type

  • Slim Duct 3

Model Name

  • AM140FNLDCH

Power Supply (Φ, #, V, Hz)

  • 1, 2, 208-230, 60

Mode

  • HP

Performance

  • Capacity (Nominal) Cooling (kW) 14/12.5 Cooling (Btu/h) 47,800/42,700 Heating (kW) 16

Power

  • Power Input (Nominal) Cooling (W) 220 Heating (W) 220
  • Current Input (Nominal) Cooling (A) 1.45 Heating (A) 1.45

Fan

  • Motor Type BLDC Output (W) 183 x 1
  • Air Flow Rate High / Mid / Low (CMM) 36/34/32
  • External Pressure Min / Std / Max (mmAq) 3 (0 ~ 6)

Piping Connections

  • Liquid Pipe (Φ, mm) 9.52
  • Liquid Pipe (Φ, inch) 3/8''
  • Gas Pipe (Φ, mm) 15.88
  • Gas Pipe (Φ, inch) 5/8''
  • Drain Pipe (Φ,mm) VP25 (OD 32, ID 25)

Field Wiring

  • Power Source Wire (mm2) 1.5 ~ 2.5
  • Transmission Cable (mm2) 0.75 ~ 1.50

Refrigerant

  • Type R410A
  • Control Method EDM EEV

Sound

  • Sound Pressure High / Mid / Low (dB(A)) 39/38/36

Dimensions

  • Net Weight (Kg) 41.5
  • Shipping Weight (kg) 48.5
  • Net Dimensions (WxHxD) (mm) 1,300x295x690
  • Shipping Dimensions (WxHxD) (mm) 1,575x370x835

Additional Accessories

  • Drain Pump MDP-E075SEE3D
  • Air Filter Long life filter
