HCU7030 Series 55" Crystal Hospital TV
HCU7030 Series 55" Crystal Hospital TV
HG55CU703NFXZA
- Images must be in BMP, PNG, GIF or JPEG format.
- File size must be 5 MB or less.
- Image must be at least 100 pixels tall.
- Image must be at least 100 pixels wide.
- It contains copyrighted media (and you don't hold the copyright)
- It contains media not related to the product
We may not publish your review if:
- It contains copyrighted media (an you don't hold the copyright)
- It contains media not related to the product
- for Business
- • The HCU7030 Series Crystal Hospital TV with pillow speaker interface for patients to enjoy clear audio without external headsets.
• PurColor and clear audio without external headsets provide patients with an optimal viewing experience.
• Powerful 4K upscaling delivers superior visuals.
• Contrast enhancer and HDR provide enhanced depth and an enormous spectrum of colors.
Delivery Details
Check availability in your area:
Finding the perfect fit can be a challenge. Now you can shop worry-free unlike ever before.
- Buy now by paying in full or with unbeatable Samsung Financing.
- Try out your purchase for up to 100 days, risk-free.
- Then, keep it or return it and get a full refund.

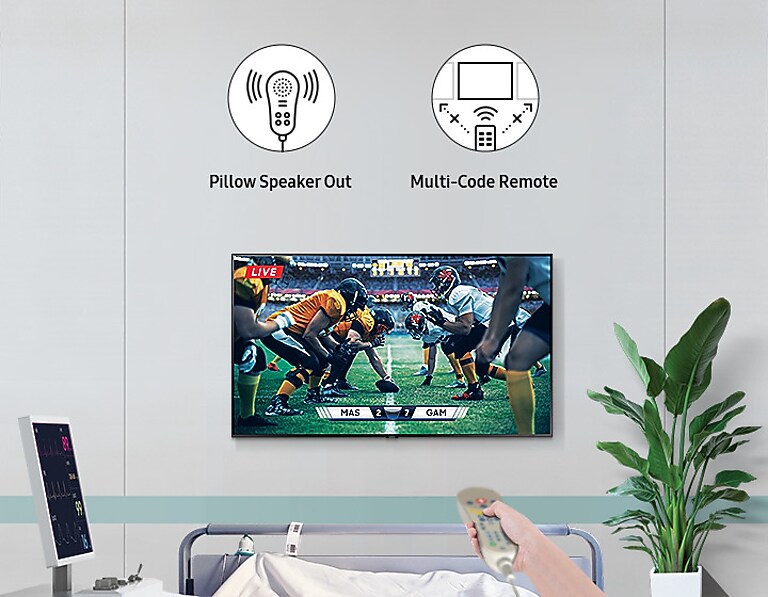

Integrated Pillow Speaker Jack
With pillow speaker interface, Samsung's HCU7030 Series hospital display optimizes the viewing experience, enabling patients to enjoy clear audio without external headsets, and allowing them to control the TV sound and video right from their bed.


Pro:Idiom DRM Compatible
Pro:Idiom MPEG4 Technology enables you to offer your guests a streamlined viewing experience with premium HDTV content from cable, satellite, or video on-demand services. It's easy and convenient to keep them entertained, with no optional cards or external box necessary.1

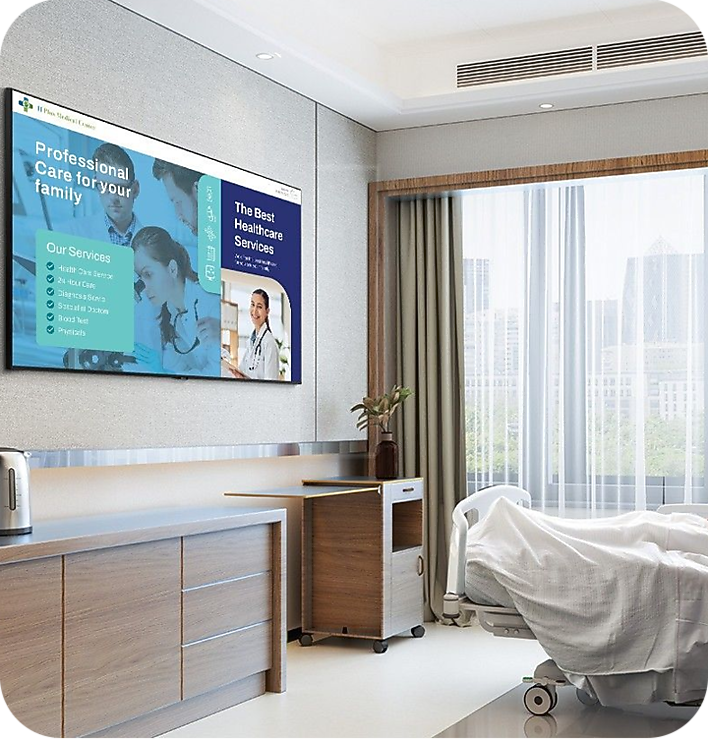

Create a comfortable, patient-friendly experience
Provide your patients with an entertainment experience that makes it feel more like home. Equipped with a pillow speaker interface, Samsung's HCU7030 Series Crystal TV enables clear streaming audio without headphones. The displays are UL-certified for installation in a variety of spaces in a hospital or healthcare facility.
Fine-tuned color for a vibrant, lifelike picture
PurColor creates an immersive viewing experience by displaying a wide range of colors for optimal picture performance.


See every shade of color as intended in brilliant 4K
Powerful 4K upscaling delivers superior visuals in up to 4K resolution, enhancing contrast and removing noise.
Heightened sense of depth and color
Contrast Enhancer dynamically adjusts the contrast, providing a beautifully enhanced sense of depth and color.


Sharpens the details in every scene
High Dynamic Range increases light levels on the TV, delivering an enormous spectrum of colors and clarifying all the visual details.
More screen, less bezel
Crafted with a sleek minimalistic style, the elegant design enables viewers to enjoy the clearest picture from every angle.

Specifications
Specifications
-
Accessory Remote Controller Model
TM2140A
Power Cable
Yes
Data Cable
Yes
Quick Install Guide
Yes
Batteries (for Remote Control)
Yes
Mini Wall Mount Supported
Yes
VESA Wall Mount Supported
Yes
-
General Feature OSD Language
English, Spanish, French
Auto Power Off
Yes
Caption (Subtitle)
Yes
Voice Guide
US English, Mexico Spanish, Canada French, Finnish, German, Greek, Hungarian, Italian, Norwegian, Polish, Portugal Portuguese, Romanian, Slovak, Swedish, Czech, Danish, Dutch, Korean
V-Chip
Yes
-
General Information EPG
Yes
-
Interface USB (Side/Rear)
2
Ethernet (LAN) (Side/Rear)
1
Digital Audio Out (Optical) (Side/Rear)
1
-
Display Screen Size
55
Resolution
4K (3,840 x 2,160)
Screen Size (Diagonal)
55
Product
LED
-
Video Picture Engine
Quantum Processor 4K Lite
Viewing Angle (H/V)
178/178
Color
Pur Color
Picture Engine
Quantum Processor 4K Lite
Film Mode
Yes
Contrast
Mega Contrast
Contrast Enhancer
Yes
HDR(High Dynamic Range)
HDR
HDR10+
Support
HLG (Hybrid Log Gamma)
Yes
Noise Reduction
Yes
-
Connectivity Anynet (HDMI-CEC)
Yes
Wi-Fi
Yes (WiFi5)
Anynet (HDMI-CEC)
Yes
-
Power Power Consumption (Typical)
99 W
Power Supply (V)
AC110-120V~ 50/60Hz
Power Consumption (Max)
135 W
Power Consumption (Typical)
56 W
Power Consumption (Stand-by)
0.5 W
-
Features Ambient Mode
Yes
-
Audio Object Tracking Sound
OTS Lite
Bluetooth Audio
Yes
Speaker Type
2CH
Sound Output (RMS)
20W
Bluetooth Audio
Yes
Dolby Decoder
MS12 2CH
Object Tracking Sound
OTS Lite
Adaptive Sound
Adaptive Sound
-
Dimensions Set Dimension with Stand (WxHxD)
N/A x N/A x N/A
Package Dimension (WxHxD)
54.57 x 33.19 x 6.22 inch
Set Dimension without Stand (WxHxD)
48.44 x 27.84 x 2.36 inch
-
Weight Shipping Weight
42.33 lb
Set Weight without Stand (lb)
30.64 lb
Package Weight
19.2 kg
Set Weight without Stand
13.9 kg
-
Accessories Battery (for Remote Control)
Yes
Mini Wall Mount Support
Yes
VESA Wall Mount Support
Yes
-
Input / Output Pillow Speaker Jack (Side/Rear)
1
Pillow Speaker Jack (Side/Rear)
1
-
Eco Eco Sensor
Yes
-
VESA VESA Screw Size
M8
VESA Mount
200 x 200 mm
VESA Mount (mm)
200 x 200 mm
VESA Screw Depth
20-22
-
Design Stand Type
NONE
Front Color
BLACK
Bezel Type
3 Bezel-less
-
Hospitality Features Samsung LYNK™ DRM
Yes
Mixed Channel List (ATSC ,DVB-T/T2/C/S2 ,Analog)
Yes
UL Certification for Hospital Grade
UL 60601
Mixed Channel List (ATSC ,DVB-T/T2/C/S2 ,Analog)
Yes
-
Convergence Ambient Mode
Yes
-
System Analog Tuner
Yes
Digital Broadcasting
ATSC/ClearQAM
Samsung ProCare Device Protection
Samsung ProCare Device Protection
Staying connected is critical. With ProCare Device Protection, you'll help ensure business continuity and maintain your company's valuable assets.
Staying connected is critical. With ProCare Device Protection, you'll help ensure business continuity and maintain your company's valuable assets.
Support
Support
Features and specifications are subject to change without prior notification.
1Pro:Idiom MPEG4 technology makes the HCU7030 Series TVs compatible with most major VOD/ PPV systems that by law must encrypt the video stream.
